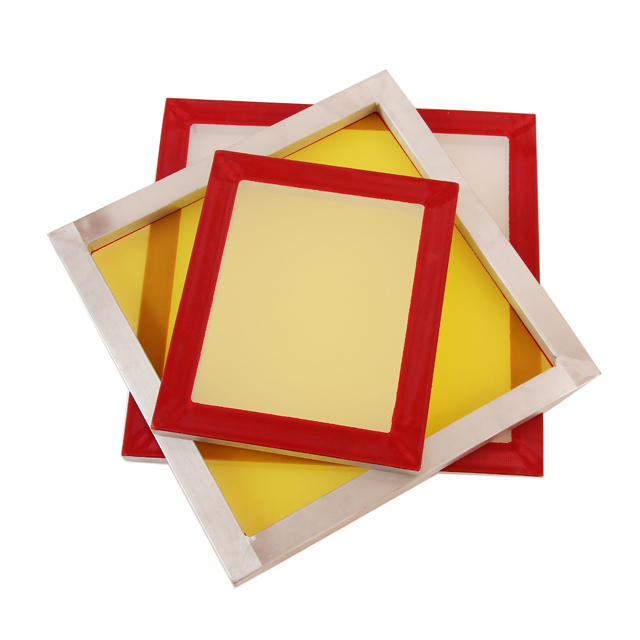

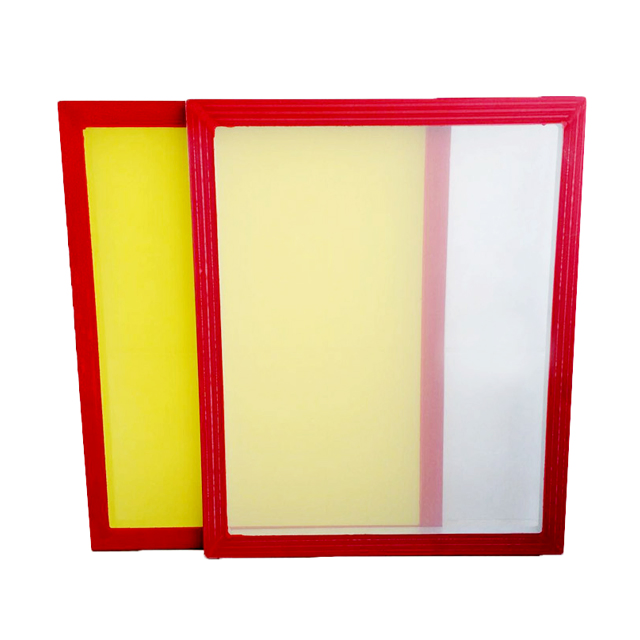

125-160 20X24 Silk Screen Stretch Tissue Printing Mesh Frame Material

1 / 5

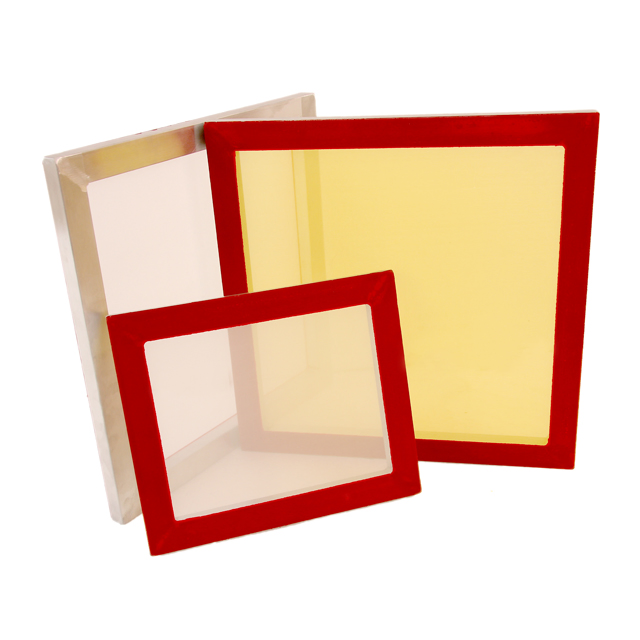

125-160 20X24 Silk Screen Stretch Tissue Printing Mesh Frame Material

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Screen Printing Frame

Style

Positive

Material

6063-T5 (RoHS)

Surface

Sandblasting

Package

Export Carton and Pallet

Origin

China

HS Code

8442500000

Capacity

20,000 Pcs/Month

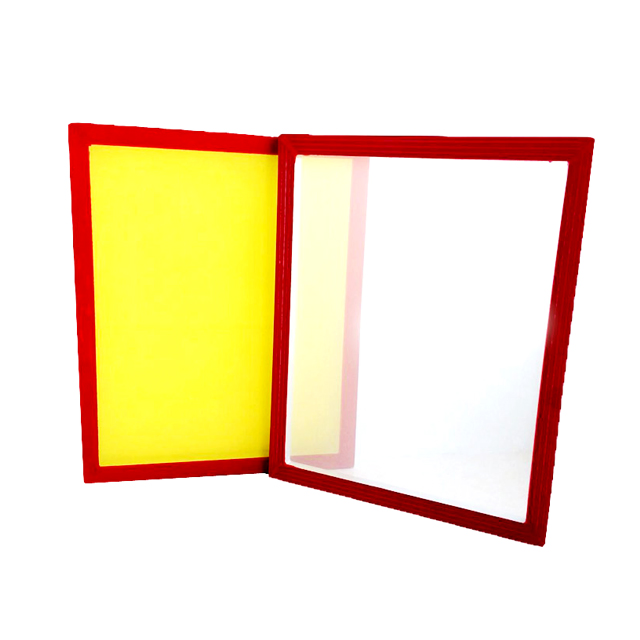

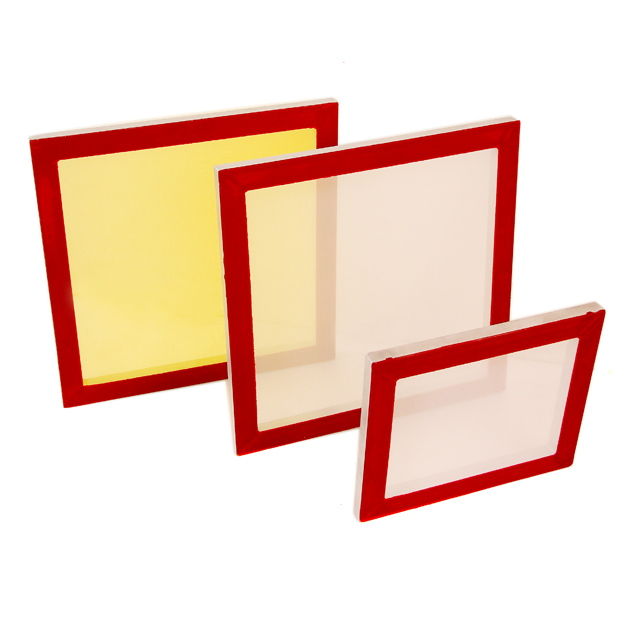

Aluminum Screen Printing Frames

High-quality AL-frames designed to meet diverse market needs. With over forty types of cross profiles offering high strength and precision, these frames are widely used for M&R, TAS, MHM, ROQ, ASPE, and various manual or automatic textile screen printing machines.

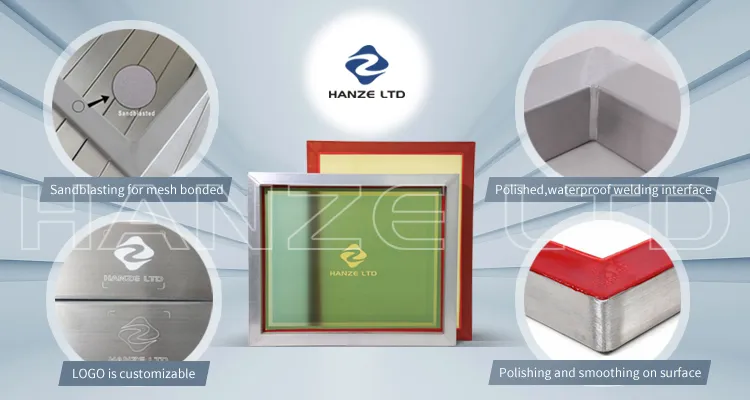

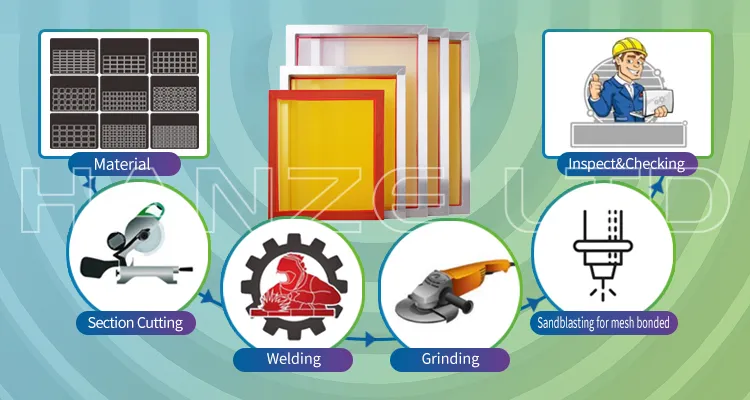

Production Process

Aluminum frames are cut from 6063T5 alloy in a variety of extrusion profiles. Each profile offers unique characteristics to accommodate different machine specifications and tension requirements.

Size Specifications

Outside Diameter (Inch)	Profile (Inch)	Max Image Size
10" X 14"	1" X 1"	5" X 8"
12.5" X 17.5"	1" X 1"	7" X 12"
18" X 20"	1-3/8" X 1-3/8"	11" X 12"
20" X 24"	1-3/8" X 1-3/8"	13" X 16"
23" X 31"	1-1/2" X 1-1/2"	16" X 24"
25" X 36"	1-1/2" X 1-1/2"	18" X 28"
30" X 43"	1-1/2" X 1-1/2"	23" X 35"
36" X 48"	1-1/2" X 2"	28" X 38"

Core Features

Lightweight for ease of handling
Corners welded & watertight
Ground smooth finish
Sandblasted for excellent mesh adhesion
Free of deformation and durable in use

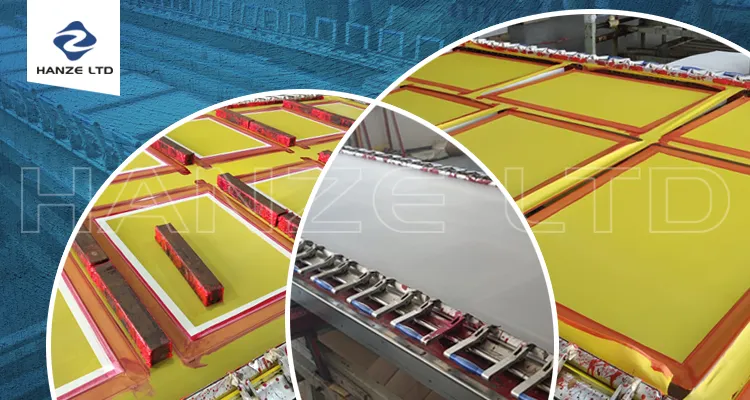

Professional Stretching Service

Our automatic stretching machines provide stable and balanced tension, ensuring high-quality printing results.

Advantages of High Tension Screens:

Delivers accurate registration
Improves sharpness and ink coverage
Reduces ink consumption and wastage
Increases stencil life and production speed

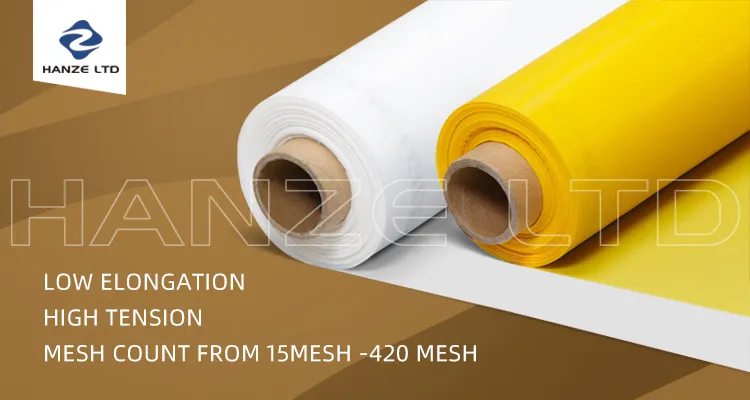

Polyester Screen Mesh Selection

25-40 mesh: Ideal for glitter inks.
60-90 mesh: For shimmer inks and thick white underbase.
110 mesh: Most popular for light colors like white.
160 mesh: Best for darker colors; holds more detail than 110.
230-305 mesh: Used for super fine details, half-tones, and CMYK process.

Frequently Asked Questions

Q1: What material is used for these printing frames? The frames are manufactured from high-grade 6063-T5 aluminum alloy, ensuring lightweight handling combined with exceptional strength.

Q2: Are the frame corners waterproof? Yes, all corners are professionally welded and tested to be completely watertight, then ground smooth for safety and performance.

Q3: Can these frames be used on automatic printing machines? Absolutely. Our frames are compatible with major brands including M&R, TAS, MHM, ROQ, and other automatic or manual textile machines.

Q4: Why is sandblasting applied to the frame surface? Sandblasting creates a textured surface on the side where the mesh is bonded, providing superior adhesion for the glue and preventing mesh slippage.

Q5: Which mesh count should I choose for fine detail printing? For super fine details, halftones, or CMYK process prints, we recommend using a mesh count between 230 and 305 mesh.

Q6: What are the benefits of using high-tension screens? High tension improves registration accuracy, sharpness of the image, and reduces ink consumption while increasing overall production efficiency.
