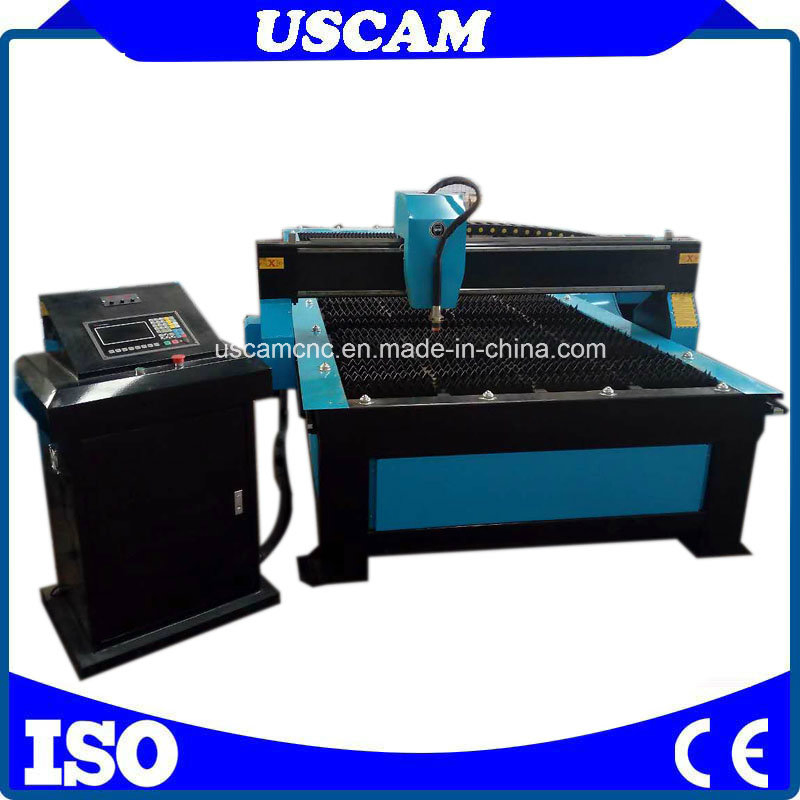

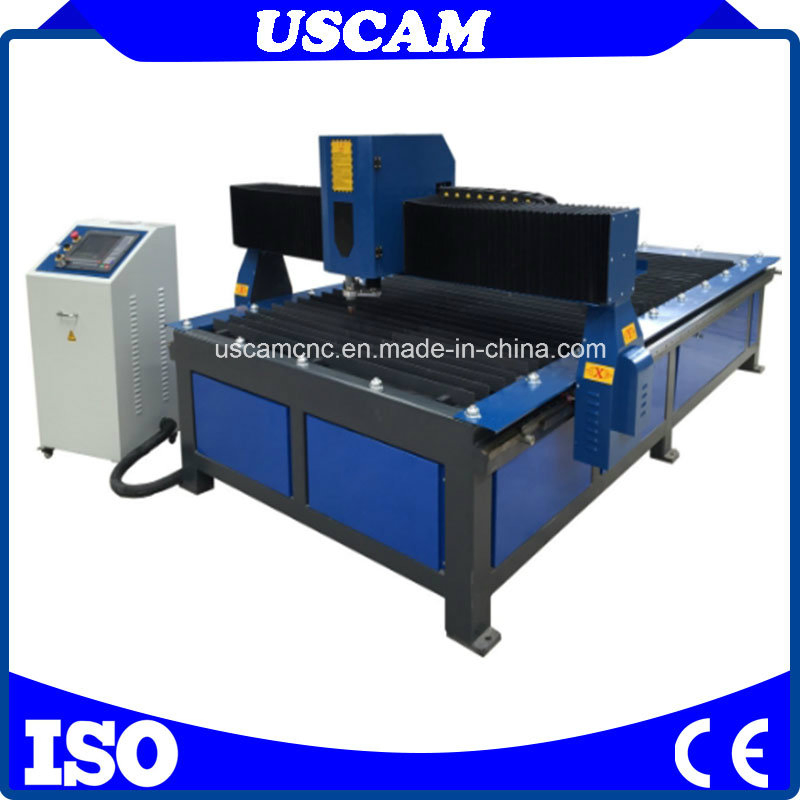

Customized Size Plasma for Cutting Metal Materials

Basic Specifications

Model NO.

USP1325

Cutting Material

Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel

Automatic Grade

Automatic

Power Source

Electric

Cutting Mode

Plasma Cutting

Connecting Way

USB Interface

Cutting Thickness

1-50 mm

Control System

Start Control System

Working Voltage

AC380V/50Hz

Z Axis System

Ball Screw, Hiwin Linear Rails

X Y Axis System

Rack and Pinion, Hiwin Rails

Drive Mode

Stepper or Servo

Positioning

0.03/300mm

Plasma Power

Hypertherm, Huayuan

Plasma Table

Knief Table Surface

HS Code

8456901000

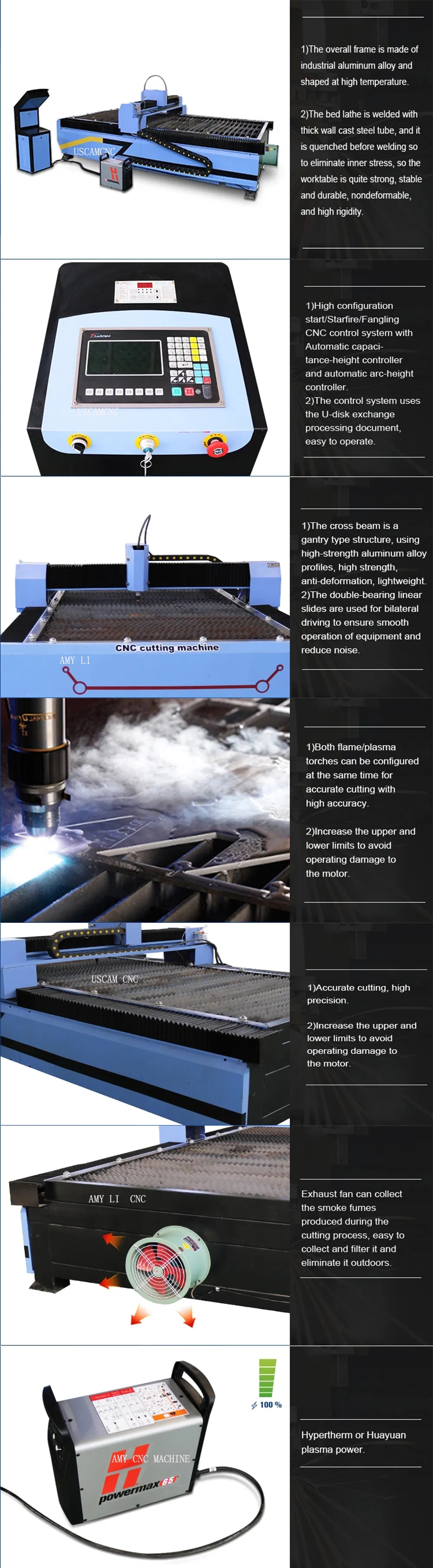

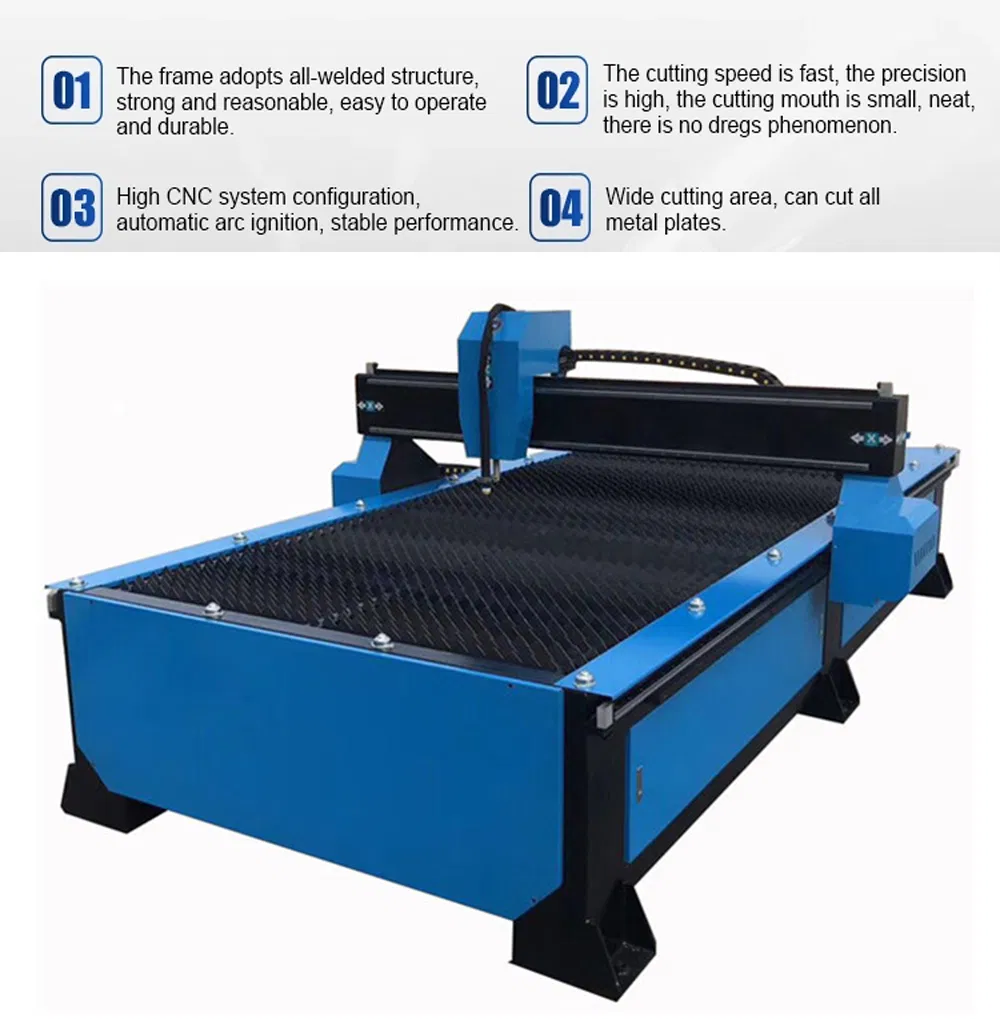

Key Characteristics

Imported guide rail and double ball slider provide heavy loading capability and smooth precision.

High-speed stepper motor and dual-motor Y-axis drive enable speeds up to 20 meters per minute.

Whole steel structure with high-temperature tempering ensures a distortion-free, strong frame.

Advanced CNC control methods ensure high cutting speed, precision, and neat slits, avoiding secondary processing.

Automatic breakpoint memory: The torch automatically returns to break points after adjustment.

Equipped with automatic ignition and height control functionality for stable performance.

Compatible with various CAD/CAM software including Type3, Artcam, Castmate, and Wentai.

Technical Parameters

Working Area	1300x2500mm / 1500x3000mm / 2000x3000mm
Working Materials	Iron, steel, aluminum, sheets, galvanized sheets, titanium plates
Cutting Thickness	0.5-40mm
Cutting Speed	0-8000mm/min
Control System	Beijing Start control system (Updated version)
Control Software	Fastcam
Drive System	Stepper / Servo
Input Voltage	220V / 380V - 50HZ
Plasma Power	63A (100/120/160/200A for option)
Files Transfer	USB interface
Arc Mode	Untouched arc striking
File Format	G-code
Plasma Source	Huayuan or Hypertherm (optional)

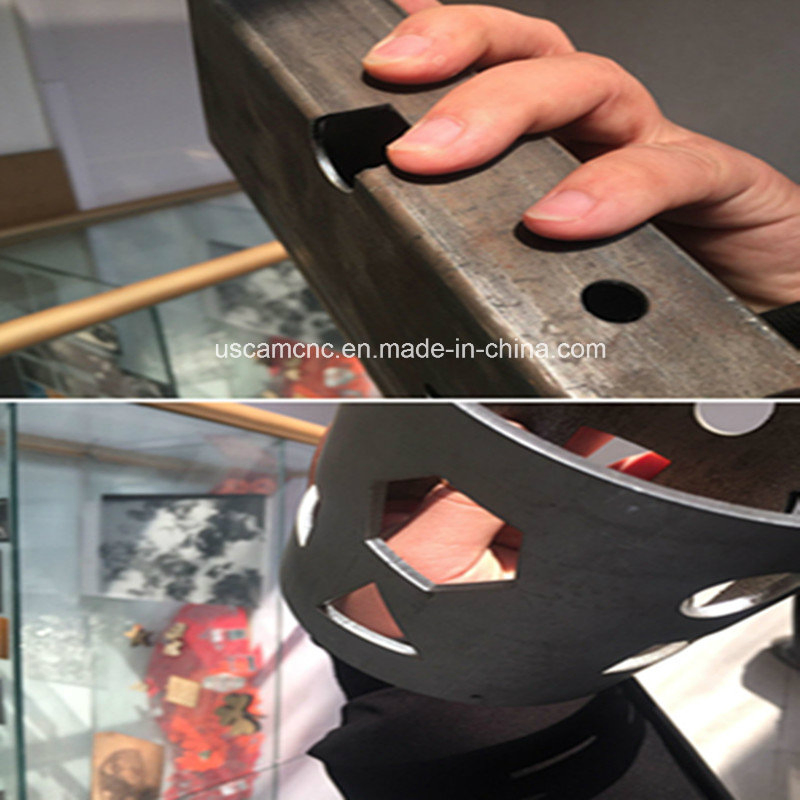

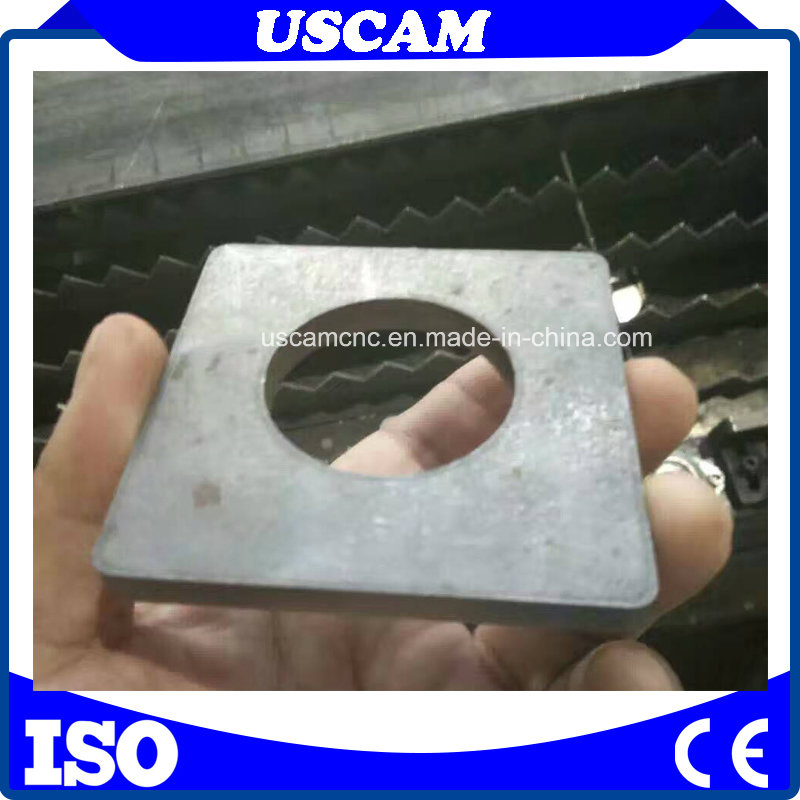

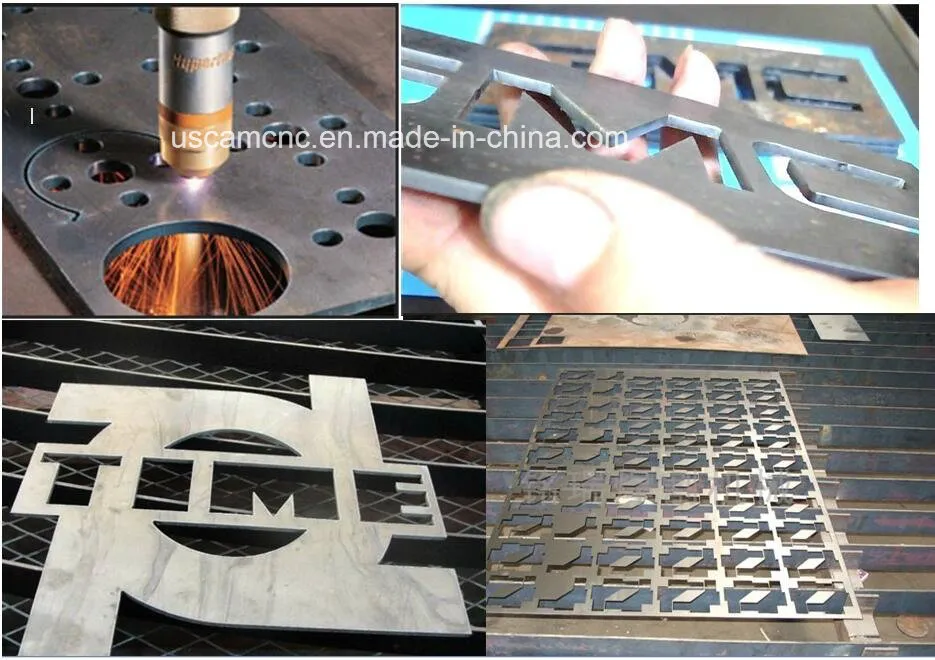

Application Field

Application Materials: Stainless steel, mild steel, brass, copper, aluminum alloy, sheet metal, spring steel, gold, silver, etc.

Application Industry: Sheet metal, kitchenware, components, and decorations industry.

Packing and Shipping

Standard plywood case with superior compressive strength and bearing quality.

Excellent leakproofness and waterproof structure for safe transportation.

Fumigation-free plywood simplifies the import procedure.

Delivery Detail: Typically within 7-15 days after payment receipt.

After-Sales Service

2-year quality guarantee: Main parts (excluding consumables) replaced free during warranty.

Lifetime maintenance provided free of charge.

Free technical training and course support.

Consumable parts provided at agency prices when replacement is needed.

24-hour online service and free technical support daily.

Frequently Asked Questions

Q1: What information is needed to recommend the most suitable machine?

Please provide the specific material you need to cut, the maximum thickness of the metal, and the preferred working area (e.g., 1300x2500mm, 1500x3000mm).

Q2: How is the quality of the machine controlled before delivery?

The entire production procedure undergoes regular inspection and strict quality control. Complete machines are tested before leaving the factory, and testing videos/pictures are available.

Q3: Do you provide training for new users?

Yes, we offer free training at our plant. If needed, engineers can be dispatched to your location to provide on-site instruction.

Q4: What materials can this plasma machine cut?

It is designed for various metals including stainless steel, mild steel, brass, copper, aluminum alloy, galvanized sheets, and titanium plates.

Q5: What is the standard cutting thickness range?

The machine generally handles thicknesses from 0.5mm to 40mm, depending on the chosen plasma power source (63A to 200A).

Q6: What software is compatible with the CNC system?

The system is compatible with standard CAD/CAM software such as Fastcam, Type3, Artcam, and Castmate, supporting G-code file formats.
