Cellar Aluminum
1 / 5

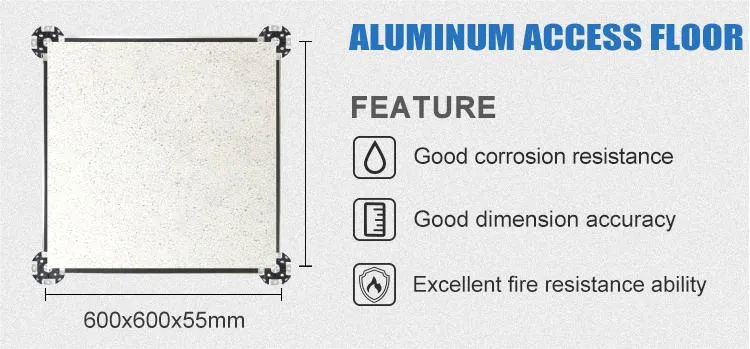

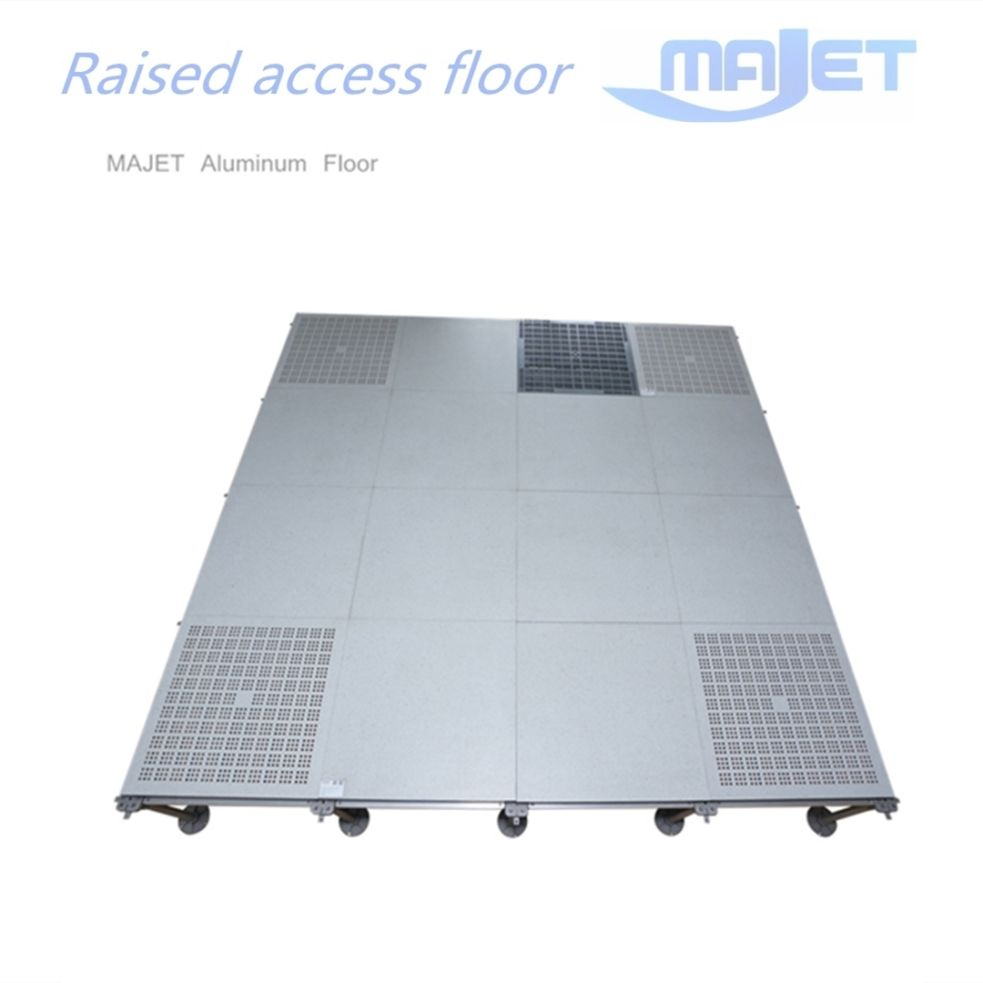

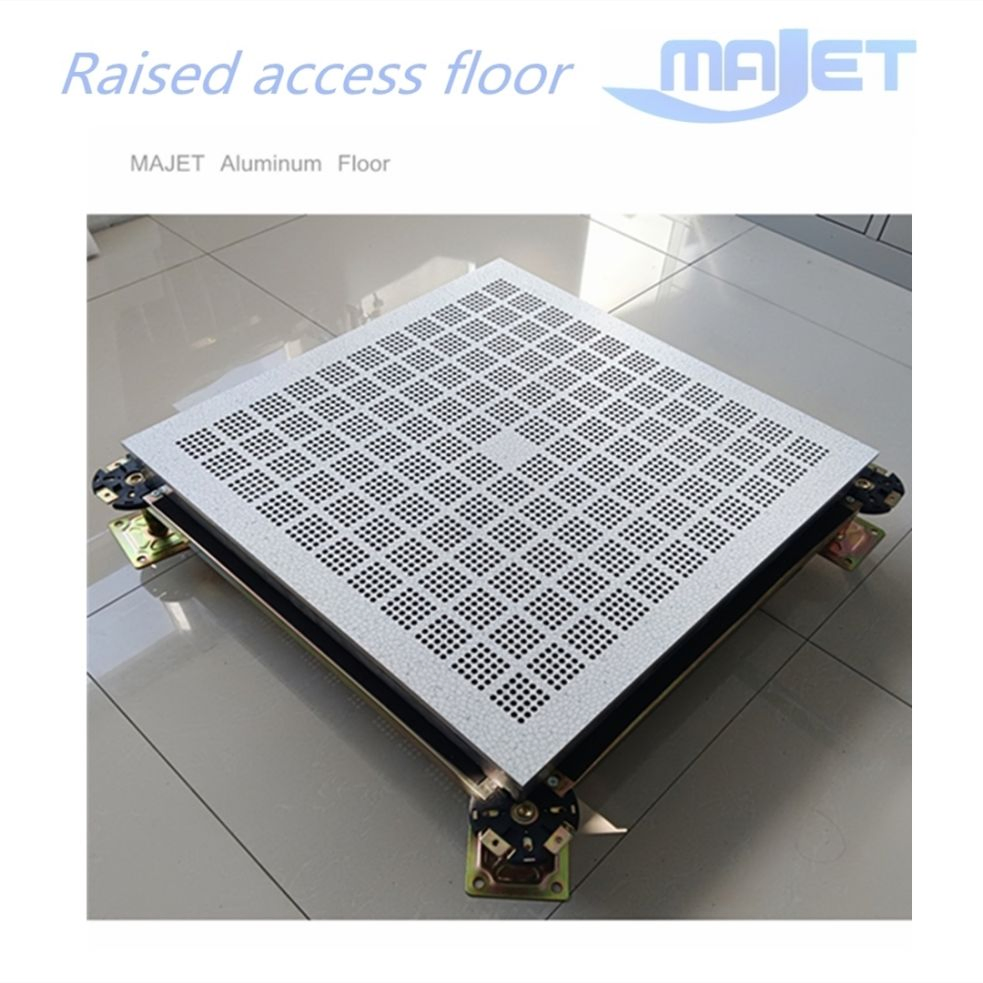

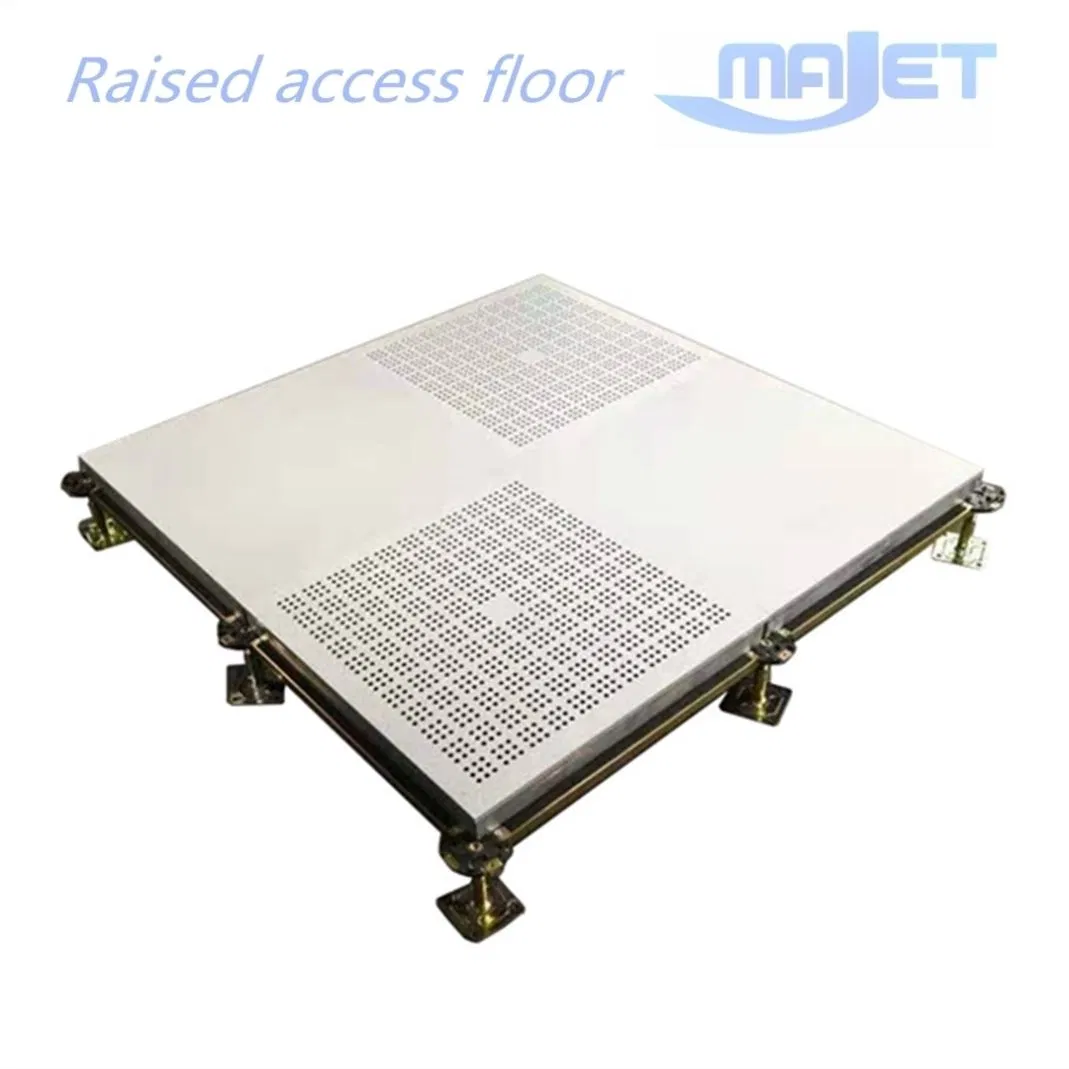

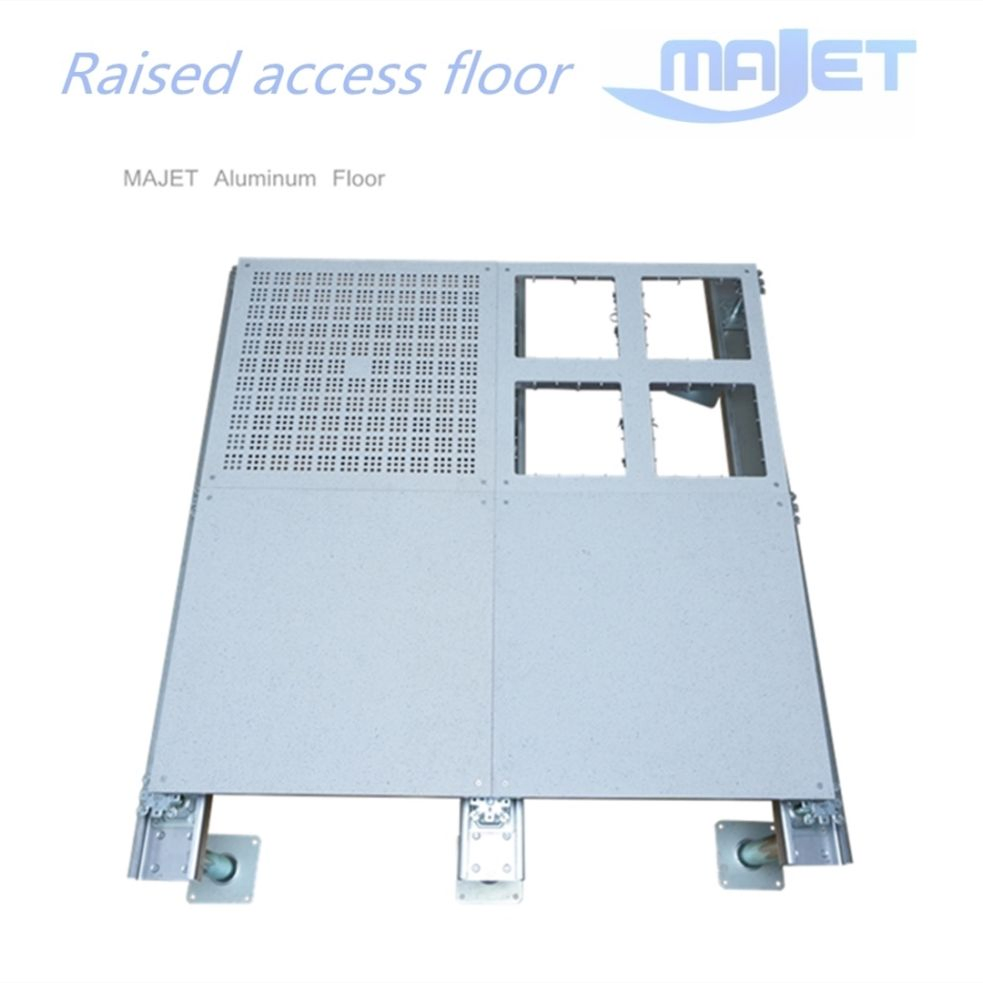

Solid aluminum raised access flooring provides an advanced solution for clean rooms and high-tech environments. Utilizing high-quality die-cast aluminum material (ADC12), these panels offer high dimensional stability, corrosion resistance, and exceptional load-bearing capacity while remaining lightweight.

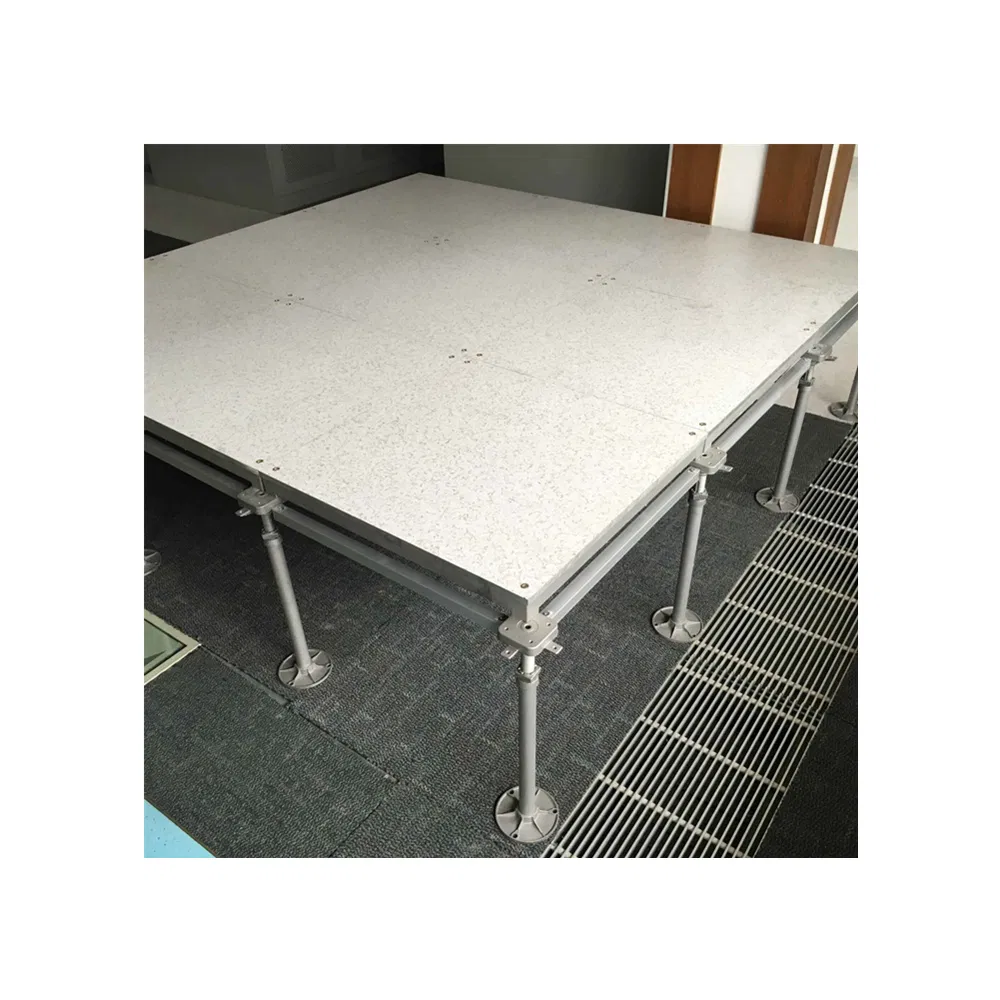

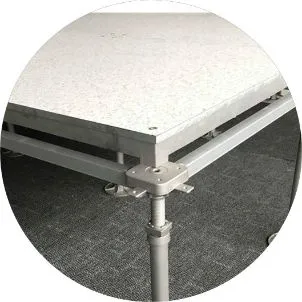

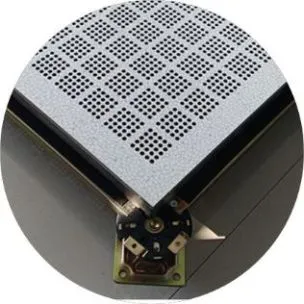

The system features various surface treatments including epoxy spraying or nickel-chromium plating. For anti-static performance, high-quality HPL (High Pressure Laminate) or PVC veneer materials are utilized. The structure is supported by adjustable overhead pedestal systems, available in both galvanized steel and aluminum variants.
| Model | Concentrated (N) | Impact Load (N) | Ultimate Load (N) | Uniform Load (N/m²) | Rolling Load (10 Times) | Rolling Load (10000 Times) |
|---|---|---|---|---|---|---|
| SC668 | ≥2990 | 670 | ≥8890 | ≥12500 | 2215 | 1548 |
| SC800 | ≥3590 | 670 | ≥10799 | ≥19796 | 2959 | 2215 |
| SC1000 | ≥4498 | 670 | ≥13494 | ≥23294 | 3596 | 2959 |
| SC1250 | ≥5595 | 670 | ≥16797 | ≥33084 | 4498 | 3596 |
| SC1500 | ≥6693 | 670 | ≥20090 | ≥42581 | 5595 | 4498 |
| SC2000 | ≥8898 | 670 | ≥26685 | ≥49784 | 6693 | 5595 |
| SC2500 | ≥11093 | 670 | ≥33290 | ≥58280 | 8898 | 6693 |

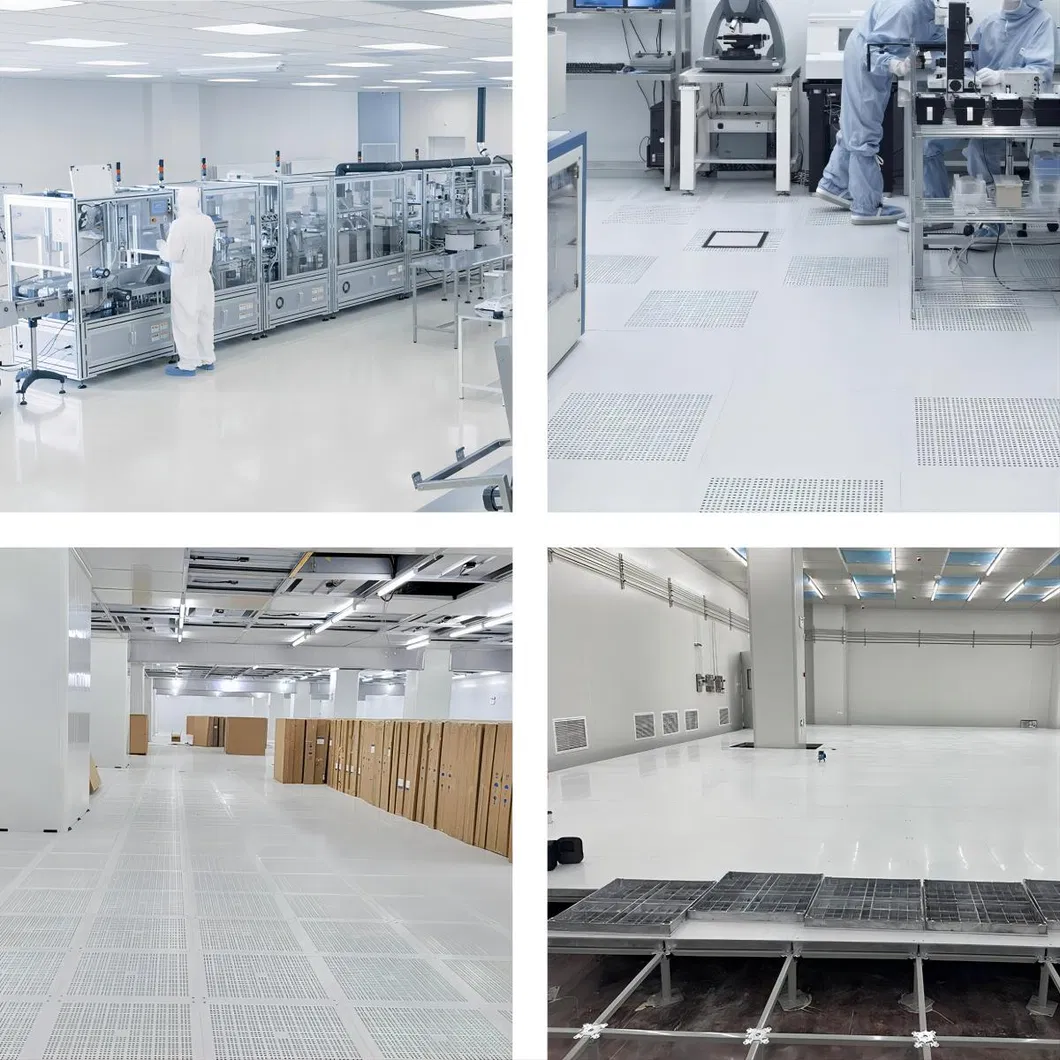

Demanding precision in temperature control and efficient cable management.
Facilitating utility routing while maintaining sterile conditions and microbial resistance.
Providing flexibility for frequently changing layouts and organized power infrastructure.
Creating safe, elevated walkways above machinery for maintenance accessibility.

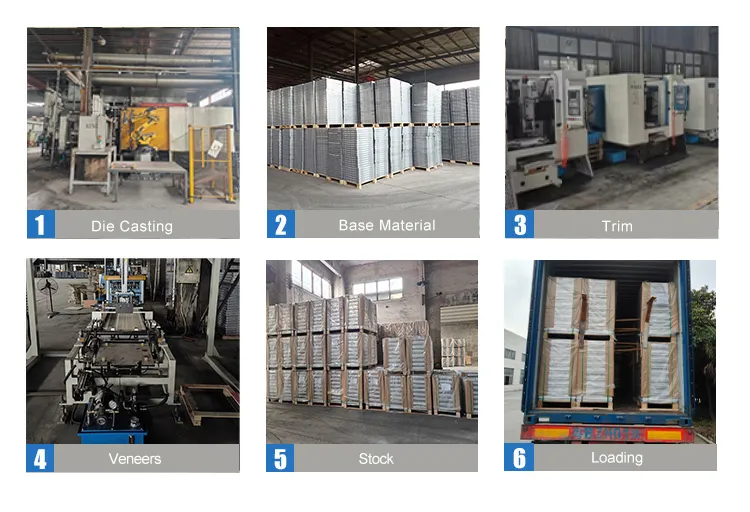

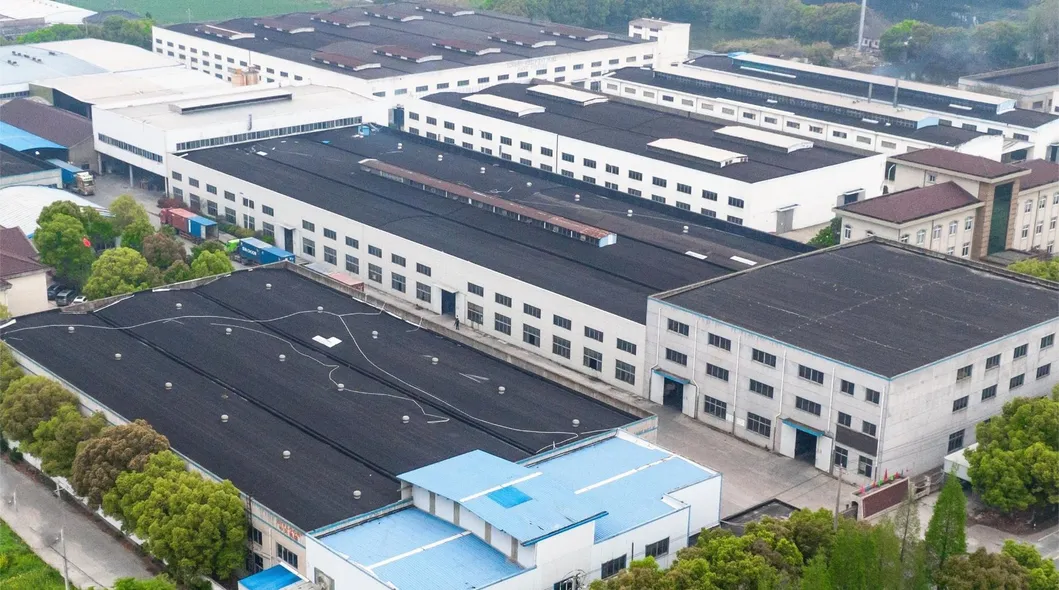

With over 35 years of experience in raised access floor manufacturing, the production facility spans 60,000 square meters. High automation ensures a daily output of 5,000 square meters, meeting international standards including ISO, KS, and CISCA.
