📊 Basic Information
Function
Thermal Insulation, Anti-Fouling, Fireproof, Soundproof, Waterproof, Anti-static
Usage
Electrical Factory, Computer Room, Bank, Offices
Advantages
Strong Stability, Anti-Stress

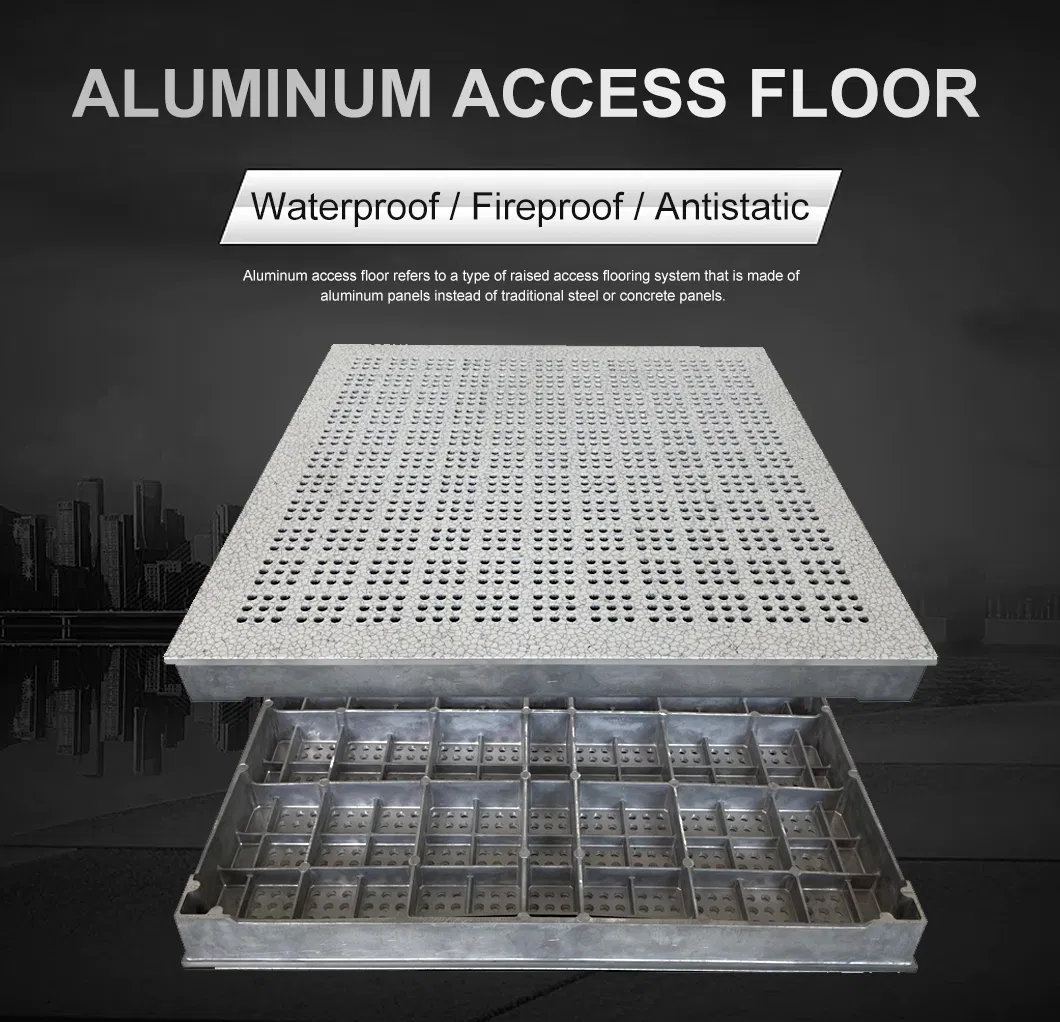

🛡️ Aluminum Access Floor Overview

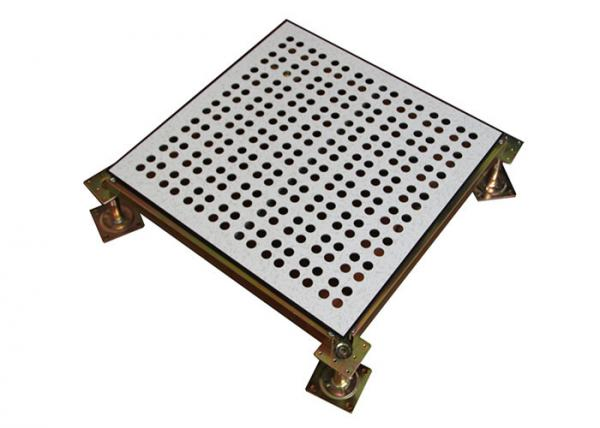

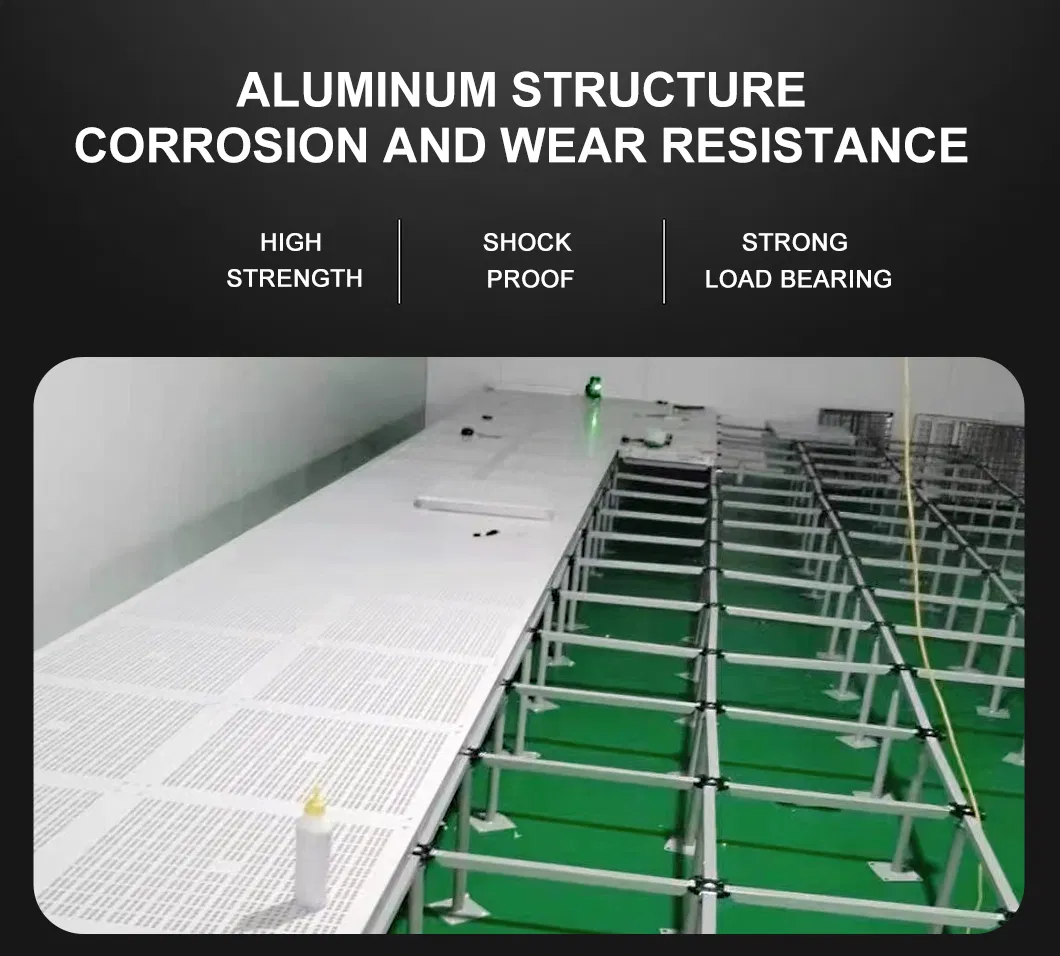

The raised access floor system is the ideal product for nearly all applications with its excellent technical and building-physical characteristics. Die-cast Aluminum panels are used in severely demanded work places. The grid structure of the blind panel can disperse the weight of mechanism equipment effectively. The substructure consists of height-adjustable aluminum pedestals which form the necessary cavity for installations.

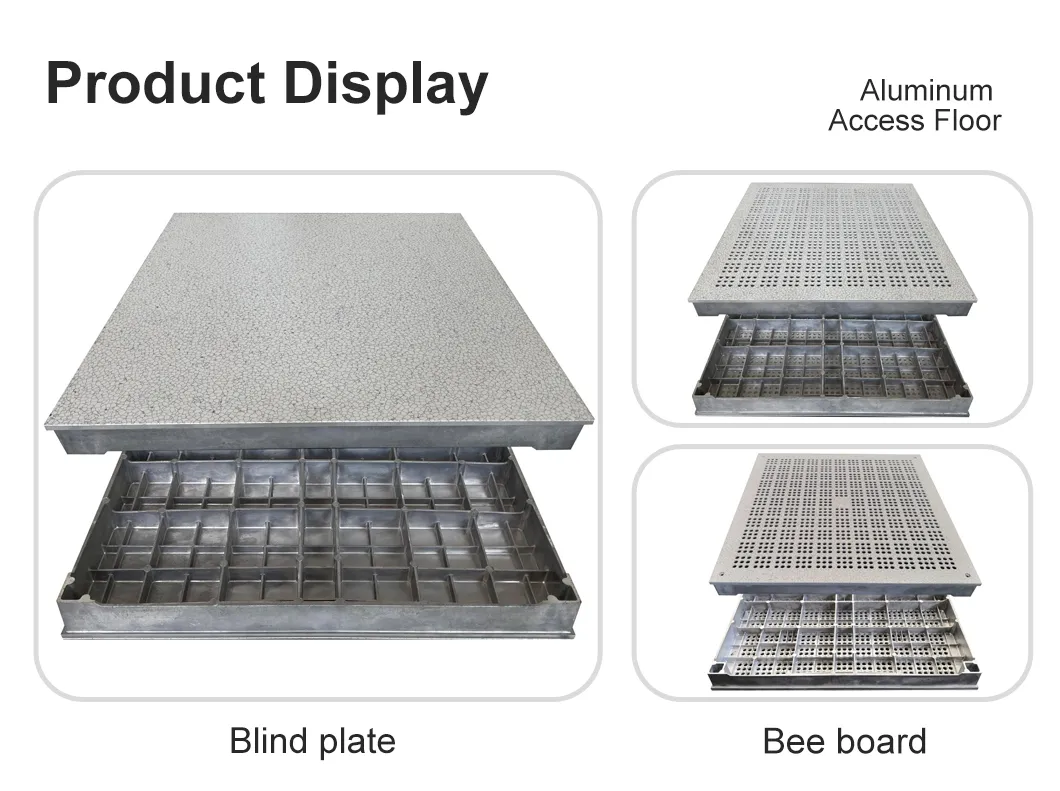

Aluminum Blind Panels are designed for areas where extremely heavy loads are to be placed. The unique lattice structure of these solid panels enables weight to be distributed in an optimum way so as to support heavy equipment. The precision afforded by each panel allows for excellent accessibility and inter-changeability when needed—yet they are durable and strong enough to withstand concentrated loads found in semiconductor cleanrooms and other manufacturing environments.
📐 Technical Parameters
| Type |
Hole Diameter |
Ventilation Rate |
Concentrated Load (N) |
Impact Load (N) |
Ultimate Load (N) |
Uniform Load (N/m) |
| AS450-TFA |
Φ8x1536 |
22% |
≥1960 |
450 |
58820 |
12500 |
| AS800-TFB |
Φ16x576 |
32% |
≥3550 |
670 |
10700 |
17000 |
| AS800-TFC |
Φ22x400 |
42% |
≥3550 |
670 |
10700 |
17000 |
| AS1000-TFD |
Φ10x918 |
20% |
≥4450 |
670 |
13350 |
23000 |
| AS1000-TFE |
Φ(52x18)x128 |
45% |
≥4450 |
670 |
13350 |
23000 |
| Size |
600x600mm |
✨ Key Characteristics
- Available with top surface adjustable dampers
- Interchangeable with woodcore panel/calcium sulphate panel
- Provides superior cooling for managing heat loads
- Same size and finish as solid panels for seamless integration

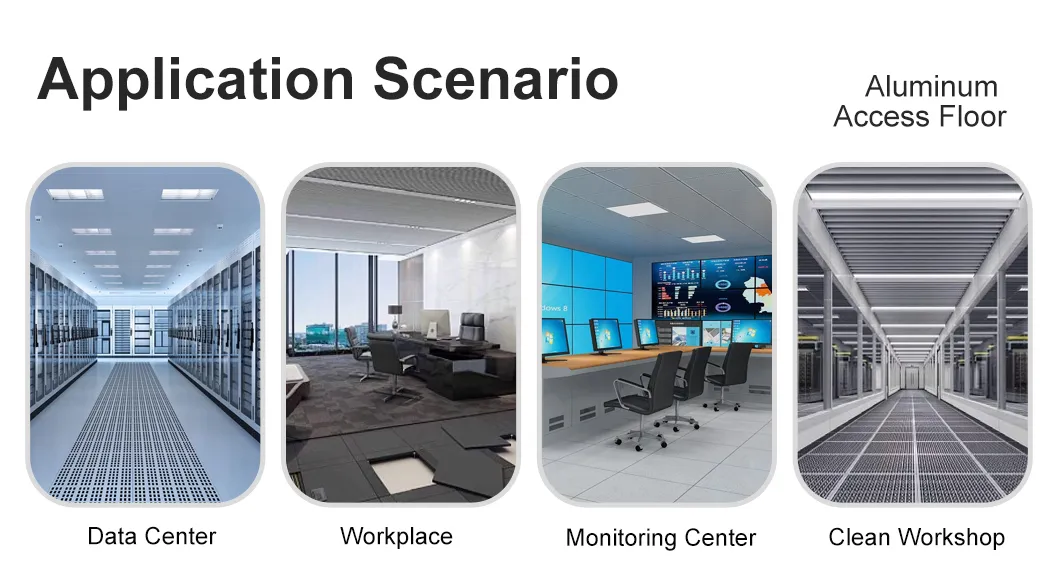

🏢 Application Scenarios
Ideal for computer rooms, communication rooms, exchange equipment rooms, and places requiring high air circulation, dust-proof, and anti-static environments.
🏆 Manufacturing Expertise

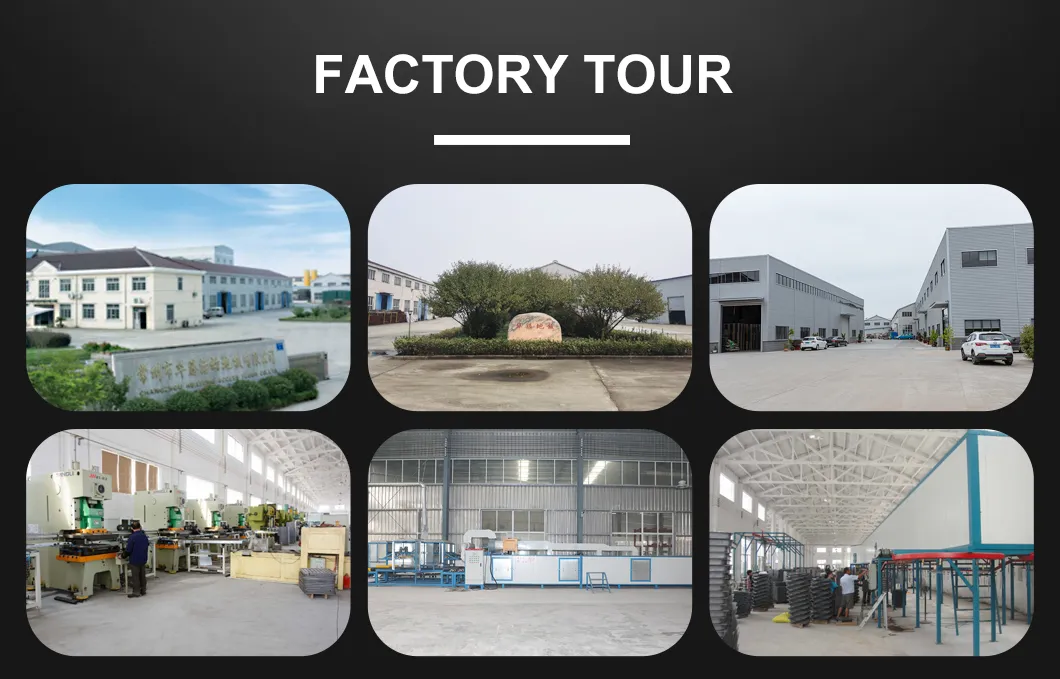

Specializing in Raised Access Floors since 1993, the production facility covers 80,000 square meters. Utilizing a digital automatic production line from steel cutting to welding, we ensure precision and quality. Our products are widely used in offices, data centers, clean rooms, and public spaces globally, including markets in Asia, North America, Middle East, USA, and Europe.

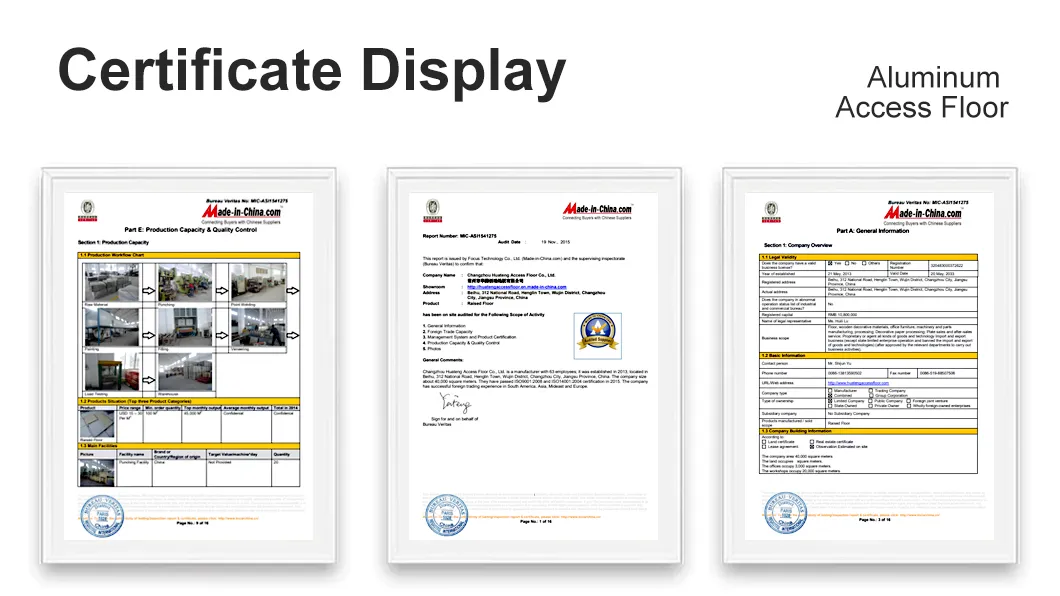

📜 Certifications
❓ Frequently Asked Questions
1. What are the primary functions of aluminum access floors?
These floors provide thermal insulation, fireproofing, soundproofing, and waterproofing, while offering essential anti-static properties for electronic environments.
2. In which environments should I install this flooring system?
It is ideal for data centers, server rooms, communication exchanges, cleanrooms, and any commercial space requiring underfloor cable management and ventilation.
3. Can the aluminum panels handle heavy machinery?
Yes, the die-cast aluminum lattice structure is specifically designed to disperse heavy loads effectively, supporting concentrated loads from 1960N up to 4450N.
4. Are different ventilation options available for airflow management?
Yes, we offer various hole diameters and ventilation rates (ranging from 20% to 45%) to manage heat loads and ensure superior cooling.
5. What is the standard size of the floor panels?
The standard size is 600x600mm, designed for high precision and interchangeability with other panel types like woodcore or calcium sulphate.
6. Does the manufacturer hold international quality certifications?
Yes, the production processes are certified under both ISO9001 and ISO14001 quality and environmental management systems.
