Cellar Aluminum
1 / 5

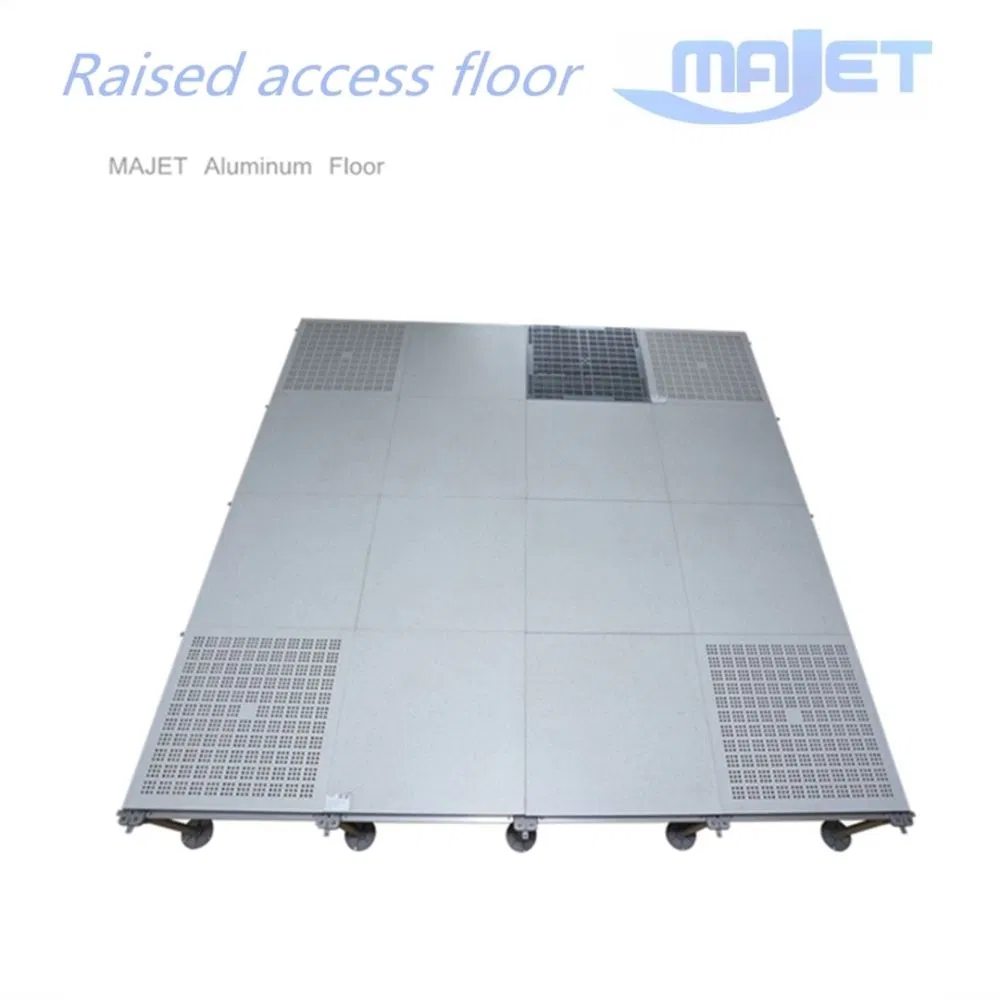

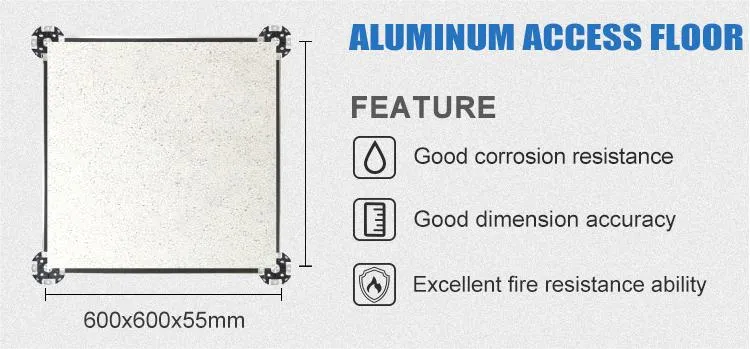

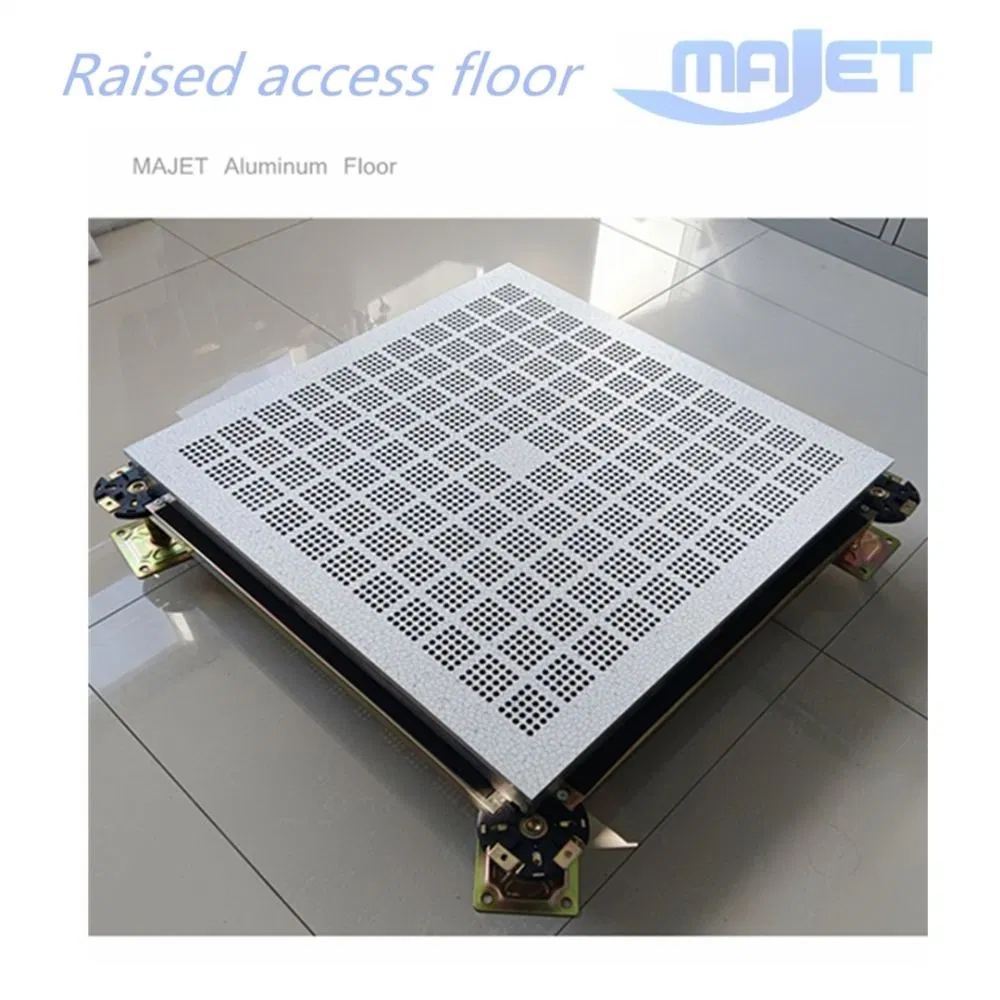

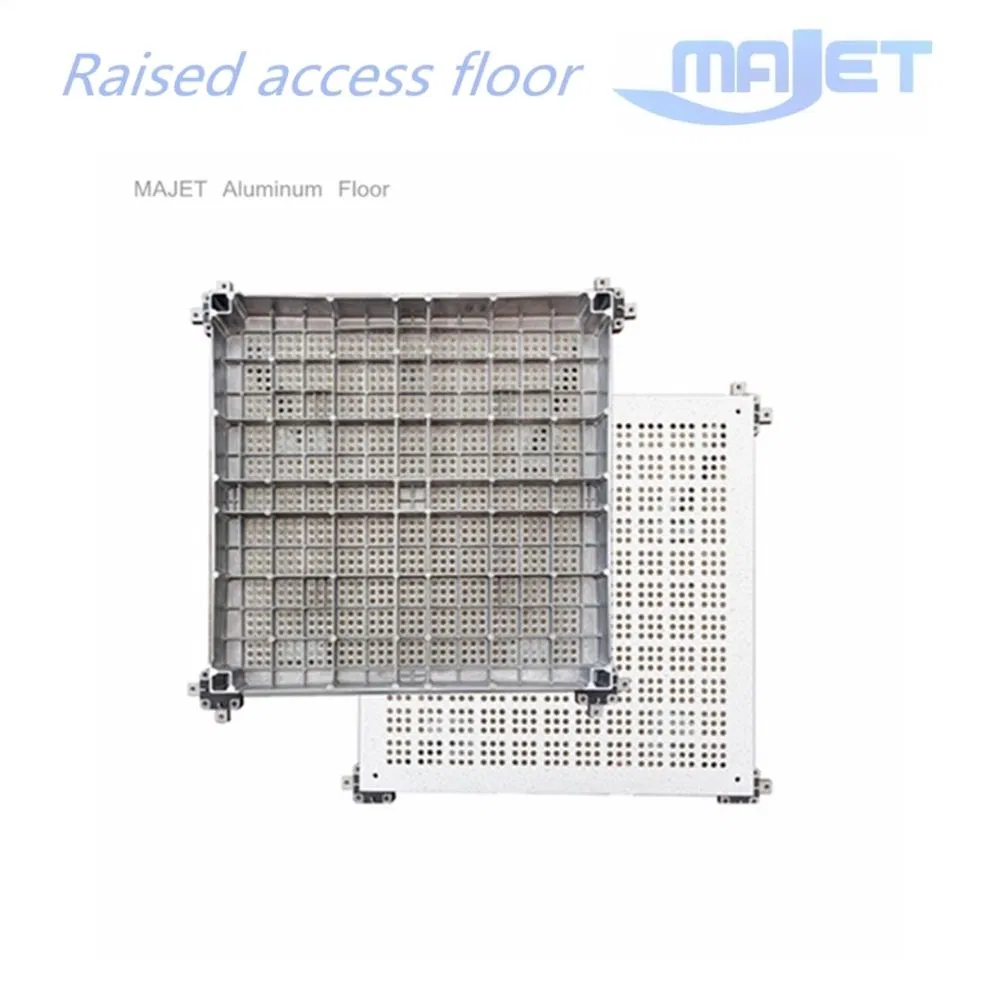

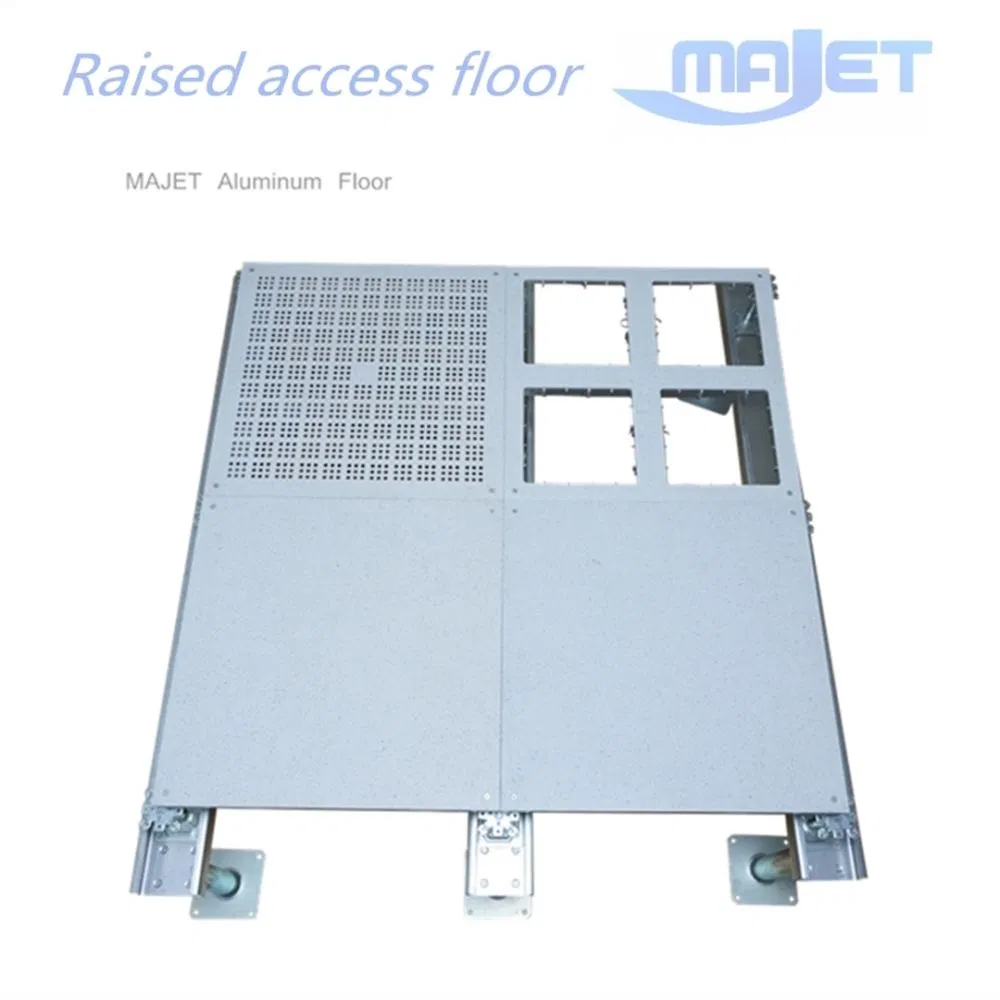

Solid aluminum raised access flooring system provides a premium solution for cleanrooms and high-end office environments. Using high-quality die-cast aluminum ADC12, these panels offer exceptional mechanical properties, dimensional stability, and corrosion resistance.
1Main Material: High-quality die-cast aluminum with high structural integrity and light weight.
2Surface Treatment: Options include epoxy spraying or nickel-chromium plating for enhanced durability.
3Veneer Materials: Anti-static HPL and PVC materials tailored for technical requirements.

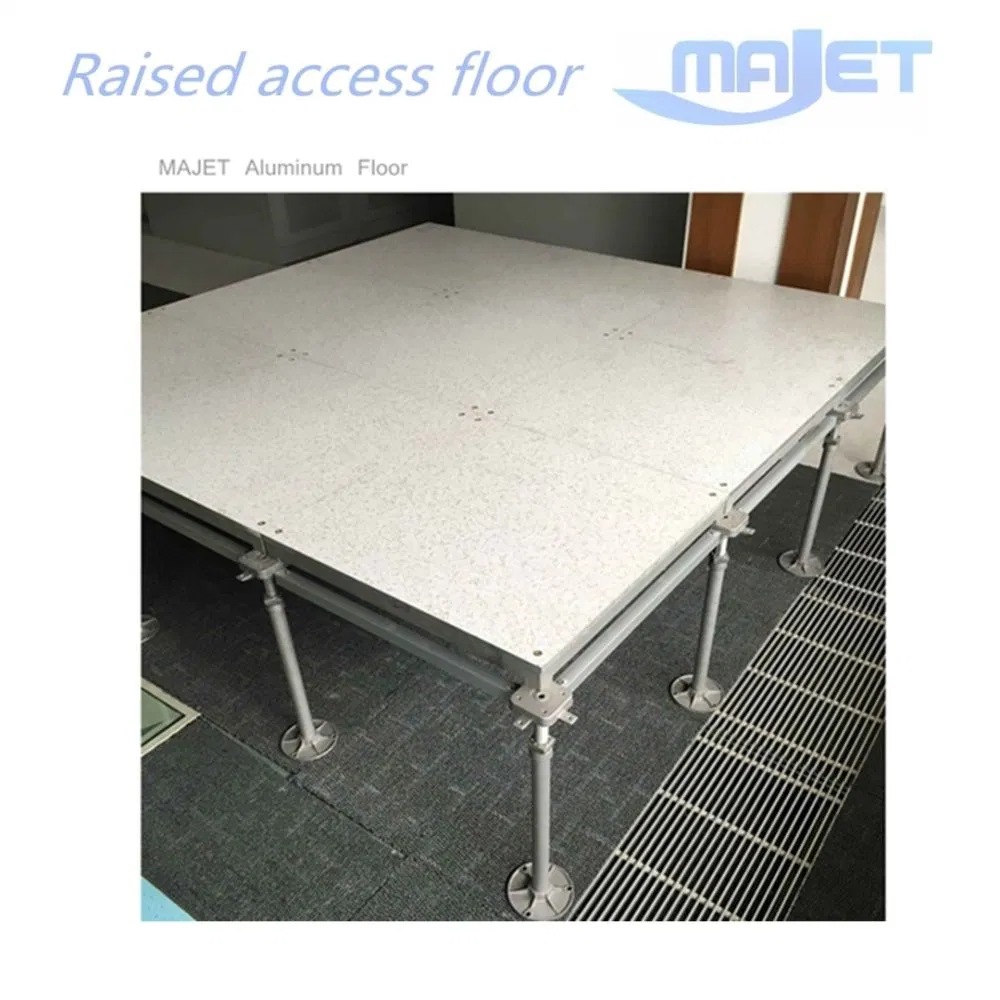

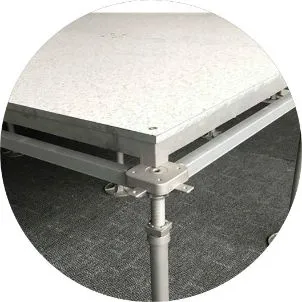

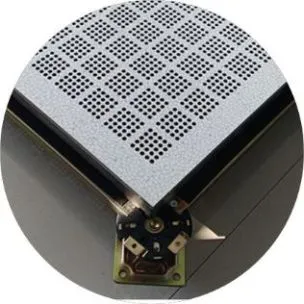

4Overhead System: Compatible with galvanized steel or aluminum pedestal systems for adjustable installation heights.
Our raised floors follow the CISCA standard for load-bearing classification. Use the table below to select the appropriate level for your project.
| Model | Concentrated (N) | Impact (N) | Ultimate (N) | Uniform (N/m2) | Rolling (10,000 times) |
|---|---|---|---|---|---|
| SC668 | ≥2990 | 670 | ≥8890 | ≥12500 | 1548 |
| SC800 | ≥3590 | 670 | ≥10799 | ≥19796 | 2215 |
| SC1000 | ≥4498 | 670 | ≥13494 | ≥23294 | 2959 |
| SC1250 | ≥5595 | 670 | ≥16797 | ≥33084 | 3596 |
| SC1500 | ≥6693 | 670 | ≥20090 | ≥42581 | 4498 |
| SC2000 | ≥8898 | 670 | ≥26685 | ≥49784 | 5595 |
| SC2500 | ≥11093 | 670 | ≥33290 | ≥58280 | 6693 |

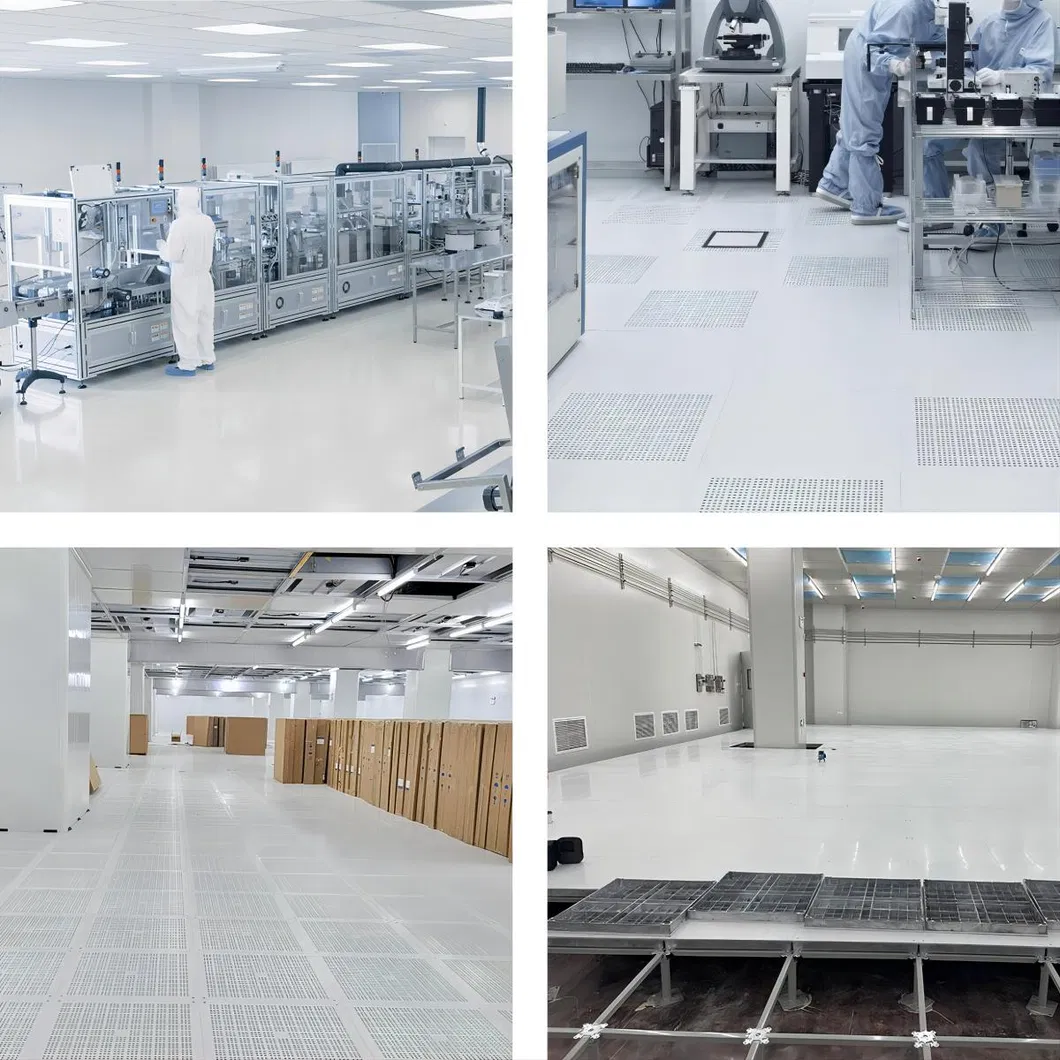

Accommodates extensive cabling and efficient cooling for server rooms and critical facilities.
Provides flexibility for changing layouts and easy access to power and data infrastructure.
Meets stringent sterile requirements for laboratories and medical manufacturing.
Creates secure elevated walkways above machinery for maintenance safety.
