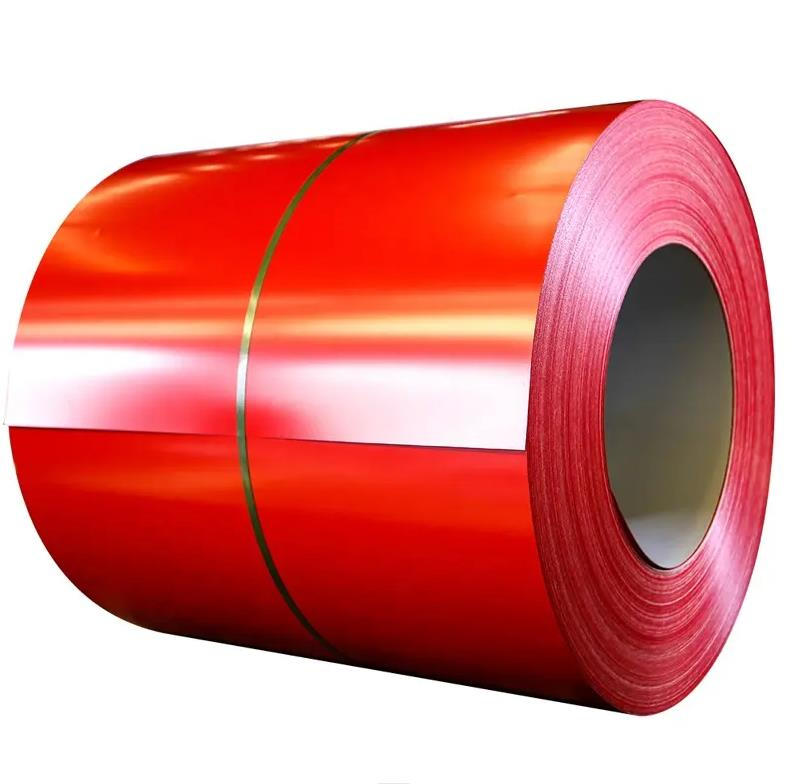

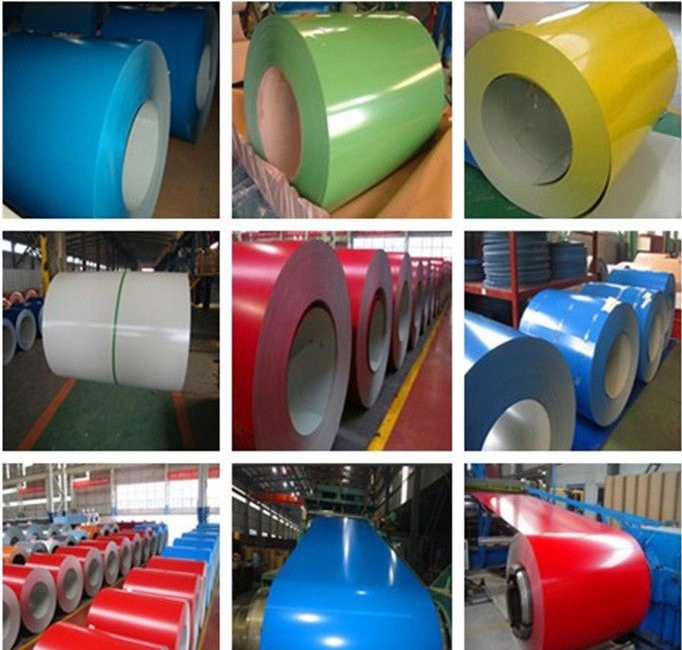

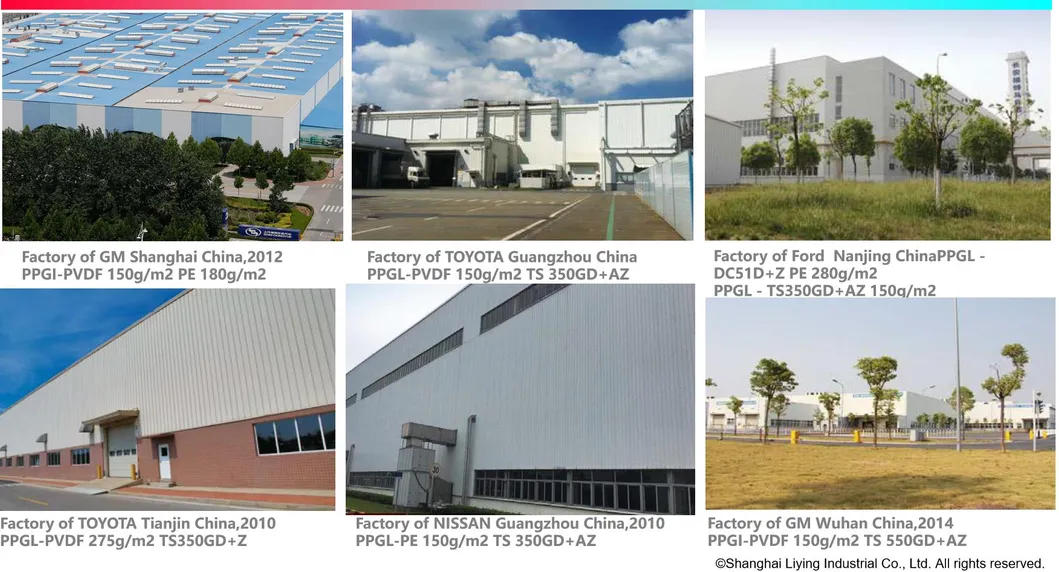

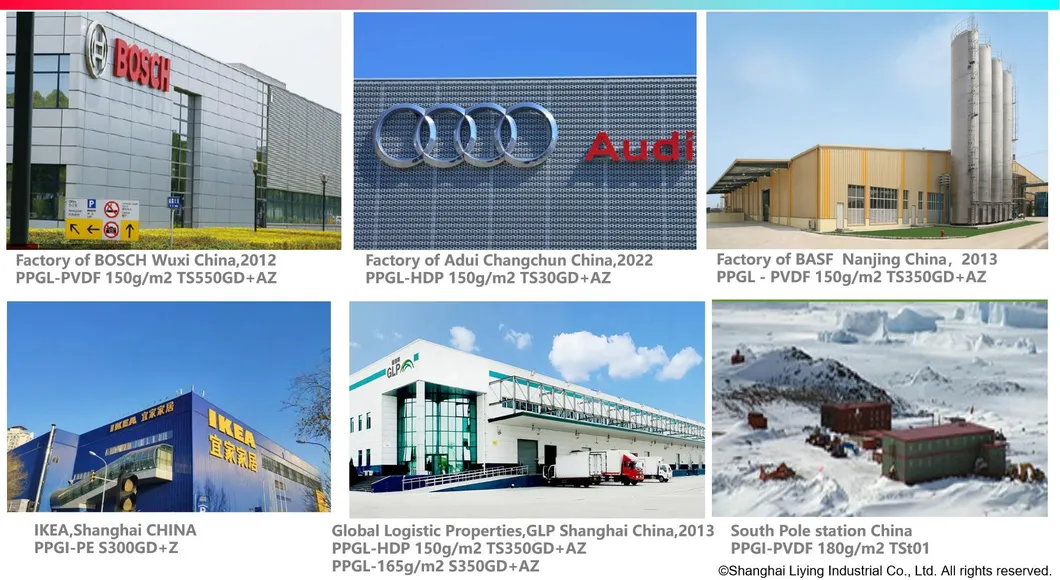

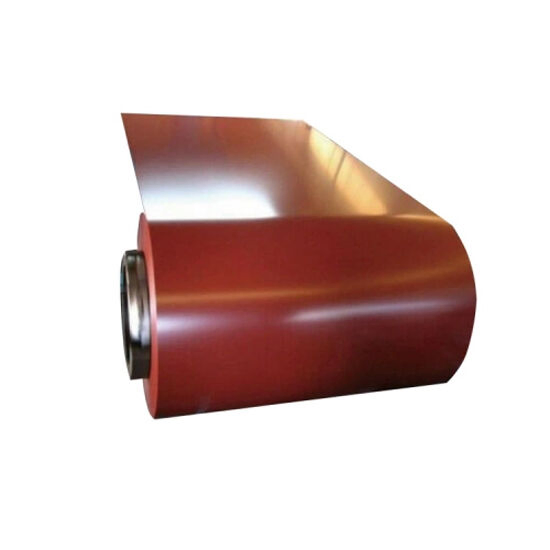

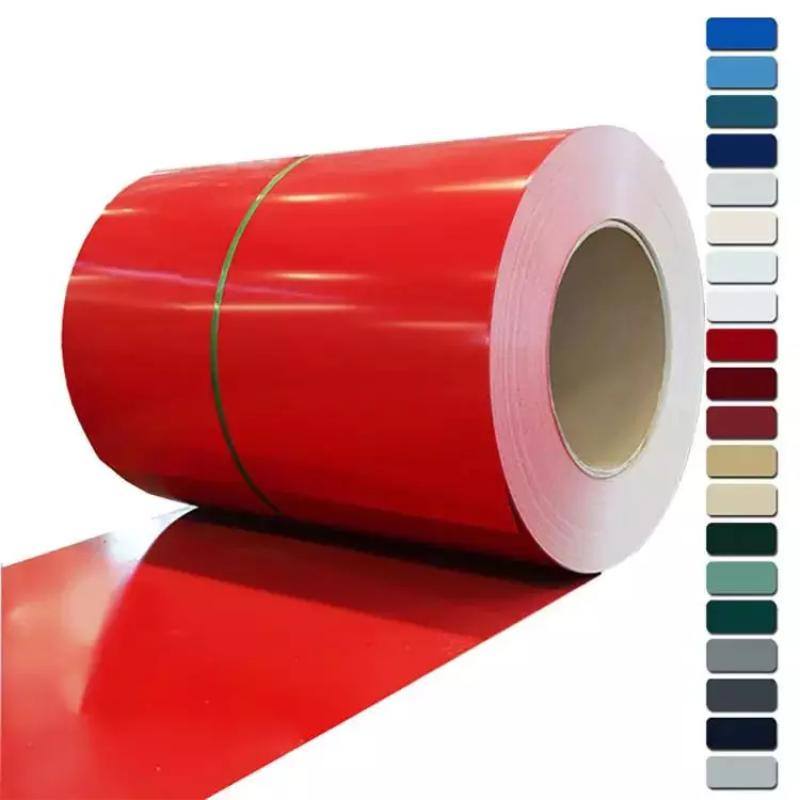

PPGI PPGL, also known as color coated steel, features excellent weather resistance, corrosion resistance, and good processing performance. It is increasingly popular in public buildings such as stadiums, railway stations, exhibition halls, and theaters. It is widely applied in construction, home appliances, transportation, automotive industry, power plants, and furniture.
1. Coating Types: Options include Polyester (PE), Silicone Modified Polyester (SMP), High Durability Polyester (HDP), and Polyvinylidene Fluoride (PVDF). HDP and PVDF offer the best lifespan, exceeding 25 years.
2. Coating Thickness: Painting thickness is usually 18-22um, with a maximum of 55um. Thicker coatings generally provide better durability.
3. Base Metal: Commonly used substrates include Galvanized steel, Galvalume steel, and Al-Zn-Mg steel. Higher zinc content correlates with a longer service life.

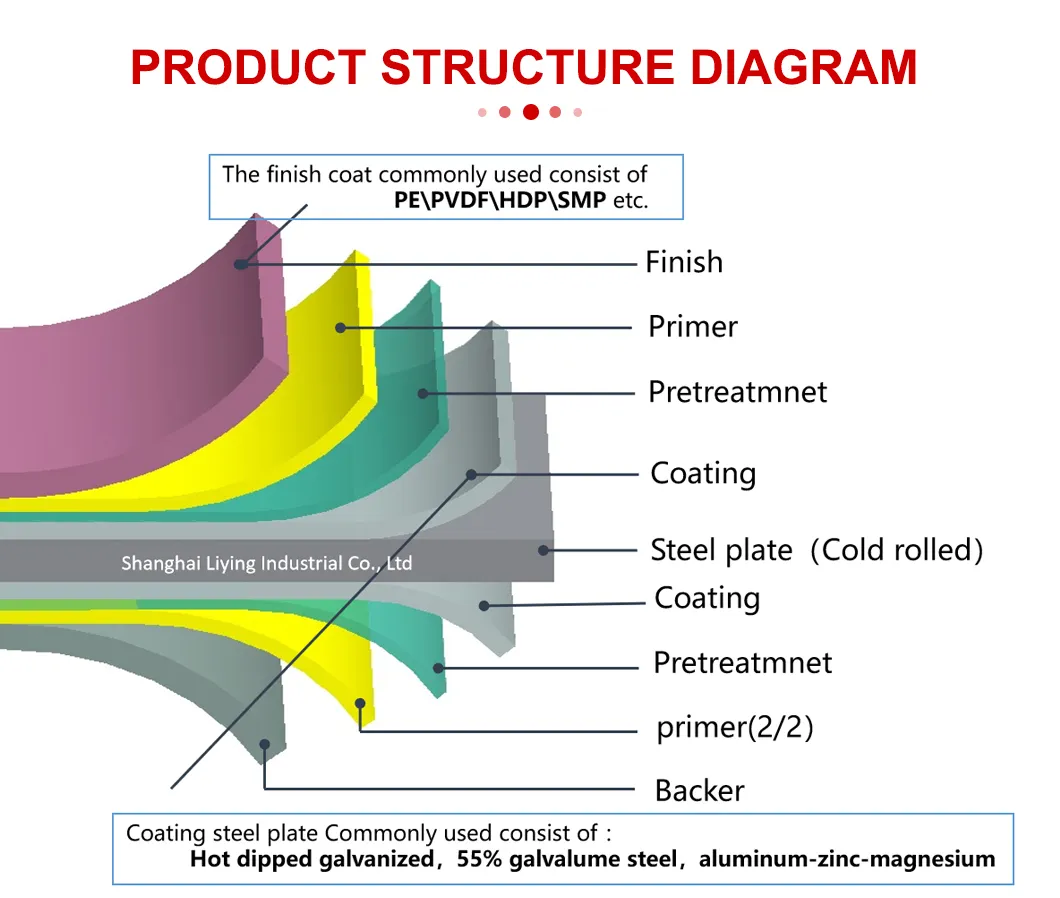

| Structure Layer |
|---|
| Top Finish Coating (PE/HDP/PVDF) |
| Primer Coating |
| Surface Treatment Layer |
| Metallic Coated Layer (Zn/AL) |
| Steel Substrate (Cold Rolled) |
| Item | Specifications |
|---|---|
| Grade | DX51D, DX52D, S250GD, S350GD, S550GD |
| Width | 3mm-2000mm or as required |
| Thickness | 0.3mm-2.0mm |
| Standard | AISI, ASTM, DIN, JIS, GB, EN |
| Coating Thickness | Front: 18-35um, Back: 10-35um |
| Finish | PE / SMP / HDP / PVDF Coated |

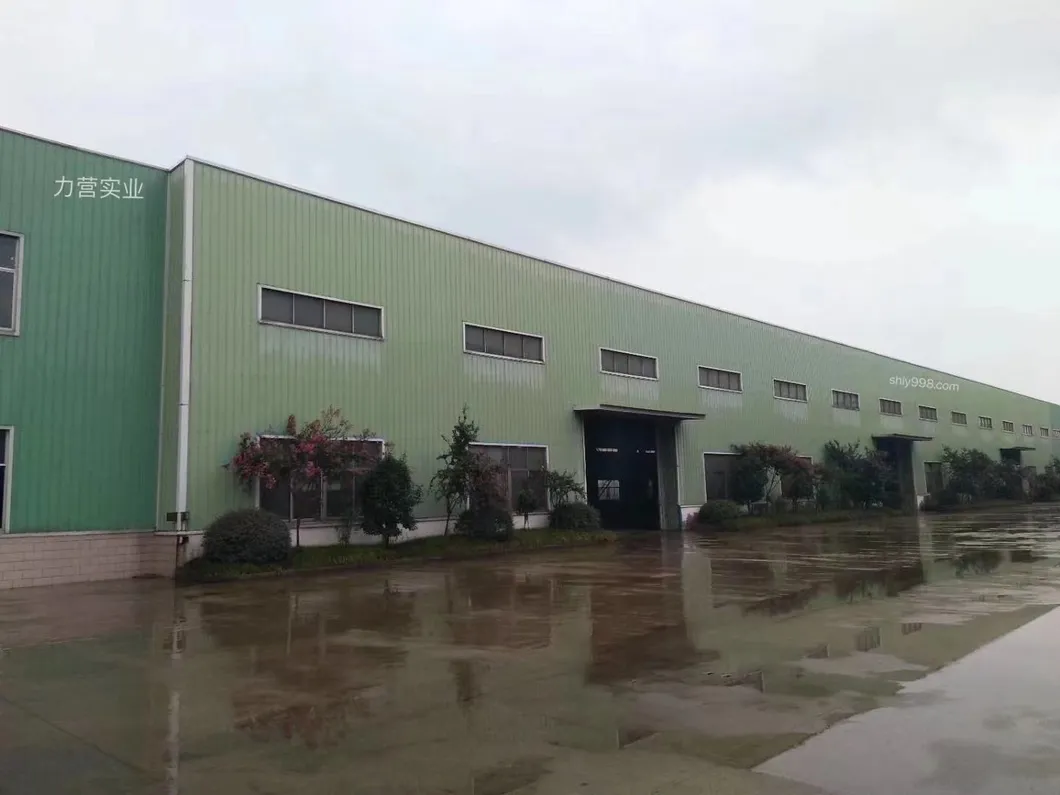

Our annual sales volume exceeds 300,000 tons. We offer high-performance functional coatings and laminating adhesives for steel sheets manufactured with continuous coil coating processes. All products are produced in certified workshops and inspected according to national standards.
