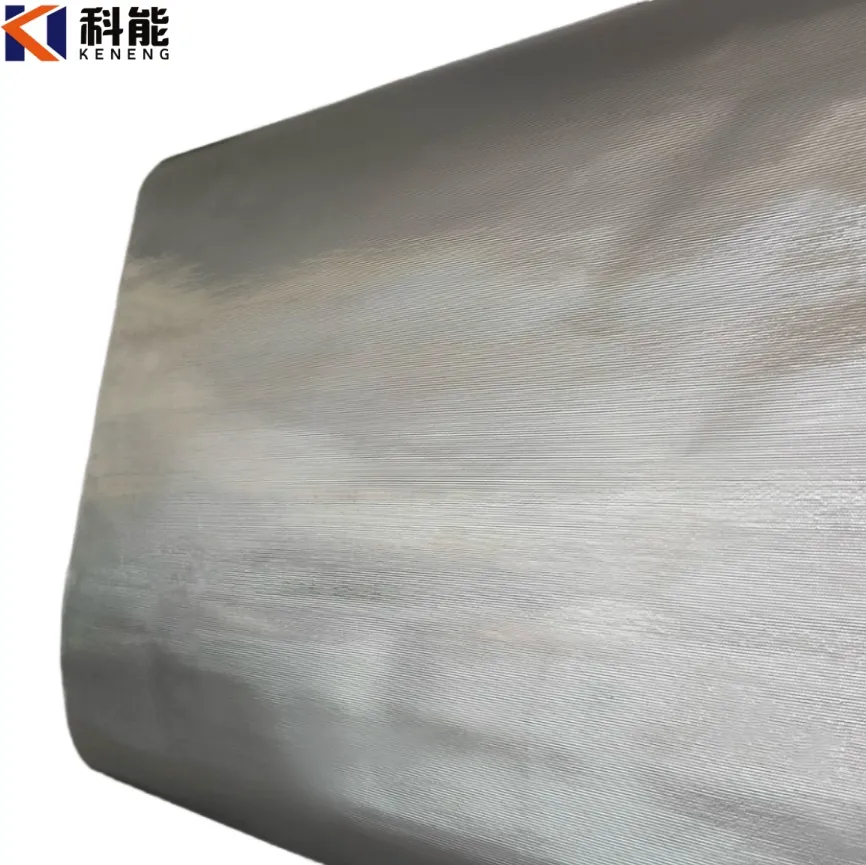

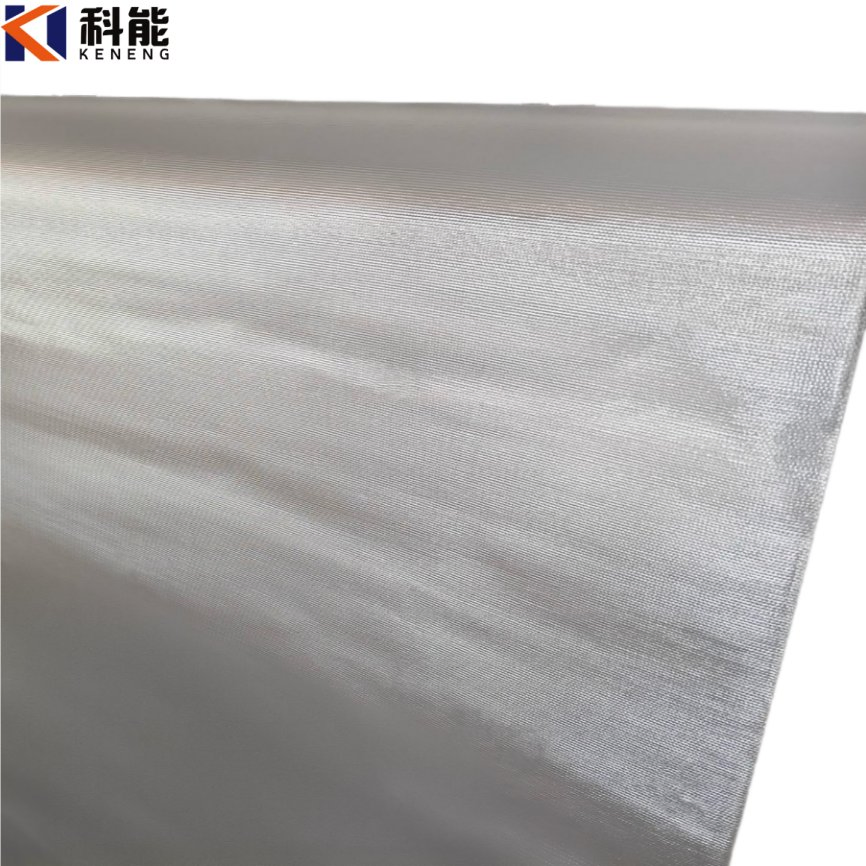

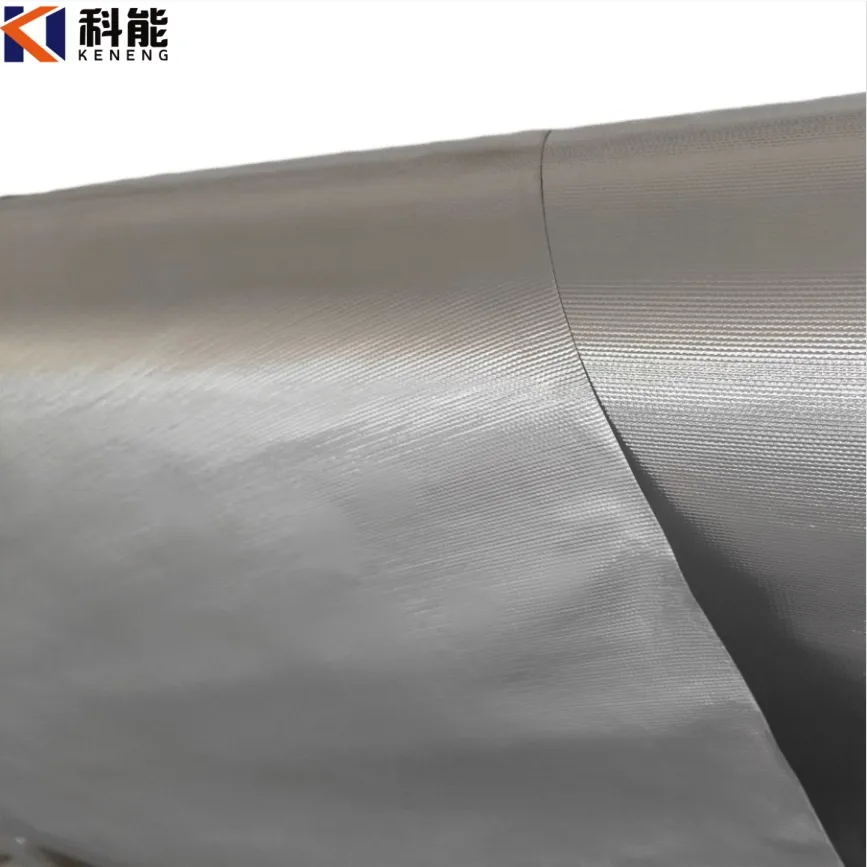

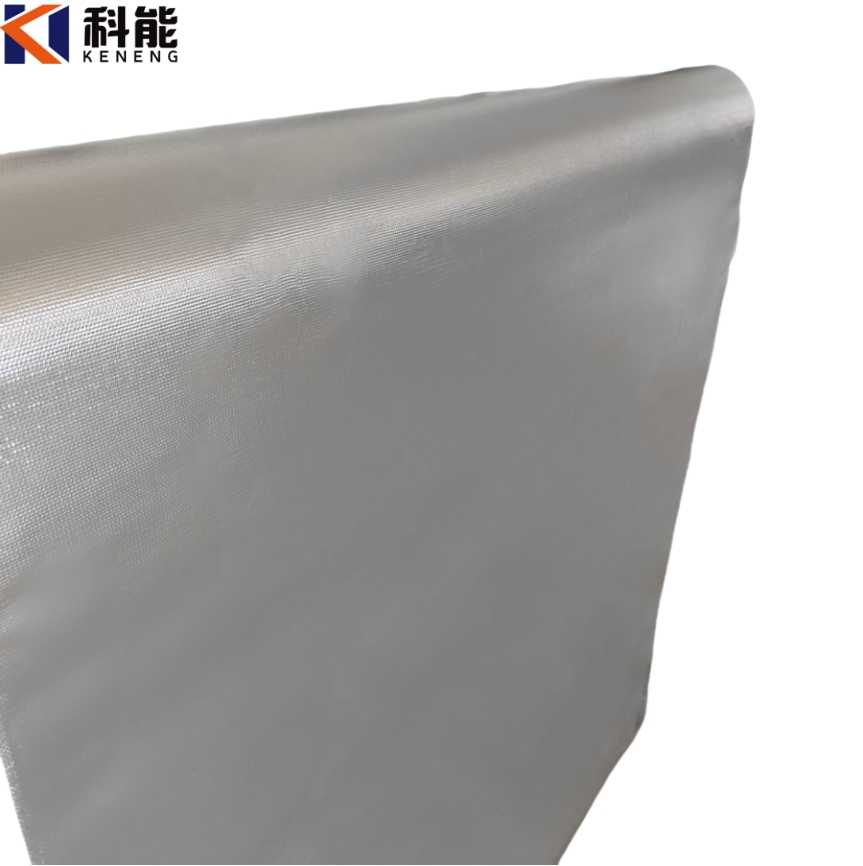

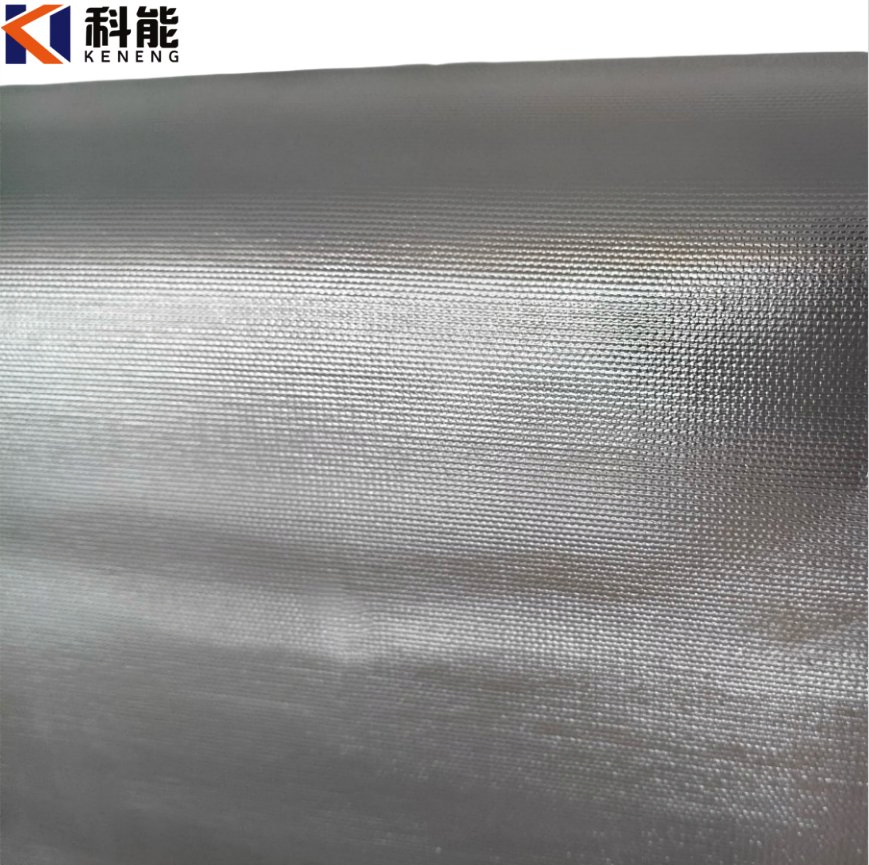

Fiberglass cloth composited with double-side Aluminum foil
Glass fiber is a kind of inorganic non-metallic material with excellent performance. It is commonly used as reinforcement in composite materials, electrical insulation, and thermal insulation. When combined with aluminum foil, its corrosion resistance and mechanical properties are significantly enhanced.
| Technical Structure & Properties | |
|---|---|
| Product Name | Fiberglass cloth composited with double-side Aluminum foil |

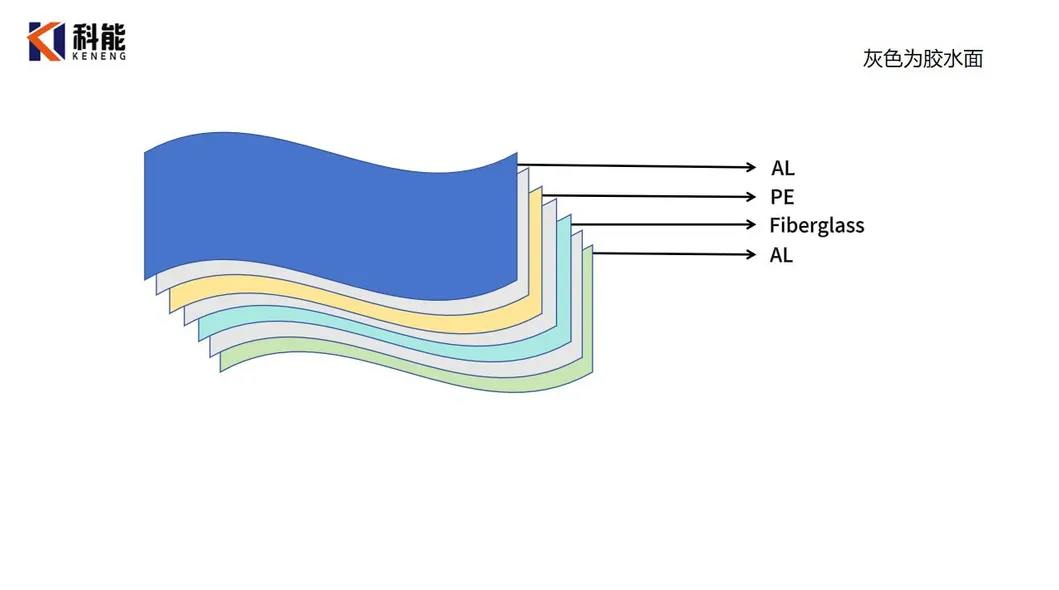

| Structure | Al + fiberglass cloth + Al (Customizable) |
| Aluminum Foil Thickness | 6, 7, 9, 12, 15, 23, 25, 35, 40, 50, 60 mic |
| Fiberglass Weight | 70, 80, 100, 110, 200, 410 g/sqm |
| Reflectivity | Up to 97% |
| Core Functions | Thermal insulation, fire prevention, flame retardant, moisture barrier |

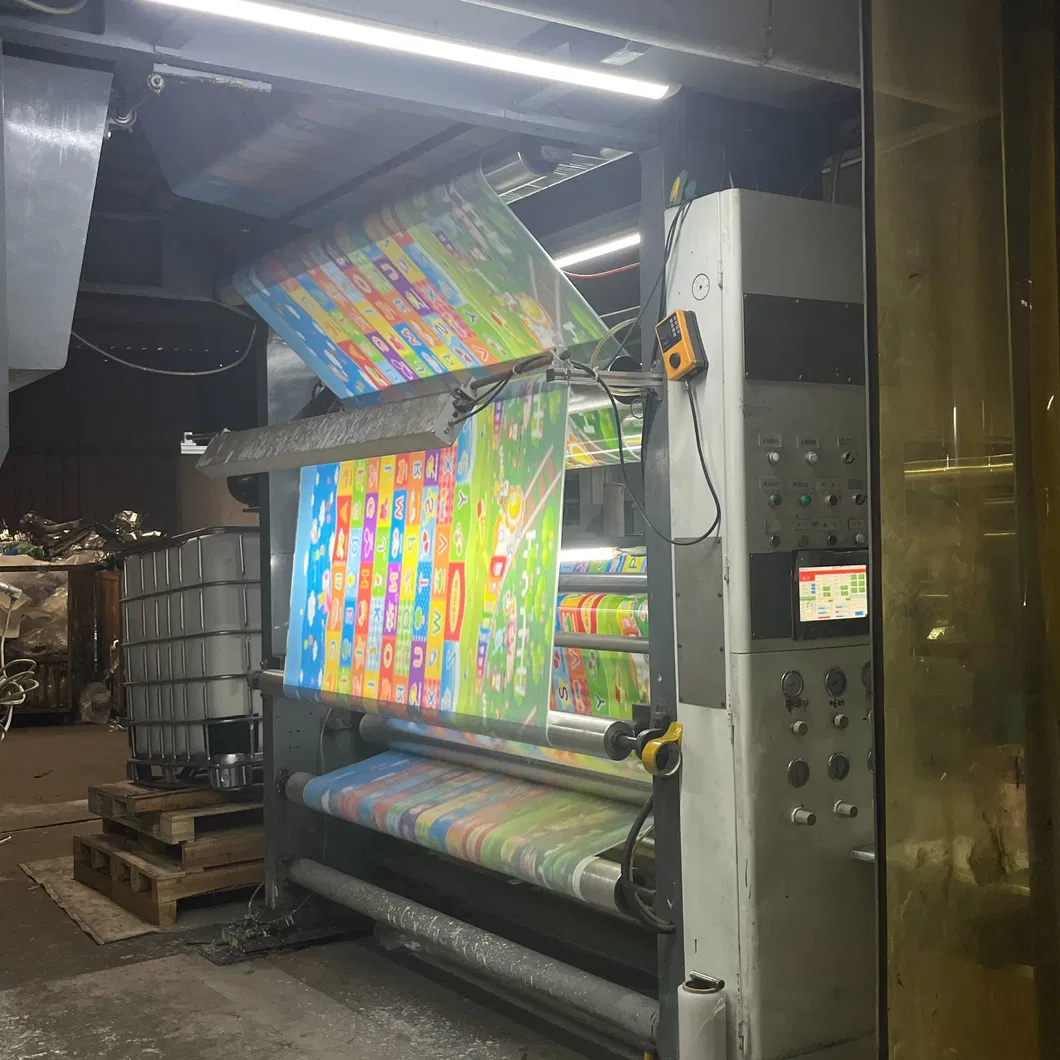

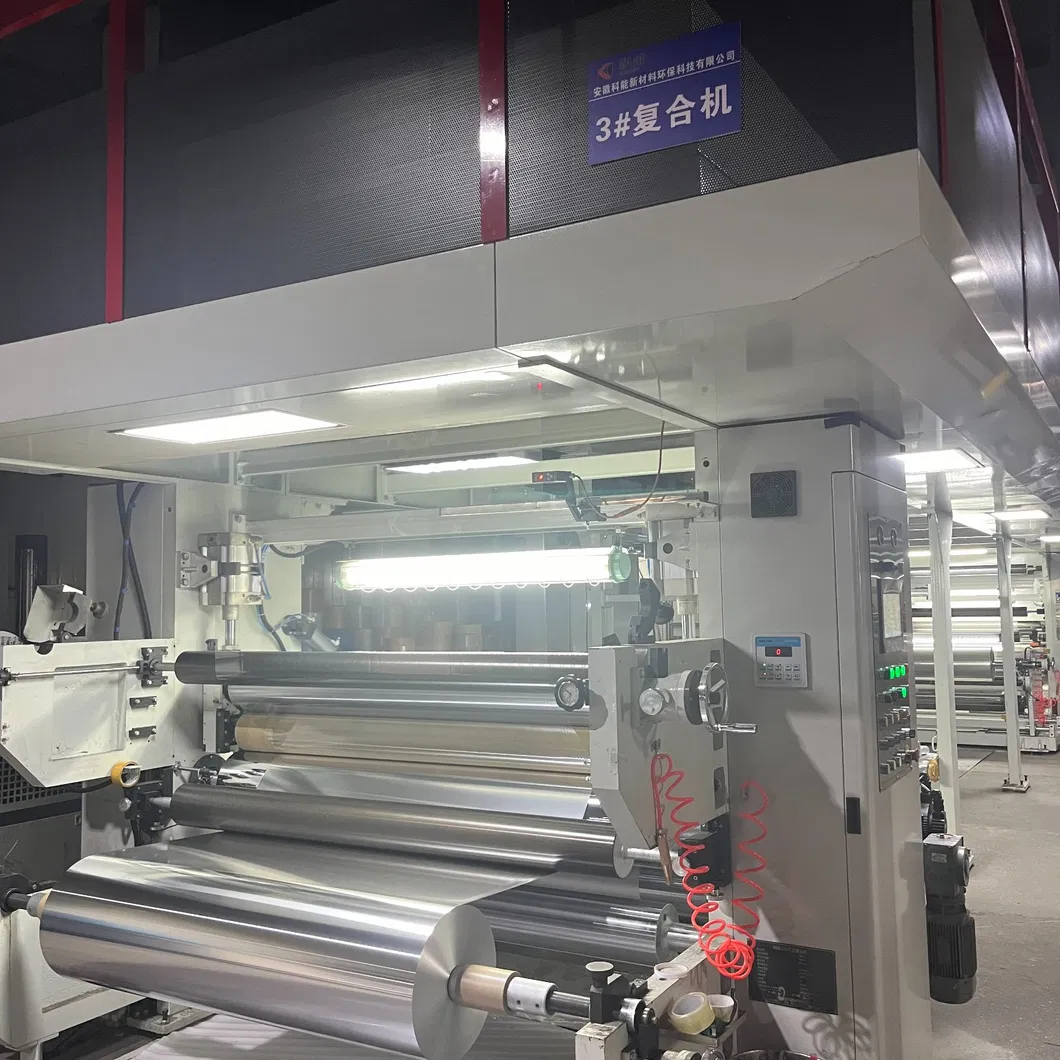

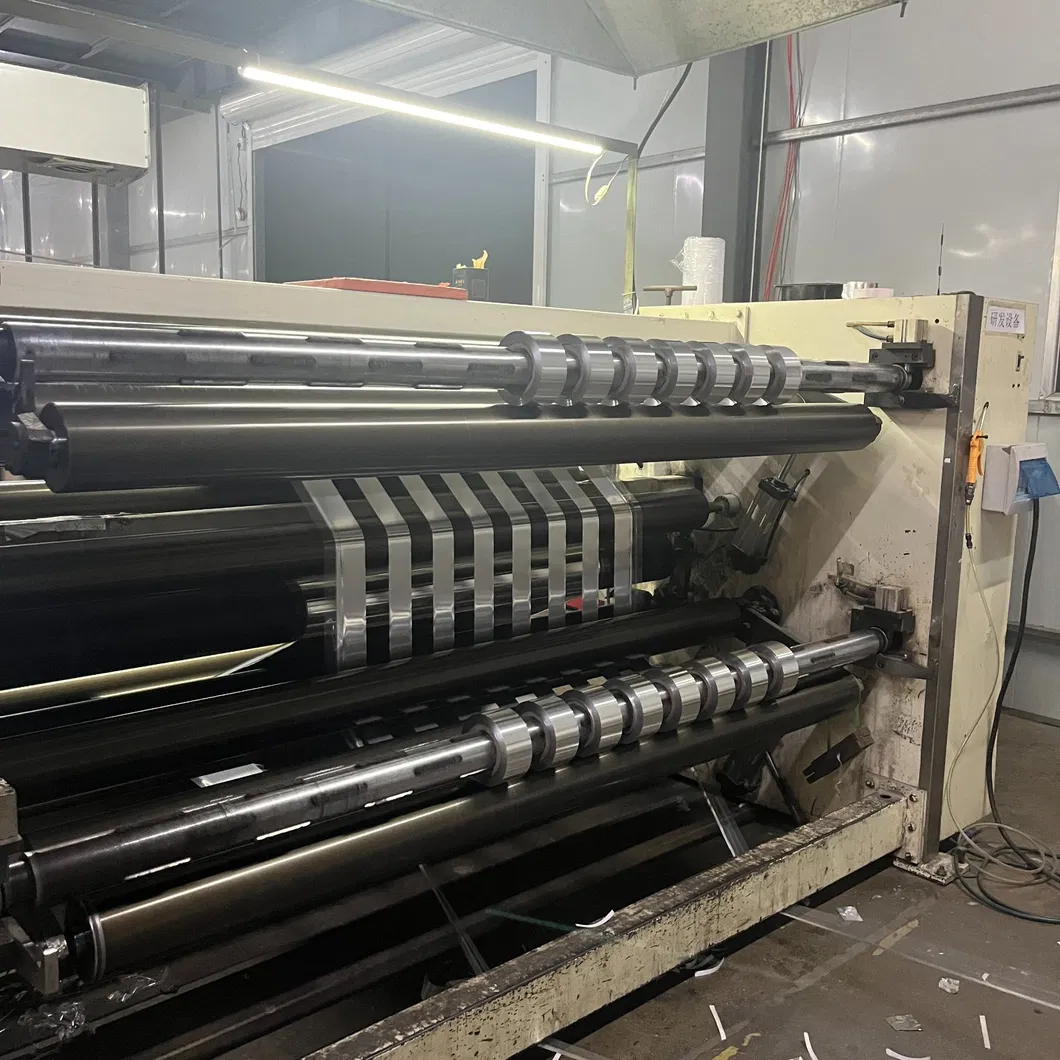

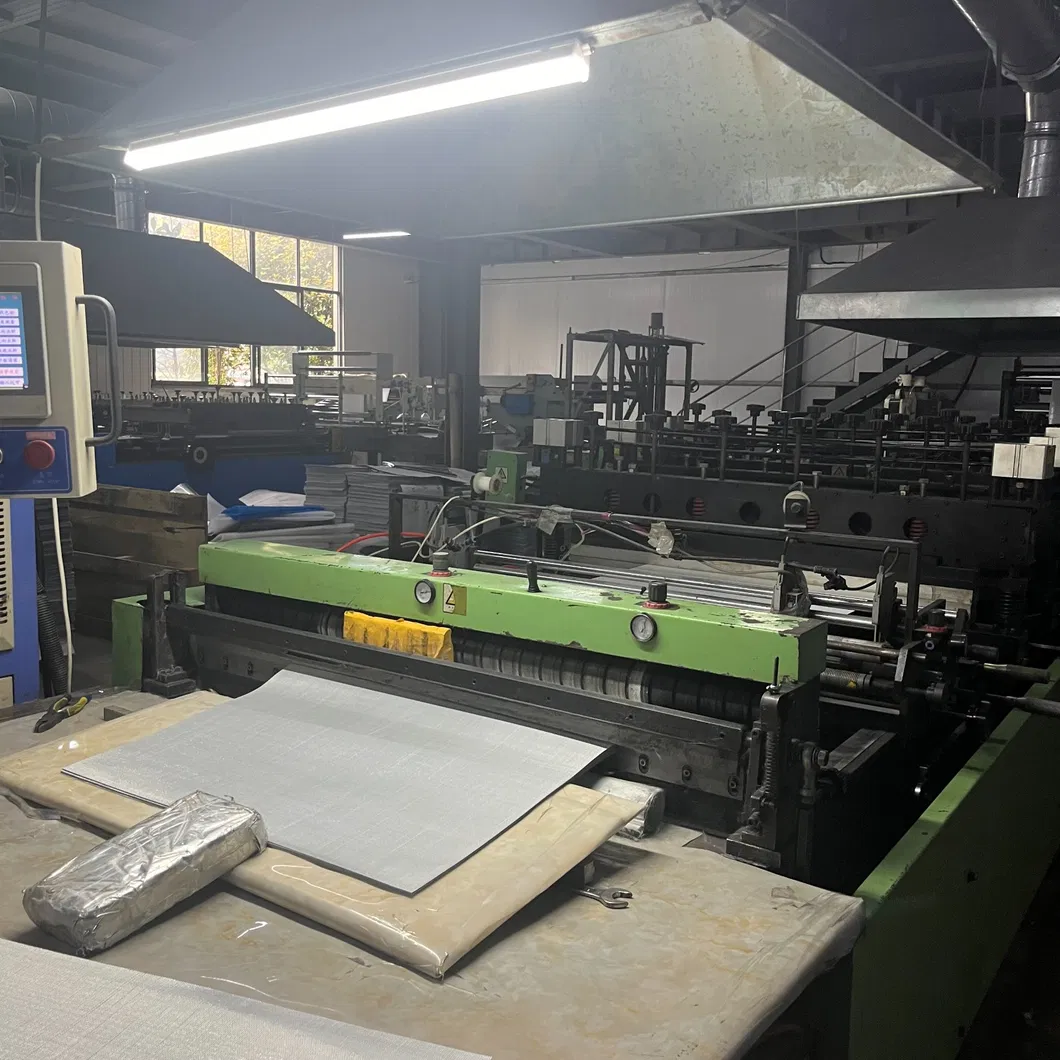

Equipped with a large 1800mm multi-functional composite machine, high-speed slitting machines, and professional curing rooms. We provide precision slitting (minimum width 10mm) and high-quality multi-color printing on various films (PE, PET, CPP, BOPP).
| Material Type | Standard Thickness/Weight Range |
|---|---|
| Aluminum Foil (AL) | 6, 7, 9, 12, 15, 23, 25 to 60 mic |
| PET / VMPET | 6, 8, 12, 19, 25 to 60 mic |
| Nylon (PA) | 10, 15, 25 mic |
| OPP / CPP | 18, 23, 25, 35 mic |
| Glass Fiber Cloth | 70g - 410g/sqm |
