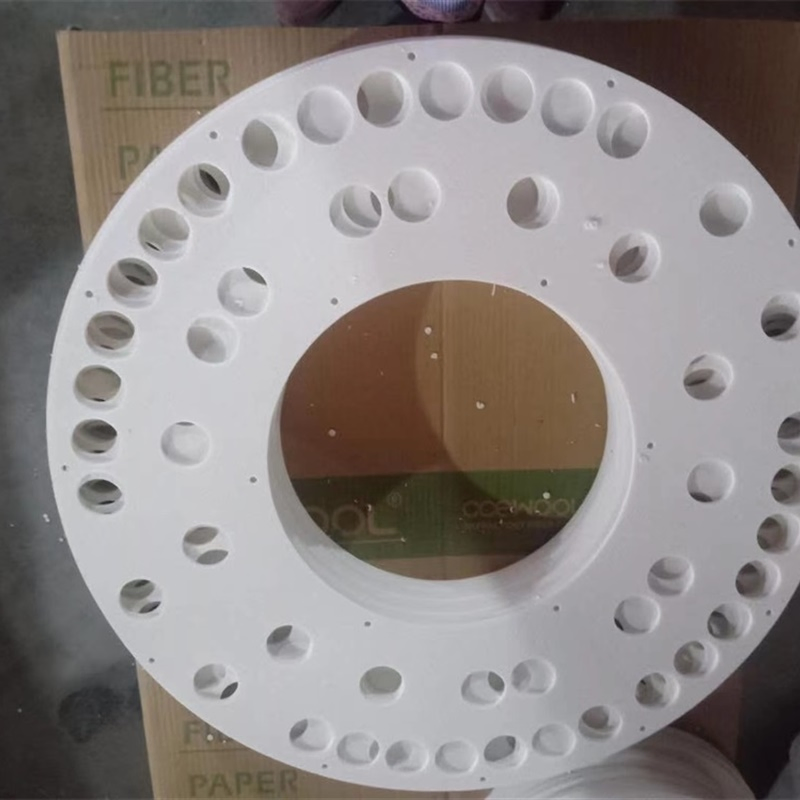

Refractory Ceramic Energy-Saving Thickness 3mm Insulating Fireproof Fiber Back Lining Board Building Material

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview & Basic Info

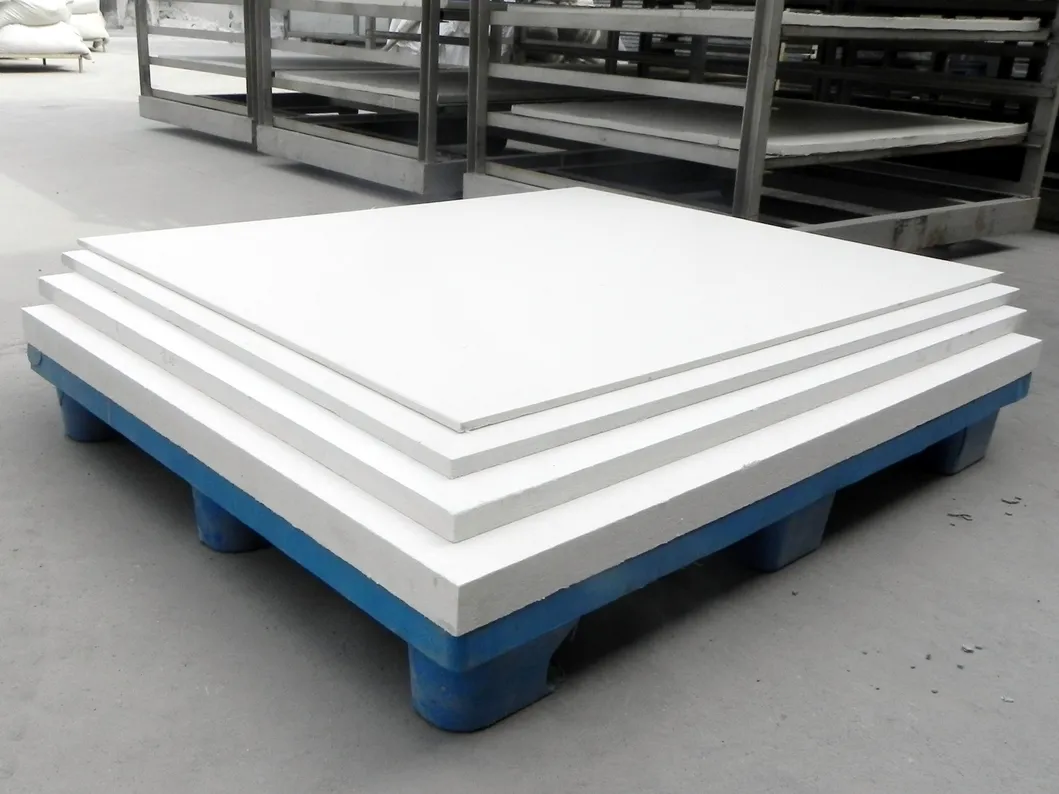

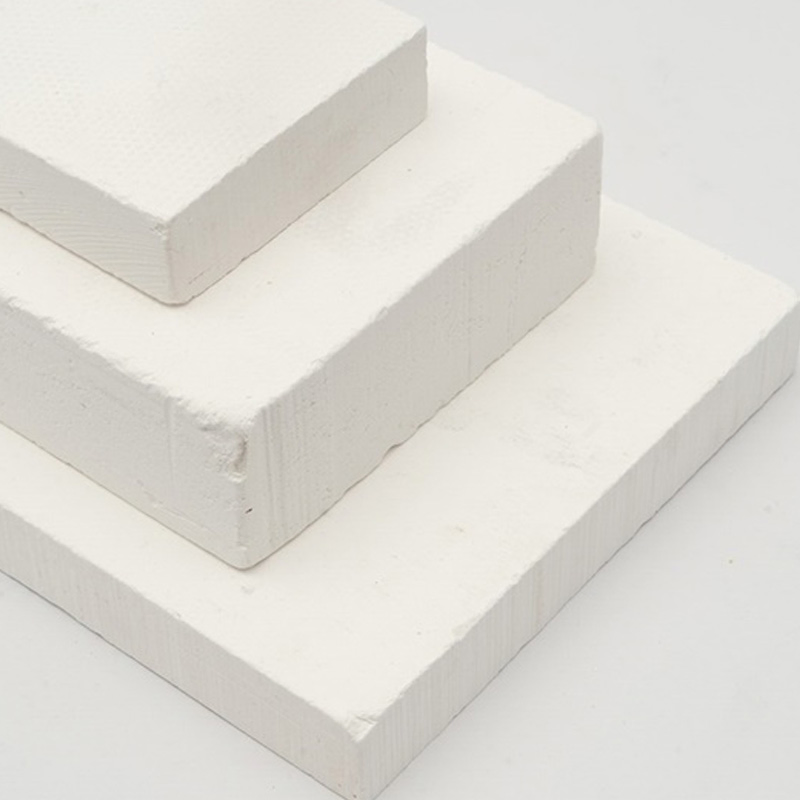

Ceramic Fiber Board Display

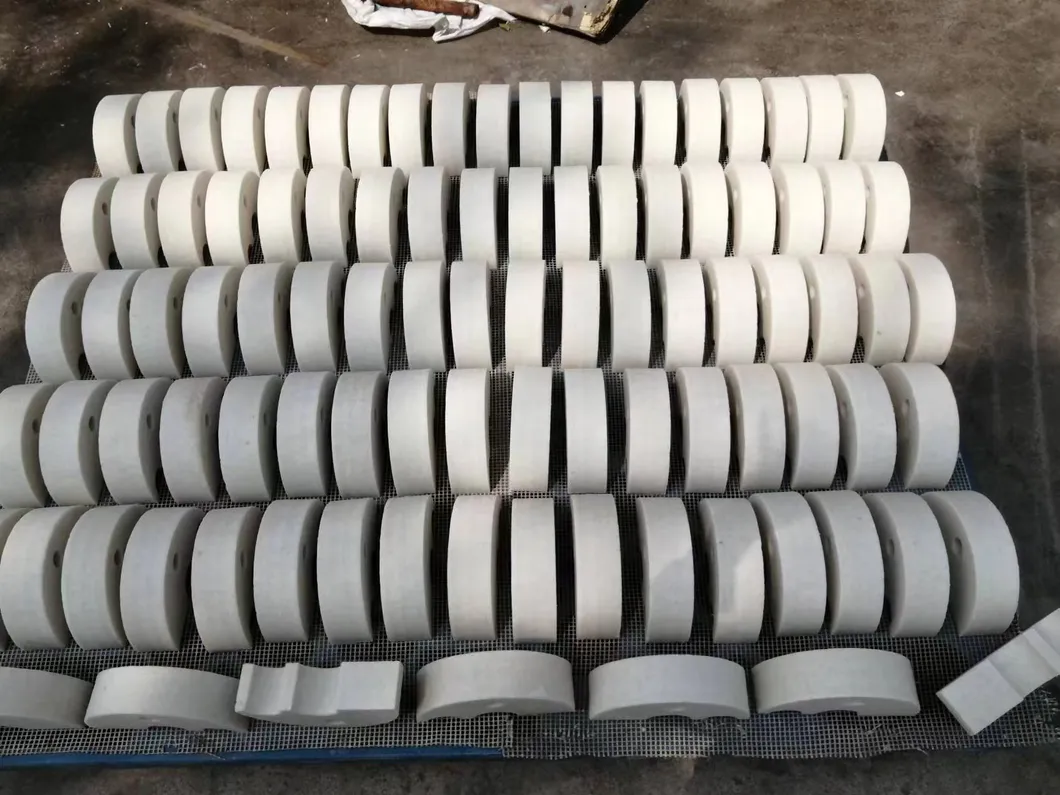

Insulating Board

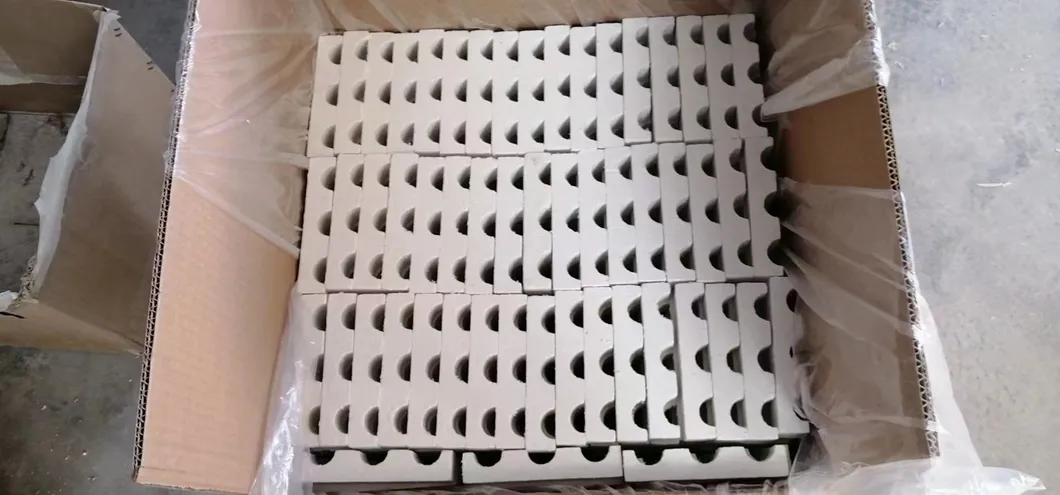

Refractory Material
Chemical CompositionAl2O3.SiO2
ShapeCeramic Fiber Plate
Manufacturing TechniqueSpray Silk Rug
KindHigh Purity Ceramic Fiber
Dimensions1200mm x 1000mm
Thickness Range3mm - 100mm
Density220kg/M3 - 350kg/M3
ColorWhite
Loss of Ignition (LOI)<8%
Thermal Conductivity0.03-0.18 W/M•K
Refractory GradeNon-Inflammable
HS Code6806101000

Product Description

Ceramic Fiber Boards are manufactured in a wet forming process using alumina-silica fibers and binders. Lower thermal conductivity, superior mechanical properties and high-temperature stability offer unmatched performance reliability. They can help reduce energy costs and cycling times once being installed in furnace and boiler lining. If wet by water, steam or oil, thermal and physical properties are restored upon drying.

Small quantities of organic and inorganic binders are typically added to the board formulation to provide handling strength. Organic binding agents burn out at temperatures between 450°F (232°C) to 600°F (316°C). Following burnout, the boards remain white in color.

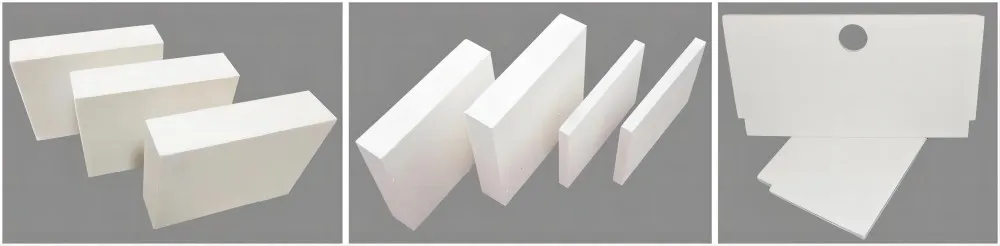

Board Specification Detail

Features & Typical Applications

Key Features:

Can be machined, cut and shaped easily

Excellent thermal shock resistance

High rigidity and light weight

Low thermal conductivity and low heat storage

Typical Applications:

Furnace, Kiln, and Oven hot face linings

Flue, Chimney, and Hot gas duct lining

Appliances like ovens and water heaters

Gaskets, Seals, and Expansion joints

Heat Shields and Heat processing equipment

Workshop & Packaging

Standard package consists of high-quality cartons or export-grade pallets to ensure safety during international transit.

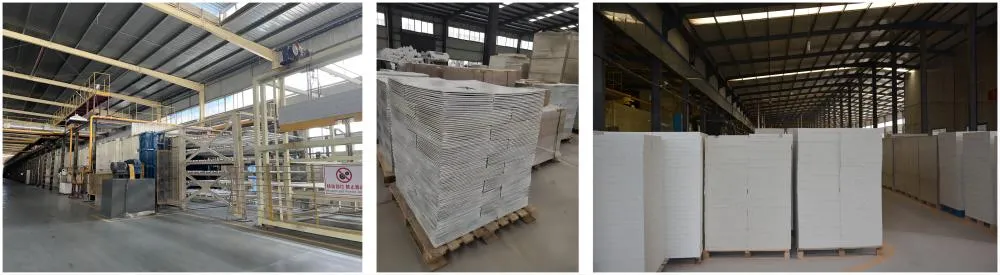

Workshop Production
Packaging Detail

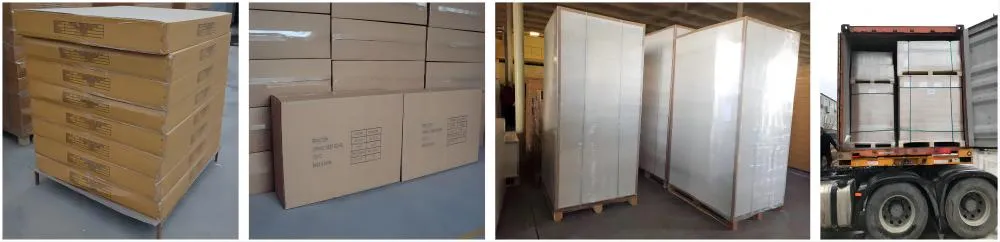

Logistics Preparation

Exhibitions & Certifications

Regular participants in major industry expos such as the Metal Shanghai Expo and International Metallurgical Industry Expo. We maintain professional and strict quality control for all products.

Exhibition Photo 1
Exhibition Photo 2
Exhibition Photo 3

Certified with CE (2016), MSDS, ISO9001 quality management system, and REACH compliance.

Certificates

Frequently Asked Questions

Q1: What are your payment terms?
A1: Typically 30% T/T in advance, with a 70% balance against the BL copy, by LC, or other agreed terms.
Q2: What is your standard lead time?
A2: Production usually requires approximately 10 to 20 days after receiving your initial deposit.
Q3: How is product quality controlled?
A3: We maintain a complete QC system for chemical composition and physical properties throughout every processing stage. All goods are tested post-production, and quality certificates are provided.
Q4: Are free samples available?
A4: Yes, we provide free samples for evaluation upon request.
Q5: What are the main applications for these boards?
A5: They are primarily used as heat insulation liners for ovens, furnaces, boilers, chimneys, and various heat processing equipment.
Q6: Can the boards be customized into specific shapes?
A6: Yes, our ceramic fiber boards can be easily machined, cut, and shaped to meet your specific application requirements.

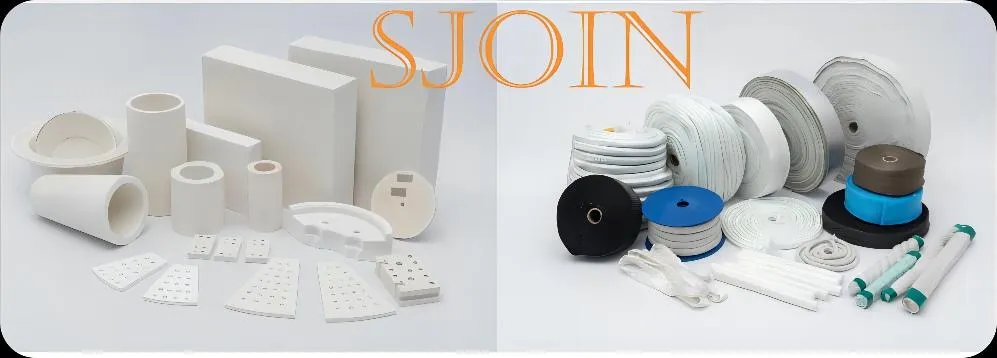

Production Facility
