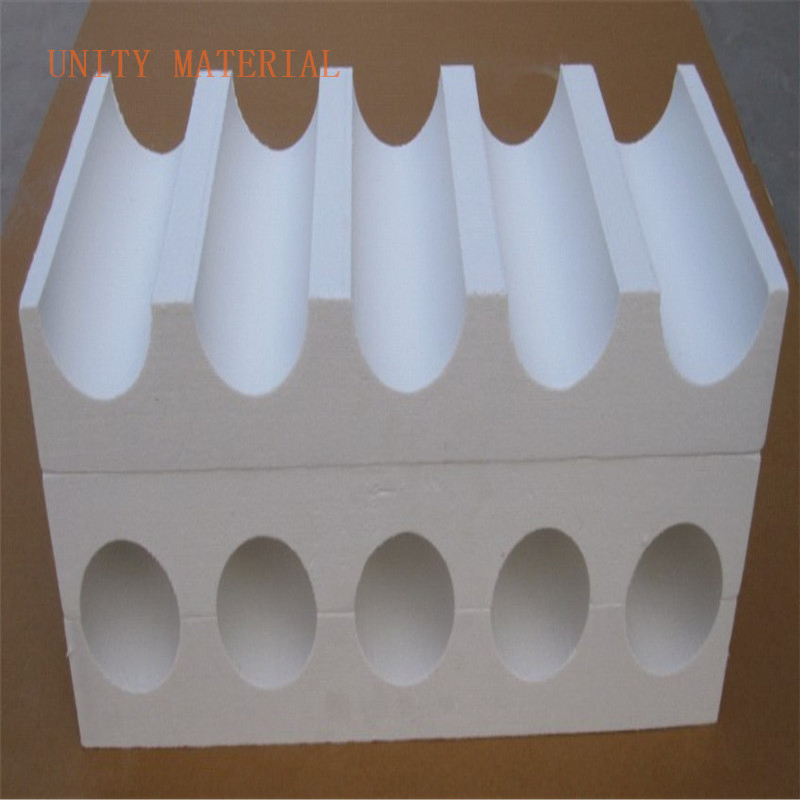

2000 Degree Celsius Refractory Ceramic Fiber Insulation Materials Heat Resistant Sheet

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Basic Information
Model NO.
ST, HP, HA, HZ
Chemical Composition
Al2O3.SiO2
Shape
Ceramic Fiber Plate
Technique
Aluminium Silicate
Density
300-500kg/M3
Temperature
1000-1430c
Al203+Sio2
97-99%
Application
Heat Insulation
Package Size
100cm * 100cm * 100cm
Gross Weight
300.000kg
📝 Product Description

Ceramic fiber board adopts ceramic fiber in corresponding temperature levels as raw material. Through the large automatic vacuum filter molding machine to shape them, they are completed after a specialized baking process.

Key Features:
  • Good toughness and high strength with a flat surface.
  • Uniform distribution of ceramic material for excellent thermal insulation.
  • Non-inflated when heated, lightweight, and convenient for construction.
  • Supports free shearing and bending for various equipment needs.
  • Ideal energy-efficient insulation material for furnaces and piping.
⚙️ Technical Specifications
Index Specification Standard 1260C High Purity 1260C High Alumina 1360C High Zircon 1430C
Operation Temp 1050C 1100C 1200C 1350C
Color White White White White
Density (kg/m³) 220-500 220-500 220-500 220-500
Thermal Conductivity (400°C) 0.085 0.085 0.085 0.085
Compressive Strength (MPa) 0.5 0.5 0.5 0.5
Al2O3 (%) 46 47-49 52-55 32-33
ZrO2 (%) - - - 15-17
🚀 Main Applications
  • Hot face and back face insulation for all kinds of industrial furnaces.
  • Kiln liners for high-temperature furnaces, kiln cars, and door dampers.
  • Deep processing products molding molds, such as craft glass.
  • Astronavigation and shipbuilding heat insulation, fireproofing, and soundproofing.
🏢 Profile

Established in 2003, we are a professional manufacturer and exporter of high-grade refractory and thermal insulation materials. Our product range includes ceramic fiber products, fiberglass, calcium silicate, rock wool, and high-temperature ceramic products.

Our materials have achieved leading positions in both domestic and international markets, exporting to over 30 countries across Europe, South America, North America, Australia, Africa, and the Middle East. We focus on quality consistency and continuous innovation to serve global partners.

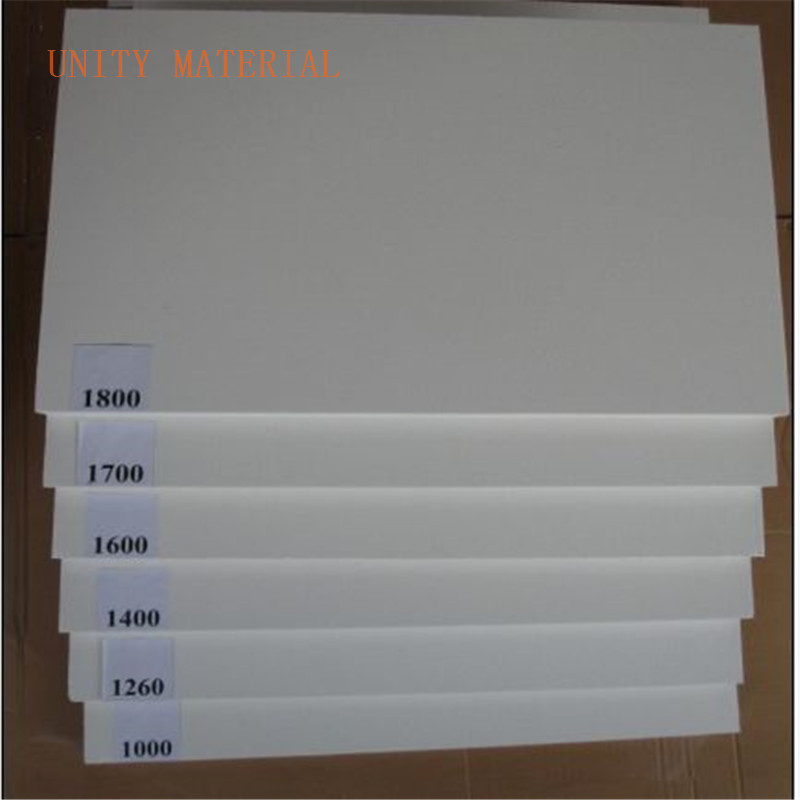

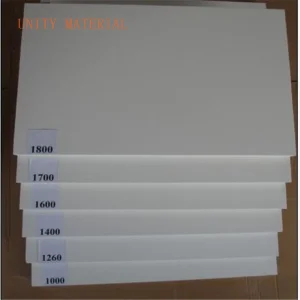

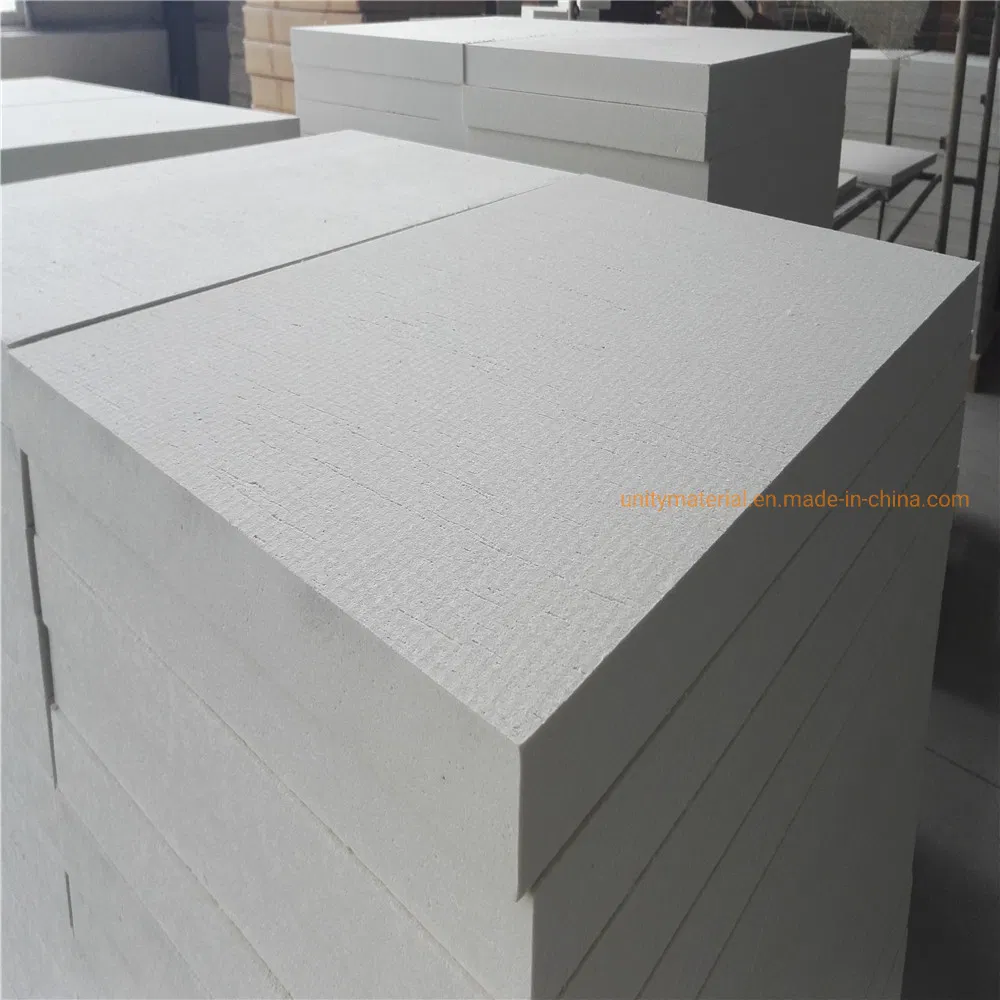

📸 Detailed Photos

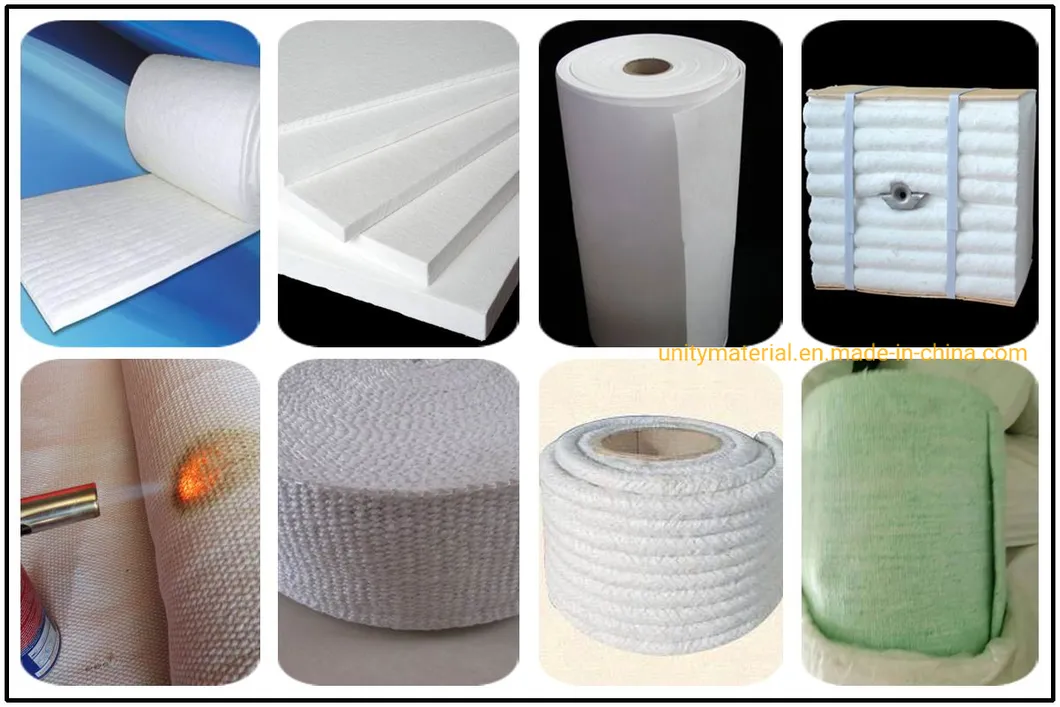

🔥 Hot Sales Products

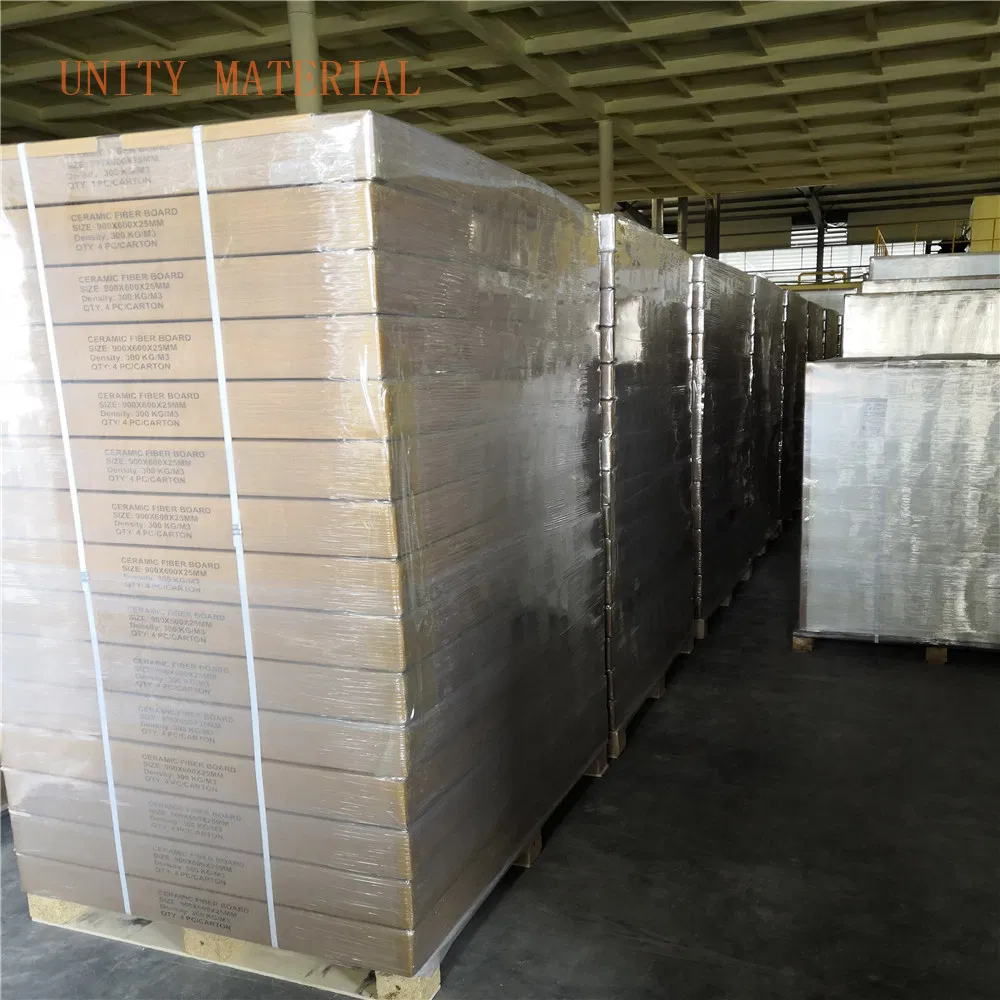

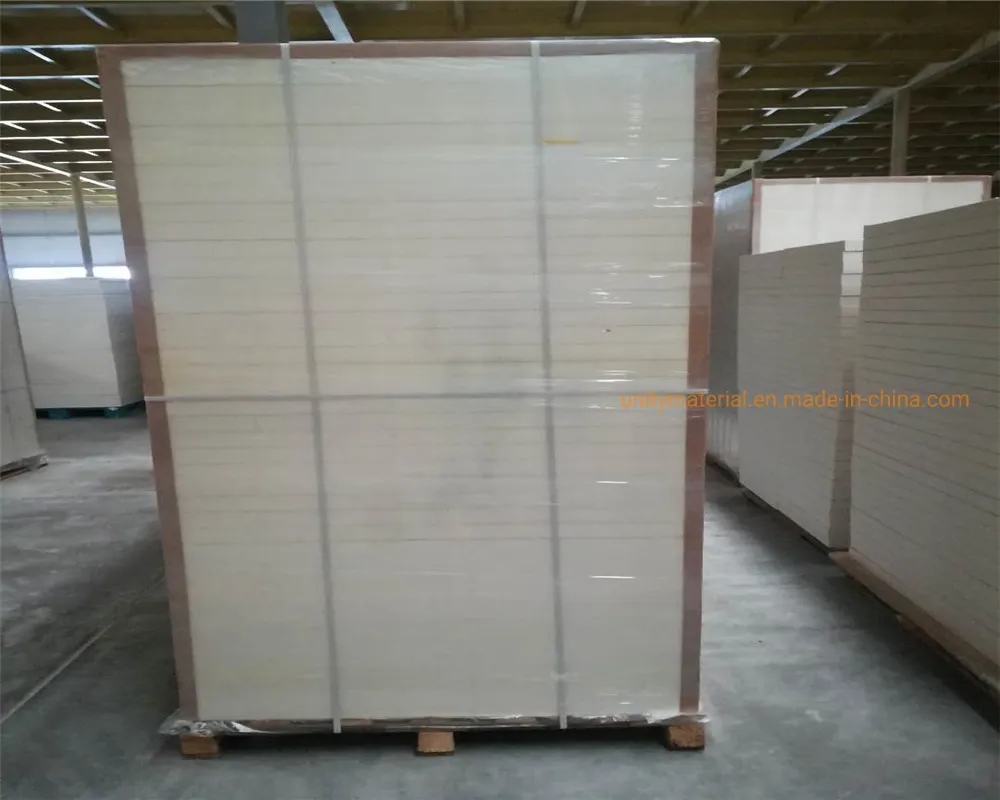

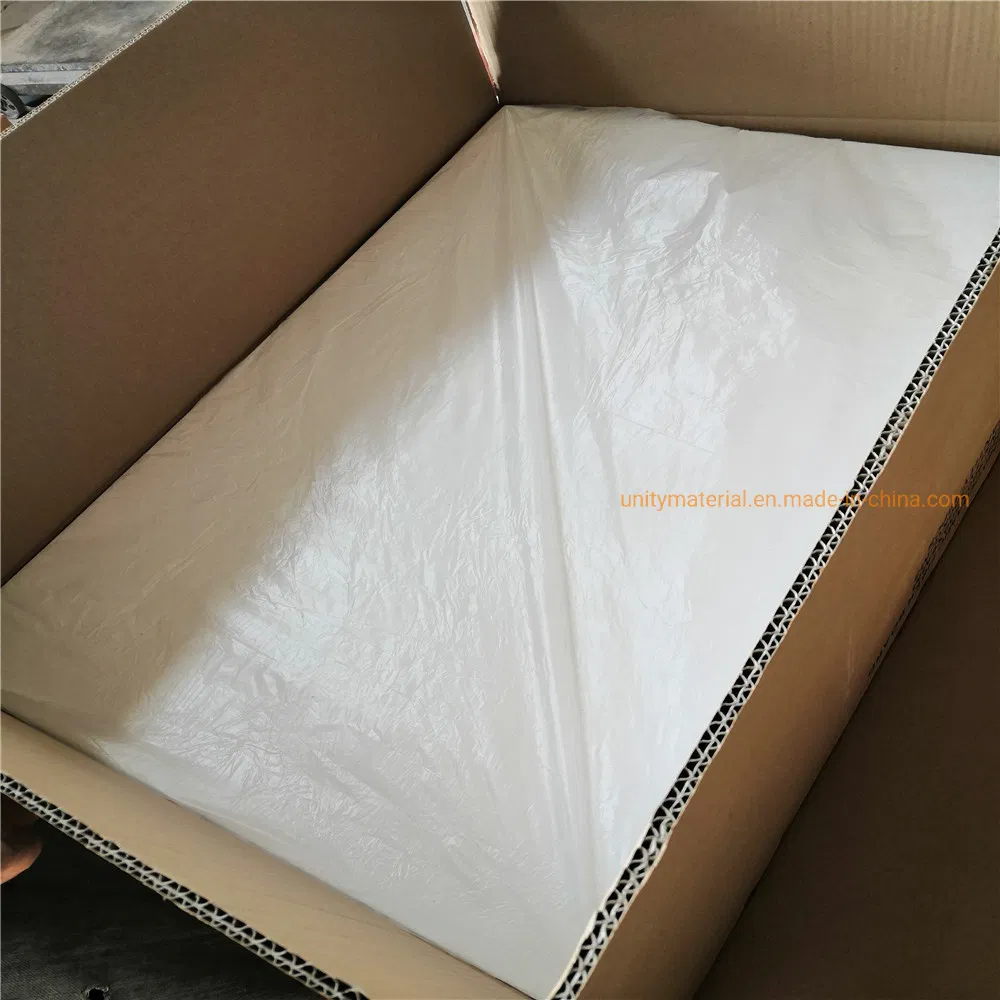

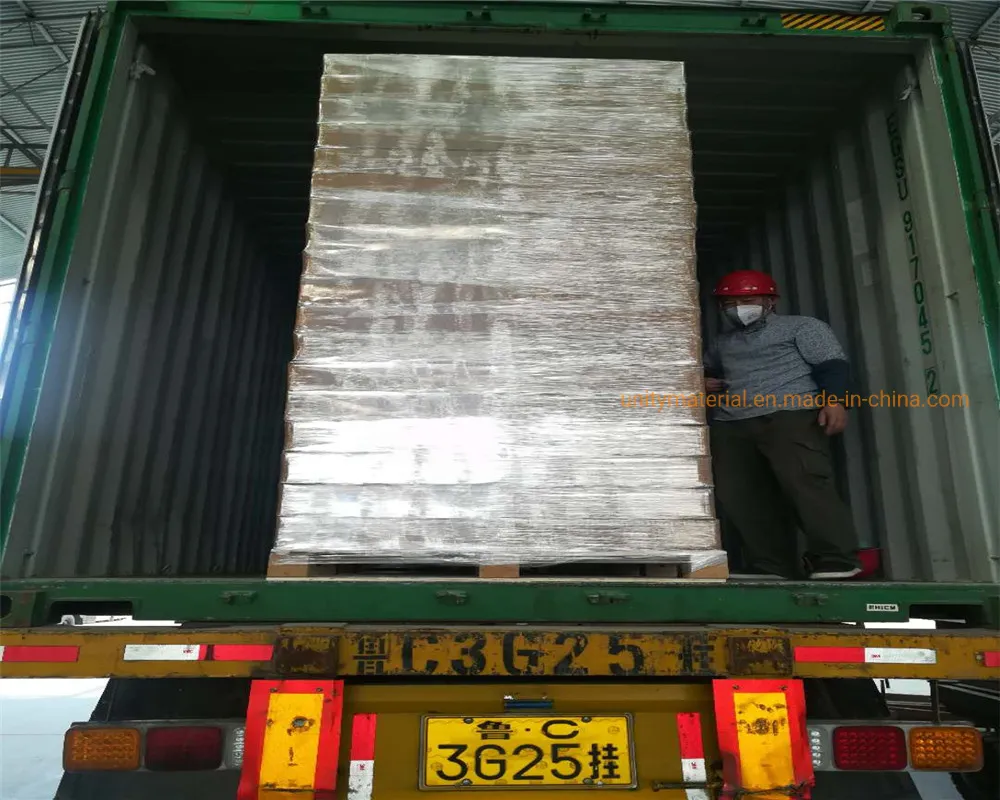

📦 Packaging & Shipping
❓ Frequently Asked Questions
What kind of products can you offer?
We offer industrial refractory insulation materials including Ceramic Fiber, Soluble Fiber, Fiberglass, Calcium Silicate, Mineral Wool, and Insulating Firebricks.
Can you provide free samples?
Yes, free samples are available for quality evaluation.
What is your MOQ?
We do not have a strict MOQ; we can accept orders for various project sizes. Pricing typically depends on the quantity ordered.
What is the maximum temperature these boards can withstand?
Depending on the grade, our ceramic fiber boards can withstand temperatures ranging from 1000°C up to 1430°C.
Are the boards easy to customize on-site?
Yes, the boards feature excellent toughness and can be easily sheared or bent to fit specific equipment and piping requirements.
Can we visit the production facility?
Absolutely! We welcome partners to visit our factory at any time to see our manufacturing process.
