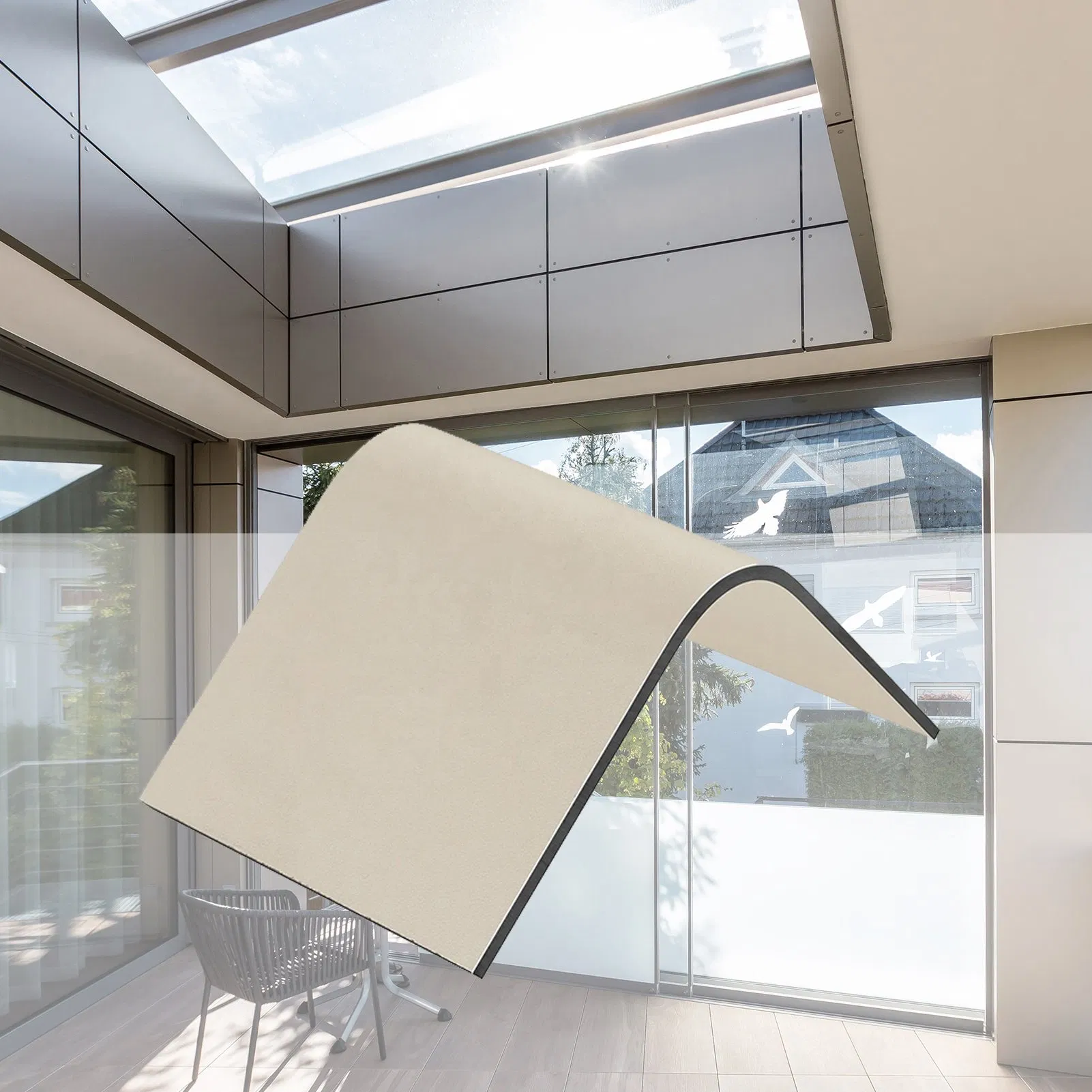

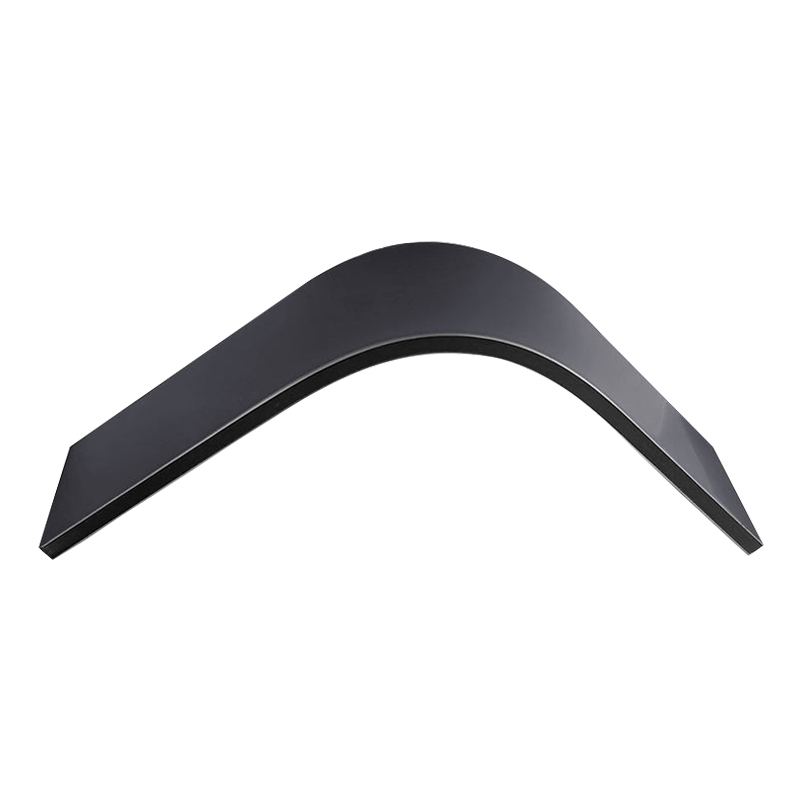

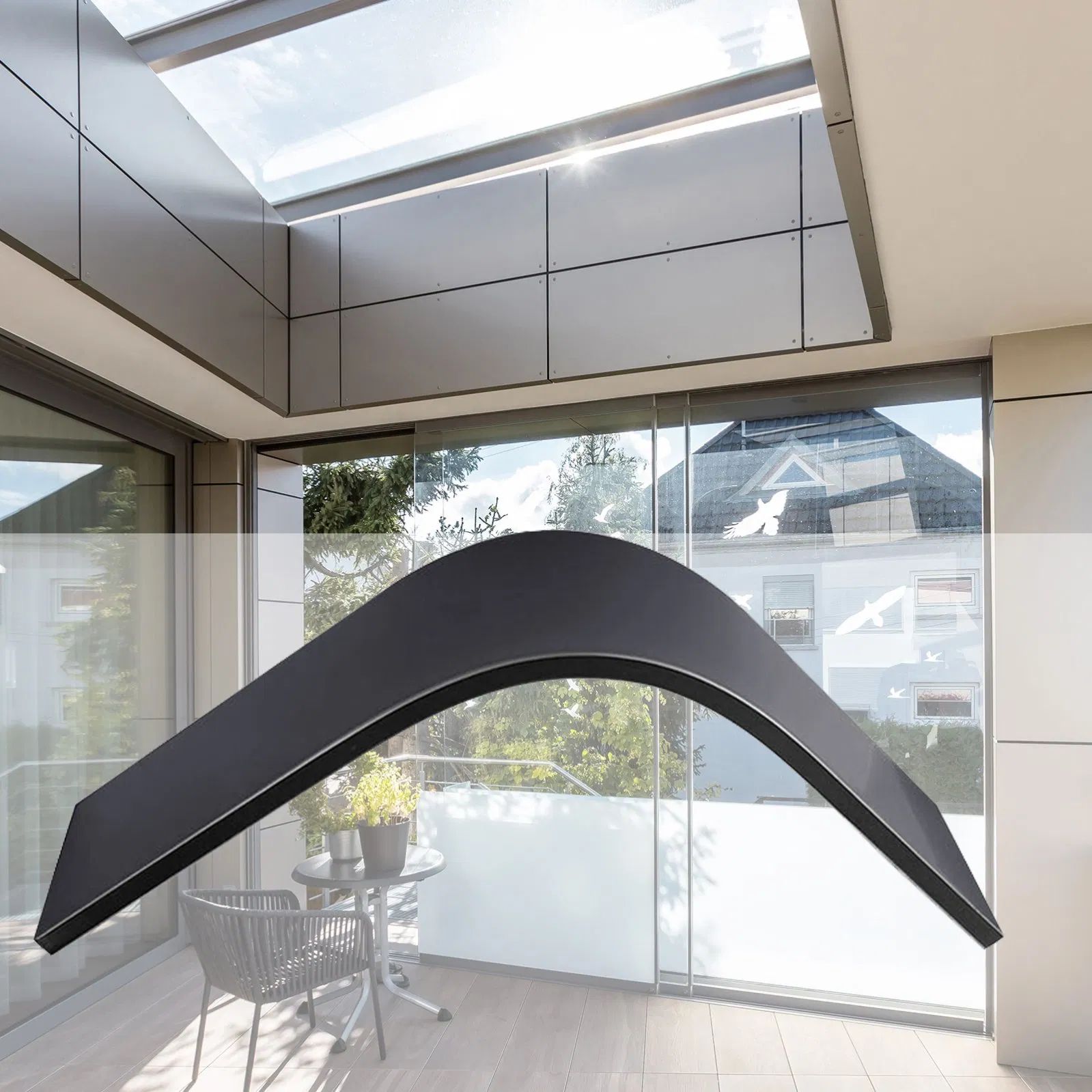

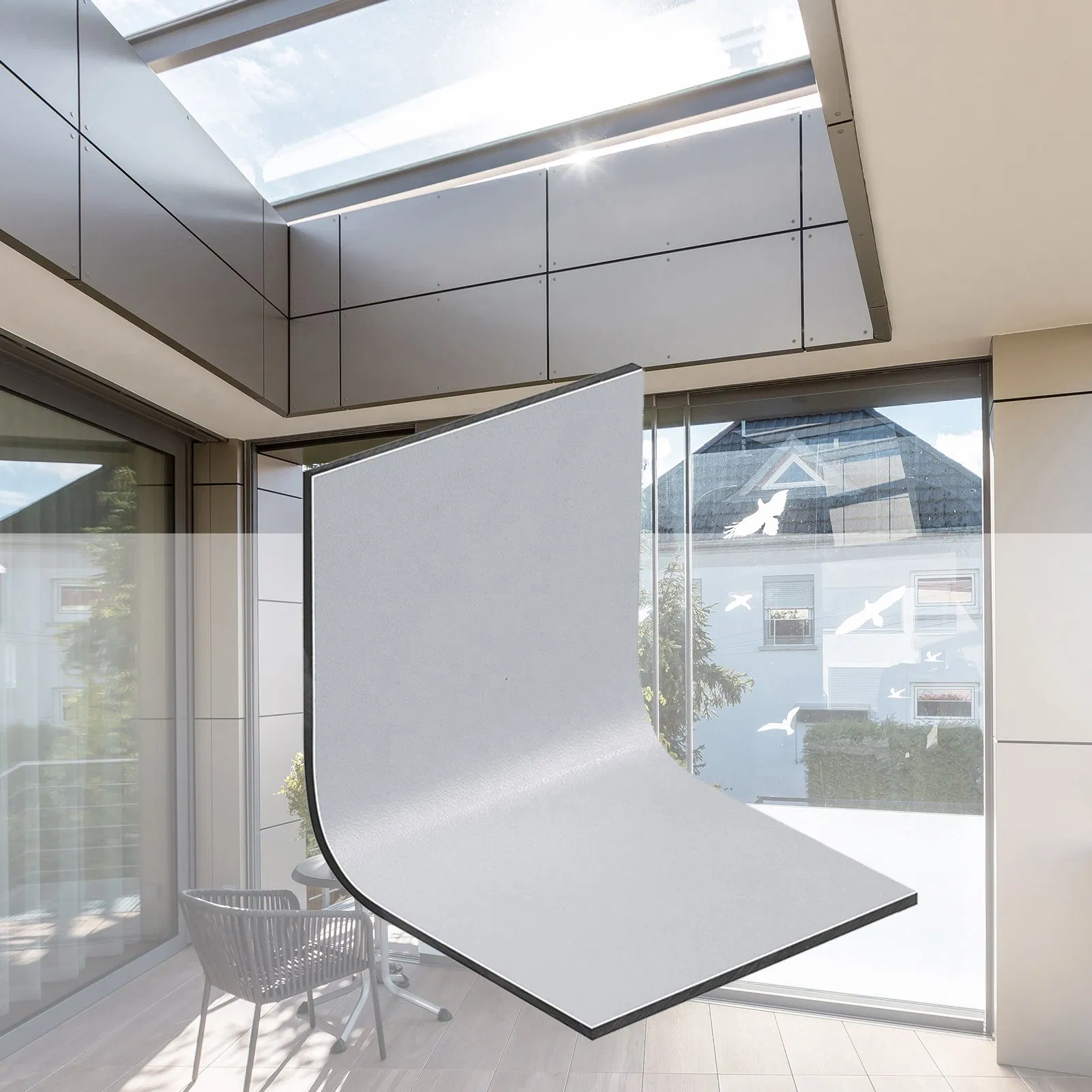

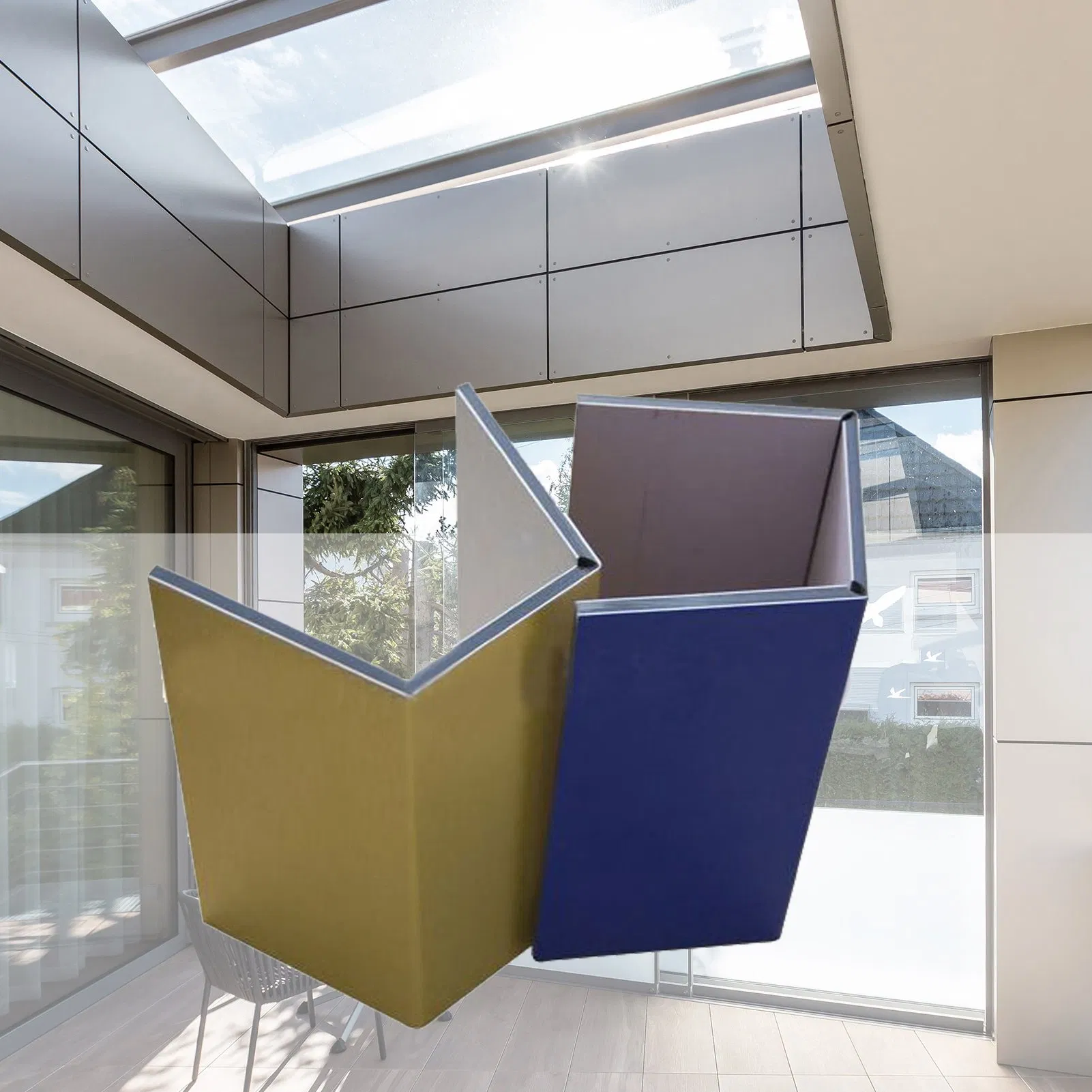

2mm 3mm 4mm 5mm 6mm Unbroken PE PVDF Aluminum Plastic Composite Sheet

Still deciding? Get samples of $ !
Order Sample

Product Description

📋

Basic Information

Model NO.ACP001 Surface FinishingCoating
Panel Thickness2mm-6mm Available Aluminum Thickness0.06mm - 0.5mm
FunctionFireproofing, Anti-static, Anti-Bacterial, Mould-proof UsageExternal Wall, Interior, Advertising
CertificationCE, ASTM, ISO, Green Leaf Aluminum Alloy1100 / 3003
CoreNon-Toxic PE or Fire Proof Core StandardGB/T 17748-2016
Production Capacity50000sqmt/Day PackageWooden Crate
📦

Product Description

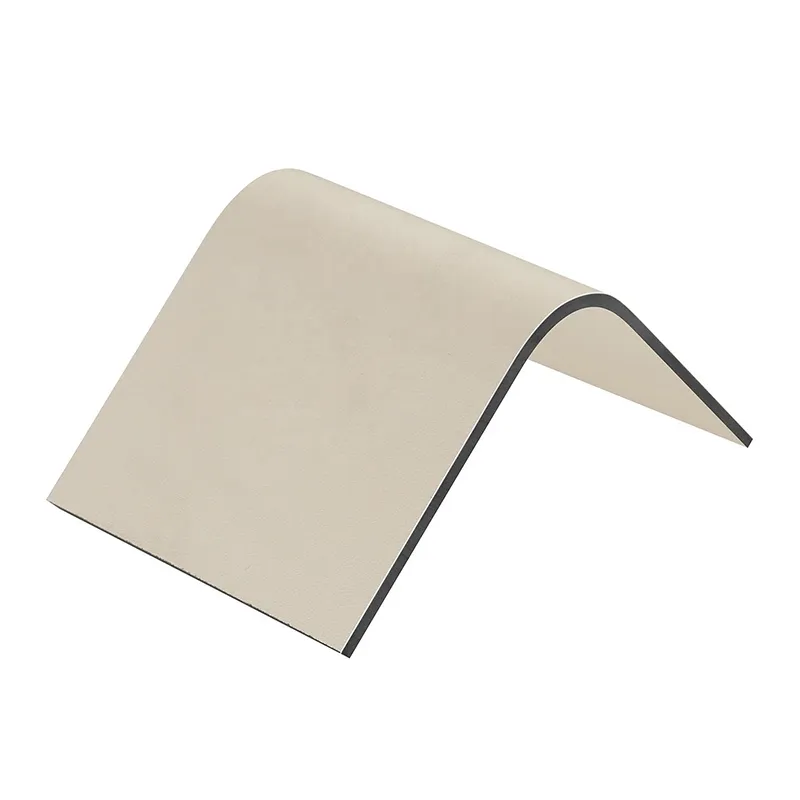

Wooden Aluminum Composite Panel

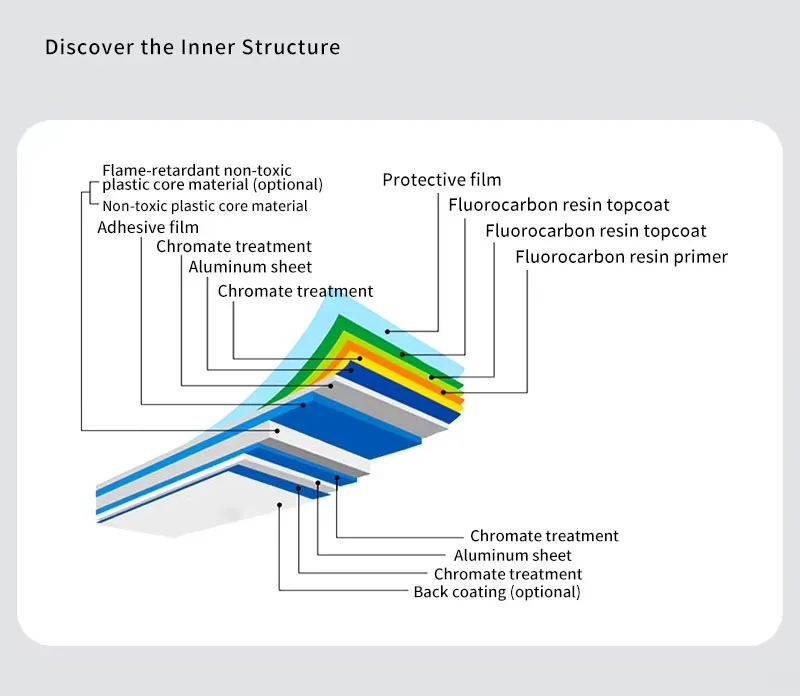

Aluminum Composite Panels
The aluminum-plastic composite panel is composed of multiple layers of materials. The upper and lower layers are high-purity aluminum alloy plates, and the middle layer is non-toxic low-density PE core board. For outdoor applications, the front is coated with PVDF, while for indoor use, a non-fluorocarbon resin coating is applied. Our panels allow for complex shapes and designs, providing expanded opportunities for creative aesthetics. Perforation patterns can be geometric, slotted, or customized.

Key Features

Widely used in curtain walls and building renovation
Super peeling strength & unbreakable plastic
Superior weather, corrosion, and pollutant resistance
Even coating with various color options
Easy to maintain and fabricate (bend, punch, drill)
Superior impact resistance and lightweight
📐

Technical Specification

Front sideAluminum Alloy(3003) with PVDF or PE coating
Core materialNormal PE / B1 Fireproof / A2 Non-combustible
Back sideAluminium alloy sheet with primer coating
Panel Thickness2mm, 3mm, 4mm, 5mm, 6mm
Standard Width1220mm, 1250mm, 1500mm, 1575mm
Standard Length2440mm (Customizable up to 5800mm)
Surface FinishMirror, Marble, Wood, Brush, Glossy, Matt
🏭

Production & Factory View

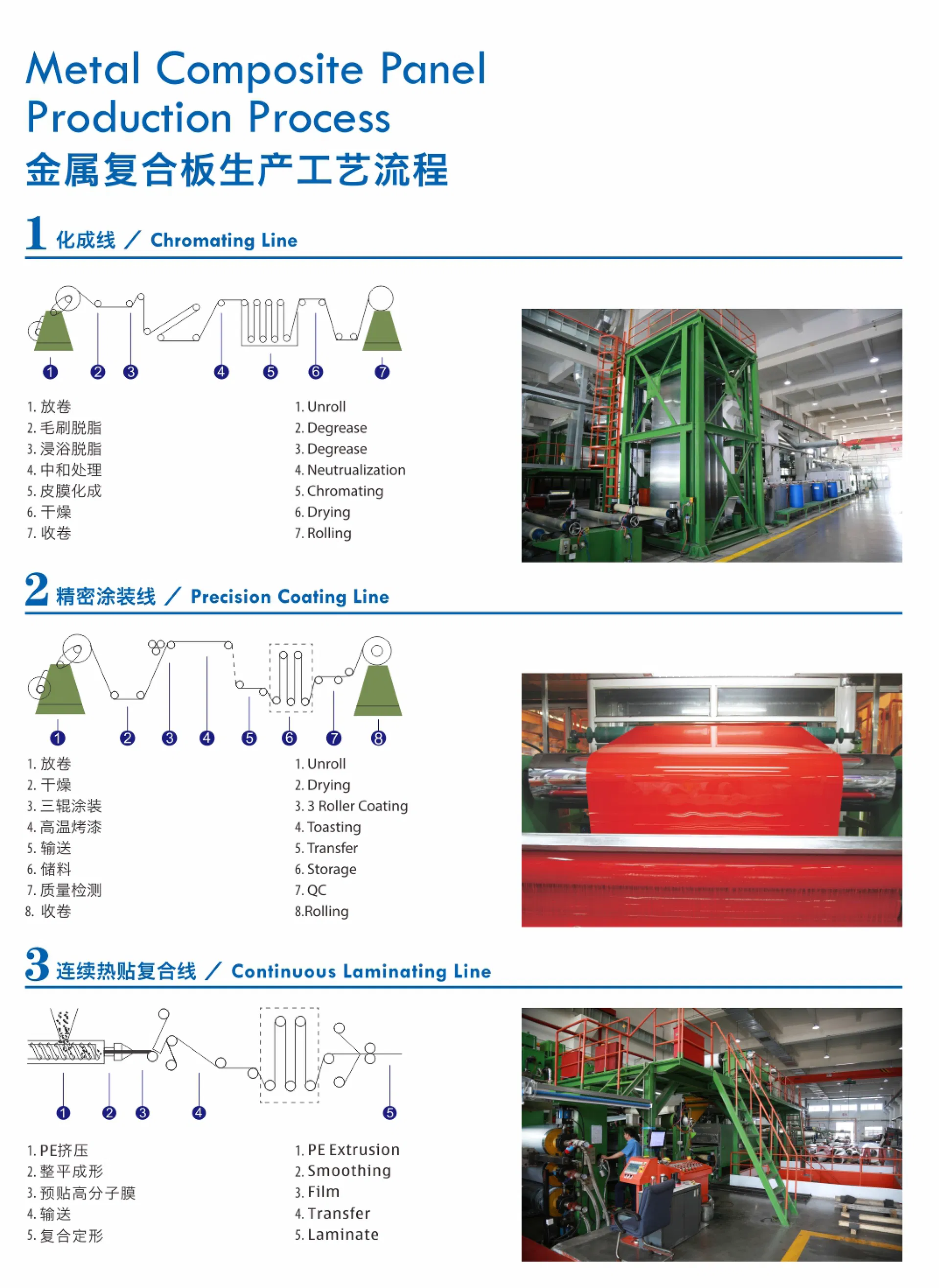

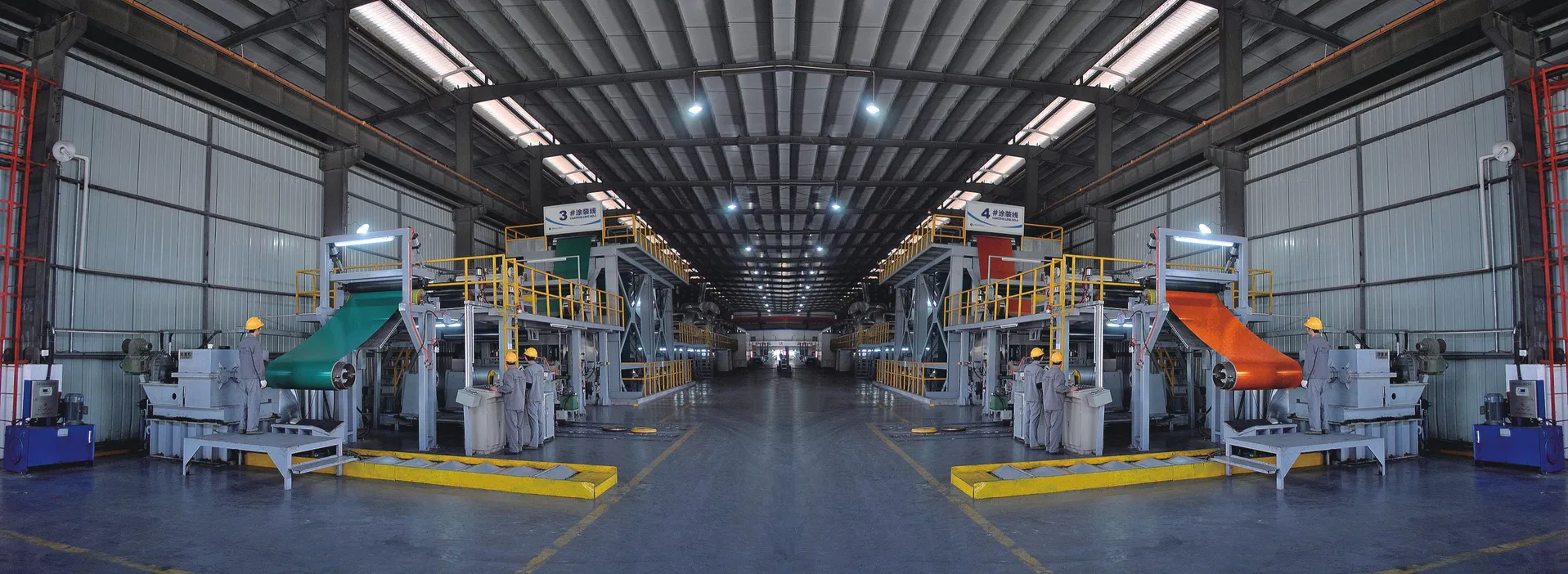

Production Process Factory Overview

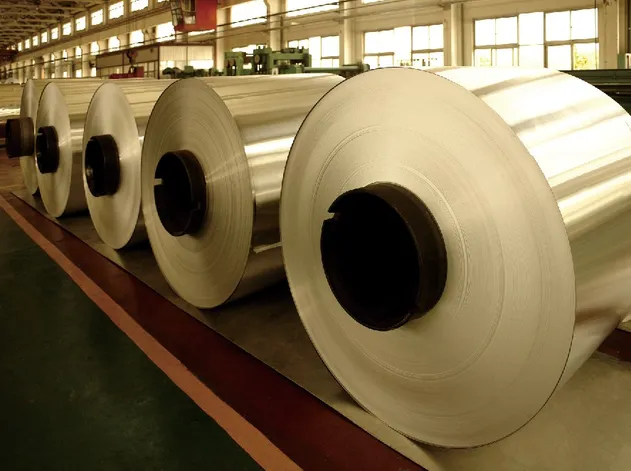

Factory Detail 1

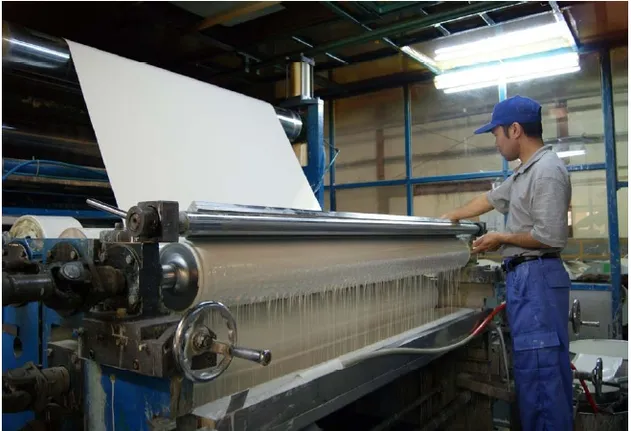

Factory Detail 2

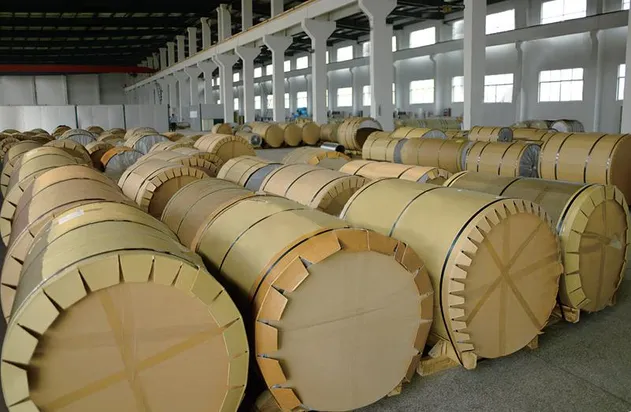

Factory Detail 3

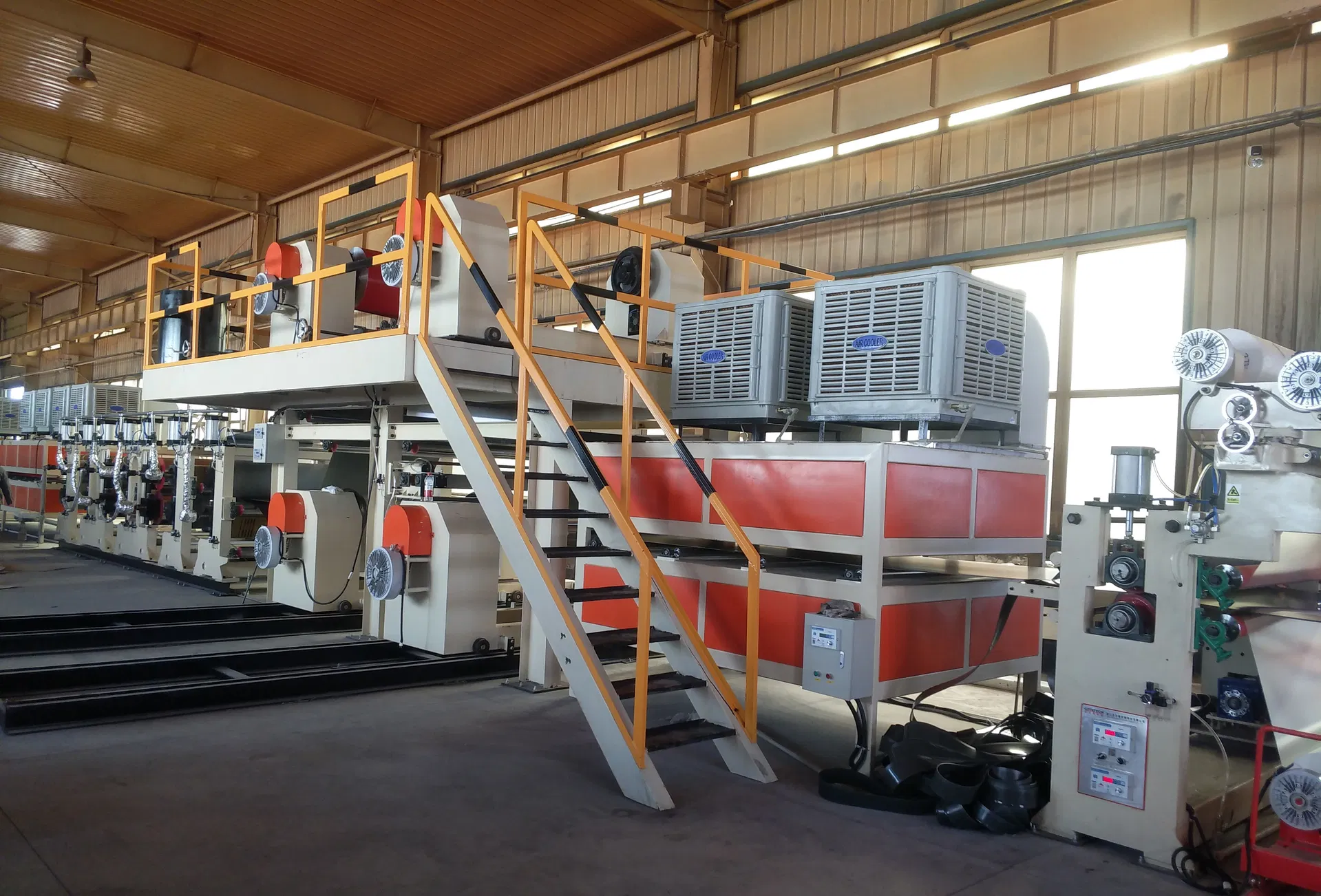

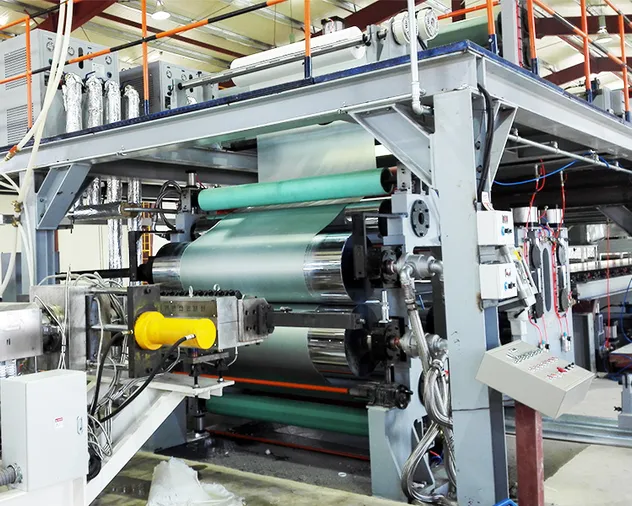

Production Line
Storage 1

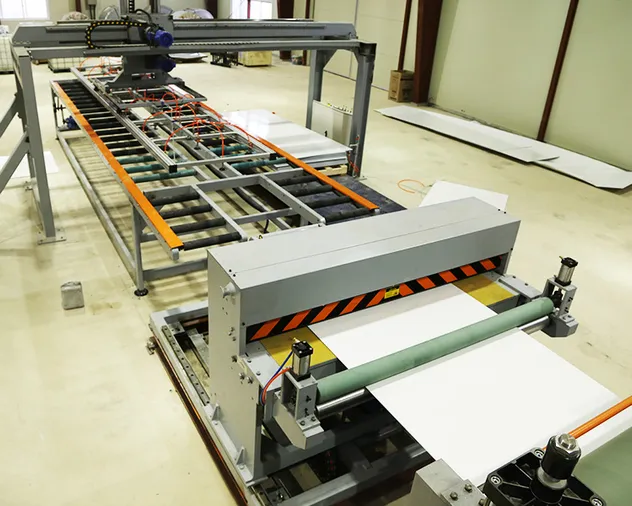

Storage 2

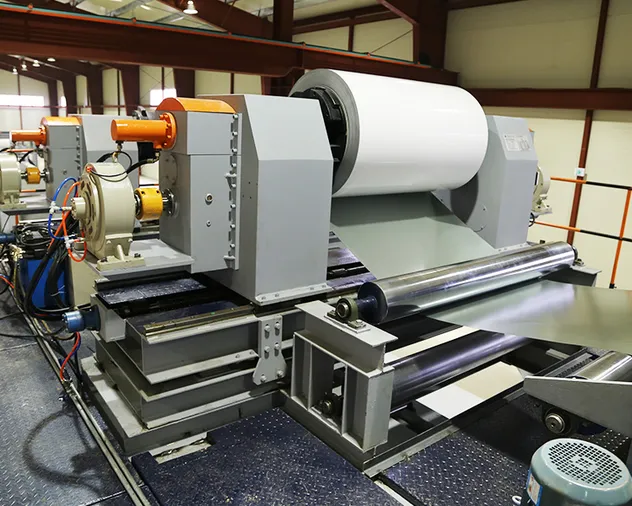

Storage 3
🛠

Installation & Application

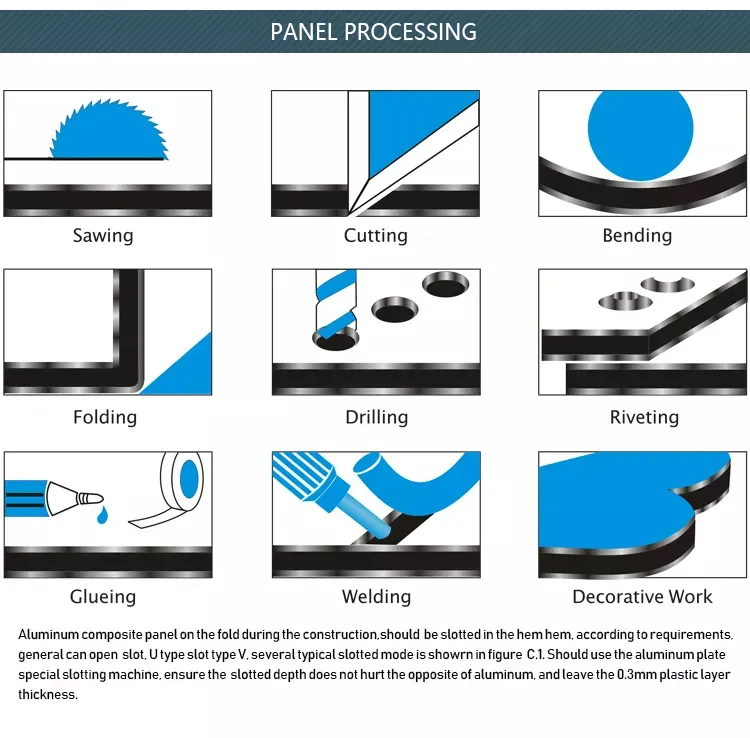

Installation Guide

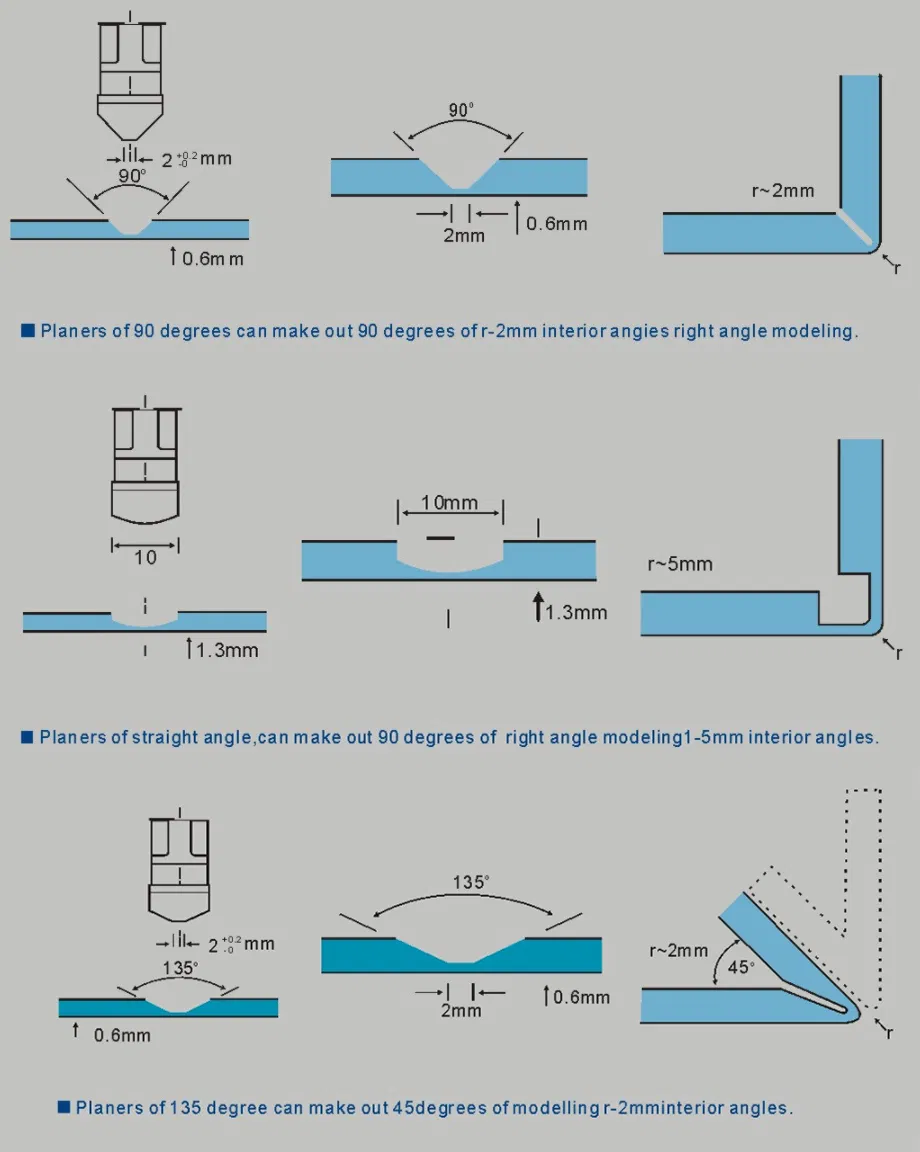

Technical Drawing

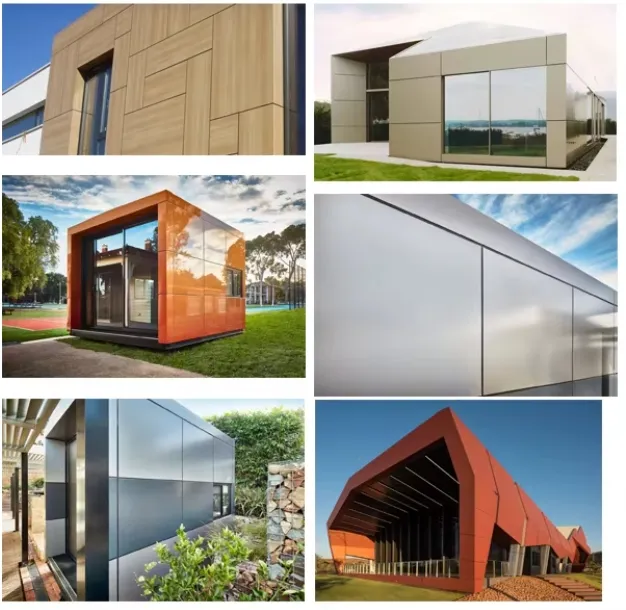

Project Application
Versatile Applications:
  • Exterior curtain walls and cladding.
  • Renovation for old buildings.
  • Interior decoration for walls, ceilings, and bathrooms.
  • Advertising boards, display platforms, and signboards.
  • Industrial materials and vehicle/boat applications.
📜

Quality Control & Certifications

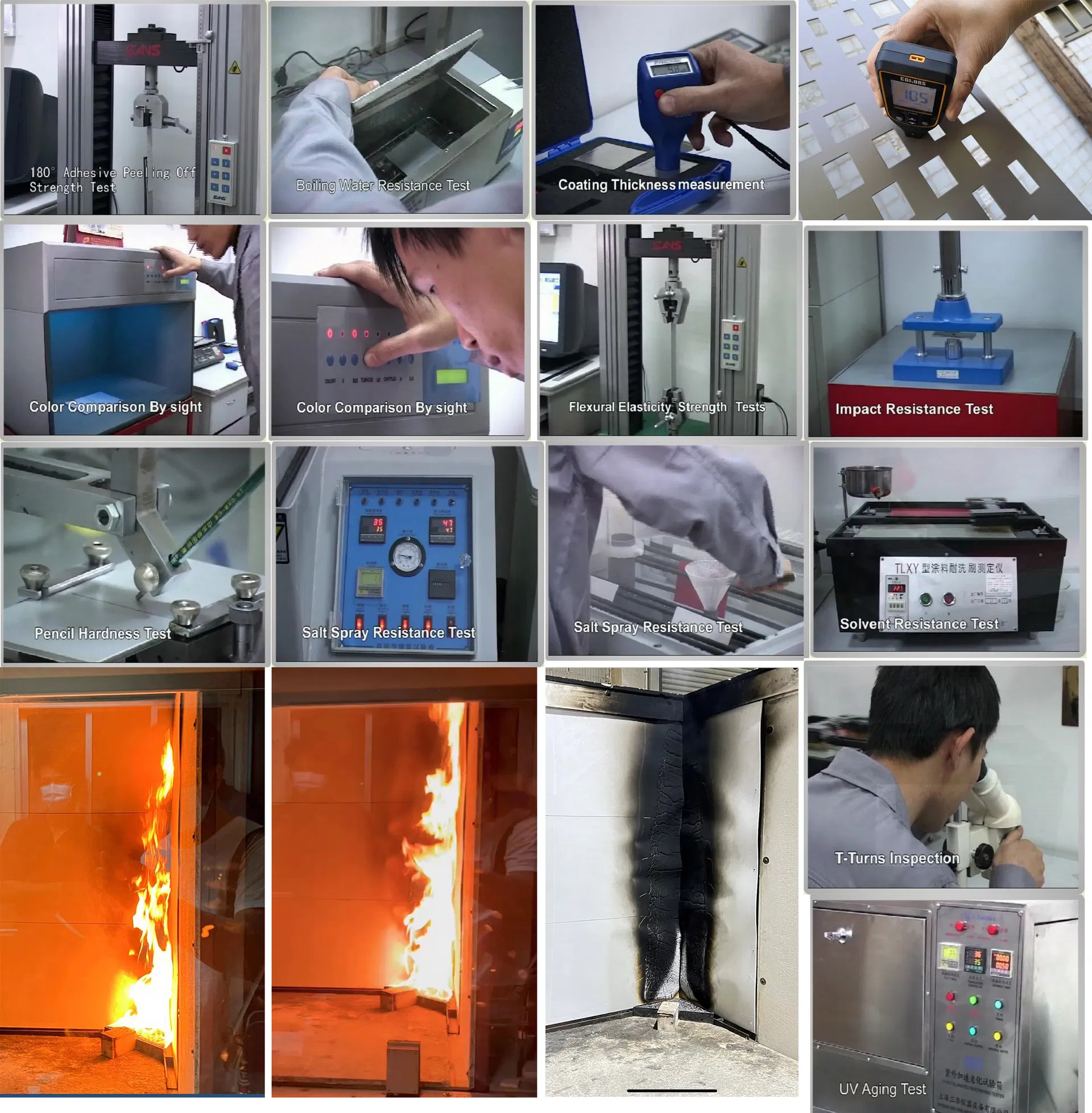

Quality Inspection Certificates Group

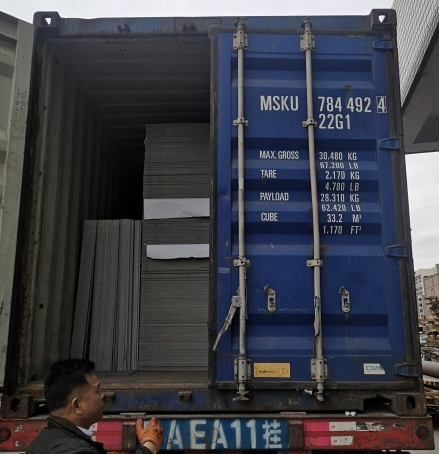

Cert 1

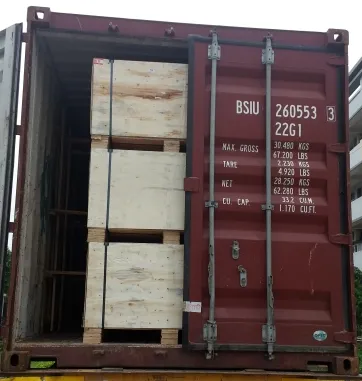

Cert 2

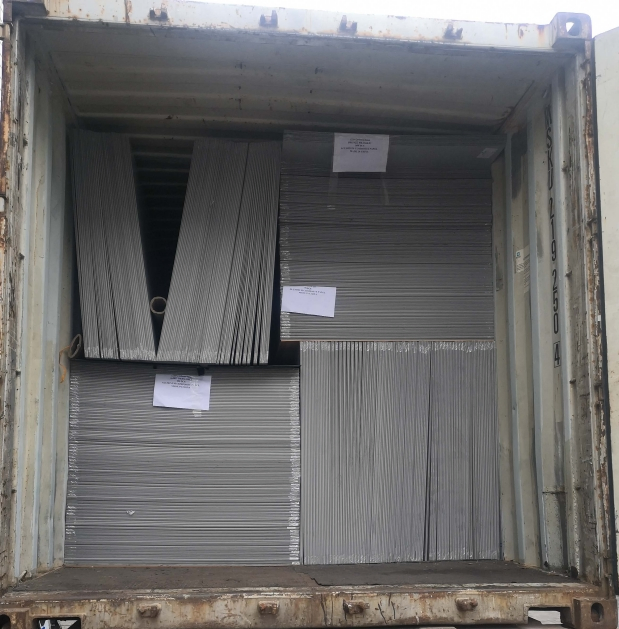

Cert 3
🏆

Why Choose Us?

20+ Years HistoryProfessional in manufacturing, marketing, and service for over 20 years.
Production Capacity10 production lines, 60,000 sqm/day. Guaranteed lead times.
Flexible MOQSmall orders accepted based on stock colors and thicknesses.
Color CustomizationAccurate matching via RAL/Pantone codes or physical samples.
Strict Quality ControlISO9001:2018, PPG, SGS, and KYNAR500 compliant.

Frequently Asked Questions

Q: How soon can I get a reply?
A: 1 hour during daytime. 6-8 hours during off-peak times.
Q: Can I get a sample?
A: Yes, samples are free. Only freight is collected (approx. $30-60 for 1kg).
Q: Can my order be produced under my own brand?
A: Yes, we can produce goods with your brand or LOGO on the protective film.
Q: What is your typical delivery time?
A: Normally 20 days after deposit. If raw materials are in stock, 10 days is sufficient.
Q: Is there a minimum order requirement (MOQ)?
A: MOQ depends on aluminum thickness. For example, 0.3mm aluminum requires a 600m² MOQ.
Q: Do you provide installation accessories?
A: Yes, we supply aluminum extrusions, sealants, and other necessary accessories.
