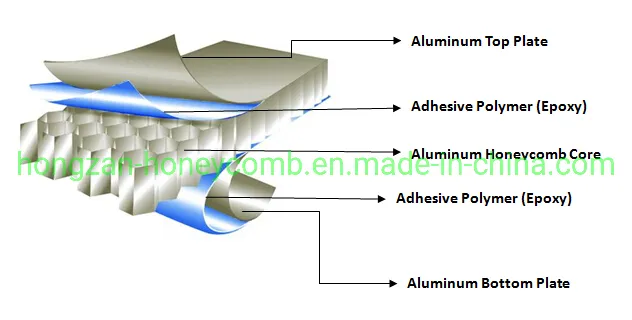

Aluminum honeycomb panels are high-quality composite materials primarily used for marine and architectural decoration. The surface employs fluorocarbon lacquer (PVDF/PE) which maintains color integrity for 15-20 years. Using bi-component modified epoxy adhesives and automated high-temperature manufacturing, these panels offer superior flatness and bending resistance.
A. Ultra-Lightweight: Only 1/5 the weight of solid aluminum and 1/10 of iron for the same rigidity.
B. Insulation: Blocks heat and sound waves (20-30DB reduction), making it an ideal energy-saving material.
C. Straight Surface: High flatness with diverse color options via continuous roller coating technology.
| Material Property | 20mm Thickness | 25mm Thickness |
|---|---|---|
| Front Aluminum Panel | 1.00mm | 1.00mm |
| Back Aluminum Panel | 1.00mm | 1.00mm |
| Weight (kg/m²) | 7.4 | 7.8 |
| Inertia Moment (cm⁴/m) | 19.85 | 31.67 |
| Rigidity (E.I) | 139,000 | 2,217,000 |
| Sound Insulation (ISO717-RW) | 23 | 25 |

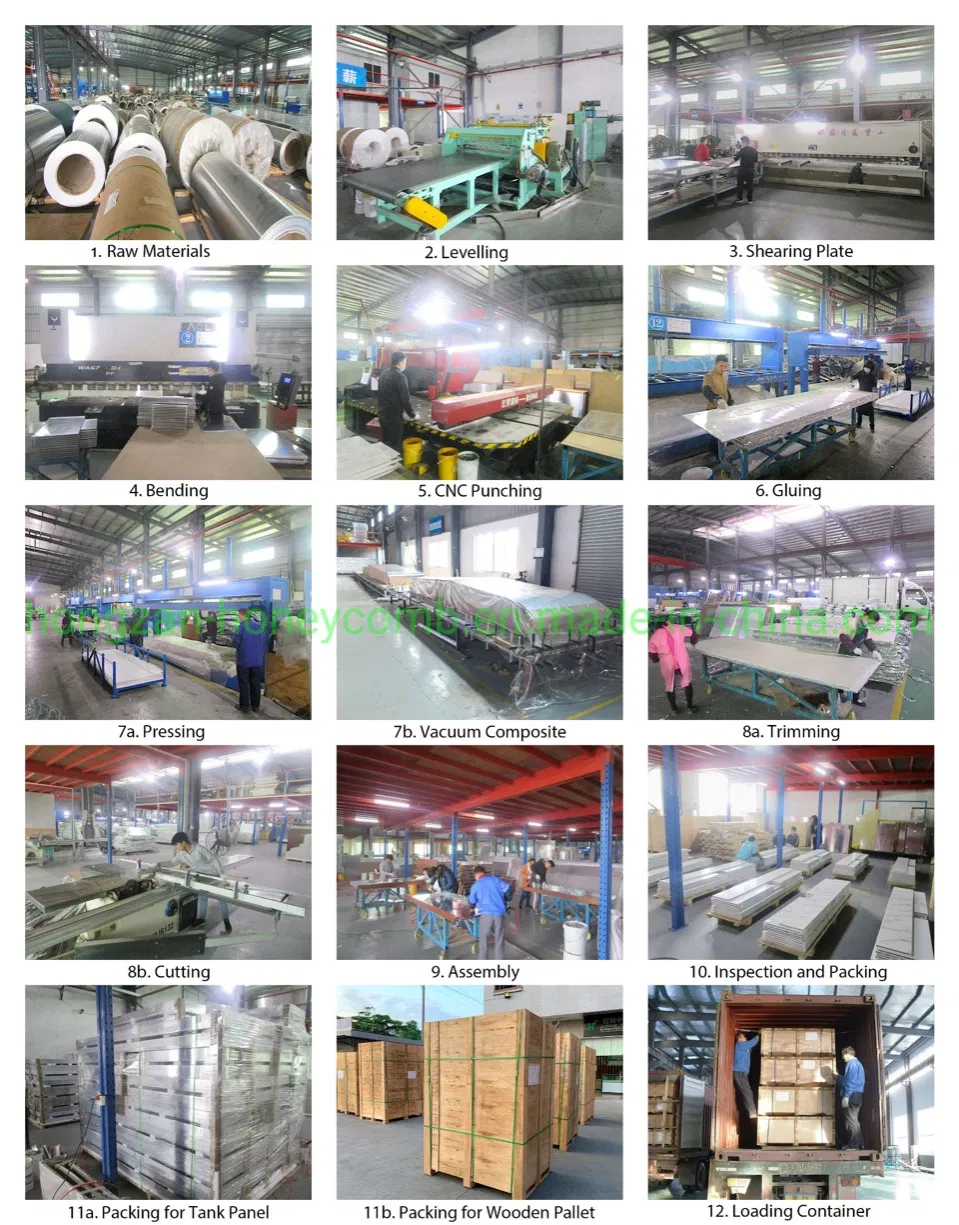

| Production Capacity | Output Per Month |
|---|---|
| Aluminum honeycomb panels | 50,000 SQM |
| Aluminum honeycomb core | 500,000 SQM |
| Stone & Ceramic honeycomb panel | 10,000 SQM |
| Solid aluminum sheet | 100,000 SQM |
Standard installing systems are available for both outdoor seaming and seamless methods.

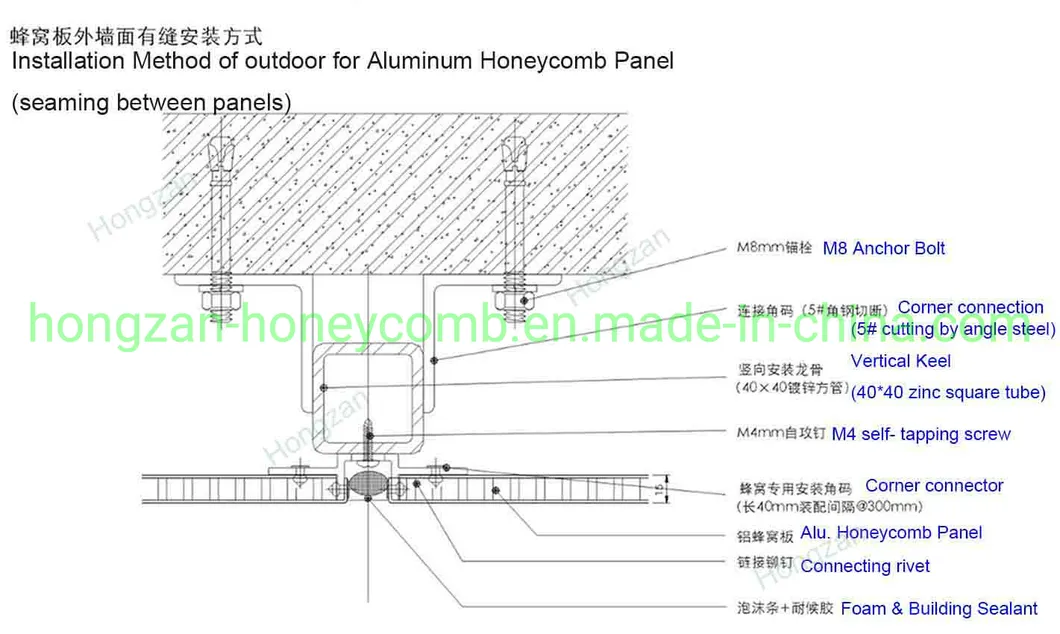

Type A: Seaming Installation

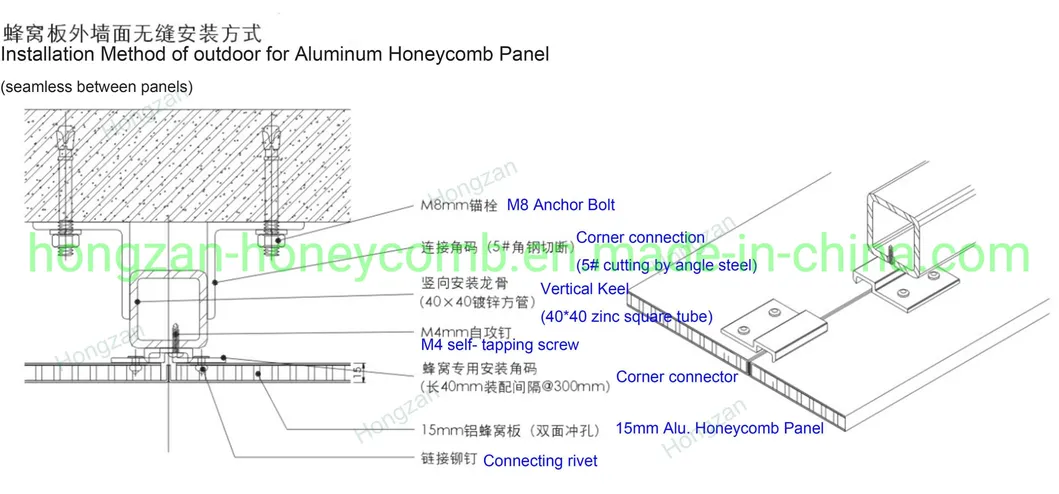

Type B: Seamless Installation
