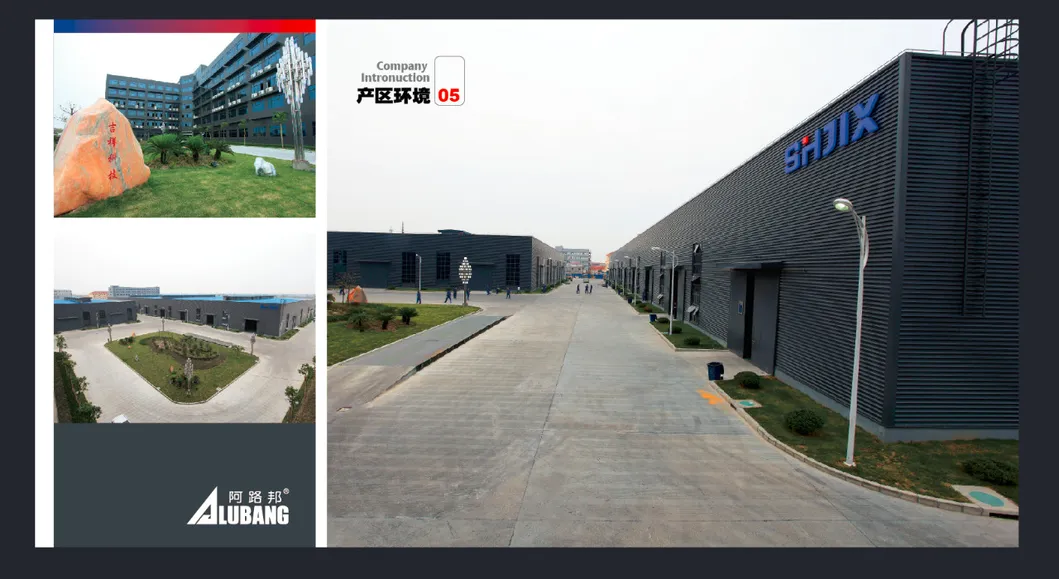

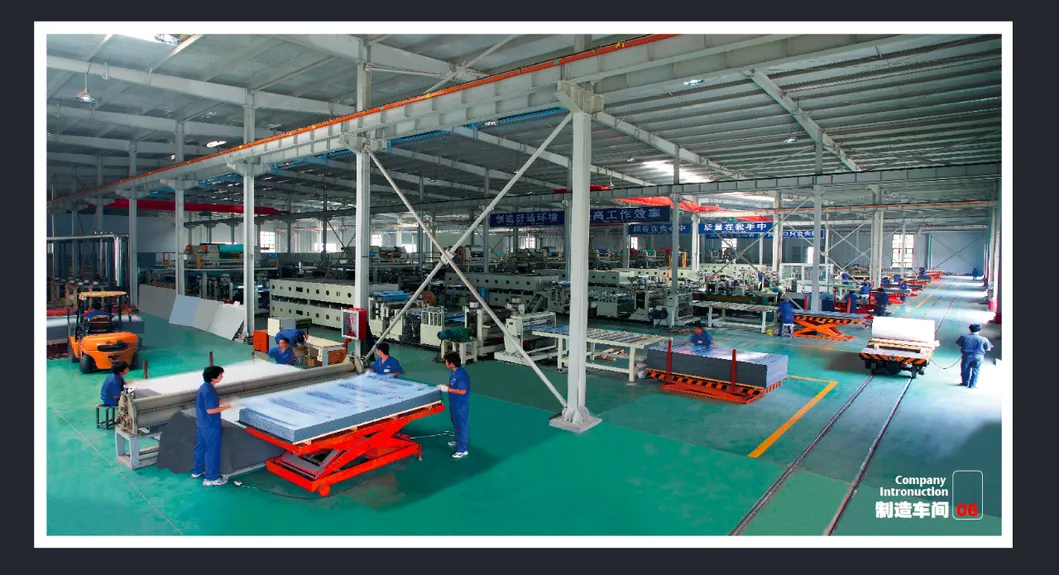

This professional manufacture for aluminum composite panel was established in 1998, with more than 20 years production and exporting history. With over ten years' efforts, the facility now features more than 150 experienced technicians and multiple advanced automatic aluminum composite panel production lines. Upholding the concept of "Quality is the Life core of an Enterprise", we offer the best service for our global clients.
| Width | 1000mm, 1220mm, 1250mm, 1500mm, 1550mm, 1570mm |
|---|---|
| Length | 2440mm, 3200mm, 4000mm, 5000mm, 6000mm, or customized |
| Thickness | 2mm, 3mm, 4mm, 5mm, 6mm |
| Thickness of ALU-layer | 0.08mm to 0.5mm |

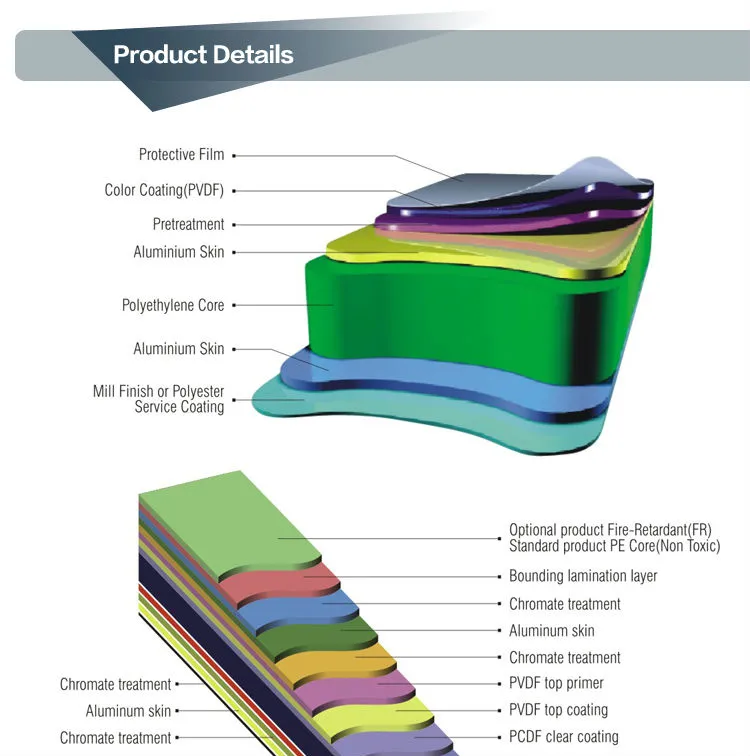

| Inner Core | Normal non toxic PE core, one side unbroken plastic, two side unbroken plastic, virgin LDPE, fireproof material |

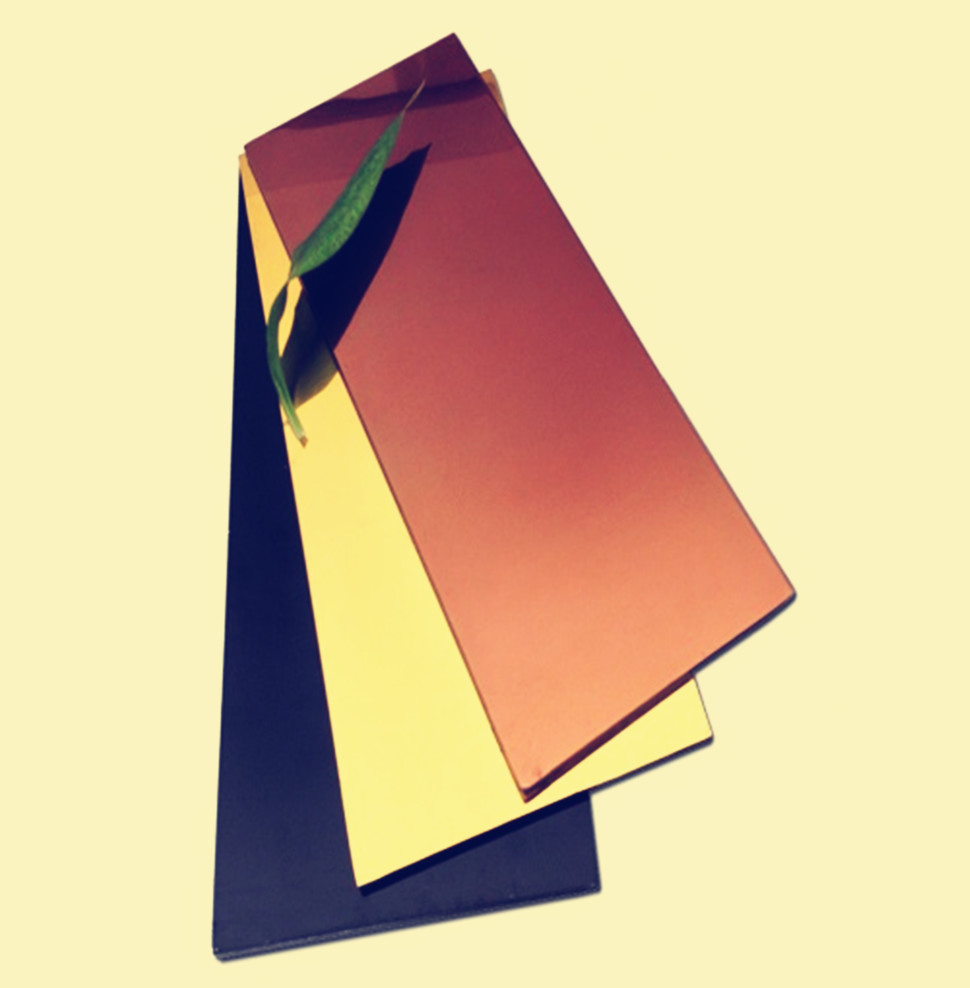

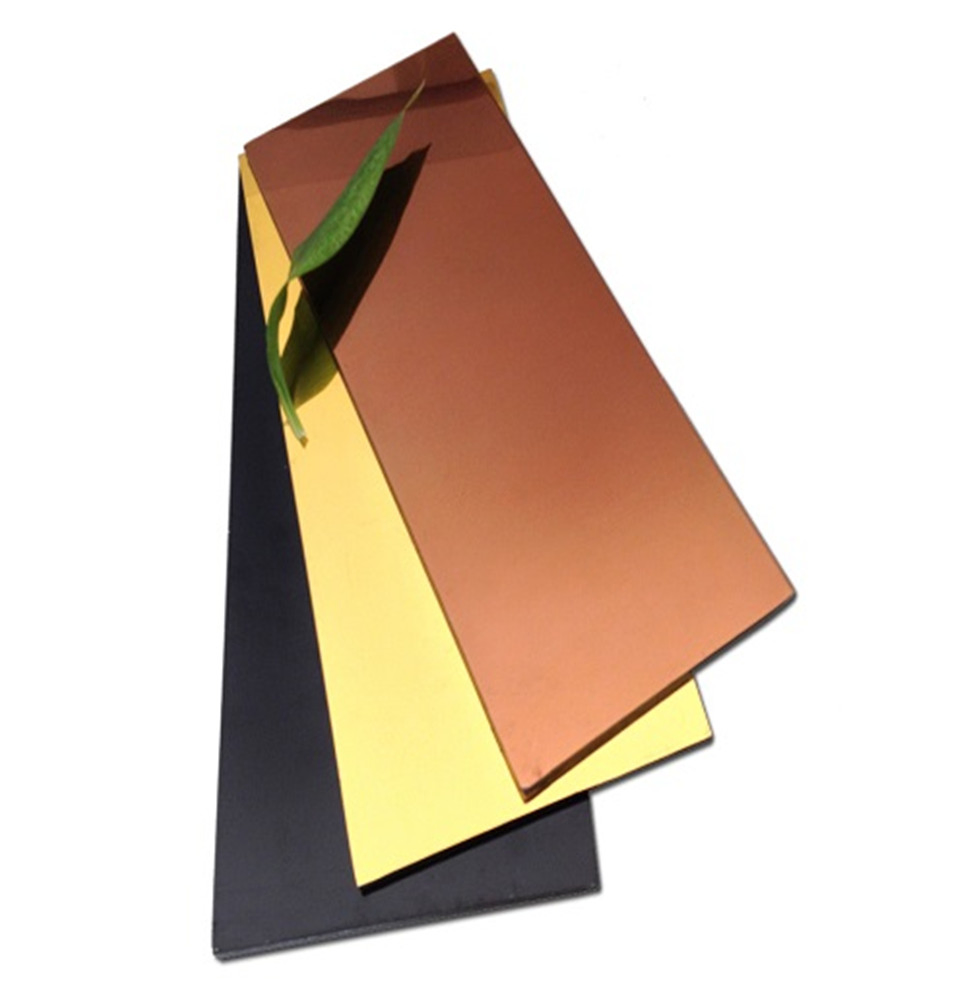

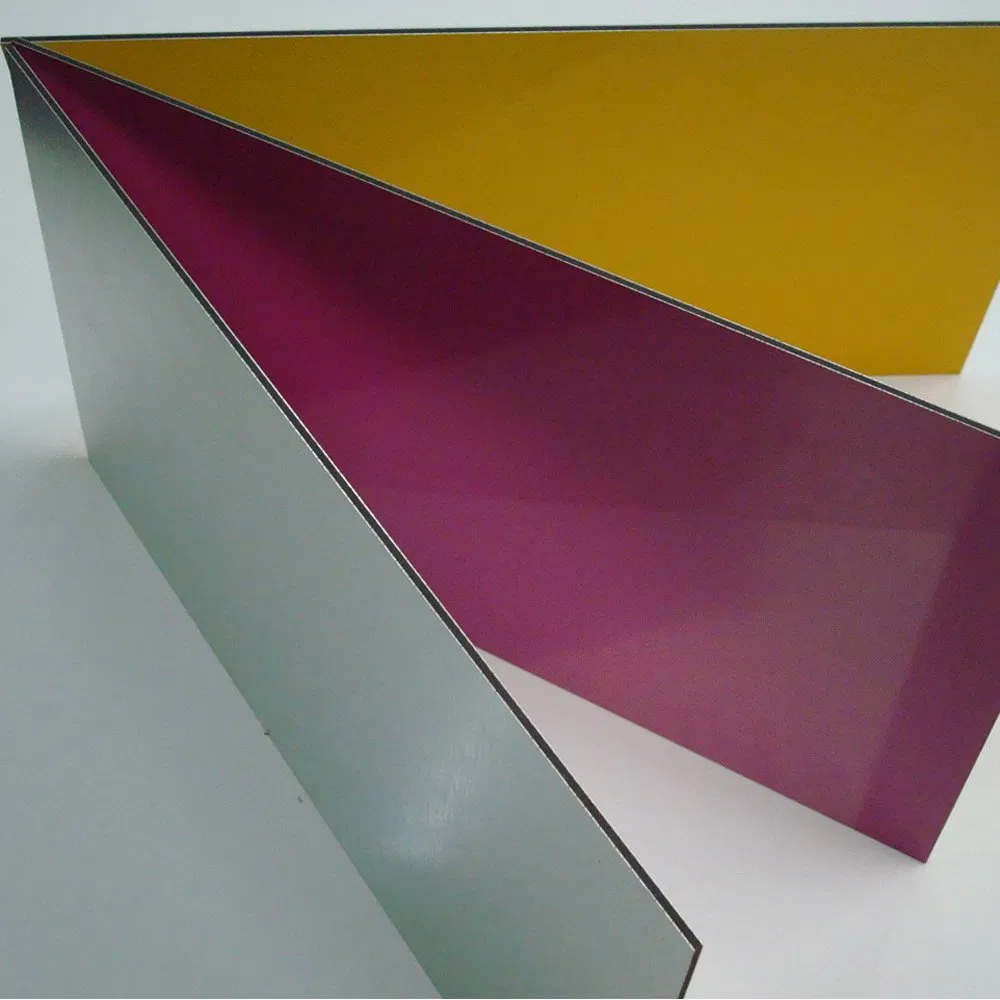

| Color | Solid color, metallic color, brush color, mirror, marble, wooden color, glossy |
| Surface | PE coating, PVDF coating, NANO, Brush surface, mirror surface |

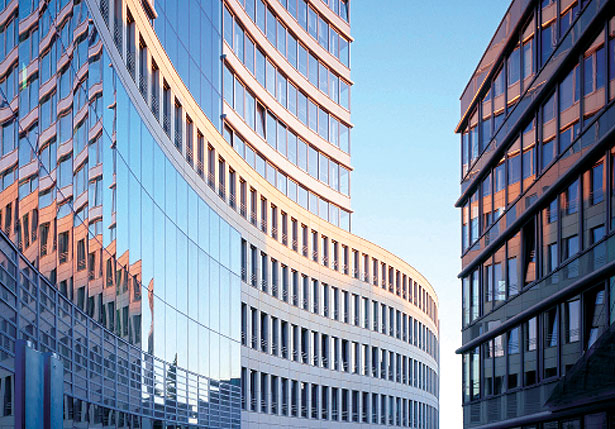

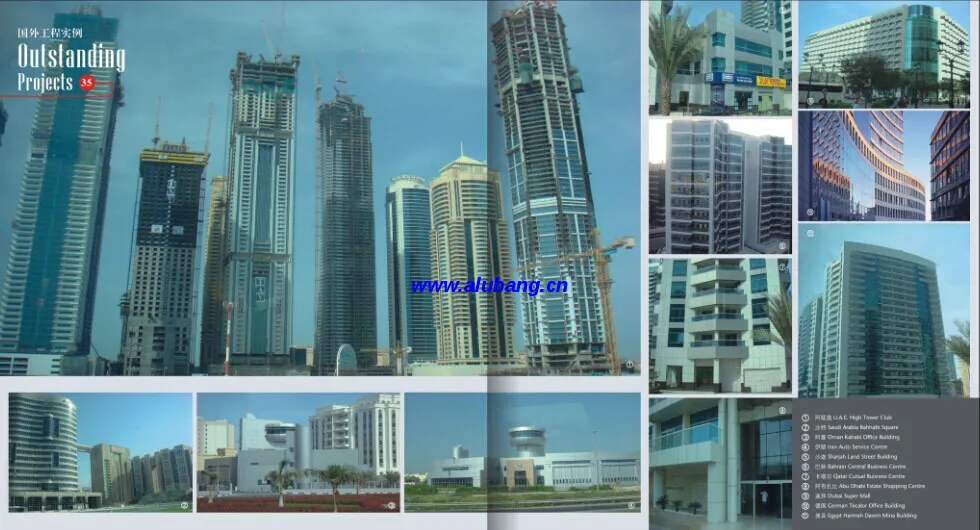

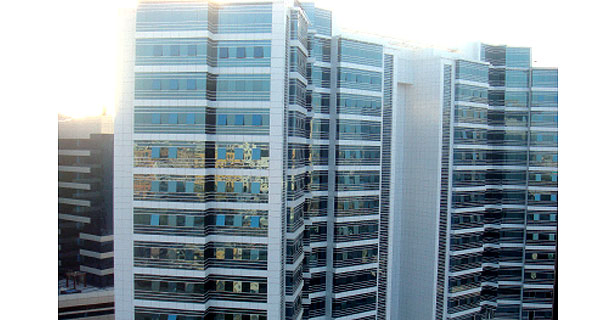

Our ACM panels are widely used in various environments:
| Rigidity (E J) | Thickness (ACP) | Weight (ACP) | Thickness (Aluminium) | Weight (Aluminium) |
|---|---|---|---|---|
| 1250 kN cm2/m | 3 mm | 4.5kg/m2 | 2.7 mm | 7.3kg/m2 |
| 2400 kN cm2/m | 4 mm | 5.5kg/m2 | 3.3 mm | 8.9kg/m2 |
| Peel Strength | Average 7.0 N/mm |
| Tensile Strength | 52.5 Mpa |
| Temperature Resistance | -50°C to +90°C |
| Acid Resistance | Immersed in 2% HC1 for 24 hrs, no change |
| Oil Resistance | Immersed in 20# engine oil for 24 hrs, no change |
All panels are packed securely in wooden boxes. Stock piles are kept under 6 layers high. During container loading, timbers are used for reinforcement to ensure safe transport.
