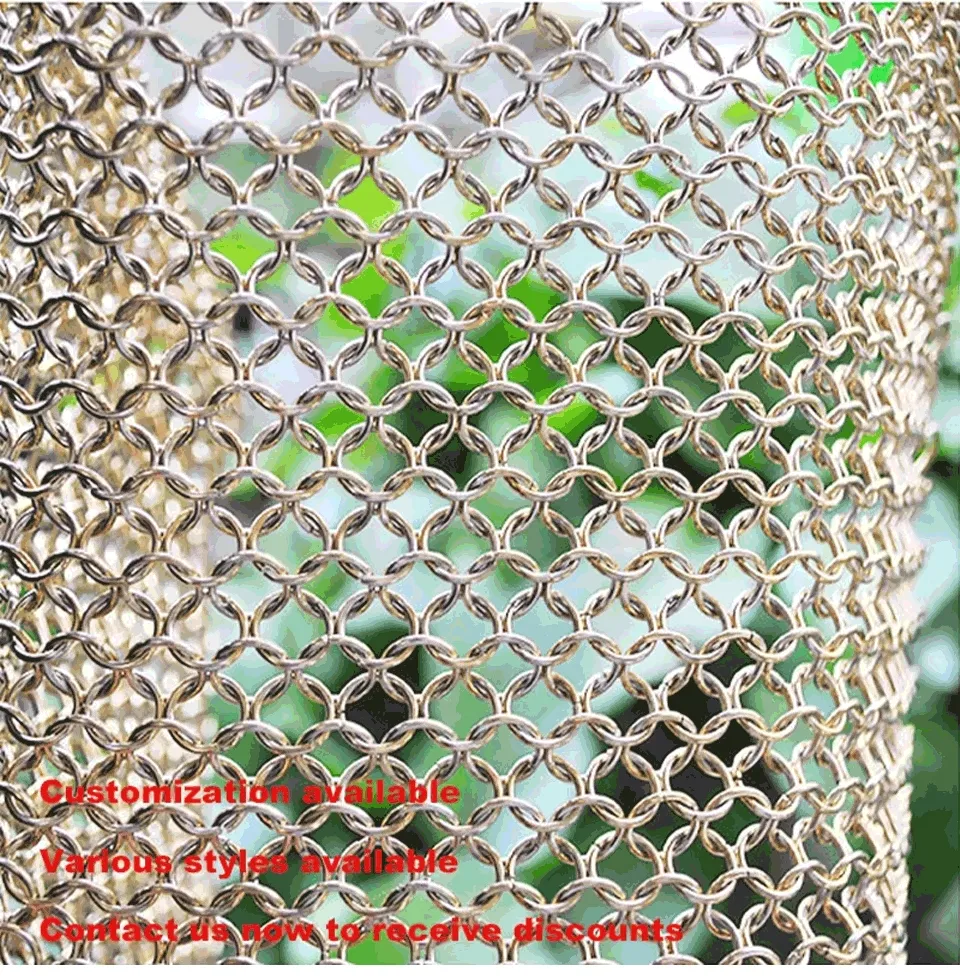

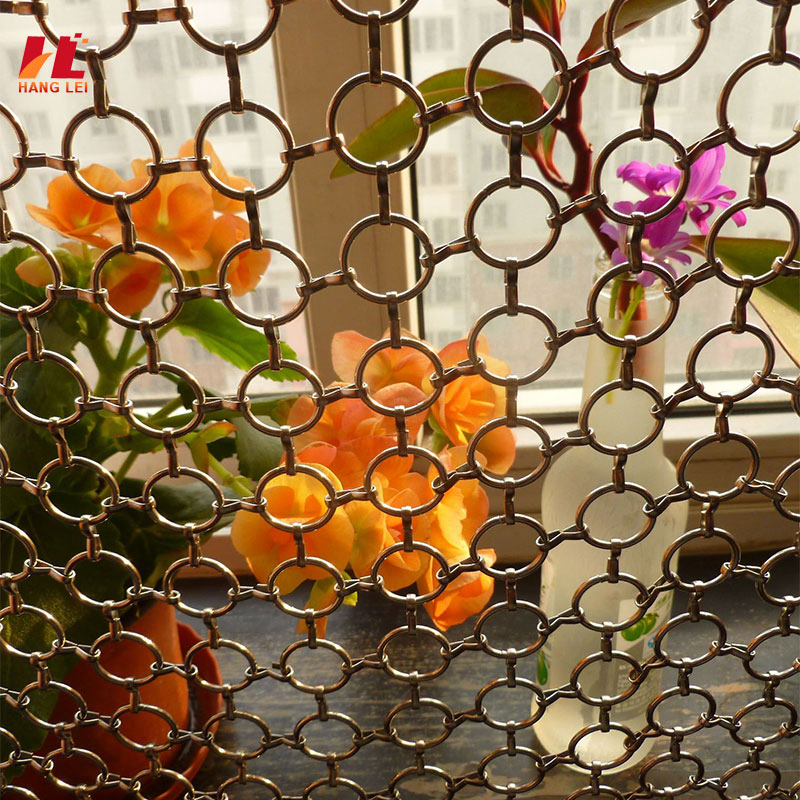

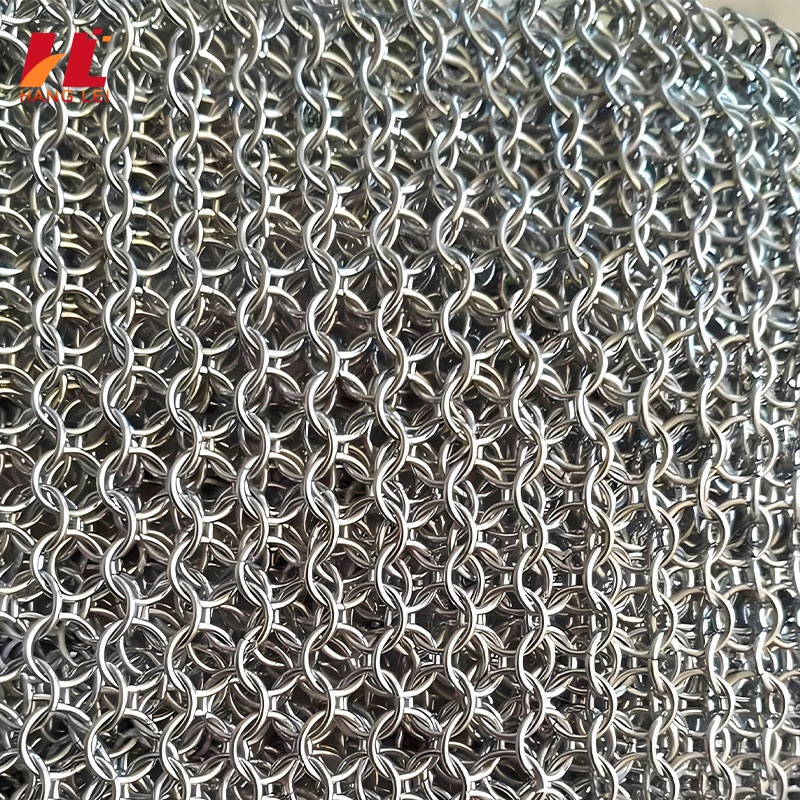

Decorative metal chain-link mesh, also known as metal mesh curtains or metal drapes, is a flexible decorative material woven from metal wire. It defies the traditional stereotype of metal as hard and cold. With its unique softness, transparency, and modern feel, it has gained a significant presence in architecture and interior design.
| Material Types | Details & Features |
|---|---|
| Materials | Stainless steel 304/316/316L, brass, copper, and steel alloy. |
| Standard Wire Dia. | 0.7mm - 3.0mm (Common: 0.7mm, 1.5mm, 1.8mm, 2.0mm). |
| Ring Diameter | Inside: 10mm-29mm | Outside: 12mm-35mm | Standard Size: 20mm. |

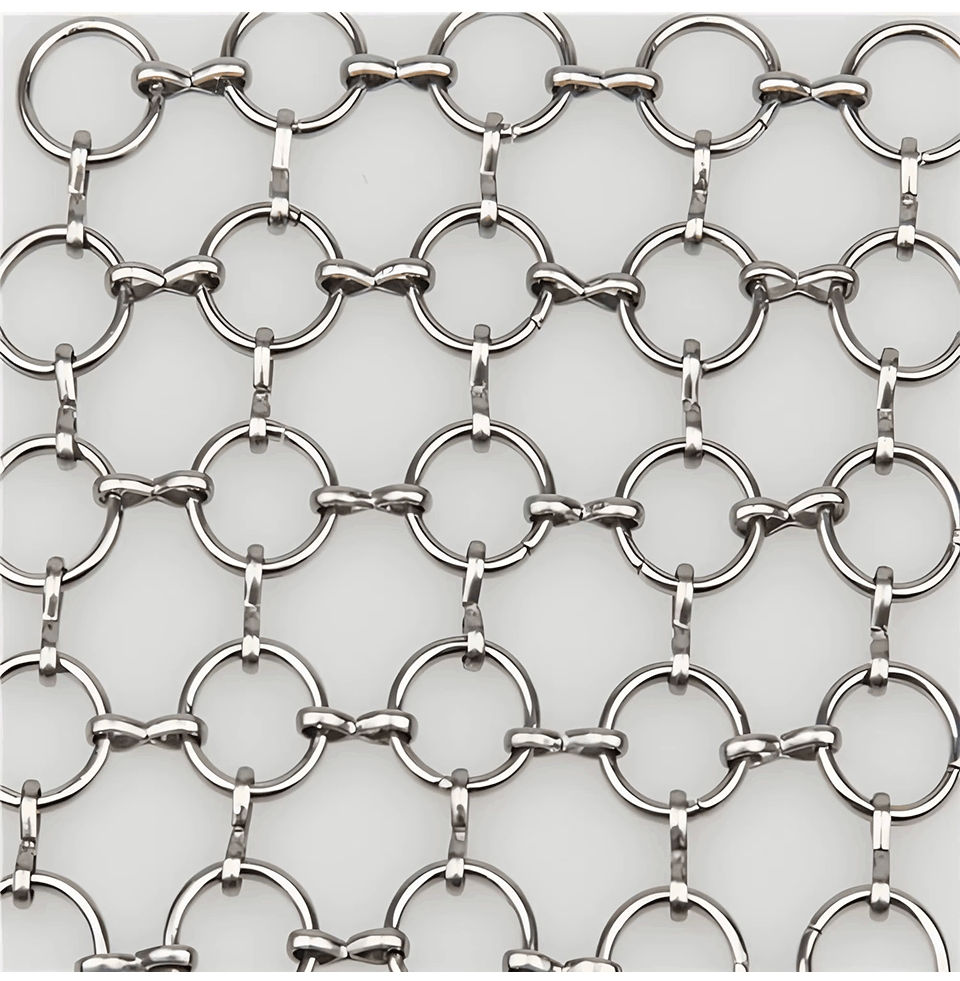

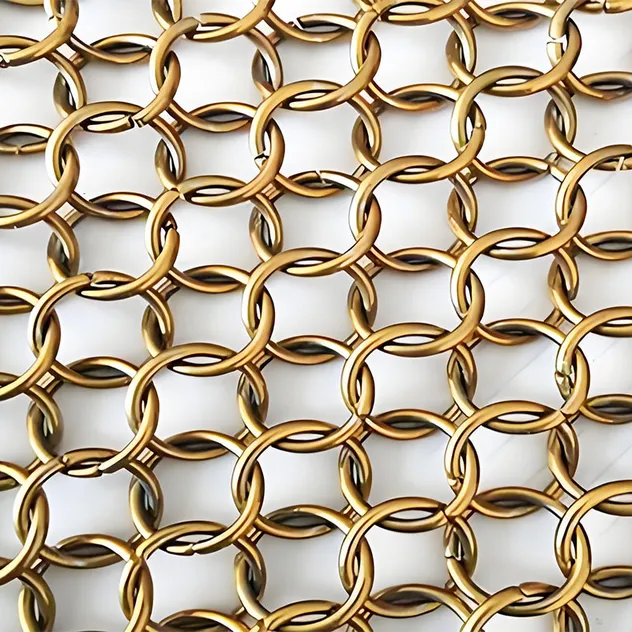

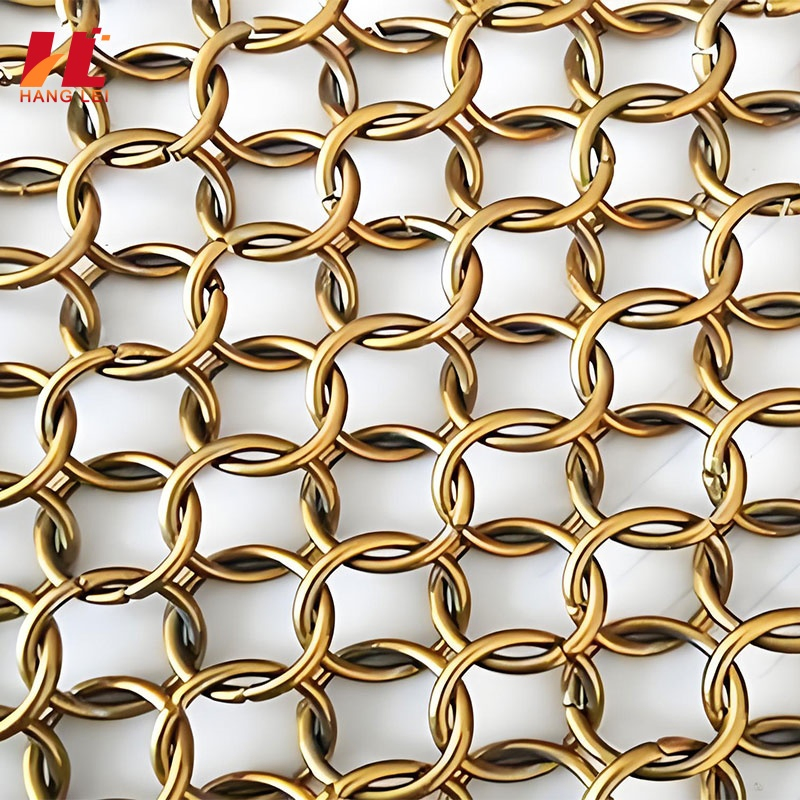

| Finish Process | Bent into rings with ends welded together for maximum durability. |
| Key Features |
|
| Type | Ring Dia. | Wire Gauge | Weight | Tensile Strength | Open Area |
|---|---|---|---|---|---|
| 12.0 Stainless Steel | 12.00 mm | 1.10 mm | 3.06 kg/m² | 53 kN/m | 63 % |
| 12.0 Bronze | 12.00 mm | 1.10 mm | 3.45 kg/m² | 33 kN/m | 63 % |
| 7.0 Stainless Steel | 7.00 mm | 0.70 mm | 2.2 kg/m² | 23 kN/m | 60 % |

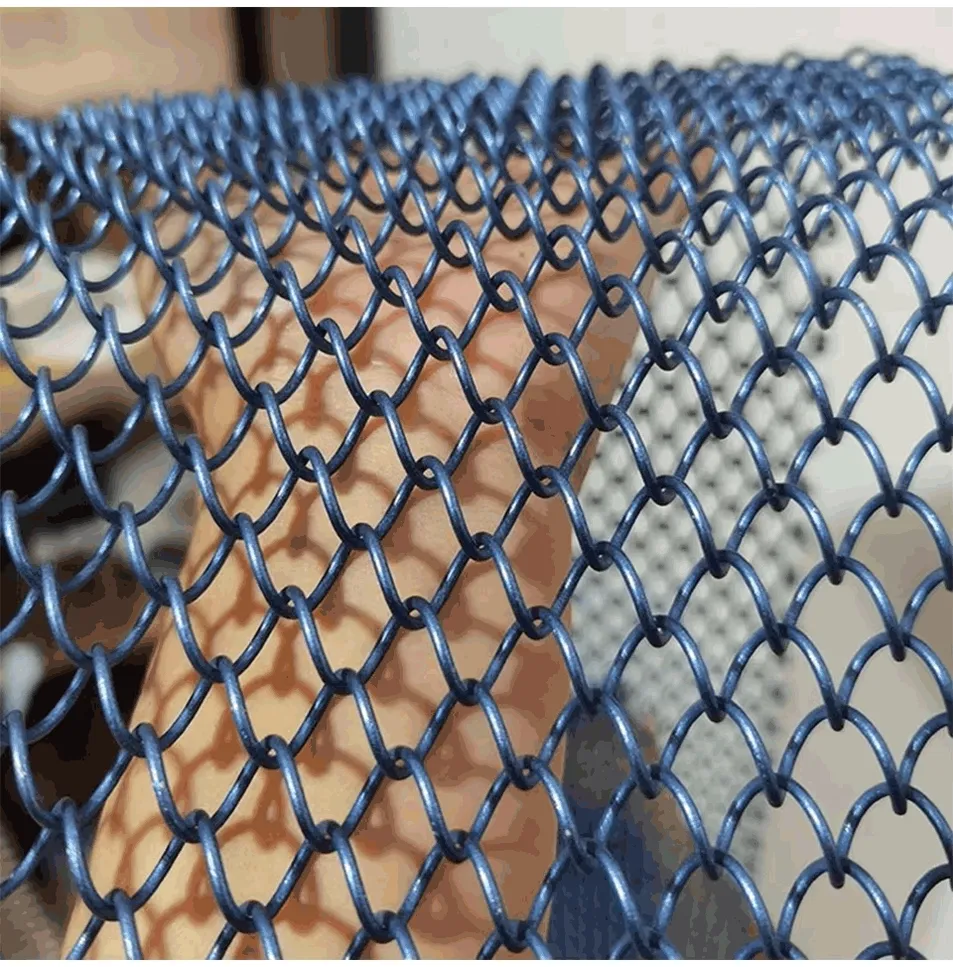

The mesh structure realizes the separation of space without interruption. It divides functional areas while maintaining visual continuity and light penetration, creating a layered light and shadow effect.

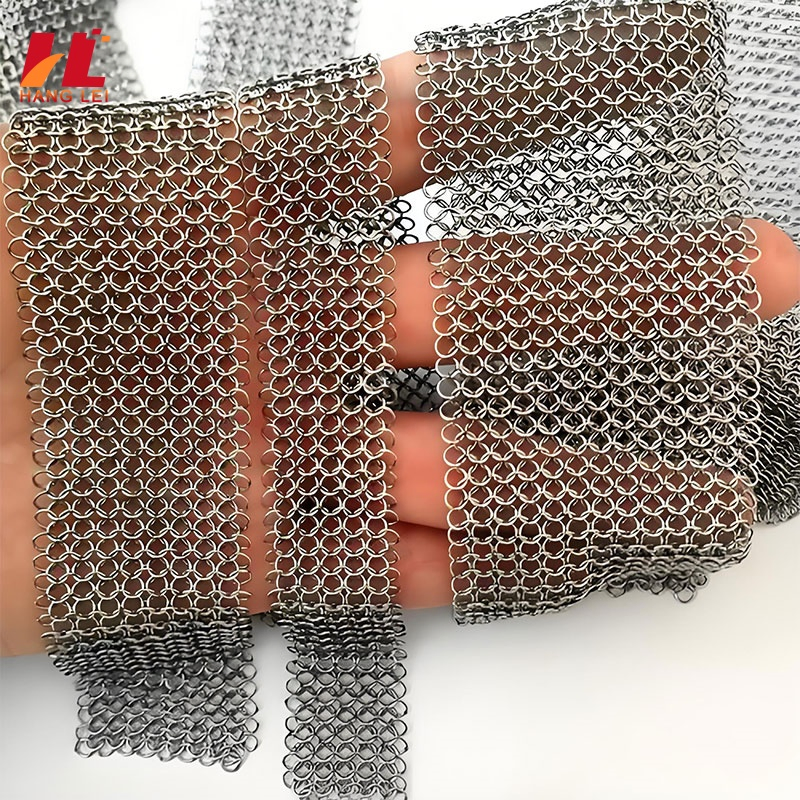

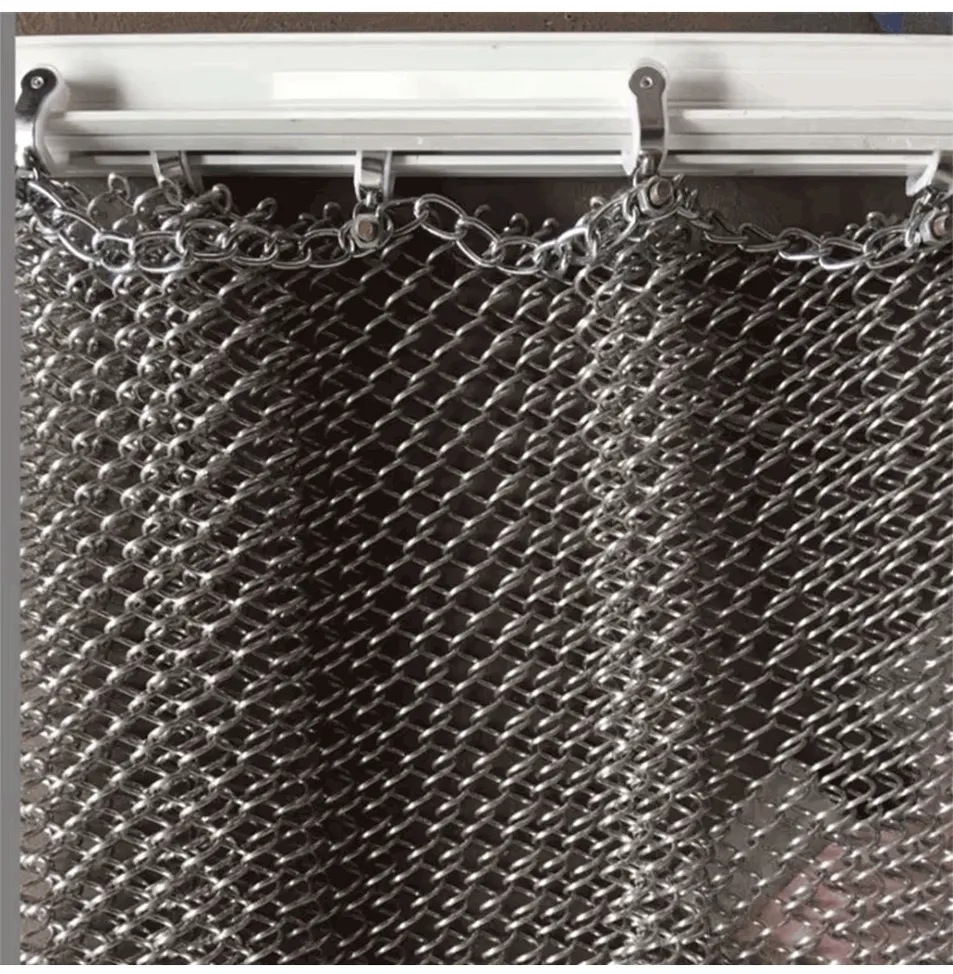

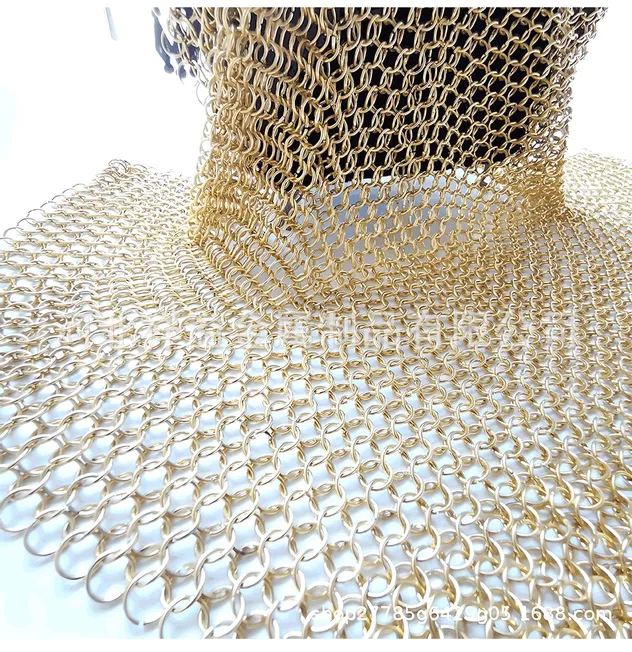

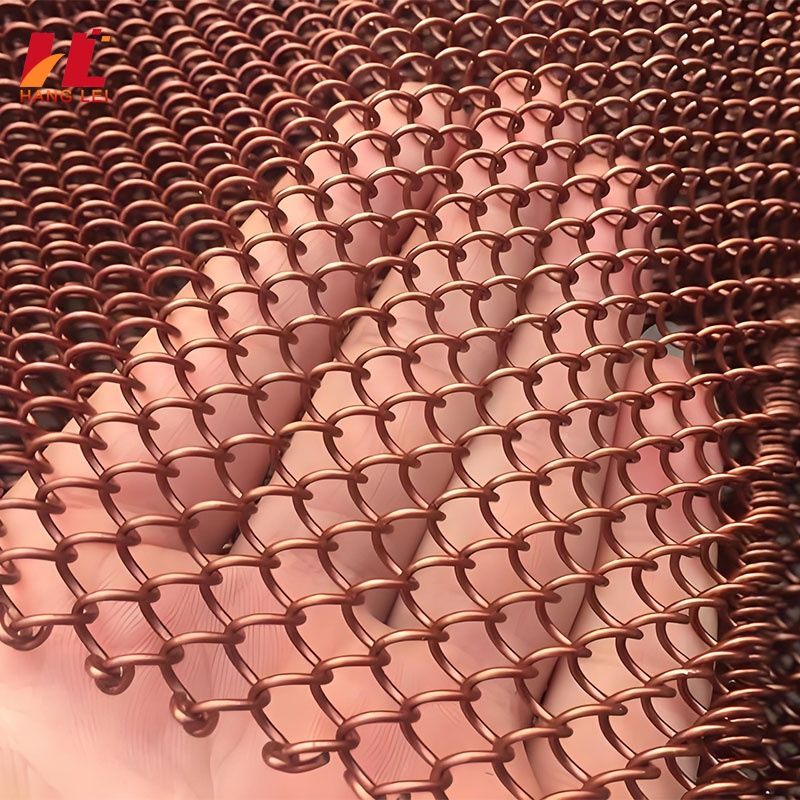

Unlike hard metal plates, chain link mesh has soft properties similar to fabric. It can be bent, folded, and cut to adapt to various curved surfaces and complex shape requirements.

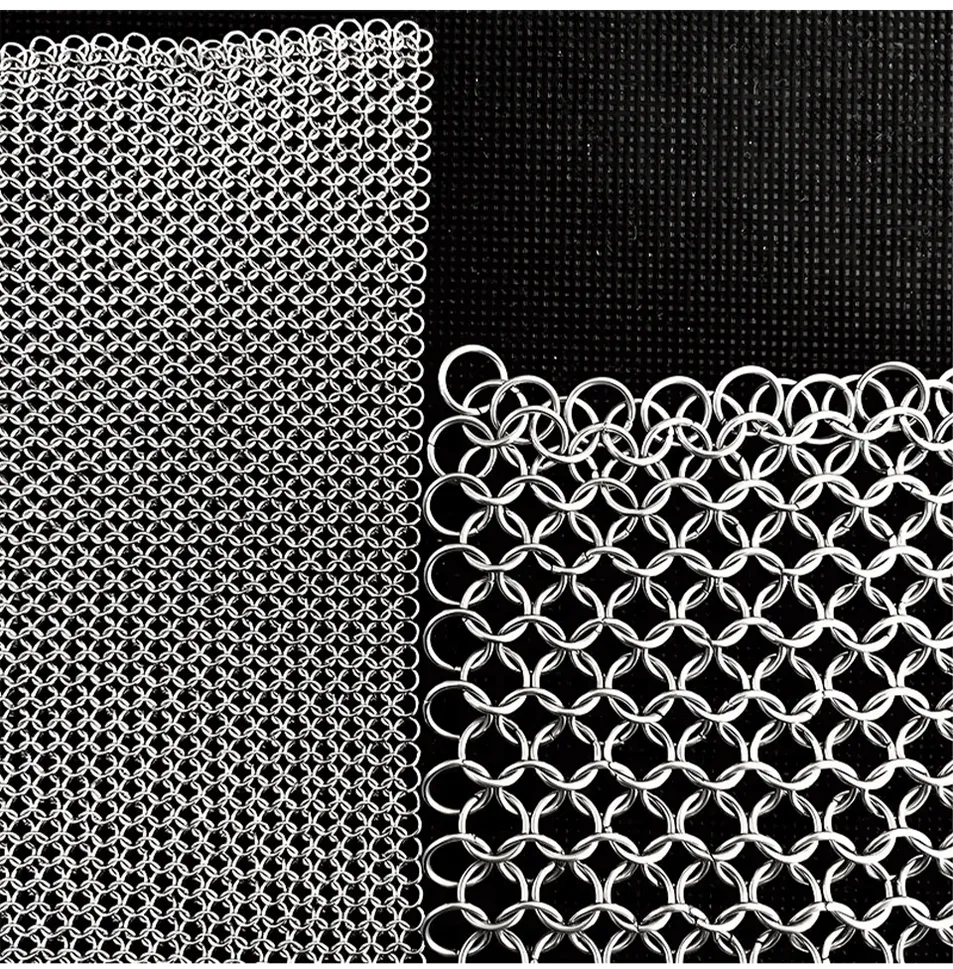

Made of corrosion-resistant materials like stainless steel and aluminum alloy. It offers Class A fire resistance, long service life, and is fully recyclable.
