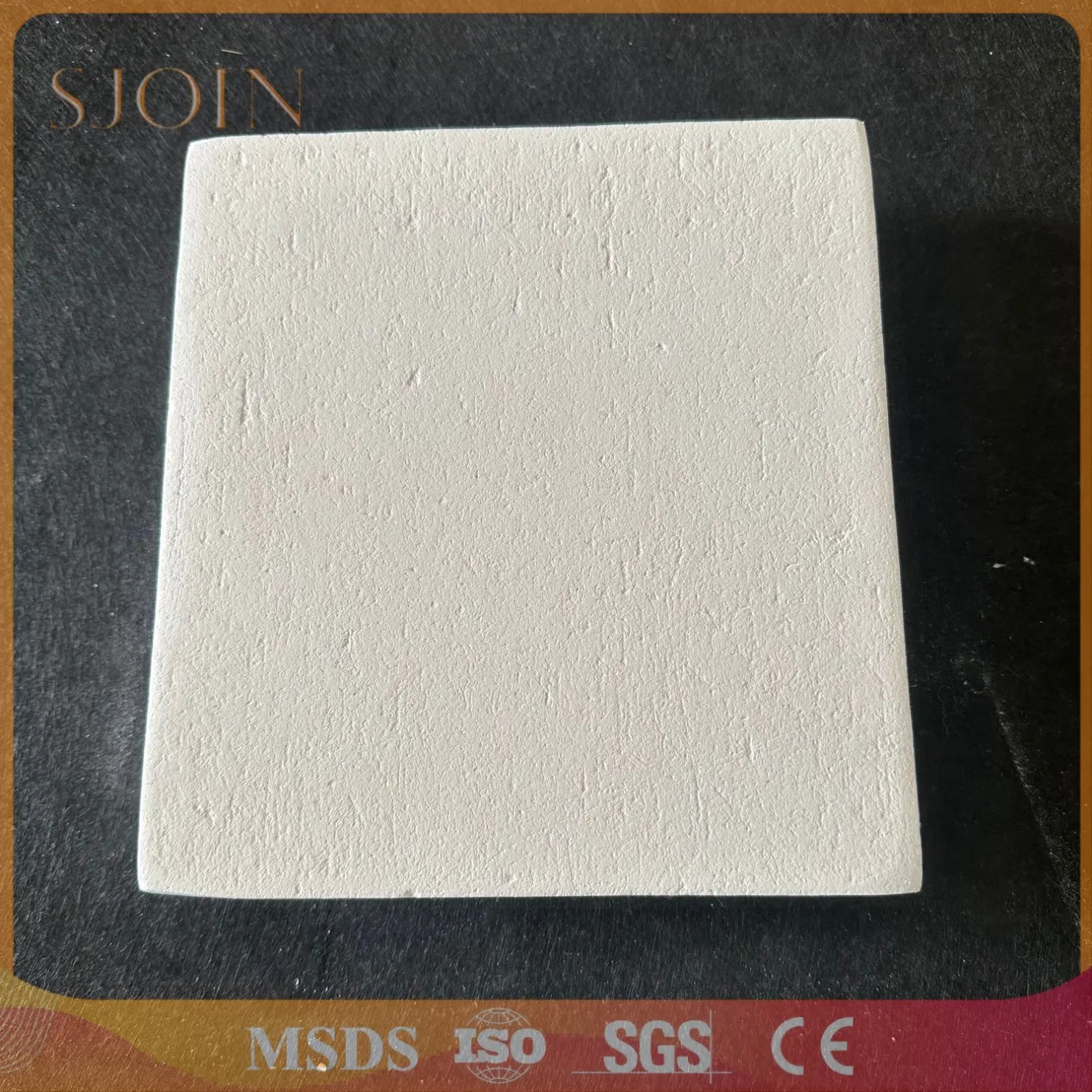

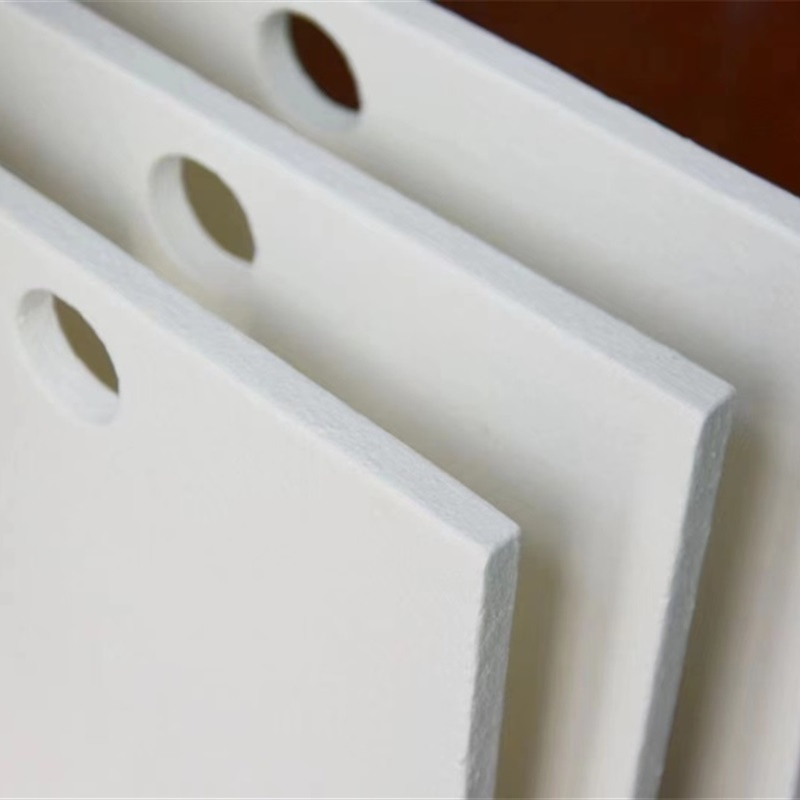

High Temperature Heat Insulation Materials Refractory Ceramic Fiber Board Building Material for Heating Furnace

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Information
Chemical Composition:
Al2O3.SiO2
Shape:
Ceramic Fiber Plate
Manufacturing Technique:
Spray Silk Rug
Kind:
High Purity Ceramic Fiber
Length:
1200mm
Width:
1000mm
Thickness Range:
3mm - 100mm
Density:
220kg/M3 - 350kg/M3
Color:
White
Refractory Grade:
Non-Inflammable
Thermal Conductivity:
0.03-0.18 W/M•K
HS Code:
6806101000
📌 Product Description
Ceramic Fiber Boards are manufactured in a wet forming process using alumina-silica fibers and binders. Lower thermal conductivity, superior mechanical properties and high-temperature stability offer unmatched performance reliability. They can help reduce energy costs and cycling times once being installed in furnace, boiler lining. If wet by water, steam or oil, thermal and physical properties are restored upon drying.
In order to provide handling strength during the manufacturing process, small quantities of organic and inorganic binders are typically added to the board formulation. The organic binding agents burn out at temperatures between 450°F/232°C to 600°F/316°C during initial heat up. Following burnout, the boards are pure white.

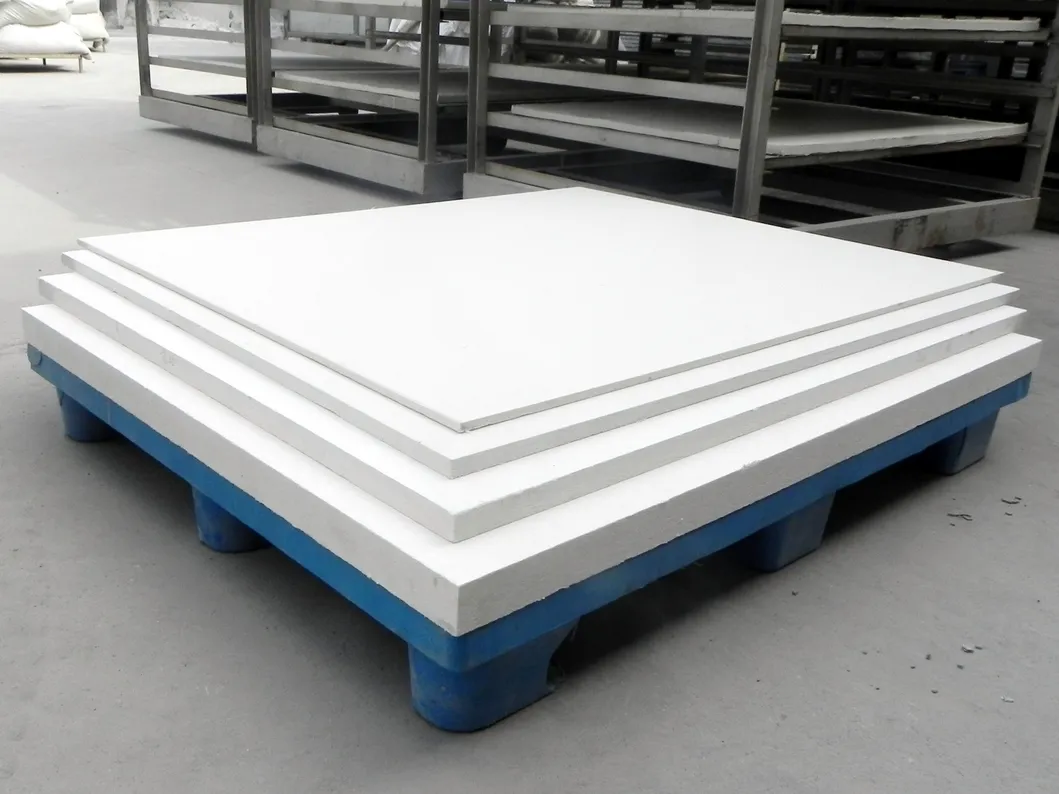

Ceramic Fiber Board Display 1

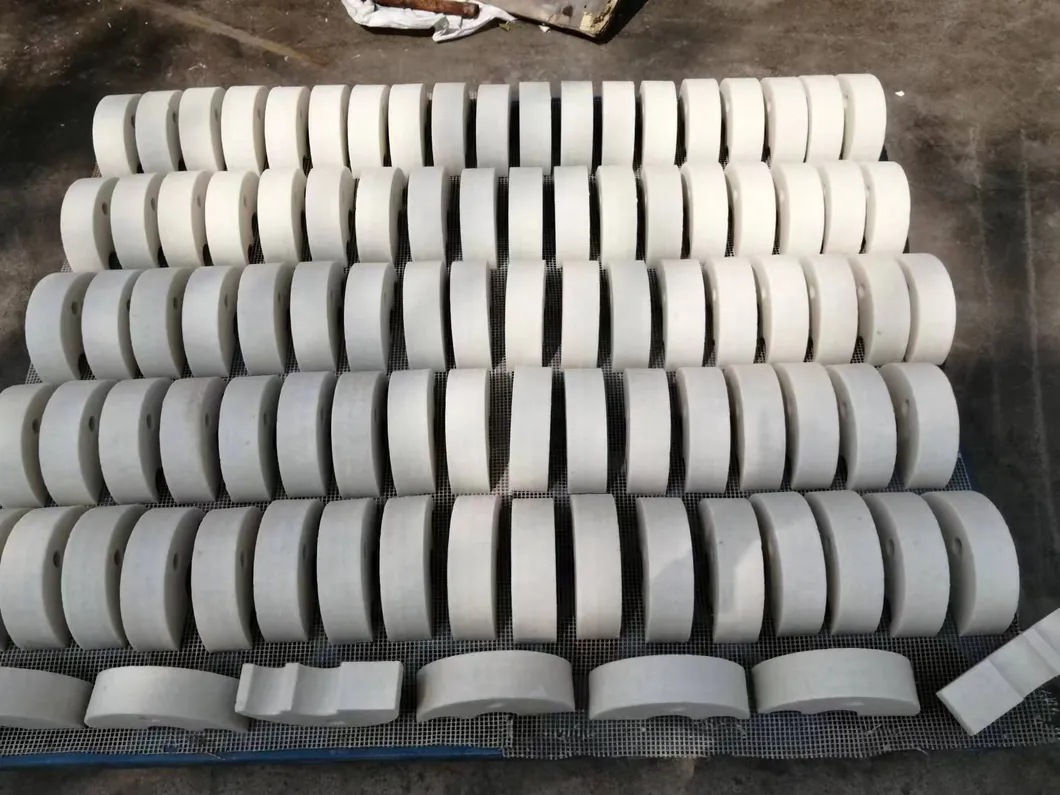

Ceramic Fiber Board Display 2

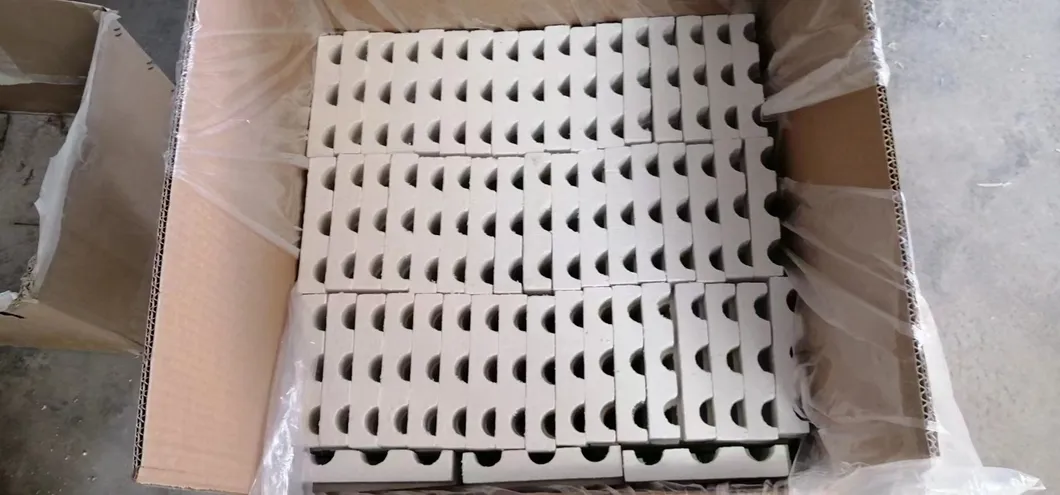

Ceramic Fiber Board Display 3

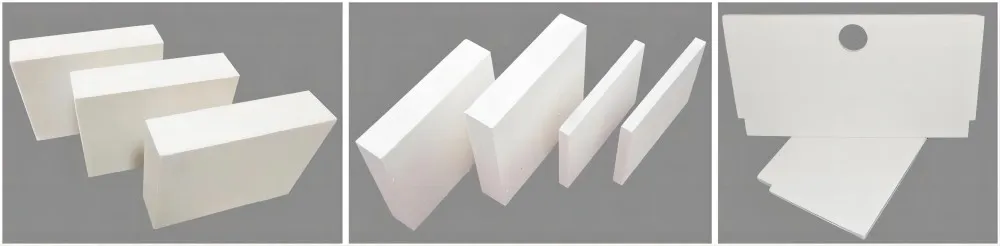

Ceramic Fiber Board Display 4
🎖 Features & Applications

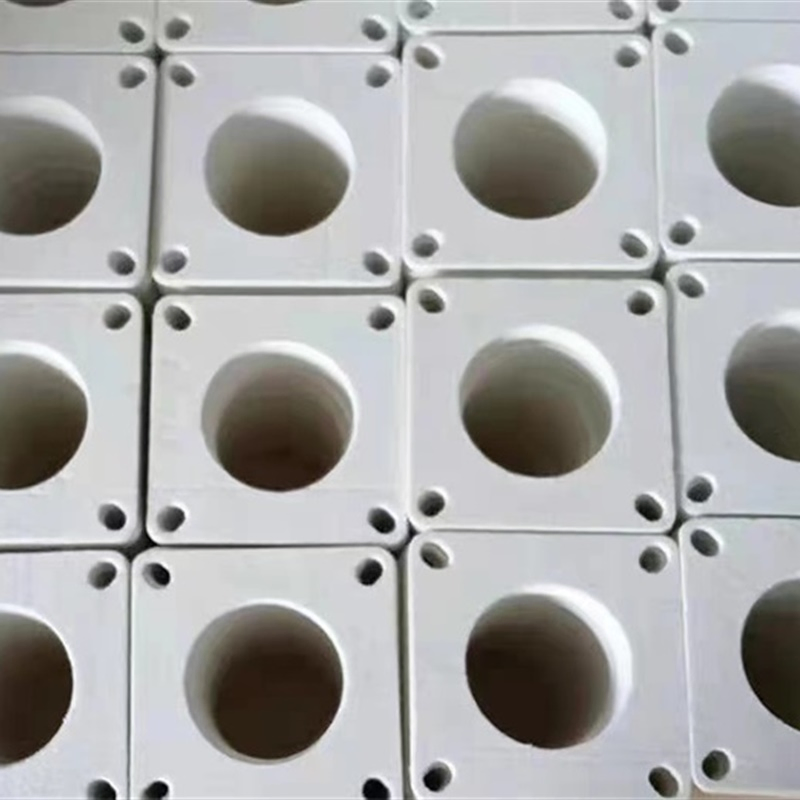

Easy Machining: Can be machined, cut and shaped easily for specific requirements.
Thermal Stability: Excellent thermal shock resistance and low heat storage.
Physical Properties: High rigidity and light weight construction.
Typical Use: Furnace, Kiln, and Oven hot face and backup linings.
Consumer Appliances: Used in ovens, water heaters, and night storage heaters.
Industrial Use: Flue and Chimney linings, Heat Shields, and Gaskets.
🏭 Workshop & Logistics

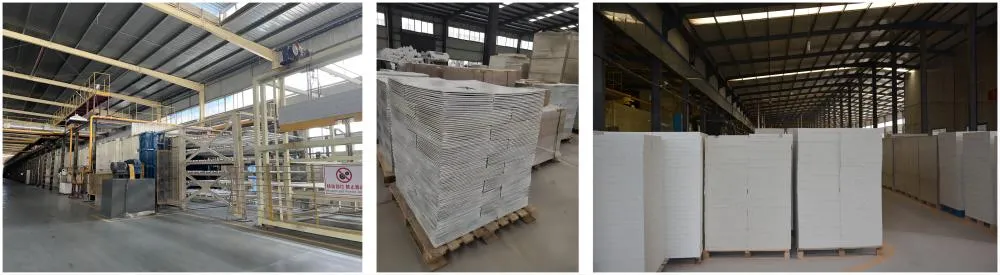

Workshop Production
Packaging Details
Shipping Standard
🌐 Exhibition & Certifications
Professional and strict quality control is applied to all products. Certified with CE, MSDS, ISO9001 quality management systems, and REACH compliance.
Customer Visit 1
Customer Visit 2
Exhibition Photo

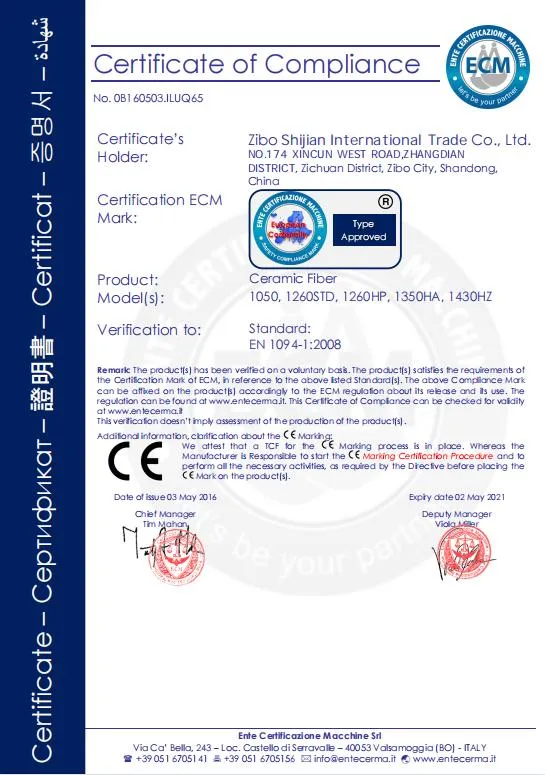

Certification Documents
❓ FAQ
Q1: What are your payment terms?
A1: 30% T/T in advance, 70% balance against the BL copy or by LC, and other negotiable terms.
Q2: What is the typical lead time?
A2: It usually takes about 10-20 days after receiving your deposit, depending on order volume.
Q3: How do you control product quality?
A3: We maintain a complete QC system for chemical composition and physical properties. All goods are tested after production, and quality certificates are provided.
Q4: Are free samples available?
A4: Yes, free samples are available for quality verification upon request.
Q5: Can the ceramic fiber board be customized?
A5: Yes, the boards can be easily machined and cut to any specific shapes and sizes required for your equipment.
Q6: What is the main application for these boards?
A6: They are primarily used as heat insulation liners for ovens, furnaces, boilers, and other high-temperature processing equipment.
