High-Performance PU Foam Roofing Panel Production System for Builders

1 / 5

High-Performance PU Foam Roofing Panel Production System for Builders

Customization:	Available
After-sales Service:	2 Years
Warranty:	2 Years

Send Inquiry

Product Description

Basic Information

Model NO.

PSG80

Material Type

Color Steel Sheet; Galvanized Sheet, Aluminum Sheet

Material Thickness

0.4-0.8 mm

Material Width

<1250 mm (Max)

Material Length

2000-16000 mm

Production Speed

3-8 M/Min (Adjustable)

Origin

China

HS Code

84778000

High-Performance PU Foam Roofing Panel Production System

Product Description & Features

This production system is accurate and durable with high productivity and automation.
The tape mechanism has a tension control device, enabling the overlay material evenly into the mould, ensuring a smooth surface.

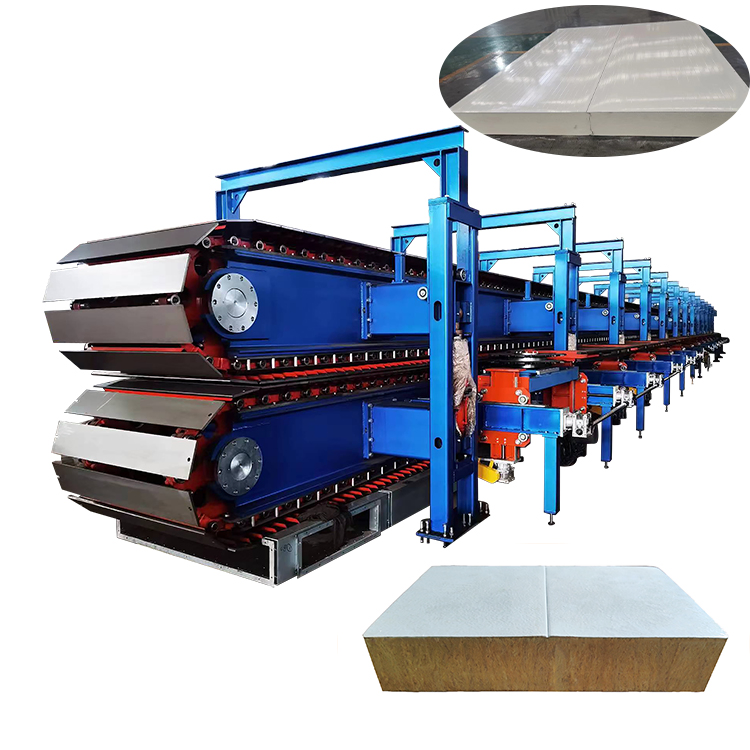

The double-belt laminating system is pressure proof, achieving continuous automatic production and limiting foaming material within the mould.
Simultaneous conveying and cutting systems allow for production of plates at any custom length.
Integrated dust-removing system with the cutting machine makes the production process environmentally friendly.
Widely used for producing Polyurethane (PUR) and Polyisocyanurate (PIR) insulation boards in various sizes and densities.
Compatible with various soft surfaces: non-woven fabrics, aluminum foil, glass fiber mat, craft paper, etc.

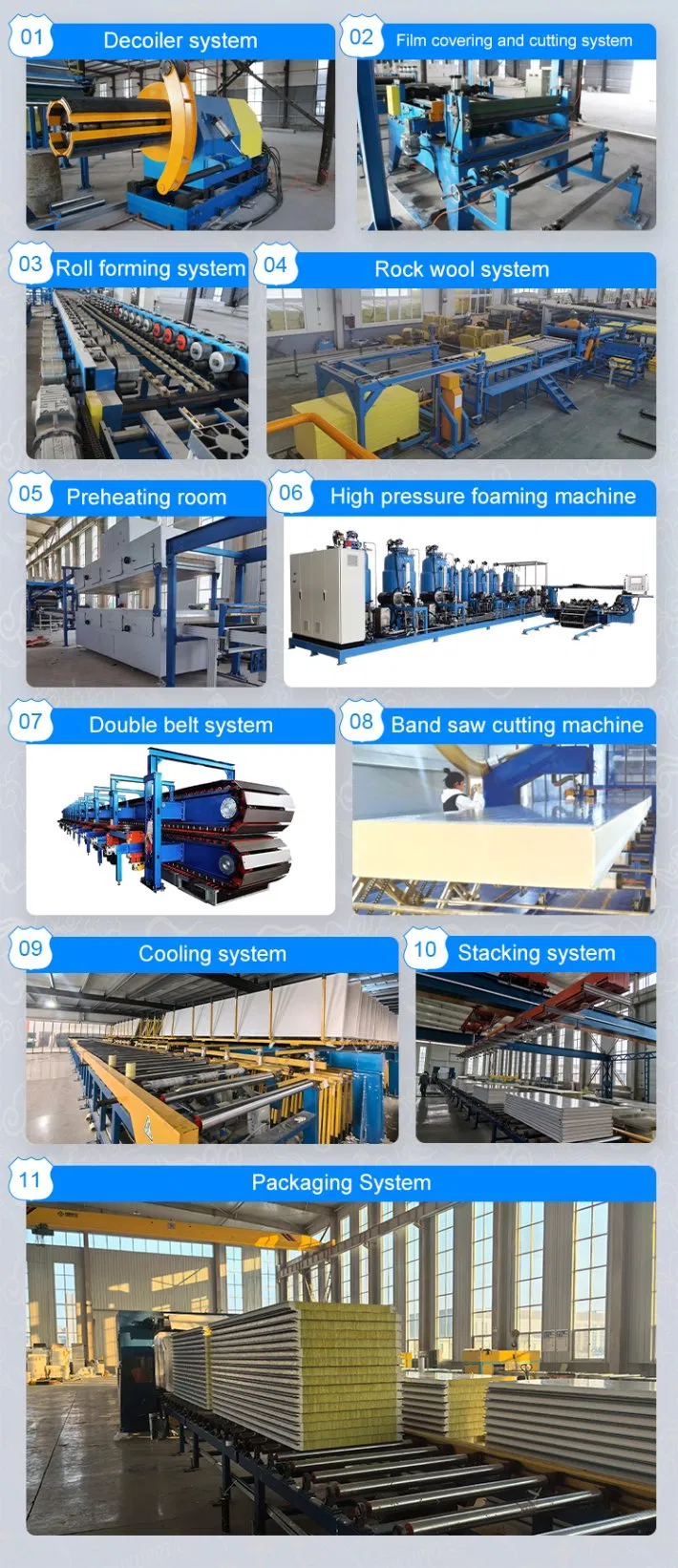

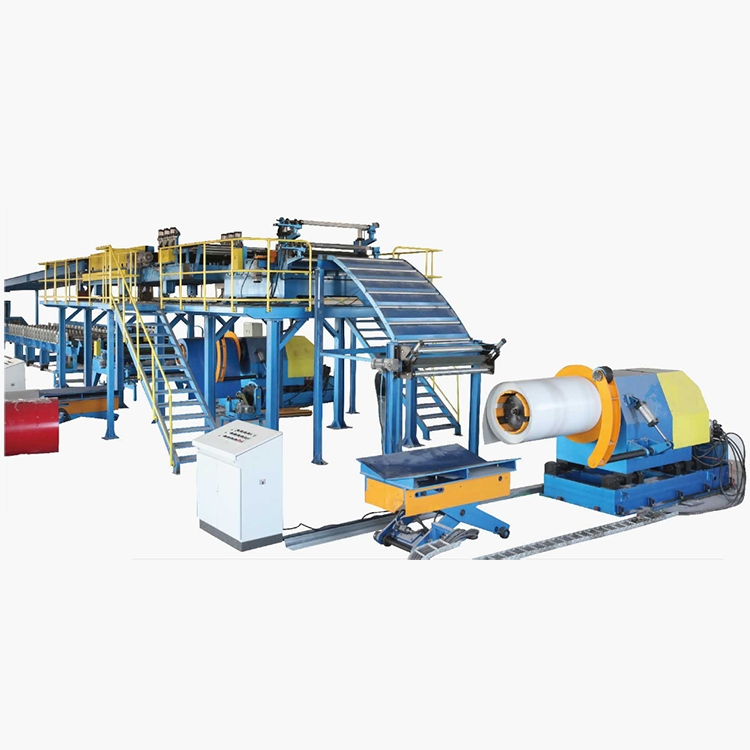

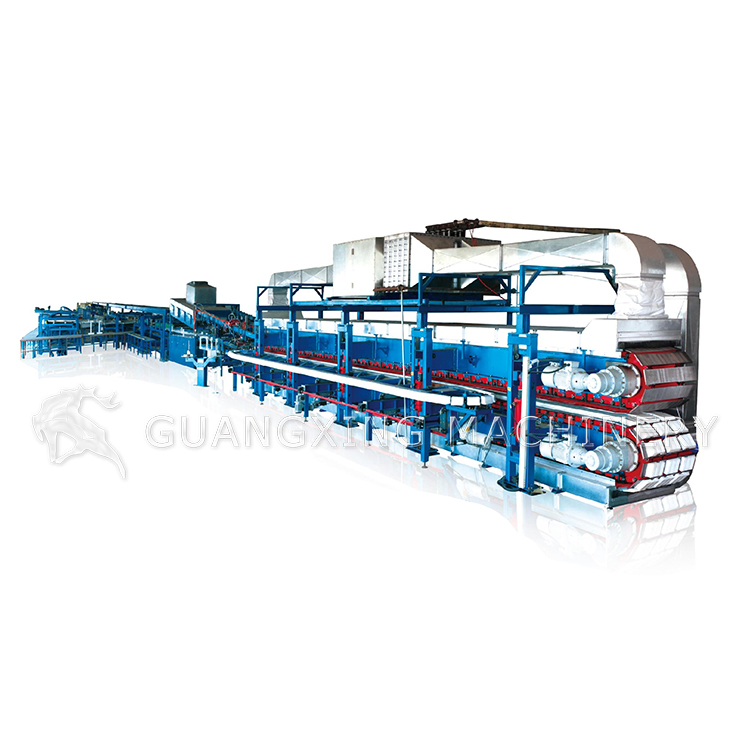

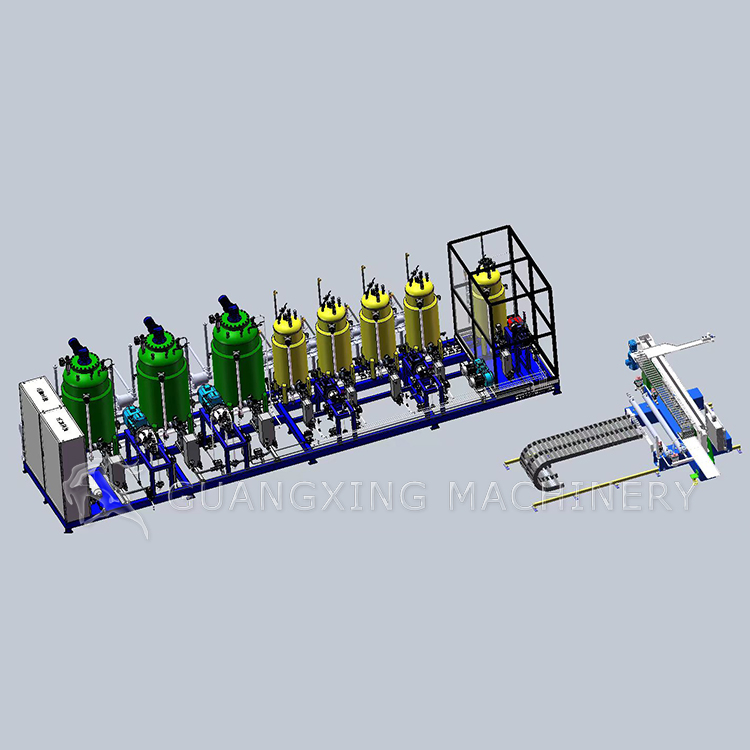

Complete line includes: uncoiler system, heating and foaming platform, double belt system, heating system, roller system, edge cutting, cross cut, and electronic controls.

Technical Parameters

ITEM	UNIT	PARAMETER
Effective length of laminating machine	mm	18000--36000
Effective width of laminating machine	mm	1200
Effective height of laminating machine	mm	20--100
Laminating machine temperature control	°C	≤80
Suitable production rate	m/min	2-10
Suitable production thickness	mm	20--100
Anti-pressure capability (25°C)	Mpa	3
Anti-pressure capability (70°C)	Mpa	2.8
Production Capacity	m³/24h	240
Overall Dimension (LWH)	mm	(40000--60000)30004000
Installed power	KVA	60
Total weight	Tons	26--72

Product Display

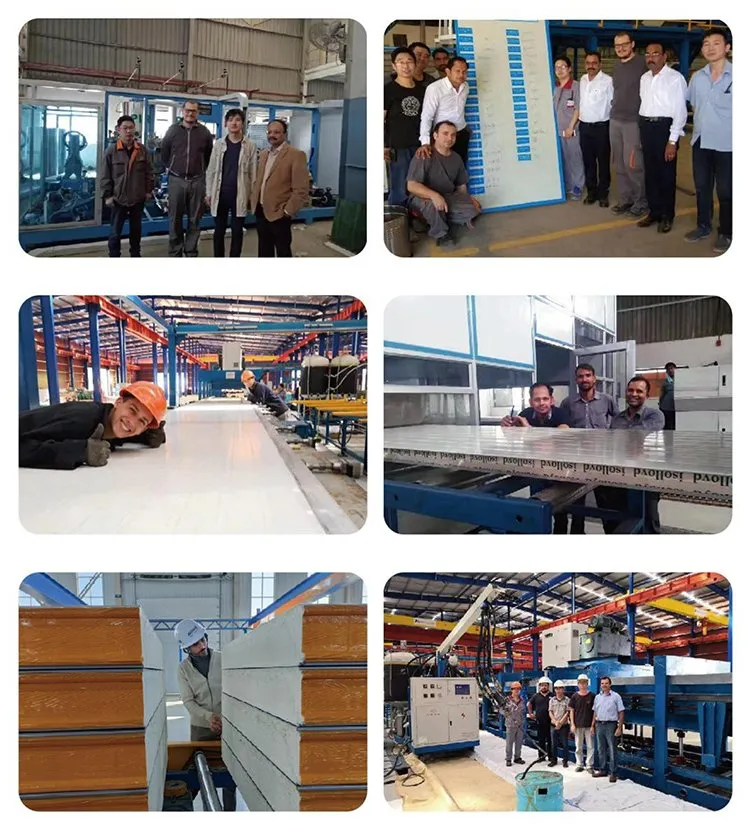

Manufacturing Excellence

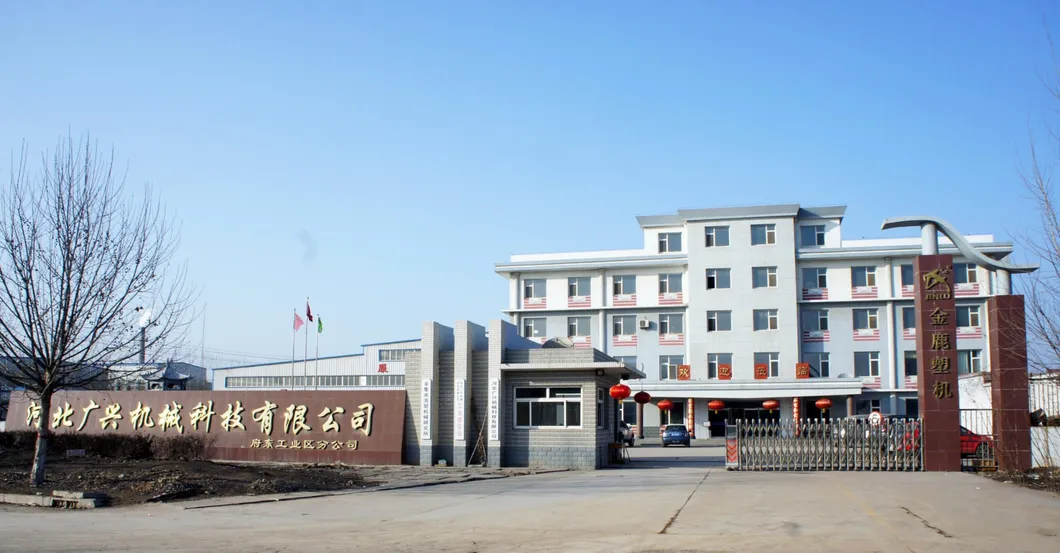

Founded in 1987, the manufacturer is a professional provider of exterior wall insulation equipment and composite panel equipment. As a leading enterprise in the industry, the company specializes in rock wool production lines, polyurethane rock wool color steel composite panel lines, and EPS phenolic foam production lines, all reaching international advanced levels and ISO9001 certification.

With a global reach extending to Europe, Central Asia, and Southeast Asia, the facility provides comprehensive services from product design, R&D, and production to installation training and after-sales support.

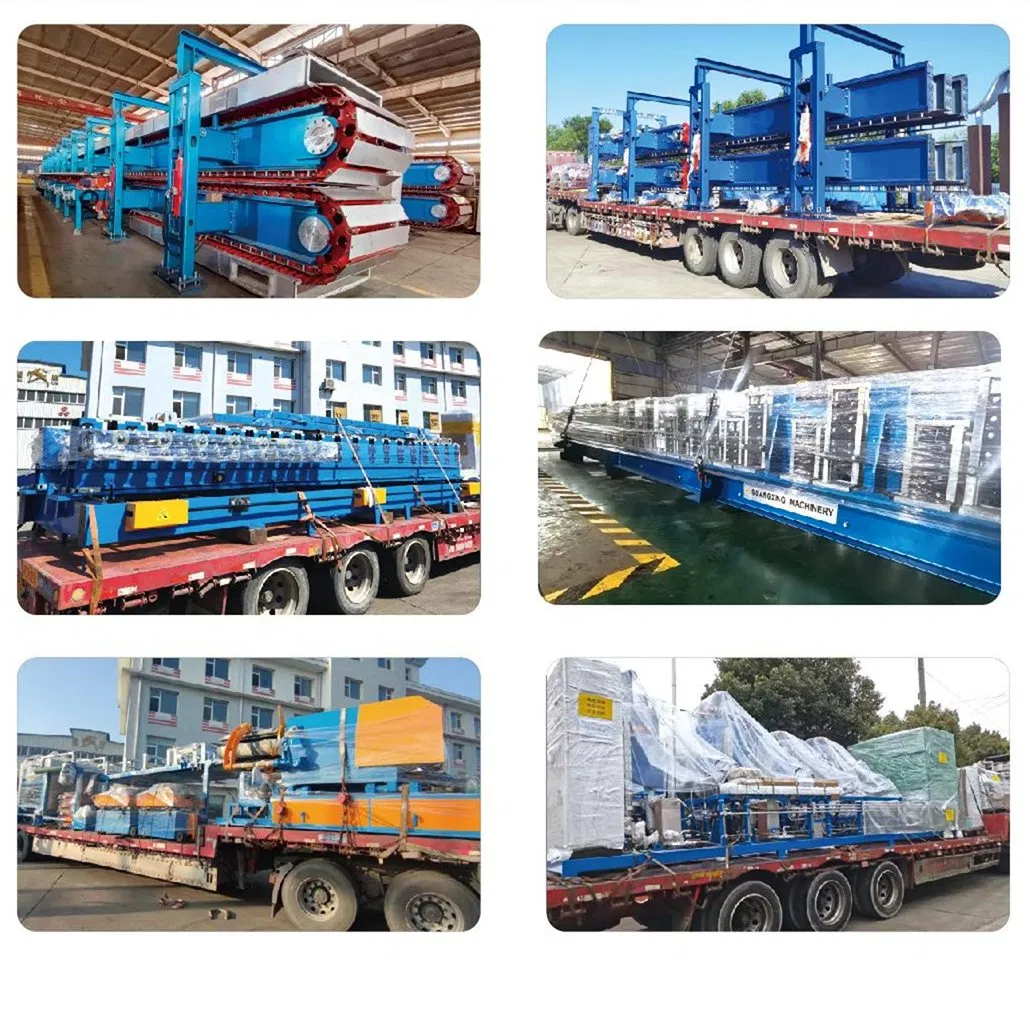

Packaging & Delivery

Package Size

10000.00cm * 5000.00cm * 300.00cm

Gross Weight

100000.000kg

Frequently Asked Questions

Do you accept on-site inspections?

Yes, every piece of equipment is trail-tested in our factory before shipment. We invite all clients to perform on-site inspections during these tests.

What are your preferred payment terms?

We accept T/T, L/C, Western Union, and Cash.

How long is the quotation valid?

Generally, our prices are valid for one month. Prices may be adjusted based on raw material fluctuations and market changes.

What is the expected delivery time?

If products are in stock, delivery takes 5-10 days. For custom production, the timeline is typically 1-3 months depending on the order quantity.

Do you provide OEM/ODM services?

Yes, we provide custom-made services to meet the specific requirements and budgets of our global clients.

What is the warranty and after-sales support?

We guarantee our products for one year and provide full after-sales service support and technical assistance.
