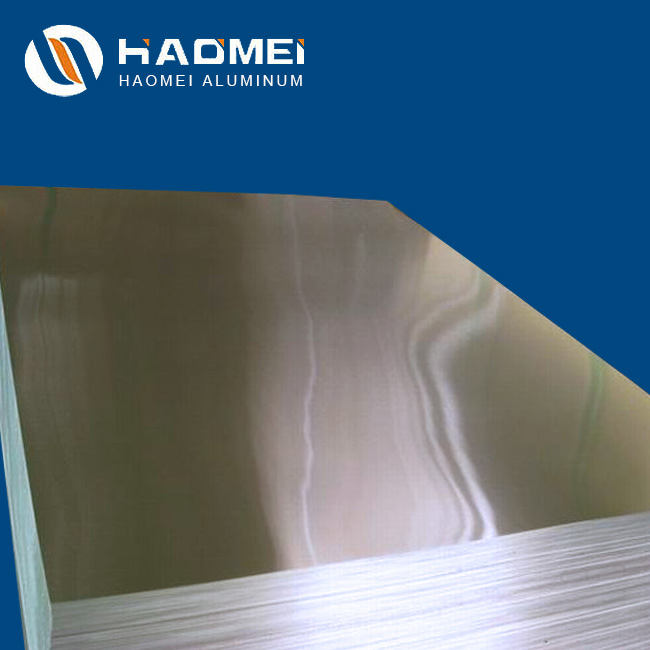

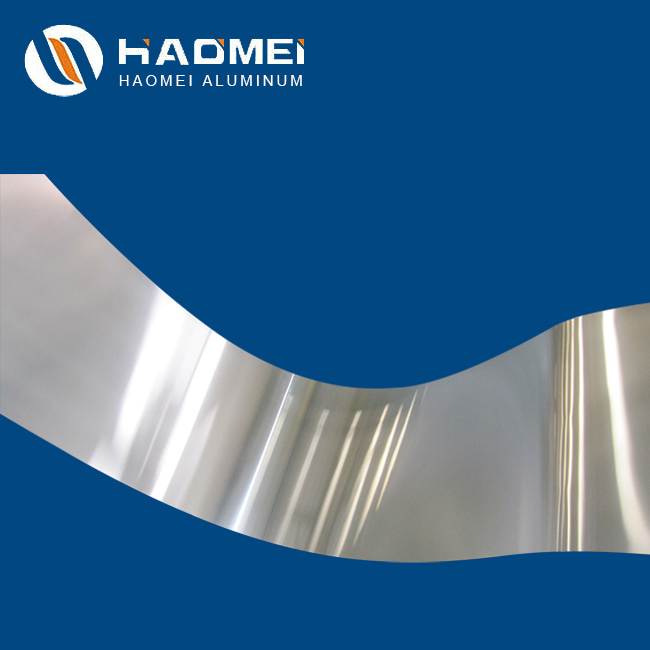

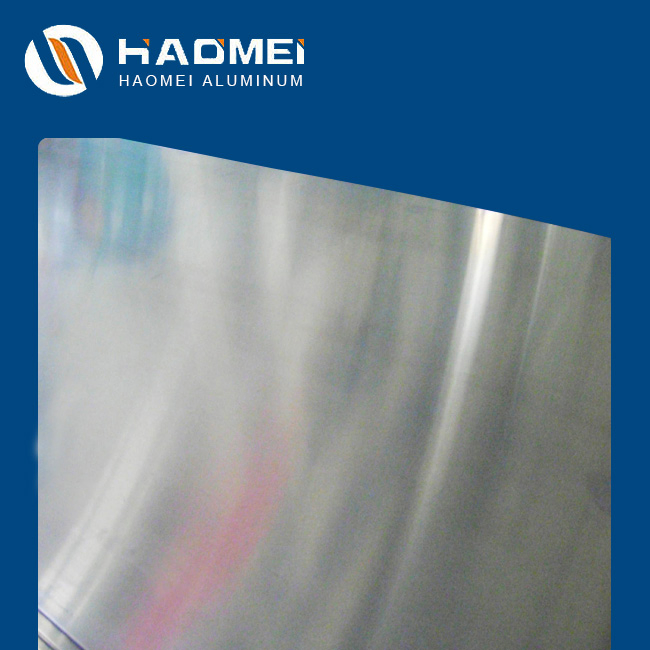

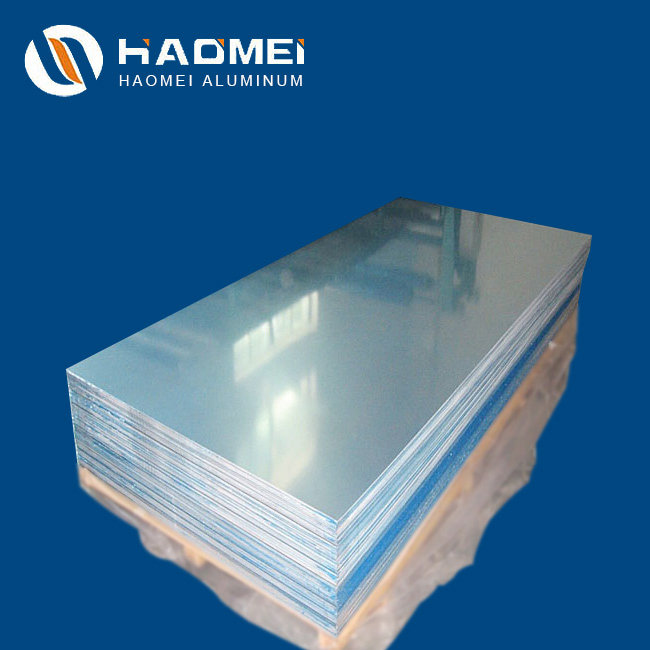

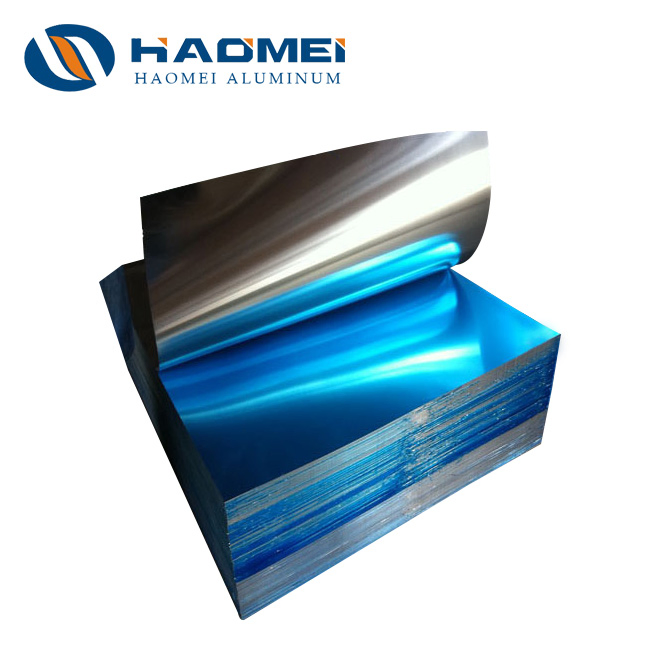

Grade 5A05/6082 Aluminium sheet for aircraft

1 / 5

Grade 5A05/6082 Aluminium sheet for aircraft

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

5A05/6082

Certification

ASTM, JIS, EN, ASTMB

Grade

5000 Series

Temper

O - H112

Surface Treatment

Mill Finish

Alloy

Technique

Hot rolled

Transport Package

Export Standard, Wooden Pallet

Specification

China Standard

HS Code

7606129000

Production Capacity

4000mt/Month

Product Description

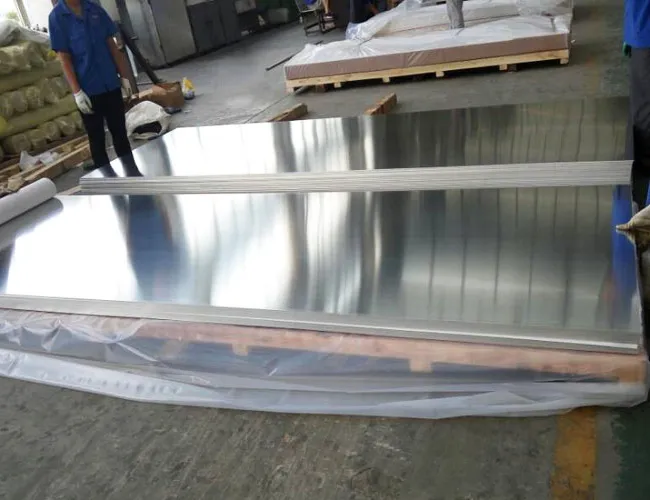

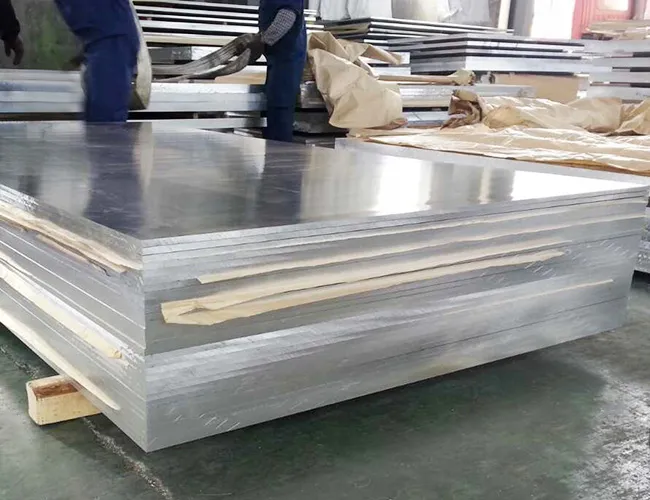

Grade 5A05/6082 Aluminium sheet for aircraft

Super wide aluminium plate

Alloy: 1050, 1060, 1100, 3003, 5052 5083 6061 5005 6082 etc.

Temper: H12. H14. H16. H18. H112. H22. H24. H26. H32. H34. H36. H38. O etc.

Thickness: 0.2mm -- 400mm

Width: Under 2800mm

Length: Under 10000mm

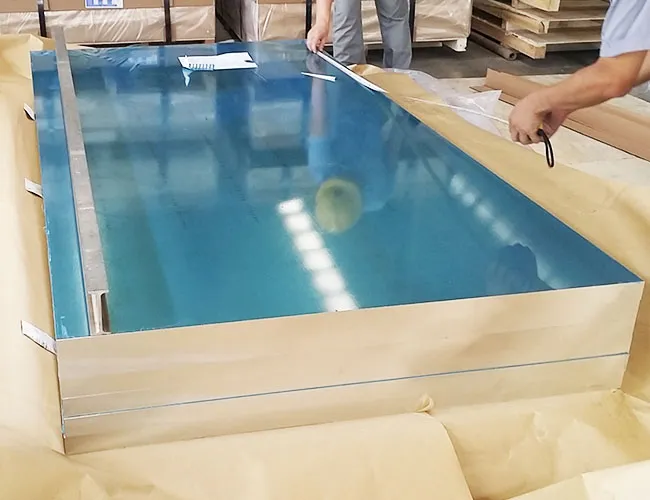

Packing: Export standard, covering with brown paper and plastic film then packed with steel band & wooden case/pallet

Lead Time: Within 25 days

Productivity: 4000MT/Month

Payment: T/T, irrevocable L/C at sight

Aluminium Plate / Slab 5052 - Typical Chemistry (%)
Cu	Si + Fe	Mn	Mg	Zn	Cr	Al
0.10	0.45	0.10	2.2 / 2.8	0.10	0.15 / 0.35	Balance

Characteristics

5052 is one of the higher strength non-heat-treatable alloys. It has a high fatigue strength and is a good choice for structures subjected to excessive vibration. The alloy has excellent corrosion resistance, particularly in marine atmospheres.

Typical Applications

Often used in high strength sheet metal work, marine components, appliances, fuel and oil tubing.

Grade/Temper	Tensile Strength (ksi/MPa)		Yield Strength (ksi/MPa)		Elongation %	Brinell Hardness
5052-0	28.0	196	13.0	91	25	47
5052-H32	33.0	231	28.0	196	12	60
5052-H34	38.0	266	31.0	217	10	68

Aluminium Plate / Slab 5083 - Typical Chemistry (%)
Cu	Si	Fe	Mn	Mg	Zn	Cr	Ti	Al
0.10	0.40	0.40	0.3/1.0	4.0/4.9	0.25	0.05/0.25	0.15	Balance

Characteristics (5083)

5083 is the highest strength non-heat-treatable alloy in commercial use. It has good formability and weldability and retains excellent tensile strength in the weld zone.

Typical Applications

Used in highly stressed welded assemblies, dump truck boxes, storage tanks, and cryogenic vessels.

Aluminium Plate / Slab 6061 - Typical Chemistry (%)
Cu	Si	Fe	Mn	Mg	Zn	Cr	Ti	Al
0.15/0.40	0.4/0.8	0.70	0.15	0.8/1.2	0.25	0.04/0.35	0.15	Balance

Mechanical Properties 6061
Temper	Tensile (MPa)	Yield (MPa)	Elongation %	Brinell
6061-0	126	56	25	30
6061-T4	238	154	21	65
6061-T6	308	287	17	95

Frequently Asked Questions

What are the primary applications for 5052 aluminum sheets?

5052 aluminum is widely used for high-strength sheet metal work, marine components, fuel and oil tubing, and appliances due to its excellent corrosion resistance and fatigue strength.

Why is the 5083 alloy preferred for marine and cryogenic use?

5083 is the highest strength non-heat-treatable alloy, offering exceptional resistance to corrosion in seawater and maintaining excellent weld efficiency, making it ideal for marine structures and cryogenic vessels.

How does 6061 aluminum compare to the 5000 series?

6061 is a heat-treatable grade used for structural applications. While strong, it loses more strength during welding compared to the 5000 series, which is why 5000 series alloys are often preferred when post-weld strength is critical.

What surface finishes and sizes are available?

The standard surface treatment is Mill Finish. Thicknesses range from 0.2mm to 400mm, with widths up to 2800mm and lengths up to 10000mm.

What is the typical production lead time?

Standard production lead time is typically within 25 days, supported by a monthly productivity of 4000 metric tons.

Are custom alloys and tempers available for order?

Yes, specific requirements for alloys, tempers, and specifications beyond the standard offerings can be discussed and accommodated based on your request.
