FM Approvals Standing Seam Roofing System

1 / 5

FM Approvals Standing Seam Roofing System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

TD 65-430

Customized

Type

Decoration Aluminium Profile

Grade

3000 Series

Temper

O-H112

Alloy

Certification

ISO, FM Approvals

Thickness

0.4--1.0mm

Effective Width

430mm

Package

Seaworthy Packing

Specification

SGS

Origin

China

HS Code

76069200

Capacity

2500m/Day

Product Overview

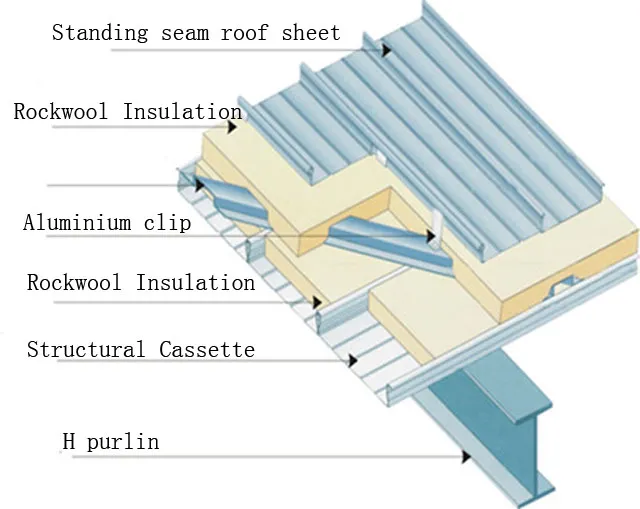

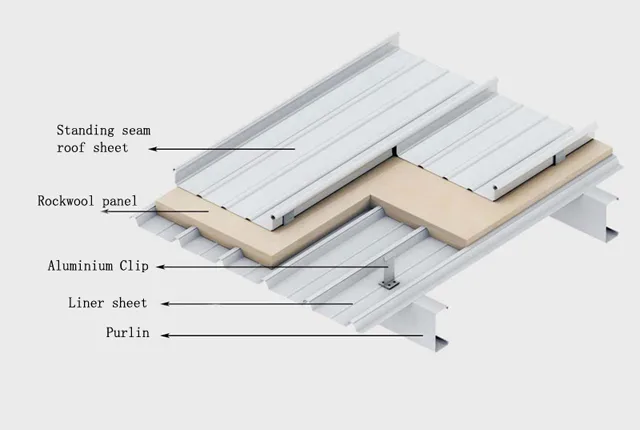

From a simple single-skin configuration to a sophisticated multifunctional system, we offer creative and optimized solutions.

Material	Steel: 0.5mm---0.7mm
	Aluminium: 0.7mm---1.2mm
	Aluzinc: 0.5mm---0.7mm
	Stainless steel: 0.45mm---0.9mm
	Copper: 0.6mm---1.0mm
	Zinc-Ti: 0.7mm---1.0mm
Thickness	Base metal thickness: 0.8mm, 0.9mm, 1.0mm and 1.2mm
Width	Constructional width: 400mm and 430mm
Length	11.8m (40GP), 5.8m (20GP), Customized at site
Rib Height	40/50/51/76 mm
Finishes	PE, PVDF, Stucco embossed and AluPlusZinc
Color	RAL standard colors available

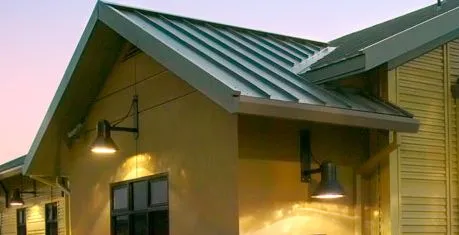

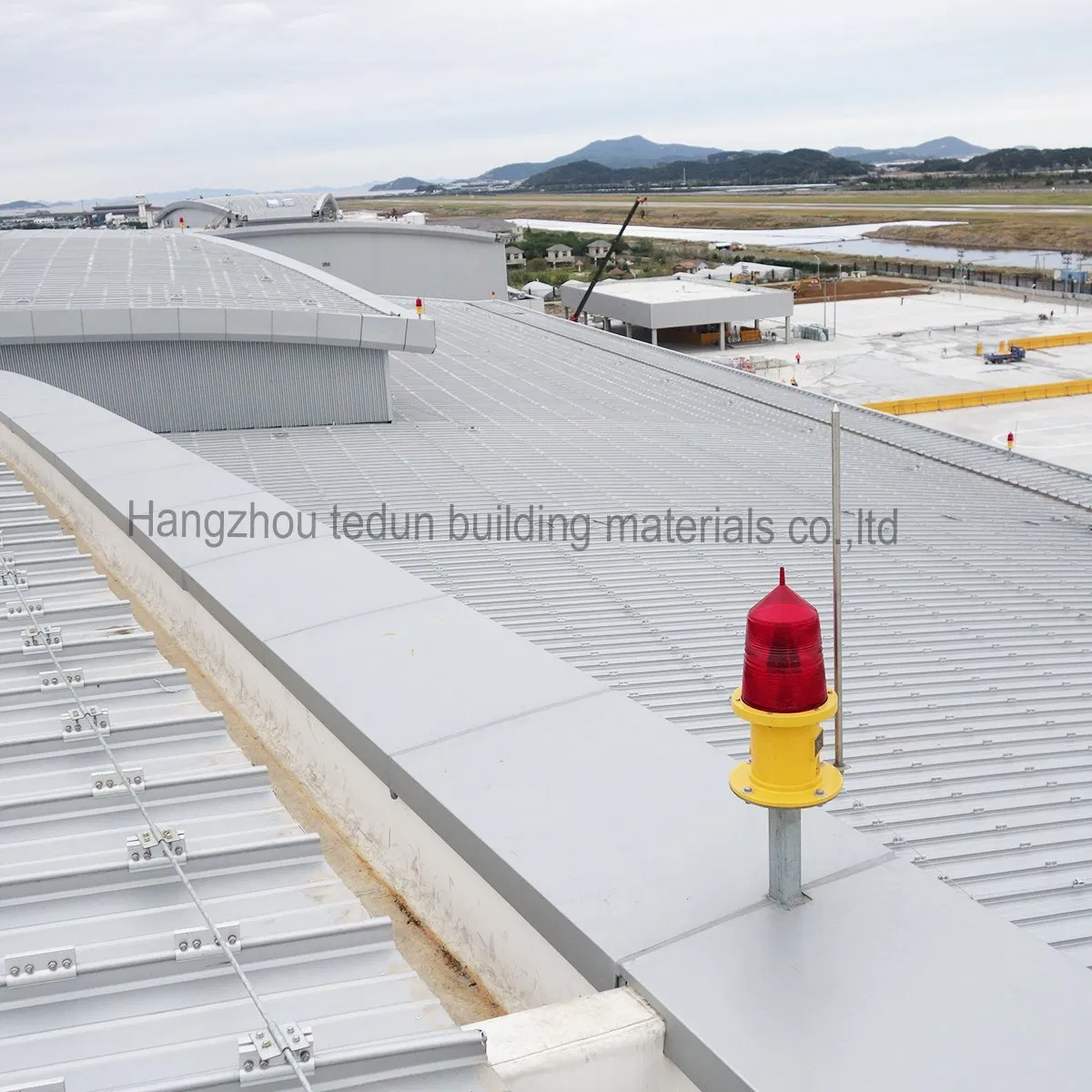

Application	Flexible to design and diversified structure combination, standing seam roof system is extensively applied in residential buildings, villas, recreation centers, gymnasiums, station and airport terminals as well as other populated buildings of steel structure.
Features	• Roof sheets are secret-fixed to the substructure, no through fixings, ensures building waterproof. • High performance thermal and acoustic options available. • Resistant to damage, essentially maintenance free and long service life. • Quick installation, cost-effective and economical. • Decorative, aesthetic appeal.

Frequently Asked Questions

What materials are available for the standing seam roof system?

The system supports a wide range of materials including Steel (0.5-0.7mm), Aluminium (0.7-1.2mm), Aluzinc, Stainless Steel, Copper, and Zinc-Ti to suit various architectural needs.

How does the system ensure superior waterproofing?

The roof sheets are secret-fixed to the substructure with no through-fixings, eliminating potential leakage points and ensuring a completely waterproof building envelope.

What are the primary applications of this roofing system?

It is highly flexible and used in residential buildings, villas, recreation centers, gymnasiums, stations, and airport terminals, as well as other populated steel structure buildings.

Can the profile length be customized?

Yes, while standard lengths are 11.8m (for 40GP) and 5.8m (for 20GP), the profiles can be customized at the site to meet specific project requirements.

What surface finishes and colors are available?

We offer multiple finishes including PE, PVDF, Stucco embossed, and AluPlusZinc. Colors are available in all RAL standard options for decorative and aesthetic appeal.

What technical certifications does the system hold?

The system is certified by ISO and holds FM Approvals, ensuring high standards of quality and safety for construction projects.
