Product Description

Basic Info.

Model NO.

250-600mm

Surface Treatment

Customized, Galvanized, Painted

Color

Grey, Black, Red, Yellow,etc

Length

Within 12m

Thickness

0.7-1.2mm for Aluminum

MOQ

500m2

Transport Package

Wooden or Steel Pallet

Specification

as per customer's request

Origin

China

HS Code

7606125900

Production Capacity

2000PCS Per Working Day

★

Product Description

The Flat lock system is a highly cost-effective roofing and wall materials, due to the advantages of corrosion resistant, beautiful, light weight, high strength and easy molding. It offers a service life up to 20-25 years and is widely used in airport terminals, aircraft maintenance hangars, stations, and major transport hubs.

System Structure

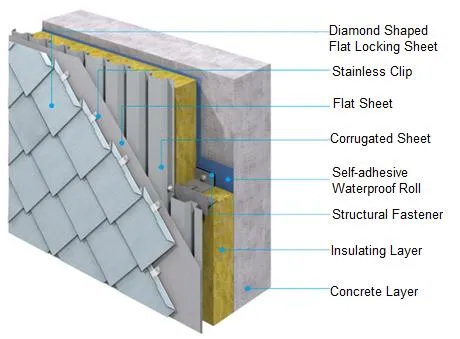

Flat Lock Cladding Roofing and Wall Systems Structure

System Features

Classic building style with distinct levels and outstanding visual effects.
Convenient assembly, installed on existing substrates with fasteners, without complicated mechanical fixing.
Suitable for almost any shaped building surface, allowing for diversified architectural designs.
Ideal for ≥30° slope roofs and walls; typically requires a waterproof underlayer.

Normal Panels and Materials

Property	Rectangular	Diamond	Hexagonal	Trapezoidal
Width	400/500/600mm	200/300/400mm	200/300/400mm	200/300/400mm
Thickness	0.7/0.8/1.0mm	0.7/0.8mm	0.7/0.8mm	0.7/0.8/1.0mm
Material	Copper, Titanium-zinc, Al-Mg-Mn
Surface	Slope≥30° large plain area	Slope≥30° curved/spherical	Slope≥30° curved/spherical	Slope≥30° large plain area
