Corrugated Metal Roofs Non-Invasive Guardrail Systems

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.V4-Corrugated Roof guardrail

CertificationISO9001, RoHS

Frame FinishingNatural

MaterialAluminum

Surface TreatmentNatural

ApplicationRoof Edge Protection

TypeFully Modular System

InstallationStanding Seam Metal Roofs

Vertical Height1100mm

Delivery2-3 Weeks

Production Capacity15000m/Month

OriginChina

Product Description

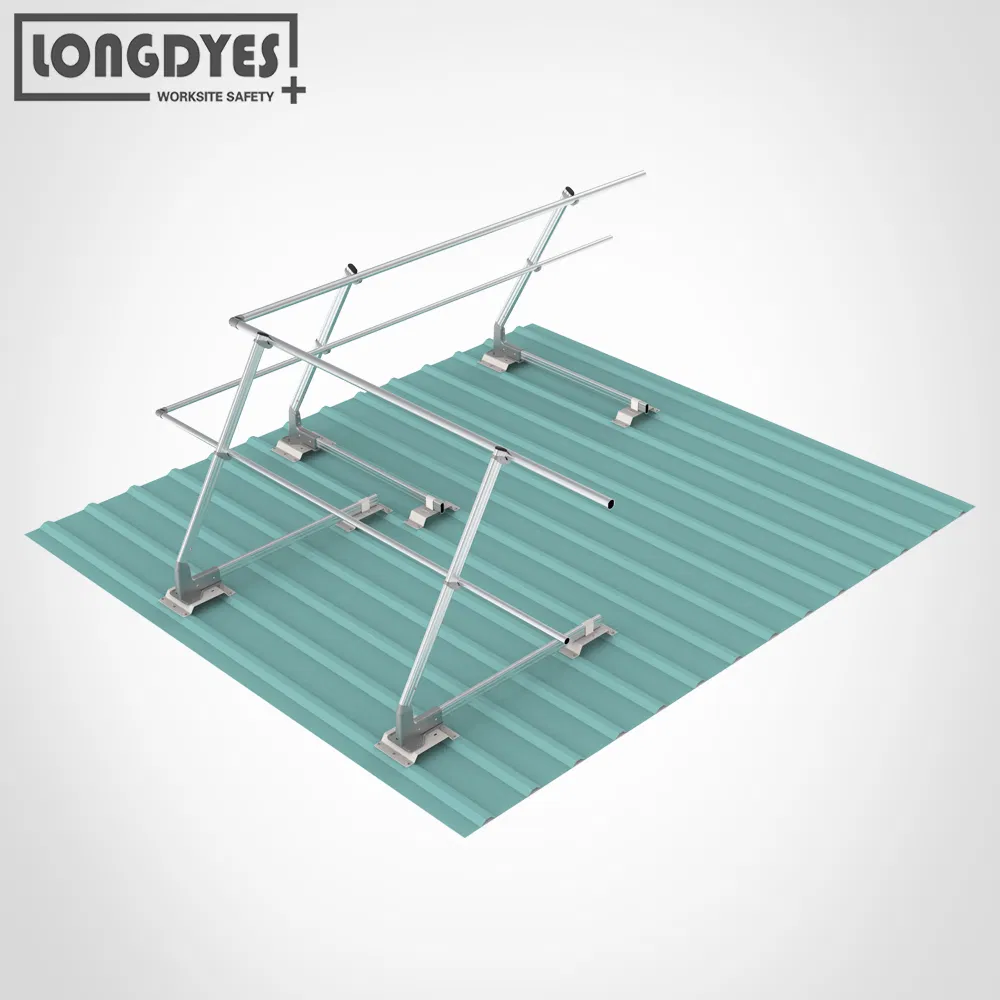

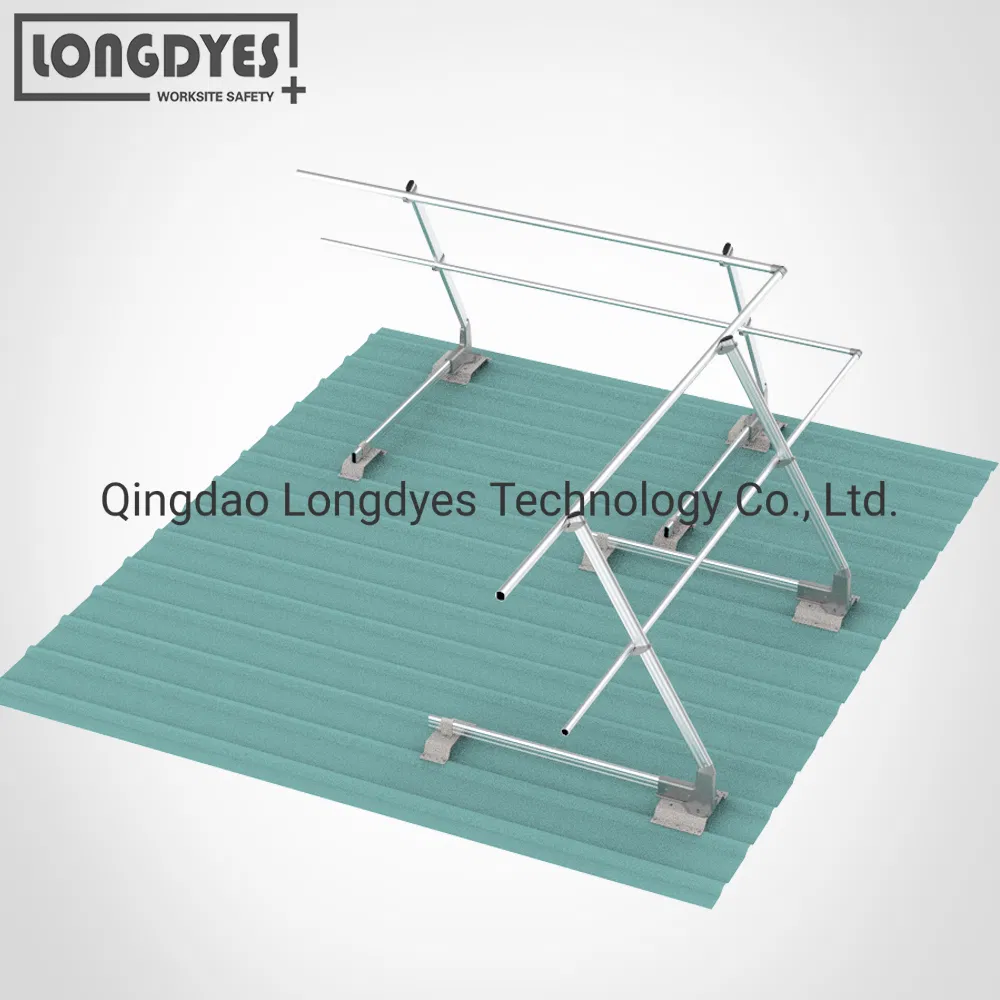

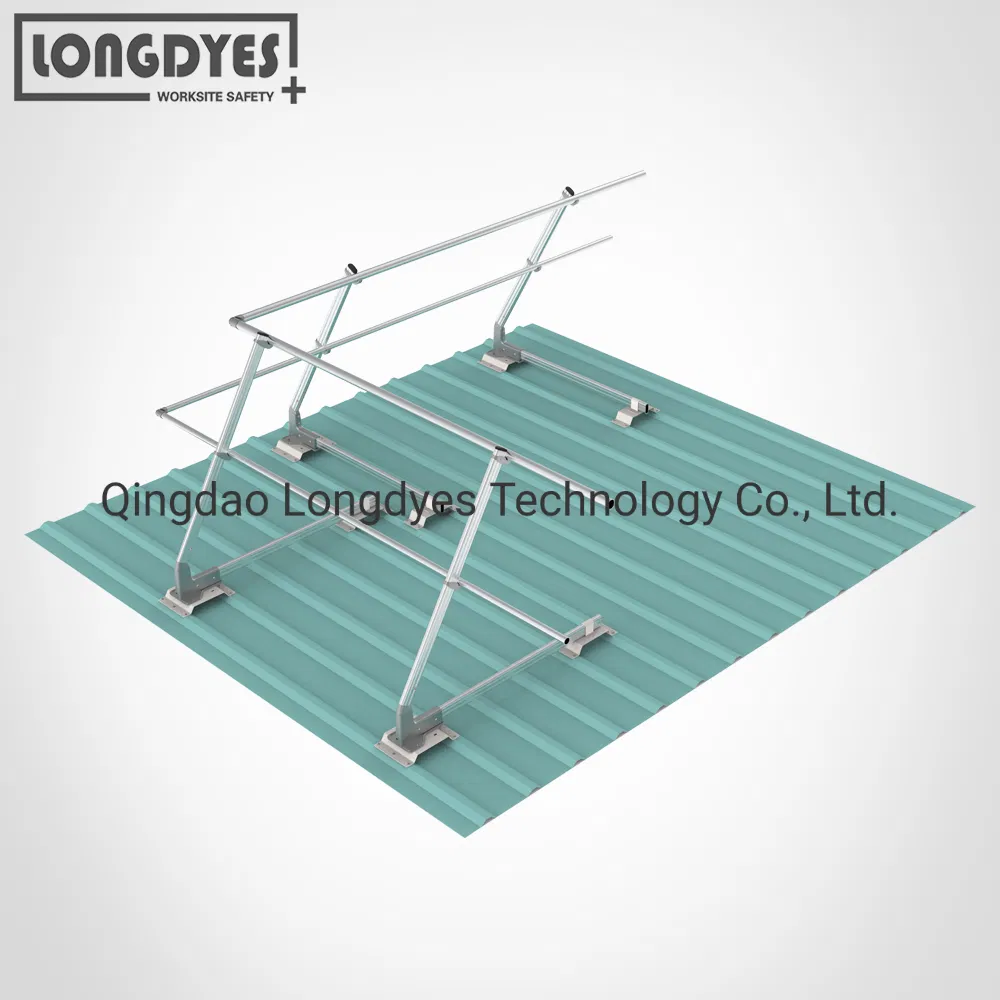

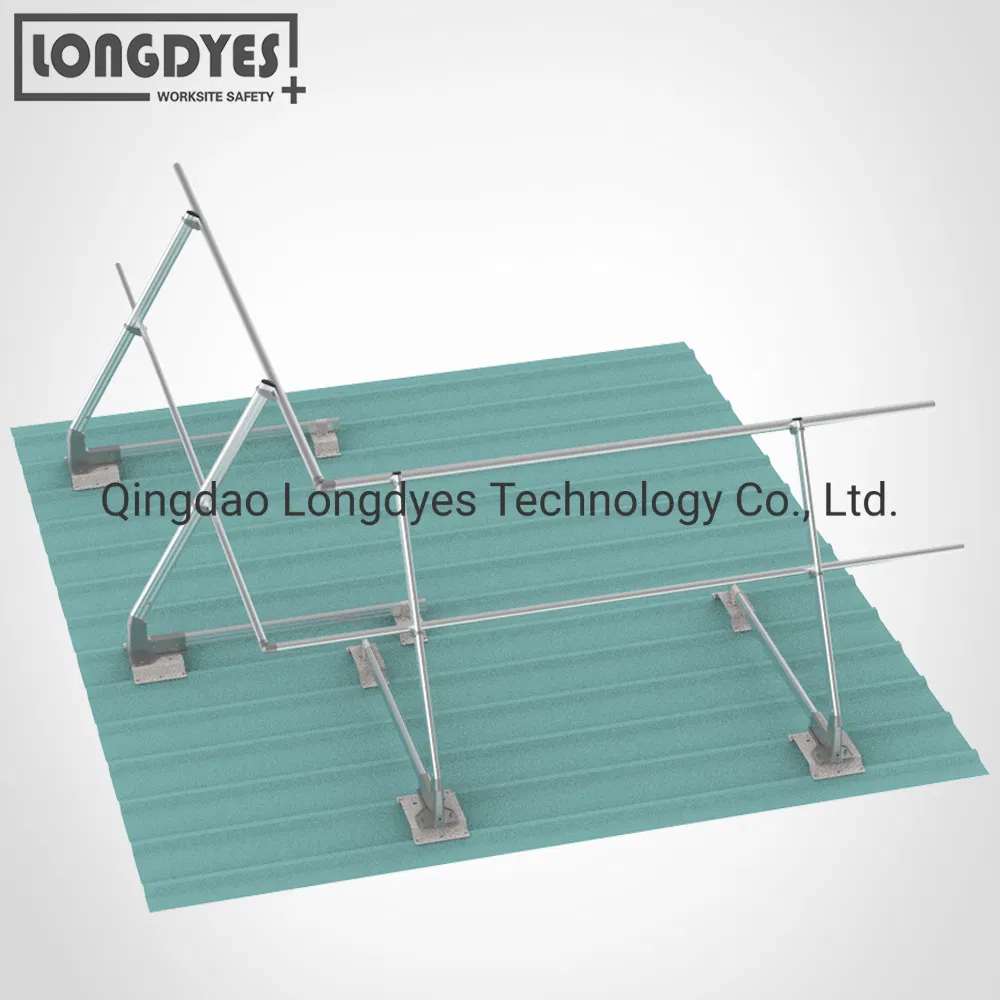

Inclined Post Corrugated Metal Roofs Aluminum Fixed Handrail System

This aluminum fixed handrail is a premium freestanding guardrail system designed to provide permanent full-perimeter fall protection for corrugated metal roofs and standing seam metal roofs. Manufactured from corrosion-resistant aluminum, it offers a lightweight and 100% waterproof installation. The modular design ensures easy and safe assembly on-site.

High-Quality Materials

The fixed handrail is manufactured from high-grade aluminum 6063 or 6061. These materials provide:

Excellent processing and welding characteristics.
Superior corrosion resistance and high toughness.
No deformation after processing.
Dense, defect-free structure ideal for polishing and oxidation effects.

Key Features & Aesthetics

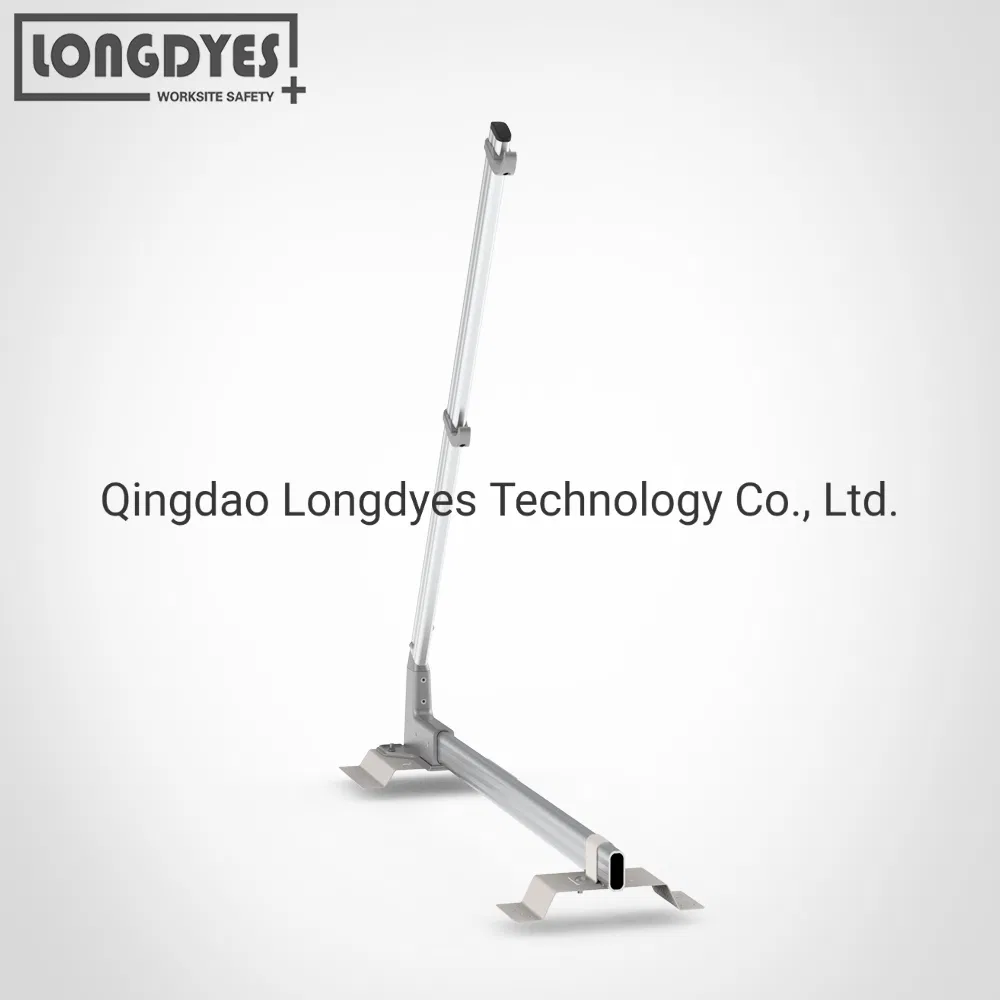

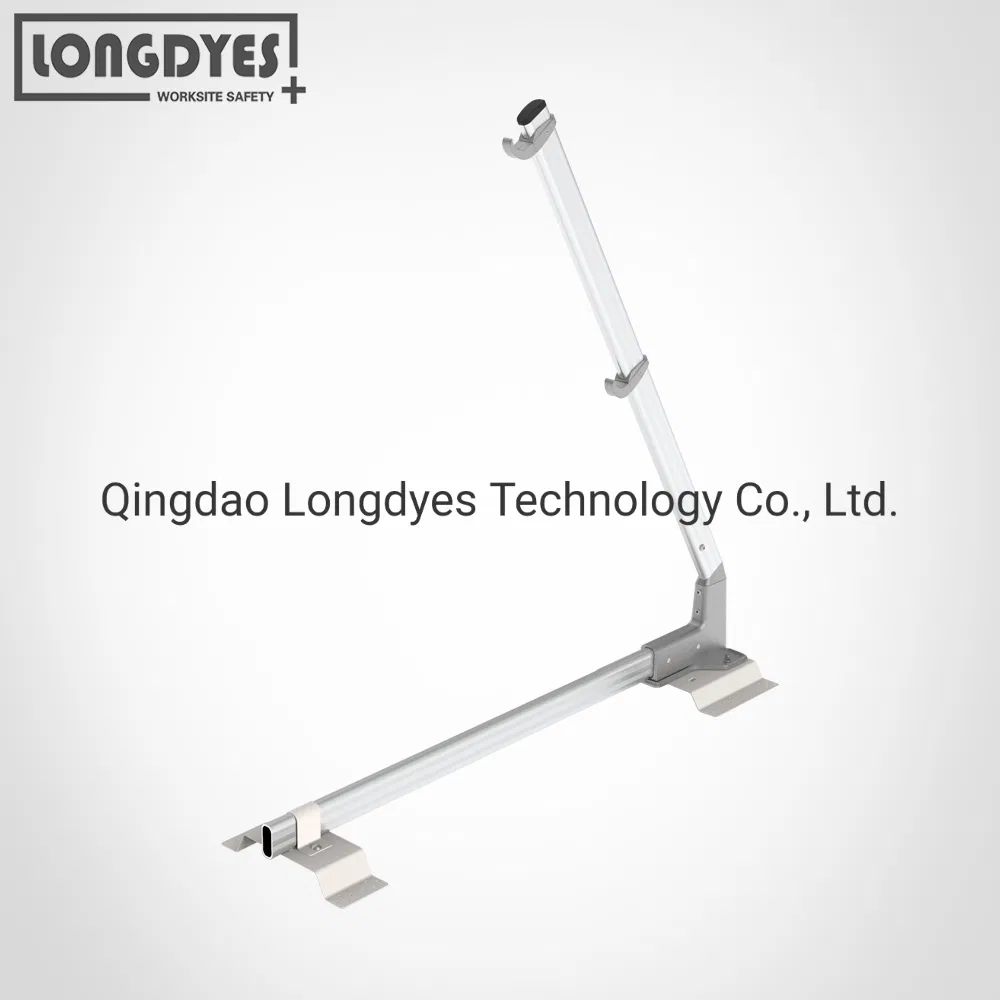

Inclined Design: This variation is inclined at 30°, which enhances the aesthetics of the system while making the guardrail less visible from ground level. This results in better integration into the overall building design.

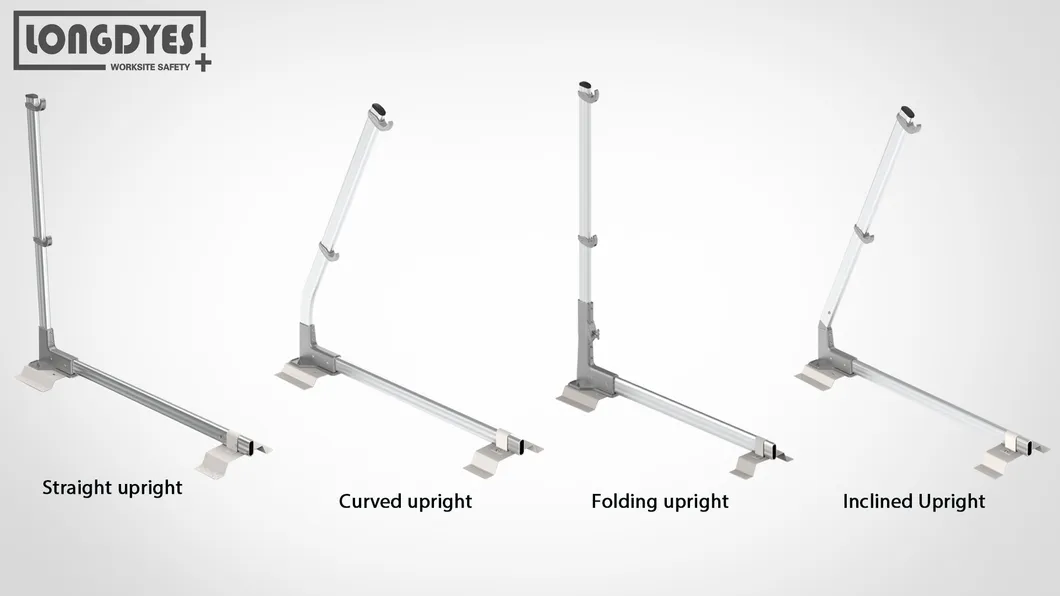

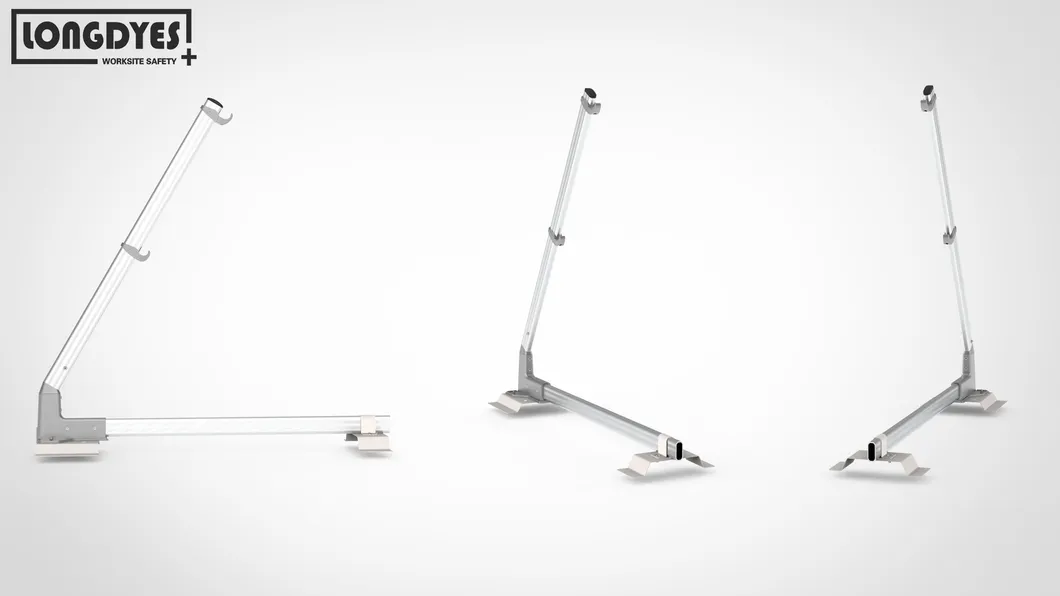

Available in straight, curved, or folding styles to meet diverse architectural requirements.

Specifications

Type	Straight Upright	Curved Upright	Inclined Upright	Folding Upright
Min. Vertical Height	1100mm	1100mm	1100mm	1100mm

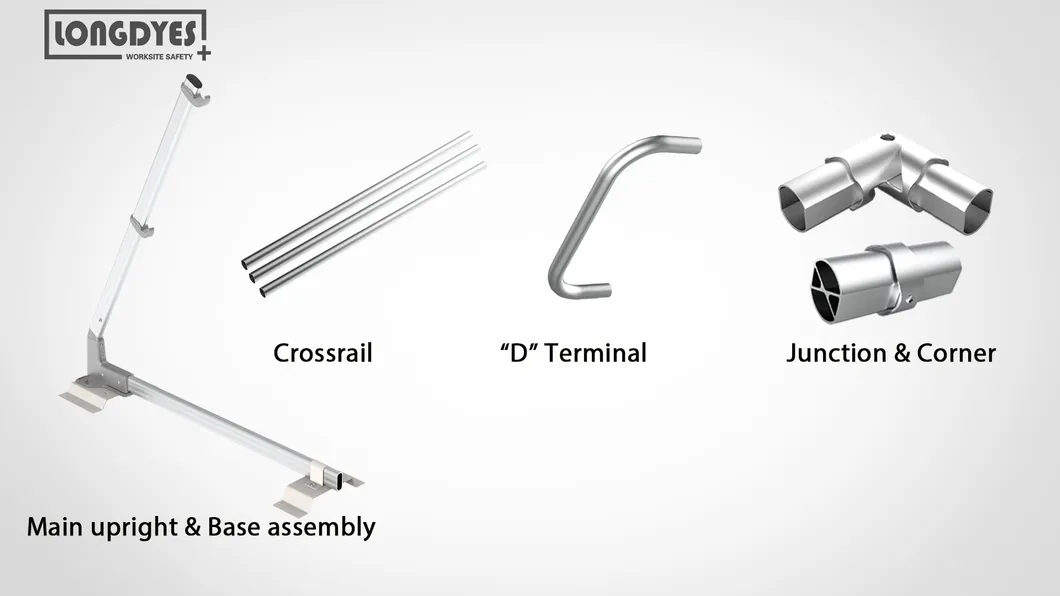

System Components

The following components are provided for the freestanding assembly:

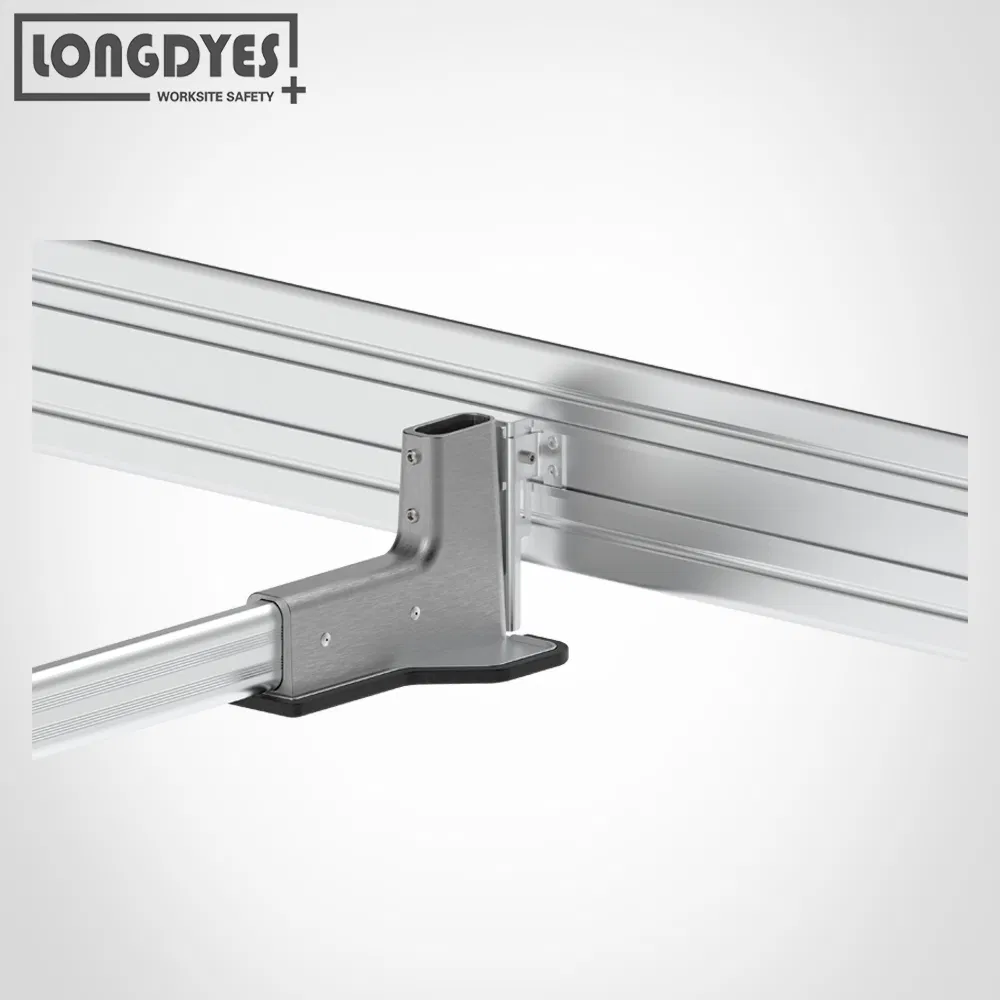

Optional Toeboard

If there is no parapet at the fall edge or the parapet height is less than 100mm, a toeboard can be affixed to the base. This prevents small objects or personnel from slipping off the edge.

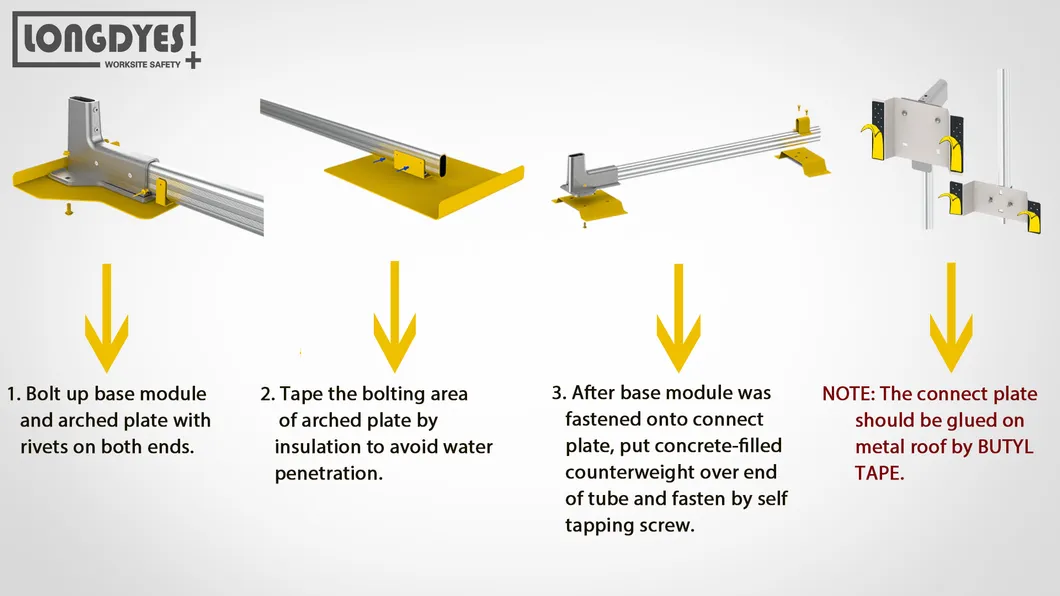

Installation Steps

Bolt up the base module and arched plate using rivets on both ends.
Tape the bolting area of the arched plate with insulation to prevent water penetration.
Fasten the base module onto the arched plate, then bolt the plate directly to the corrugated roof.

NOTE: The connection plate should be secured to the metal roof using BUTYL TAPE for optimal sealing.

Testing & Compliance

Safety is our priority. Our freestanding guardrails are rigorously tested according to EN 13374 and EN 14122-3 standards before shipment to ensure maximum reliability.

Core Advantages

1. Simple Installation

Reduces labor costs and installation time on corrugated metal roofs through a streamlined modular design.

2. Safest Form of Protection

Effectively protects workers against fall hazards, providing the most reliable safety barrier during roof operations.

3. Long Service Life

Constructed with industry-leading finishes and galvanized fittings to resist corrosion and protect your investment for decades.

Professional Services

OEM & ODM availability to meet specific project needs.
Comprehensive technical guidance and professional service.
Efficient and timely quotation process.
Sample testing and factory visits welcomed.
Reliable post-sales technical and installation instructions.

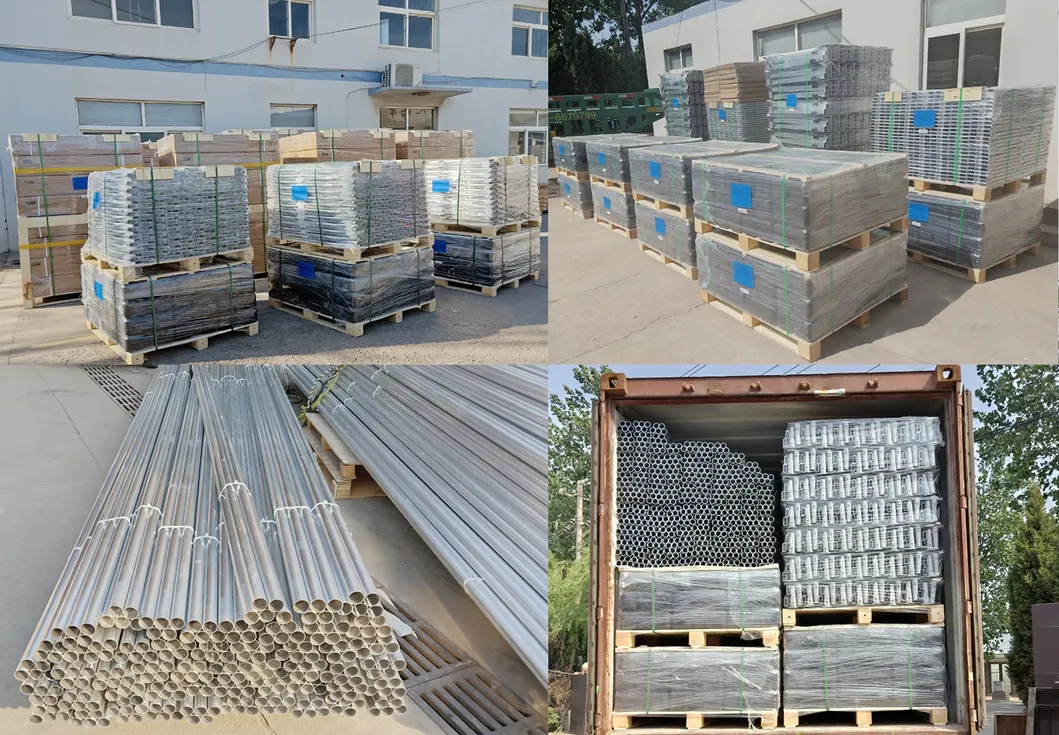

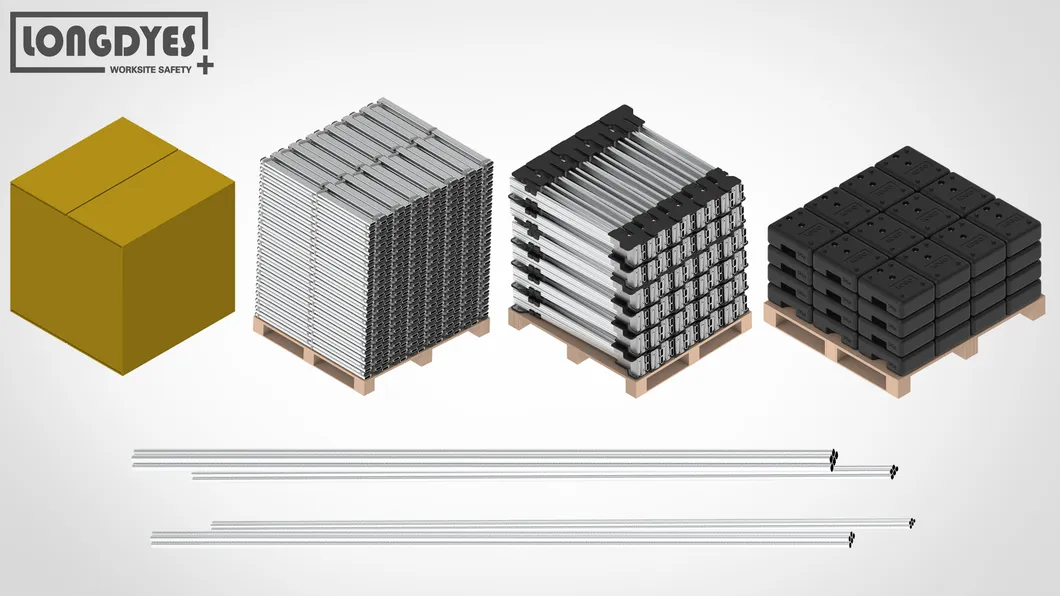

Packaging & Delivery

Products are securely packed in pallets for safe transit:

Accessories: Boxed components including junctions, corners, and wall fixings.
Counterweight/Upright/Base Pallets: Wrapped in stretch film for protection.
Handrails: Packed in 5-piece bundles.

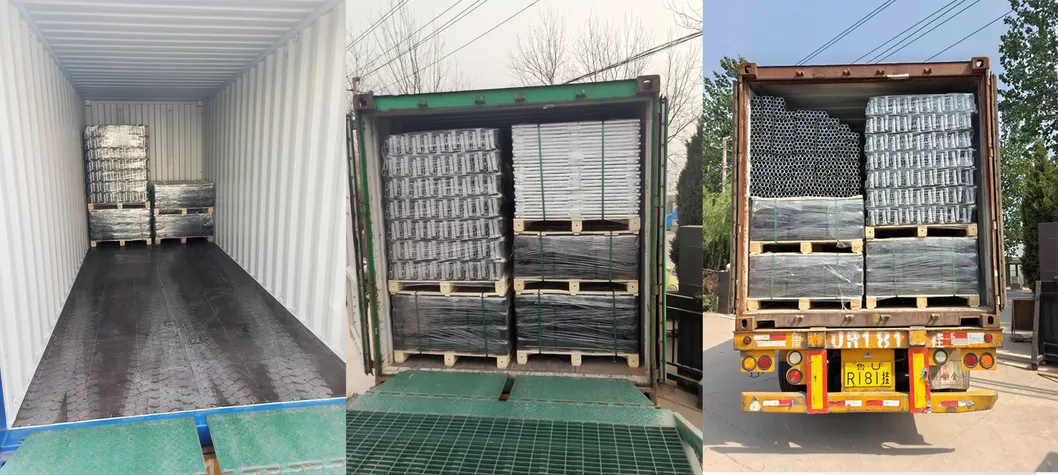

Shipping: A 20' GP container can load approximately 572 meters of the rooftop guardrail system. Standard delivery is typically completed within 2-3 weeks via sea freight.

Frequently Asked Questions

Q: What types of roofs is this guardrail system compatible with? A: It is specifically designed for corrugated metal roofs and standing seam metal roofs, providing a secure and non-invasive fall protection solution.

Q: What material is used for the handrail system? A: The system is manufactured from high-quality Aluminum 6063 or 6061, known for its excellent corrosion resistance and durability.

Q: Does this system meet international safety standards? A: Yes, the guardrail system is tested according to the requirements of EN 13374 and EN 14122-3 to ensure it meets strict safety guidelines.

Q: How does the 30° inclined post benefit the building design? A: The inclination improves the visual aesthetics and makes the safety system less visible from the ground level, integrating better with the building's architecture.

Q: What is the typical lead time for an order? A: Usually, shipment can be arranged within 2-3 weeks. A standard 20' GP container can hold about 572 meters of the system.

Q: Can I request a custom specification or OEM service? A: Yes, we offer both OEM and ODM services to provide customized solutions that fit your specific project requirements and technical needs.
