High strength hard aluminum, which can be strengthened by heat treatment, has medium plasticity in the quenched and just quenched state, good spot welding, and tends to form intergranular cracks during gas welding. The machinability of the alloy is good after quenching and cold work hardening, and the machinability is low after annealing. Anodic oxidation treatment and painting methods or aluminum coating on the surface are often used to improve its corrosion resistance.
Aluminium plate is an important structural material for aircraft, mainly used in fuselage, wing skin, oil tank etc. By using aluminium composite materials, the density of aircraft's outer skin can be decreased by 5%-7%. As a result, the total weight can be reduced by 10%, increasing fuel efficiency. Due to superb corrosion resistance, fatigue resistance, and damage tolerance, maintenance costs are significantly decreased.
| Parameter | Details | ||
| Thickness | 0.1-400mm | Width | 20-3000mm |
| Standard | ASTM, AISI, JIS, GB, DIN, EN | Certification | ISO, CE |

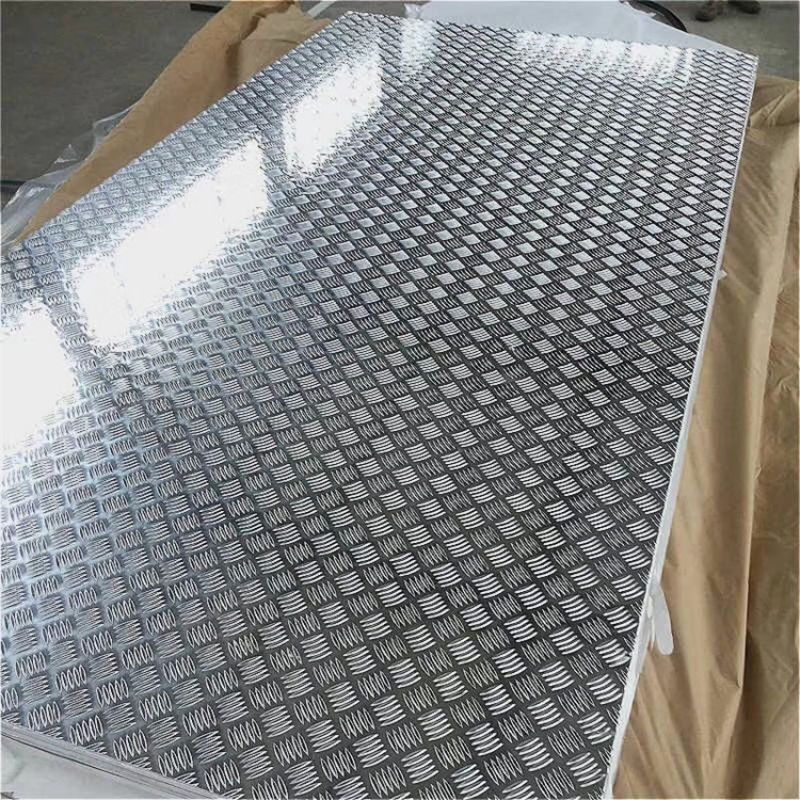

| Surface Finish | mill, bright, polished, hair line, brush, sand Blast, checkered, embossed, etching, etc | ||
| Grades |
1000 Series: 1050, 1100, 1200 3000 Series: 3003, 3004, 3005 5000 Series: 5052, 5083, 5754 6000 Series: 6061, 6063, 6082 7000 Series: 7050, 7075 |
||
| Product | Tensile strength σb (MPa) | Yield strength σ0.2 (MPa) | Elongation δ5 (%) | Hardness (HB) |
| 2A11-T4 | 370 | 215 | 12 | 120 |
| 2A12-T4 | 425 | 275 | 12 | 120 |
| 2024-T4 | 425 | 275 | 14 | 120 |
| LY12-T4 | 425 | 275 | 12 | 120 |
| Product | Si | Fe | Cu | Mn | Mg | Zn | Ti |
| 2A11 | 0.70 | 0.70 | 3.8-4.8 | 0.4-0.8 | 0.4-0.8 | 0.30 | 0.15 |
| 2A12 | 0.50 | 0.50 | 3.8-4.9 | 0.3-0.9 | 1.2-1.8 | 0.30 | 0.15 |
| 2024 | 0.50 | 0.50 | 3.8-4.9 | 0.3-0.9 | 1.2-1.8 | 0.25 | 0.15 |
Industrial Use: Molds, precision parts, large frames, bridges, large shells, and truck components.
Aerospace: Alloy casting of structural parts such as aircraft wall panels, front beam girders, joints, struts, and landing gear.
Consumer Goods: Beauty instruments, notebook shells, etc.
