Topcon N Type Solar Plates - 625W Monocrystalline Power Solutions

1 / 5

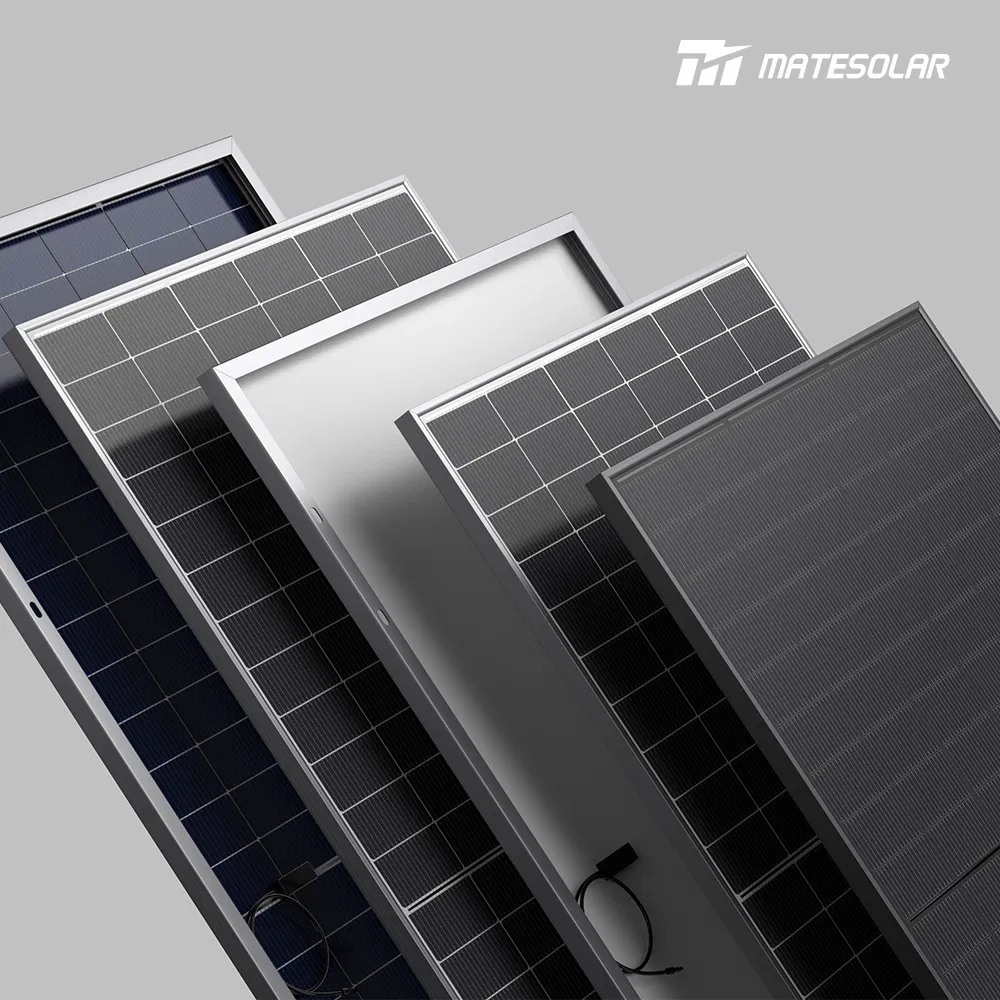

Topcon N Type Solar Plates - 625W Monocrystalline Power Solutions

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Technical Specifications

Number of Cells

156 cells

Application

Home / Commercial

Condition

New

Certification

ISO, CB, CE, TUV

Material

Monocrystalline Silicon

Type

TOPCon MS78H

Weight

30.0kg

Front Glass

3.2mm coated tempered glass

Frame

Black Anodized aluminium alloy

Junction Box

IP68 rated (3 bypass diodes)

Connectors

MC4 compatible

Mechanical Load

5400Pa

Dimensions

2465 x 1134 x 30mm

Production Capacity

5GW / Year

💡

Product Overview

Advanced N-type TOPCon Monocrystalline Power Solutions designed for high-efficiency energy harvesting. Our production involves modularized fully automated lines that ensure precision, cost savings, and fast delivery.

Maximum power (Pmax/W)	620	625	630	635	640
Open Circuit Voltage (Voc/V)	56.39	56.55	56.71	56.87	57.01
Short Circuit Current (Isc/A)	13.86	13.92	13.98	14.04	14.10
Voltage at Max Power (Vmpp/V)	46.94	47.14	47.30	47.46	47.62
Current at Max Power (Impp/A)	13.21	13.26	13.32	13.38	13.44
Module Efficiency (%)	22.18%	22.36%	22.54%	22.72%	22.90%

🏭

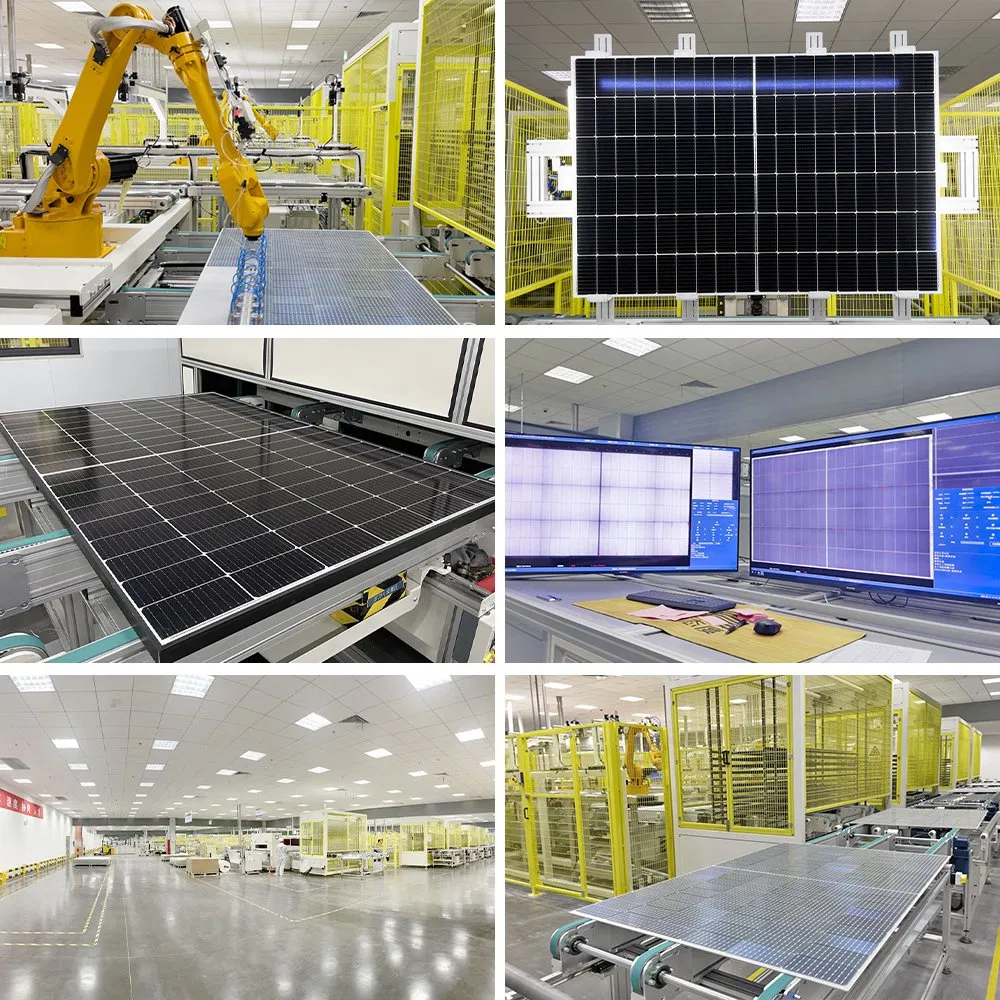

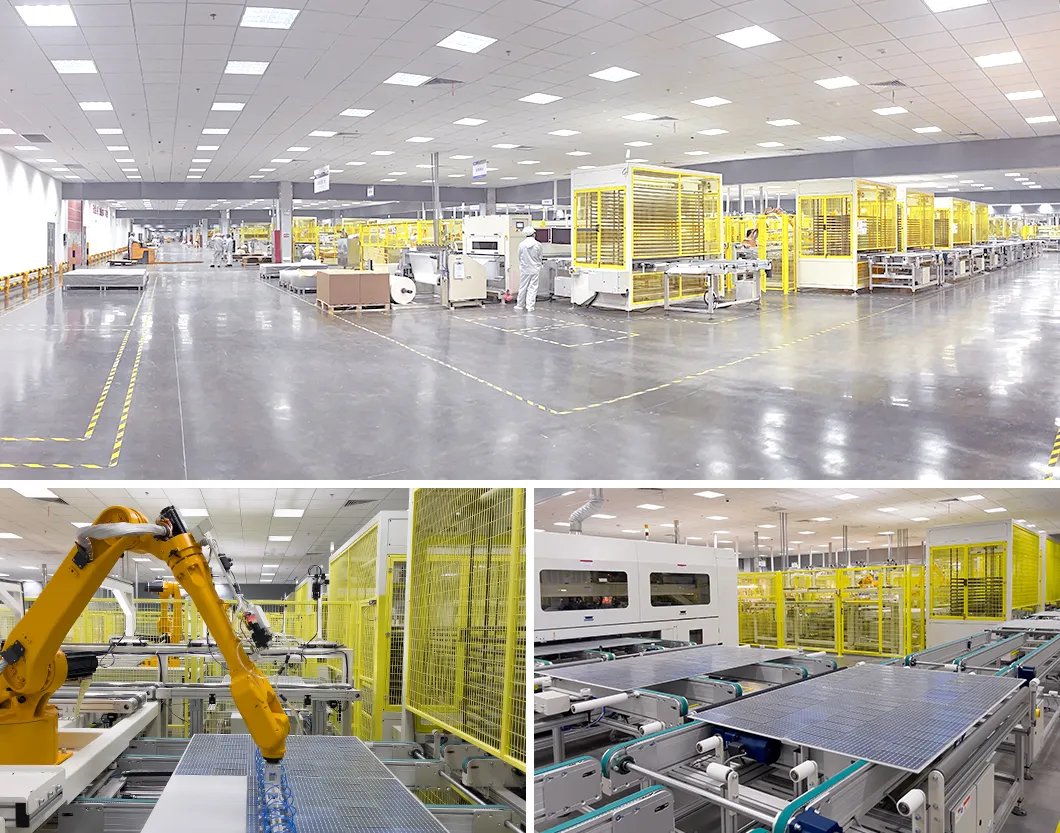

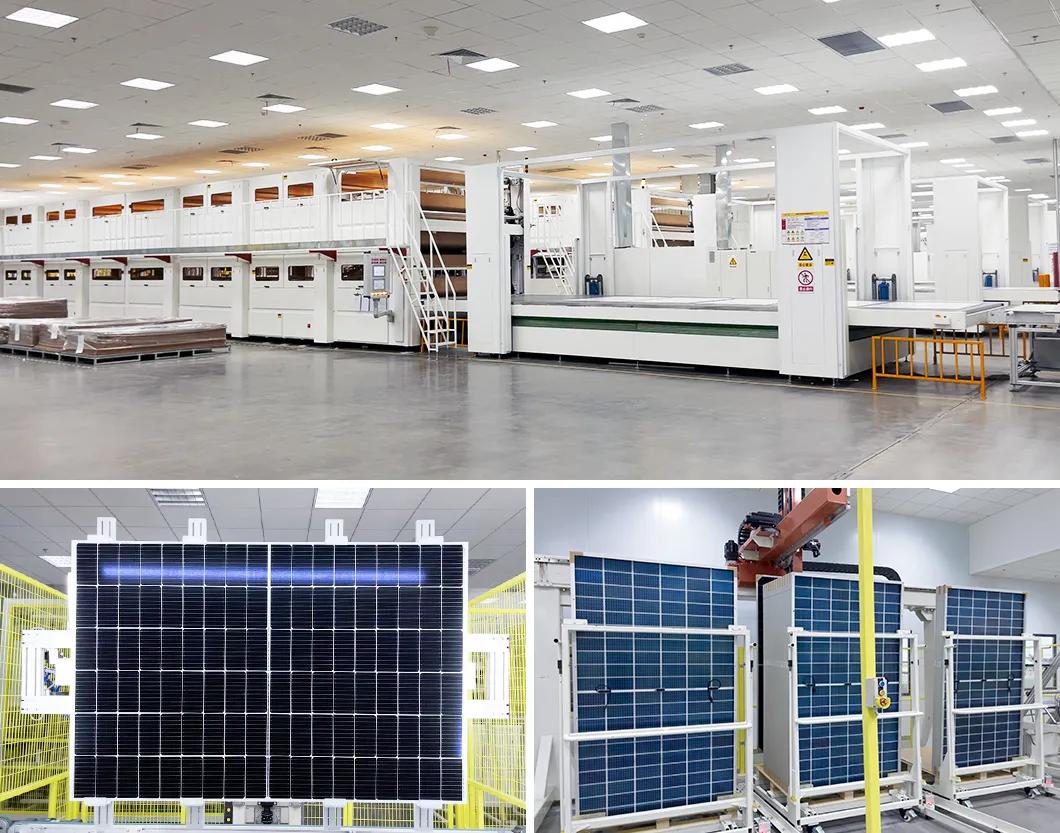

Smart Manufacturing & Quality

Utilizing modularized fully automated production lines to achieve high utilization rates and efficiency. Over 40 patents are applied to our production optimization process, effectively eliminating manual errors and ensuring online monitoring from raw material to final packaging.

Stringent quality control is our cornerstone. We are certified for Quality Management System (ISO 9001:2015), Environment Management System (ISO 14001:2015), and Occupational Health and Safety (ISO45001:2018).

📐

Available Power Ranges

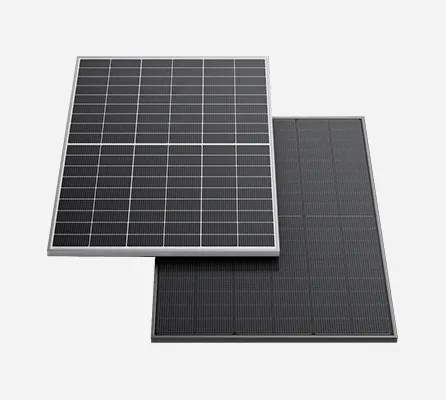

425 - 450 Watt
Cells Layout: 108 Half Cells
Dimensions: 1722 x 1134 x 30/35mm
Weight: 21.0kg

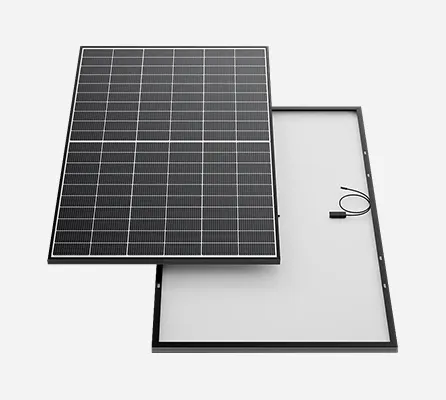

470 - 490 Watt
Cells Layout: 120 Half Cells
Dimensions: 1910 x 1134 x 30/35mm
Weight: 23.0kg

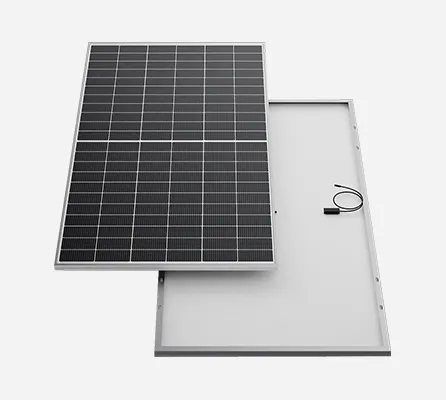

530 - 550 Watt
Cells Layout: 132 Half Cells
Dimensions: 2094 x 1134 x 30/35mm
Weight: 25.5kg

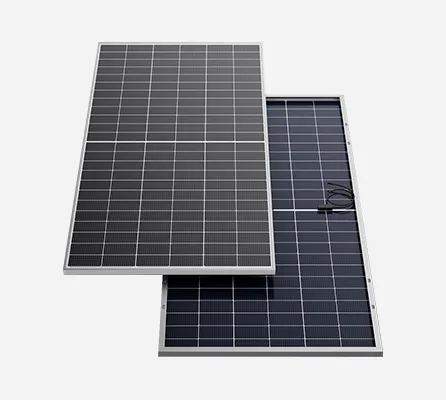

570 - 590 Watt
Cells Layout: 144 Half Cells
Dimensions: 2279 x 1134 x 30/35mm
Weight: 27.5kg

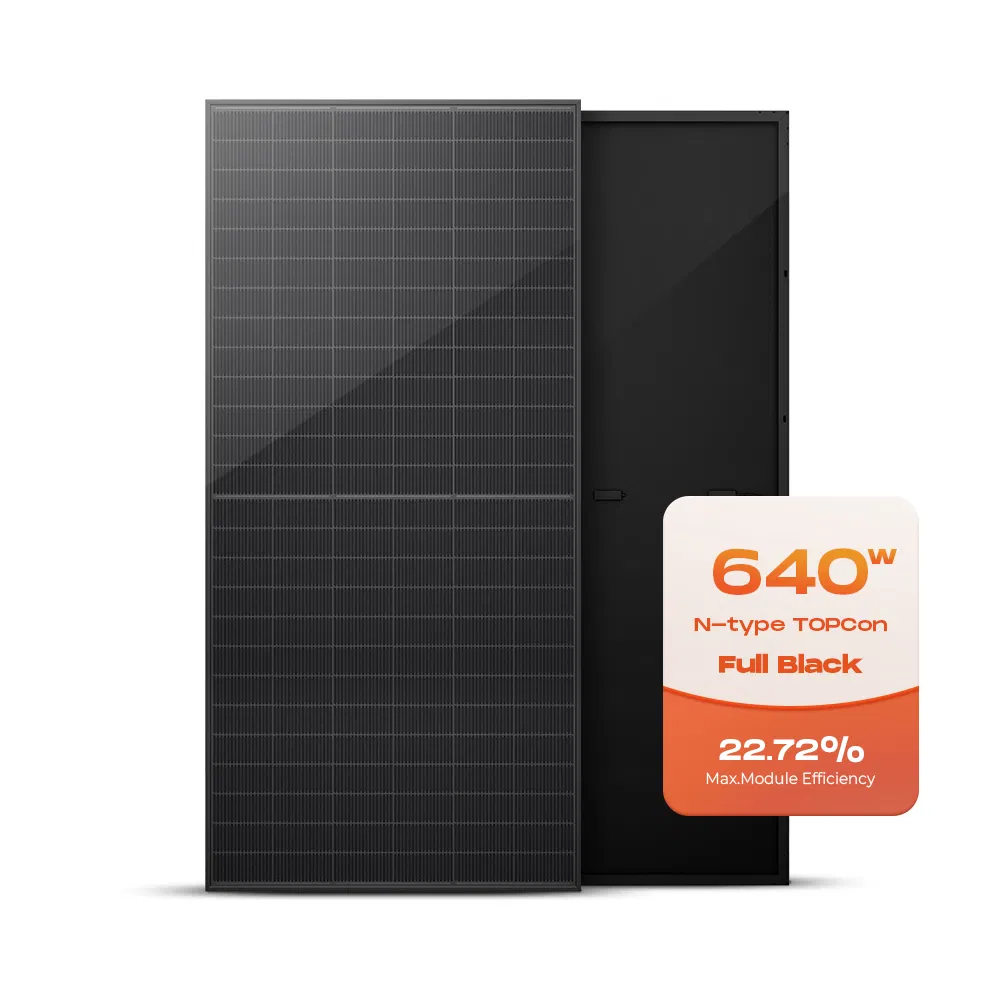

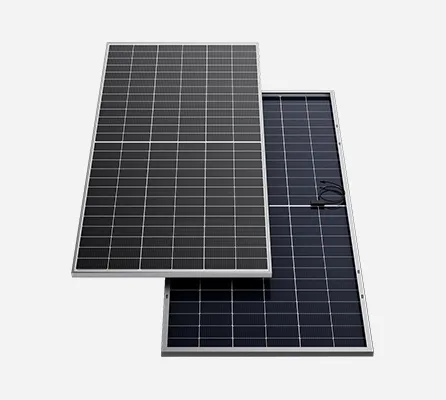

620 - 640 Watt
Cells Layout: 156 Half Cells
Dimensions: 2465 x 1134 x 30/35mm
Weight: 30.0kg

📦

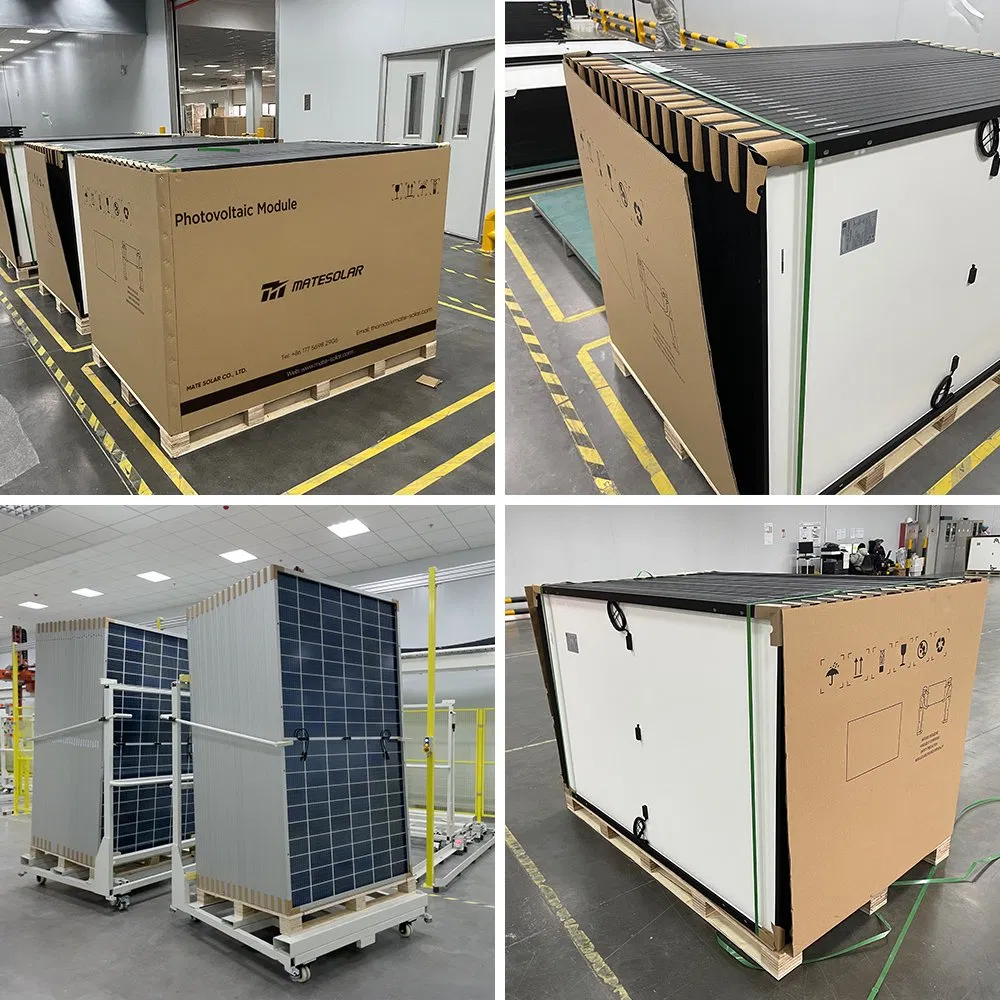

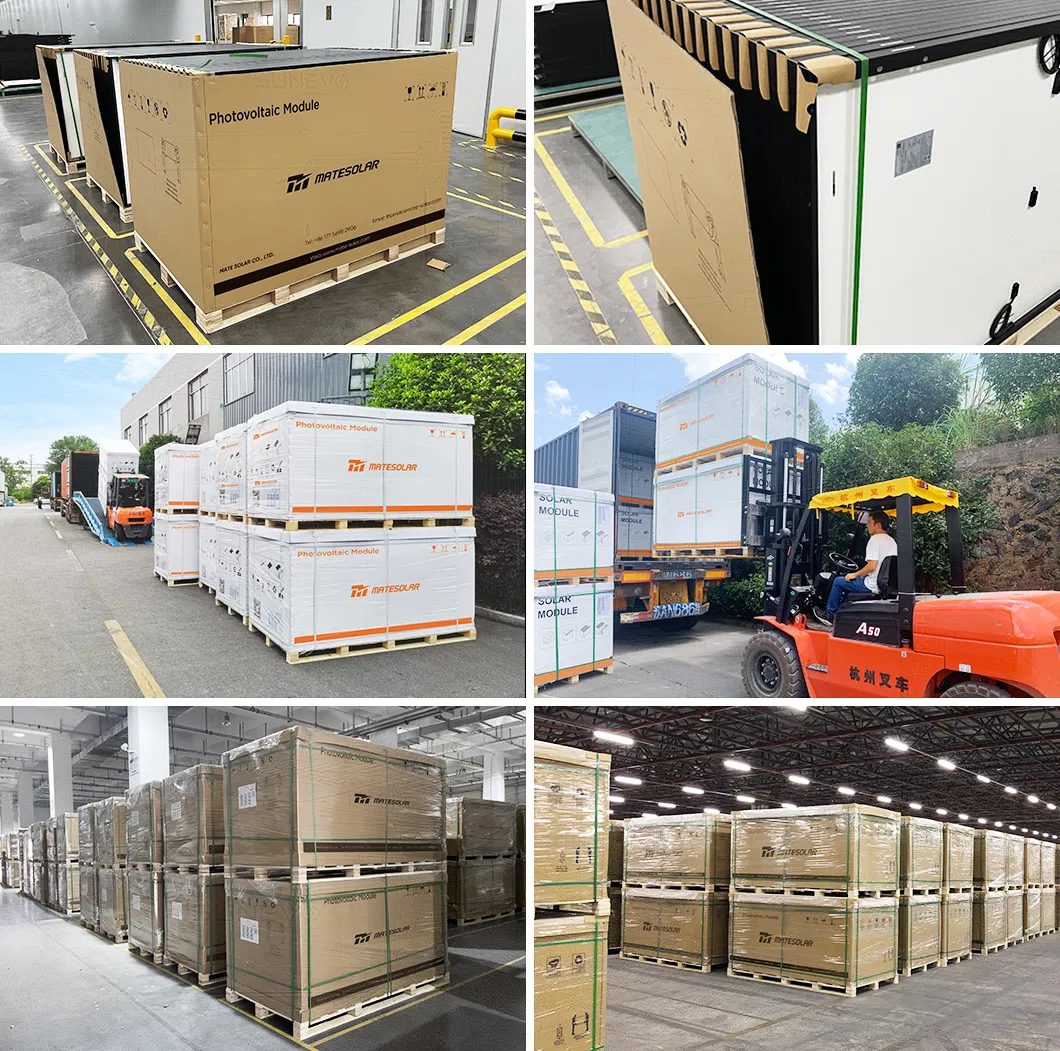

Packaging & Applications

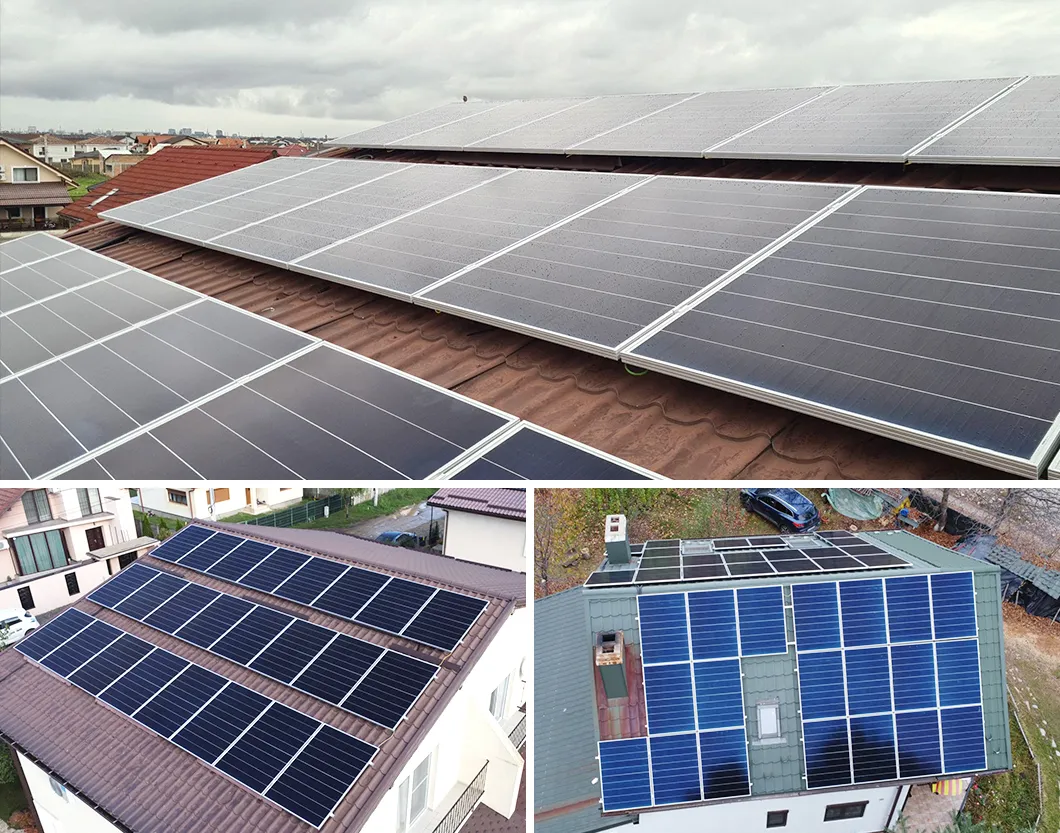

Residential: Clean power for thousands of homes globally.

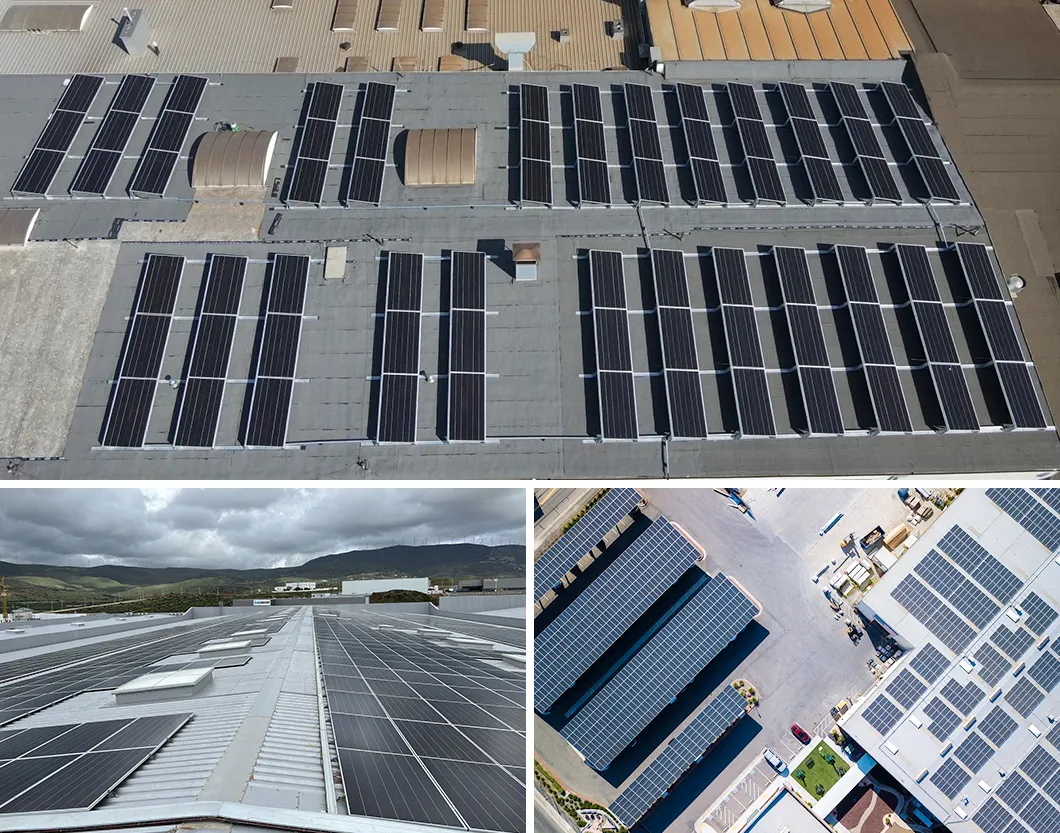

Commercial: High-return investment for self-consumption or grid selling.

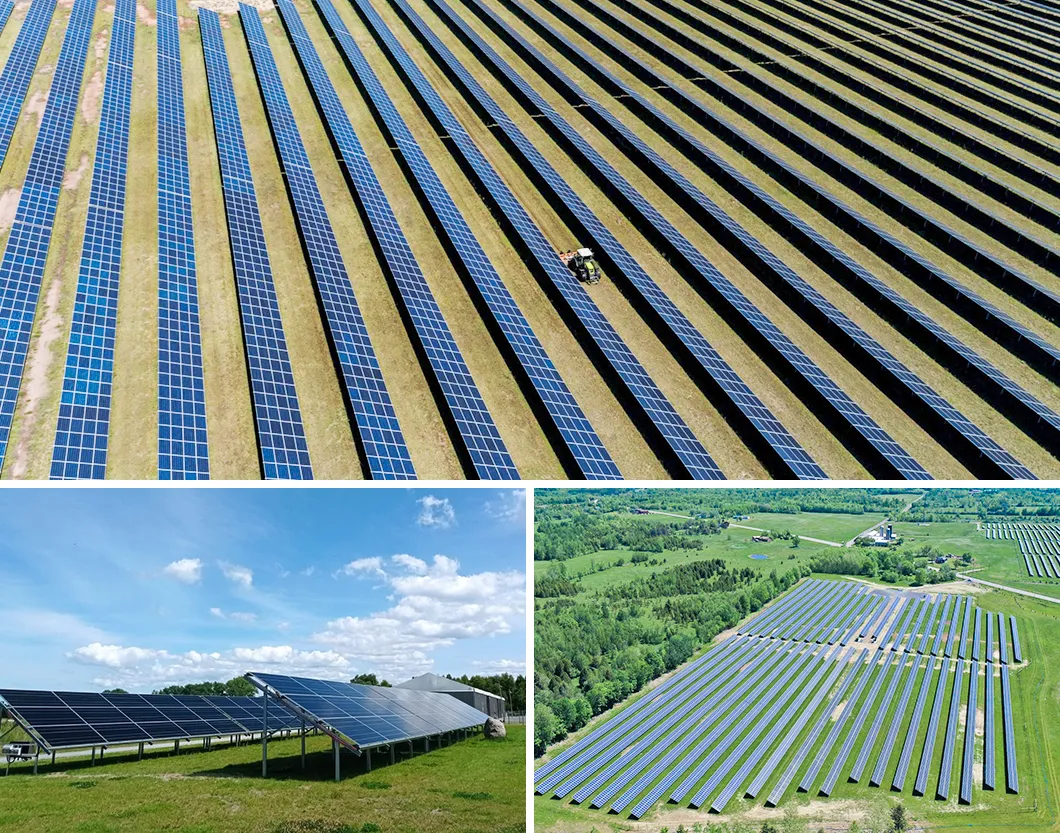

Utility Scale: Maximizing benefits for large-scale energy projects.

OEM & ODM Services: We deliver customized renewable energy technologies to meet unique customer needs across utilities, commercial, and industrial sites.

❓

Frequently Asked Questions

Can the product be shipped to my area?

We export to most countries/regions including Central/South America, EMEA, SEA, SSA, and AU. We will confirm shipping logistics once you provide your specific region.

What about the lead time?

Approximately 10 working days for requirements under 200kW. For orders equal to or greater than 200kW, the lead time is subject to negotiation based on current capacity.

How can I make payment?

We accept 100% TT or a 30% TT advance payment with the remaining 70% TT balanced upon goods being ready for shipment.

What is the warranty period?

We provide a 12-year enhanced product warranty on materials and workmanship, along with a 25-year linear power output warranty.

What is the advantage of N-type TOPCon technology?

N-type TOPCon modules offer higher conversion efficiency, better temperature coefficients, and lower degradation compared to traditional P-type modules, resulting in more energy over the system's lifetime.

Are the connectors and frames standard?

Yes, our modules use MC4 compatible connectors and high-strength anodized aluminum alloy frames (30mm/35mm), making them compatible with standard mounting systems.
