Cellar Aluminum
1 / 5

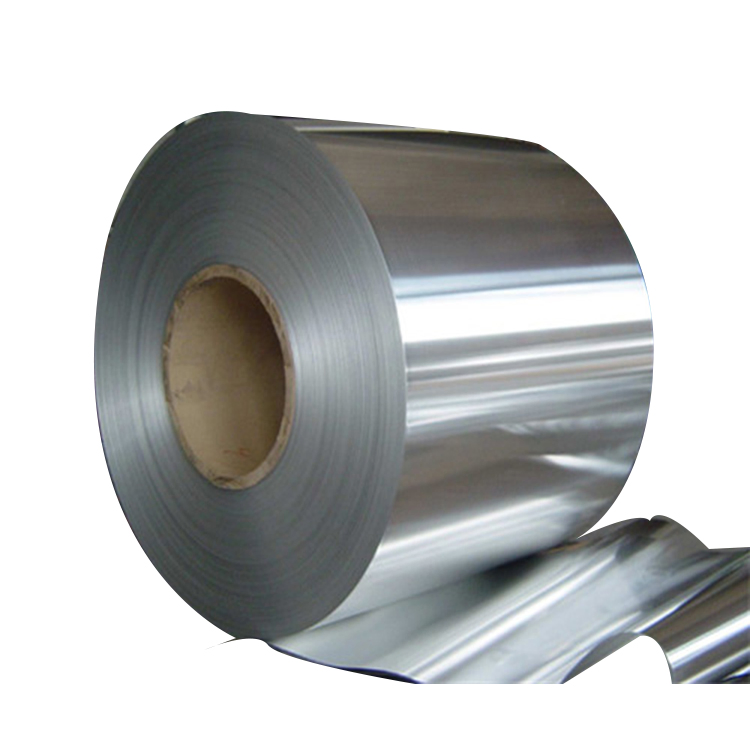

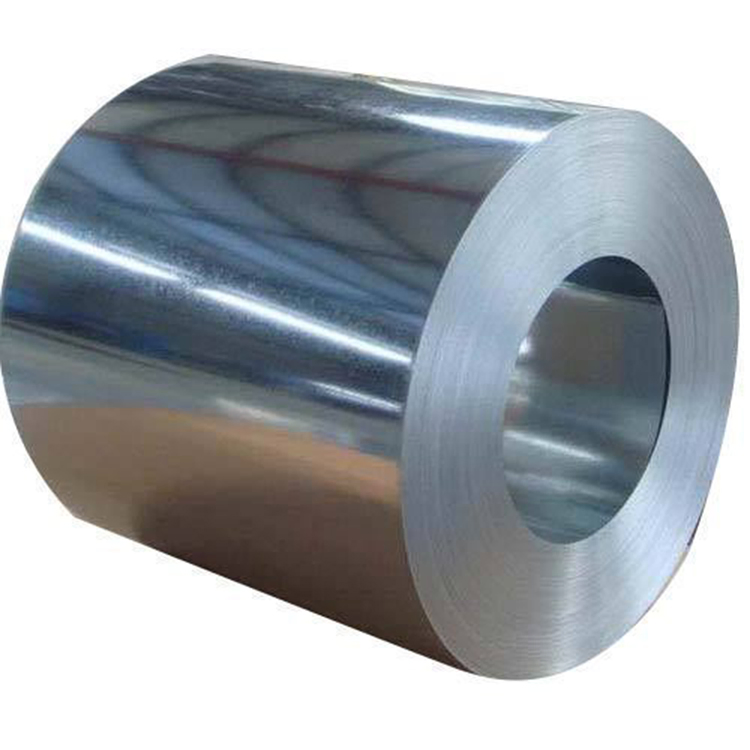

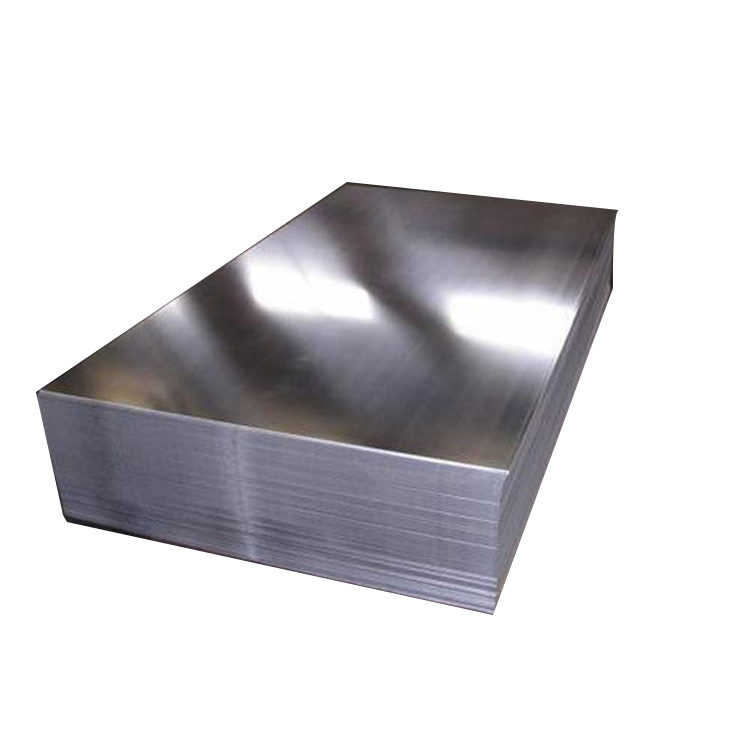

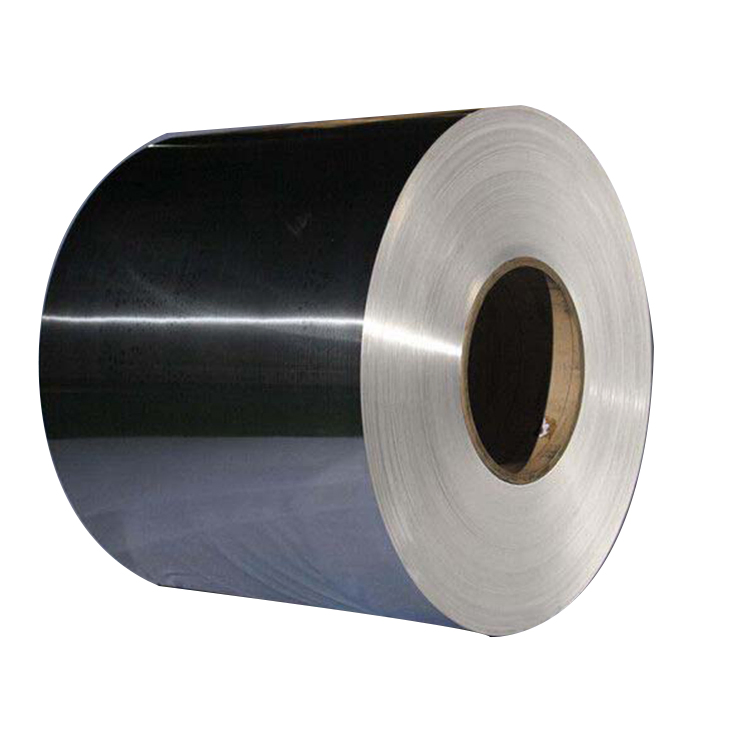

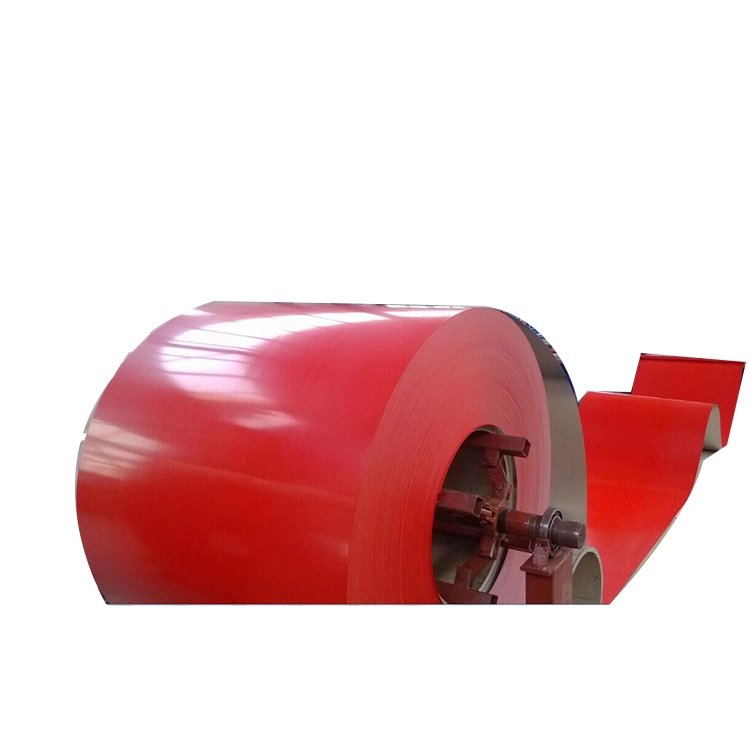

Plain Aluminum roll Sheet is specifically designed for weather-proofing insulation on vertical tanks and vessels with outside diameters of 8'' or more, as well as providing mechanical abuse protection for the insulation. They are available in a smooth finish, painted, or stucco embossed pattern.
| Alloy | Si | Fe | Cu | Mn | Zn | Mg | Ti | Cr | Al |
|---|---|---|---|---|---|---|---|---|---|
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.05 | 0.03 | 0.03 | - | 99.6min |
| 1100 | Si+Fe=0.95 | 0.05-0.20 | 0.05 | 0.10 | - | - | - | 99.0min | |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.50 | 0.10 | - | - | - | reminder |
| 3105 | 0.6 | 0.7 | 0.30 | 0.30-0.80 | 0.40 | 0.20-0.80 | 0.10 | 0.20 | reminder |

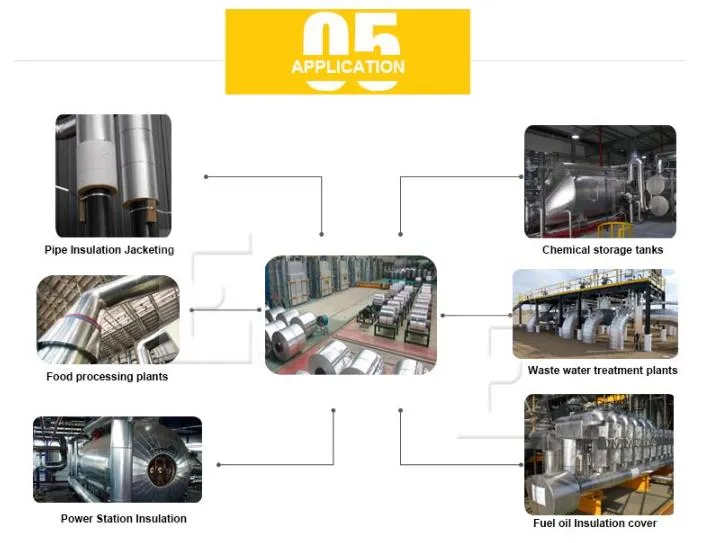

Aluminum Jacketing is highly recommended for HVAC, Insulated Piping, Tanks & vessels. It is widely used in various industrial sectors:
