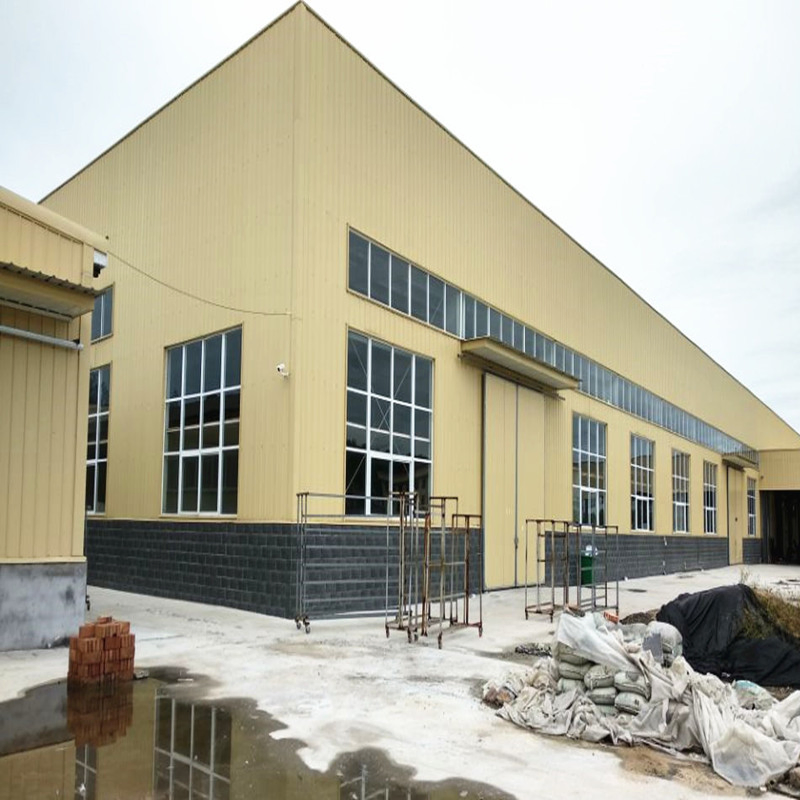

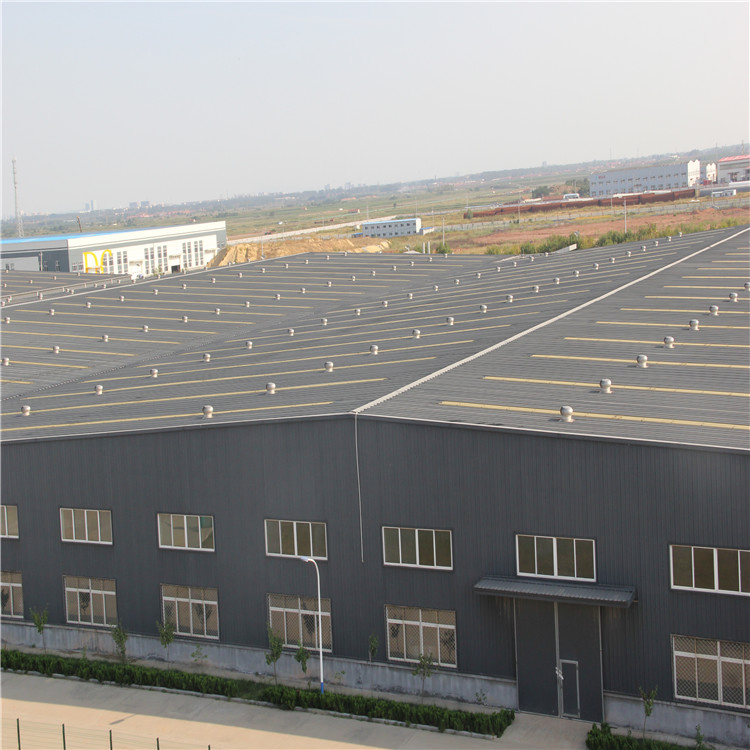

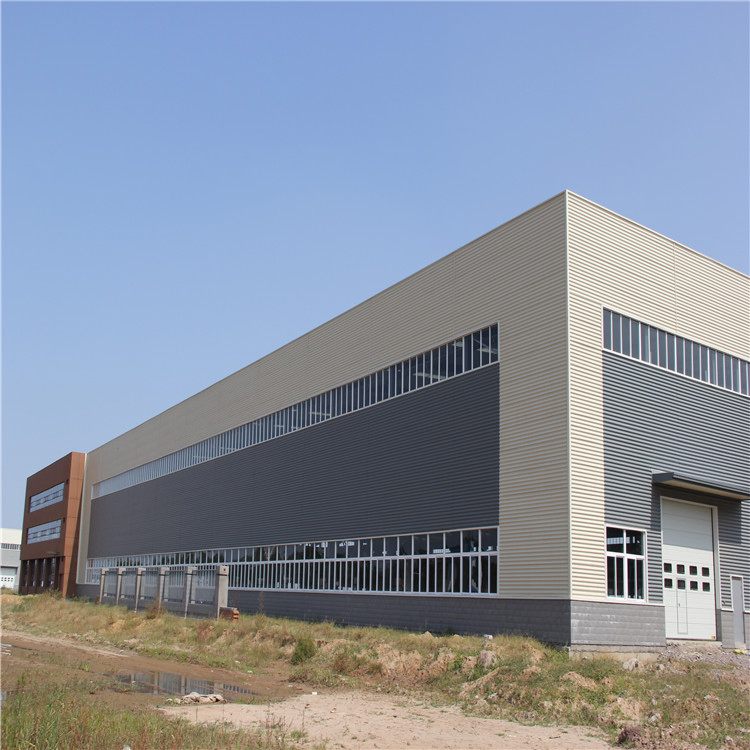

Modern Prefab Steel Structure Building Prefabricated Warehouse/Workshop Construction Material

1 / 5

Modern Prefab Steel Structure Building Prefabricated Warehouse/Workshop Construction Material

Customization:	Available
Type:	H-Section Steel
Main Steel Structure:	Q345b Steel

Send Inquiry

Product Description

Basic Specifications

Model NO.

According To customer's Demand

Secondary Structure

Q235B Steel

Steel Stair

Grey Paint, Includes Handrails

Roof Horizontal Brace

φ20, Q235B Grey Paint

Roof Panel

840 Type, 0.5mm Color Steel, Silver Grey

Glass Wool

75mm (12kg/M3) with Aluminum Foil

Steel Door

Double Door Blue, with Glass Window

Wall Purlin

C180X70X20X2.0, Q235B

Anchor Bolts

M24, Q235B

Standard

GB, DIN, JIS

Steel Type

H-Section Steel, Q235

Forming

Hot-Rolled Steel

Connection

Welded Connection

Capacity

500,000 Ton/Per Year

Specification

110m*55m*11m

Product Overview

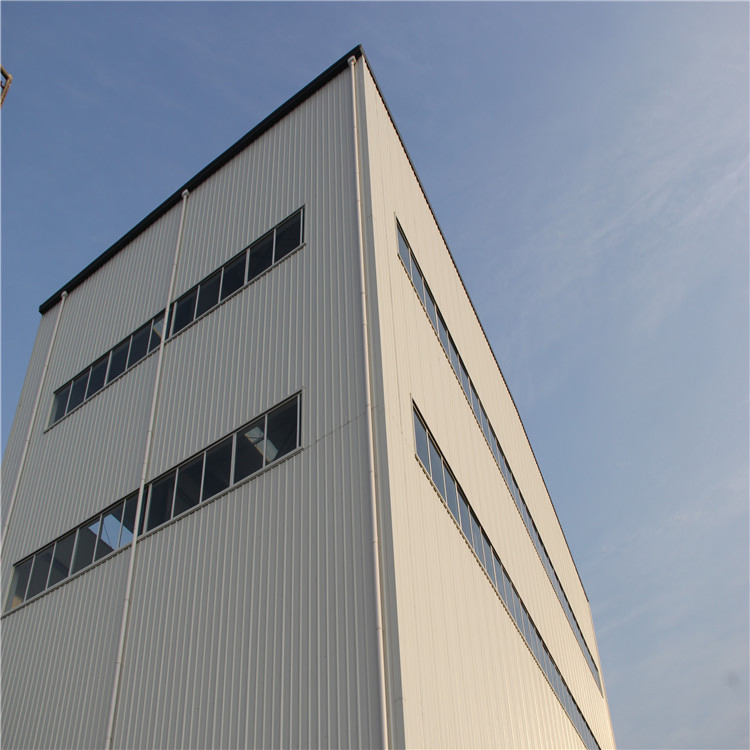

Modern Prefab Steel Structure Building - Prefabricated Warehouse/Workshop

Key Features:

Main structure adopts advanced steel spatial system.

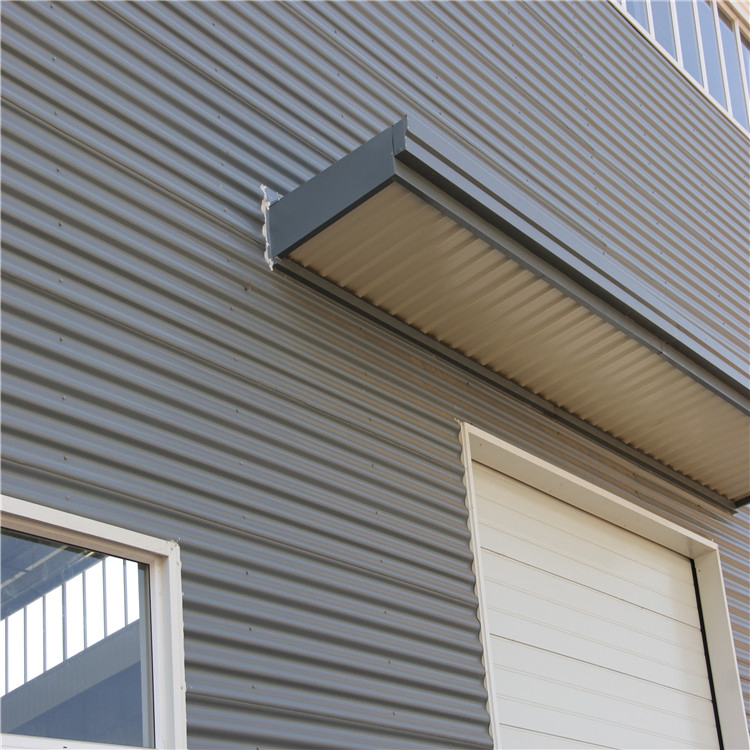

Roof and wall maintenance utilizes high-quality sandwich panels.
Project Dimensions: 110m * 55m * 11m.
Total Project Area: 11,000 sq.m (including local mezzanine).

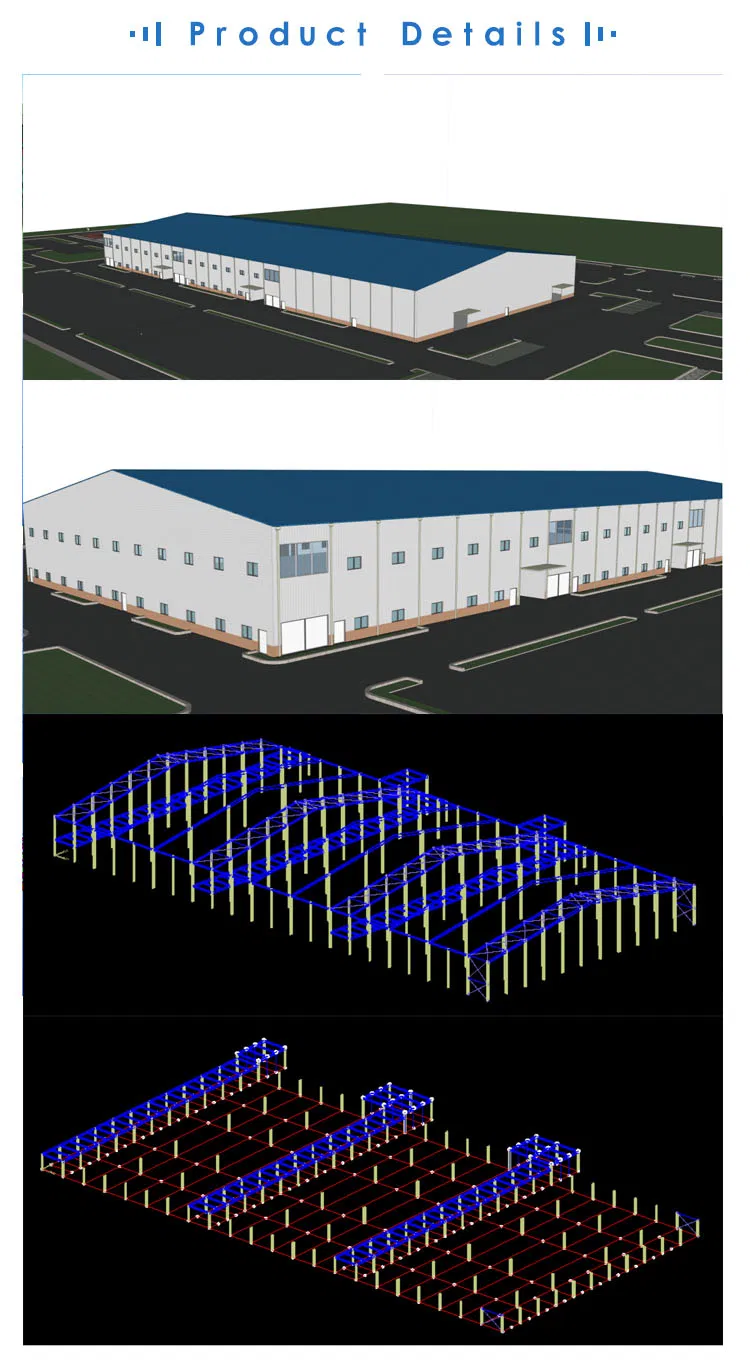

Detailed Description

This modern modular warehouse project is designed to meet specific industrial demands. Our technical team calculates precise load requirements, including roof dead load (2.0KN/sqm), floor live load (10.0KN/sqm), and wind resistance (0.8KN/sqm) at a 10° slope.

The main structure utilizes Q345B H-section steel with a double-layered medium grey protective coating. Components include columns (H500x250 to H300x180) and beams (H400x200 to H700x300) tailored for maximum structural integrity. Secondary components use Q235B steel, ensuring a perfect balance of strength and durability.

Component	Material Grade	Technical Specifications
H Column & Beam	Q345B	Grey paint 2x; Multiple sizes from H300 to H700 sections
Elevator Frame	Q235B / Q345B	Square tubular column: 200x8; Square beam: 150x6
Roof Purlin	Q235B	C250X75X20X2.5, Galvanized; 1200mm spacing
Tie Bar	Q235B	φ89*3, Grey paint; Length 5m/7m
Roof Panel	Steel Plate	840 type, 0.5mm color steel, silver grey

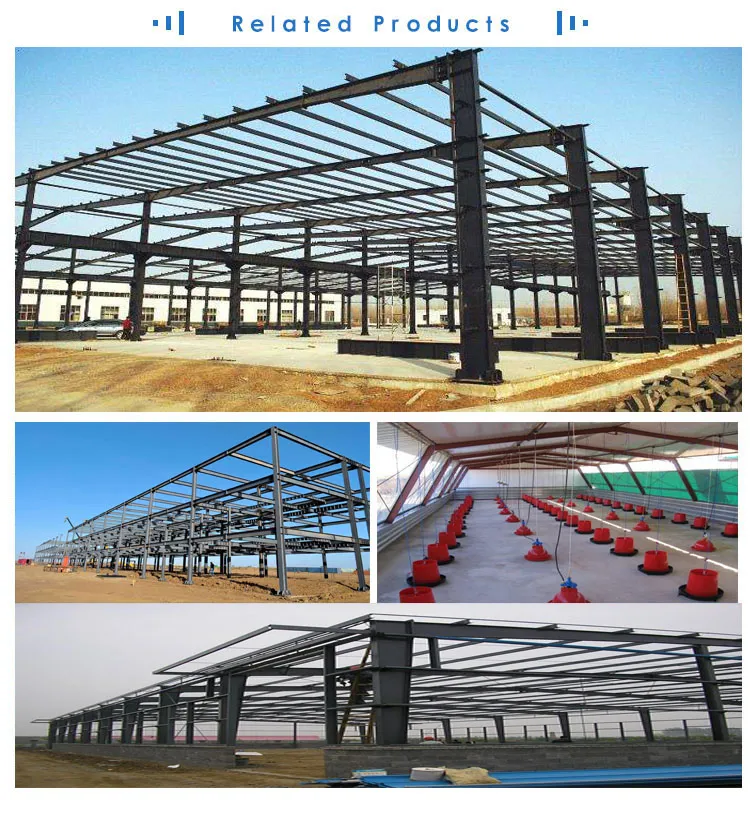

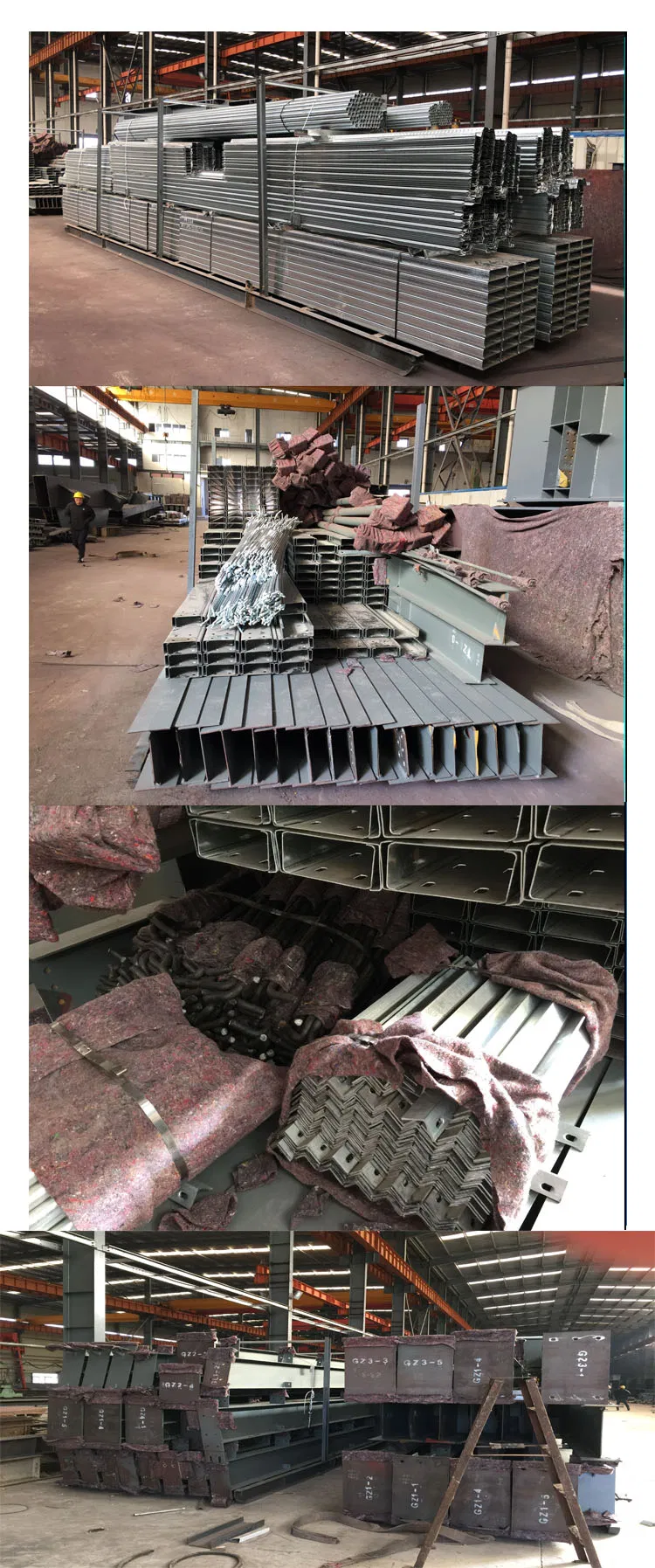

Project Gallery

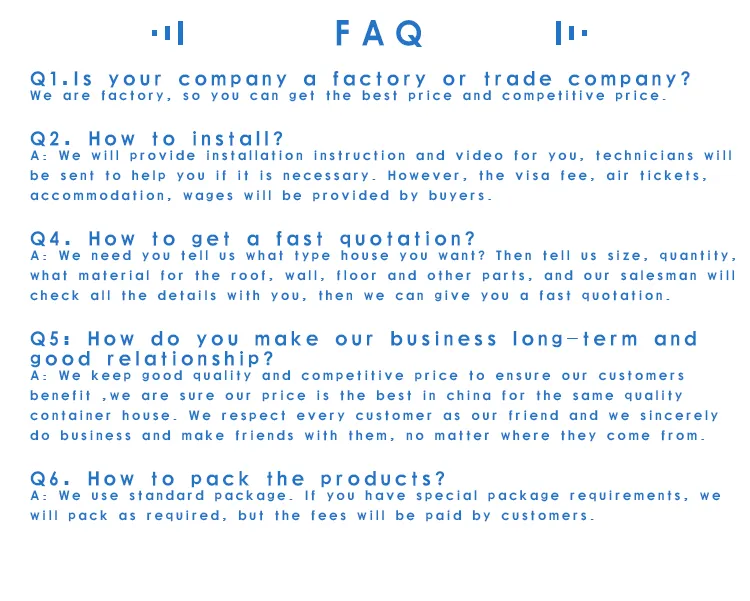

Frequently Asked Questions

What are the primary materials used in the main structure?

The main structure is built using high-strength Q345B H-section steel, which is coated with medium grey paint twice for enhanced corrosion resistance.

Can the steel structure be customized to specific dimensions?

Yes, the model and specifications are fully customizable according to the customer's specific project demands, including floor height, span, and load requirements.

What standards do these steel structures follow?

Our products are manufactured to meet international standards including GB (Chinese National Standard), DIN (German Institute for Standardization), and JIS (Japanese Industrial Standards).

How is the roof and wall maintenance system designed?

We use 840 type 0.5mm color steel plates or sandwich panels combined with 75mm glass wool insulation to ensure thermal efficiency and weather protection.

What is the production capacity for large-scale projects?

We have a robust production capacity of approximately 500,000 tons per year, allowing us to handle both standard and large-scale industrial projects efficiently.

What type of after-sales support is provided?

We offer comprehensive online support to assist with technical queries and installation guidance after the delivery of the steel components.
