Color coated Aluminum coil refers to the process where coloring is applied to the surface of the aluminum coil through PE or PVDF paint coating, or via an anodized process.
This material is widely utilized across various industries, including aluminum composite panels, solid aluminum single panels, honeycomb panels, ceilings, roofing, pop-top cans, home appliances, and electronic products.
Our Rolling Mirror Aluminum adds a fantastic aesthetic to many products and holds a vital position in modern manufacturing. Available colors include: Silver, Gold, Copper, Bronze, Green, Blue, Red, Black, Pink, and more.

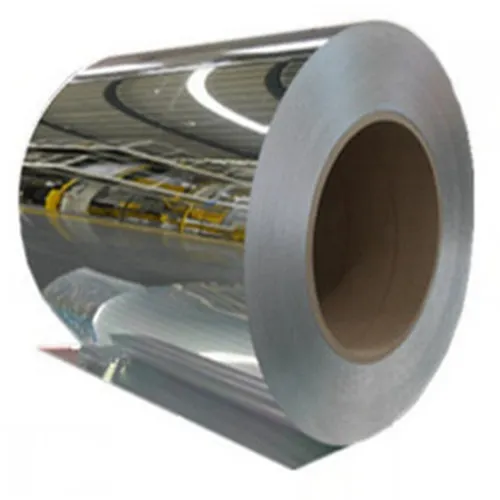

| Product Item | Mirror Finish Color Coated Aluminum Coil |
| Aluminum Alloy | 1050 1060 1100 5005 5052 etc |
| Thickness | 0.2-1.5mm (standard 0.25-0.5-0.8mm) |
| Width Size | 20(min)-2000mm(max), as per request |
| Length Size | 6000mm (max), as per request |
| Top Coating Type | PE/PVDF/Anodized |
| Back Coating Type | RAL color (Silver, Gold, Copper, Bronze, Champagne, Black, etc) |
| Top Coating Thickness | 5~25μm, as per request |
| Back Coating Thickness | 2~7μm, as per request |
| Pencil Hardness | ≥H |
| T-Bend Test | ≤2T |
| E-Cupping Test | 6mm |
| MEK Test | More than 100 times |
| Coil Weight | 2~3 Tons/ coil, as per request |
| Coil ID | 405mm, 408mm, 505mm, 508mm etc |

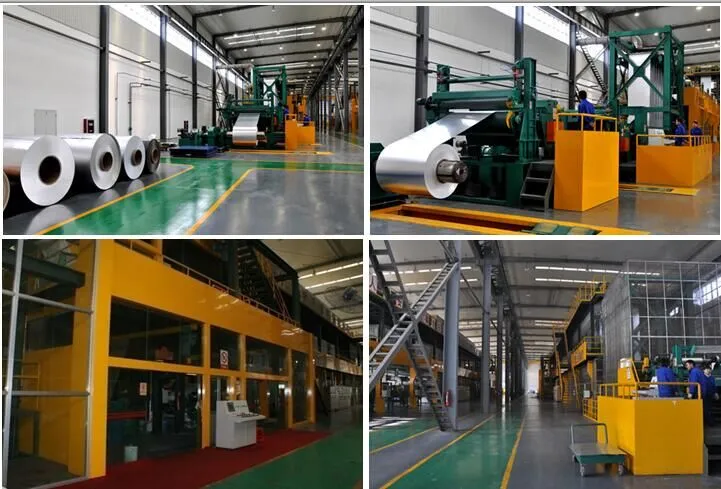

Operating with a total investment of RMB 430 million and covering an area of 200,000sqm, our facility maintains high-end production lines including:
