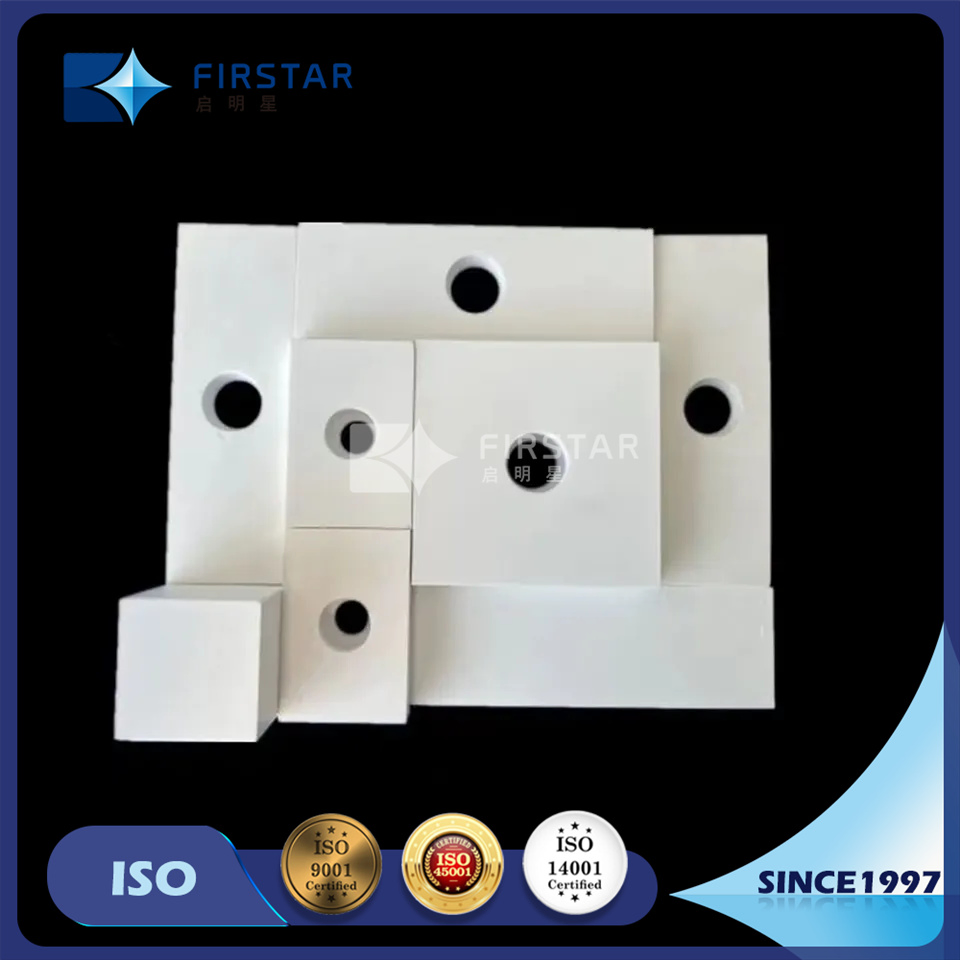

95% Al2O3 High Alumina Ceramic Wear Plates for Heavy-Duty Industrial Use

1 / 5

95% Al2O3 High Alumina Ceramic Wear Plates for Heavy-Duty Industrial Use

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

Weldable Type Ceramic Plate

Material

Aluminum

Type

Wear Resistant Plate

Apparence

White

Density

>3.6

Material Content

92%, 95%, T95%, Zta

Mohs Hardness

Bending Strength

>220

Transport Package

Paper Carton with Pallet

Production Capacity

18000 Tons/Years

🛠️ Product Description

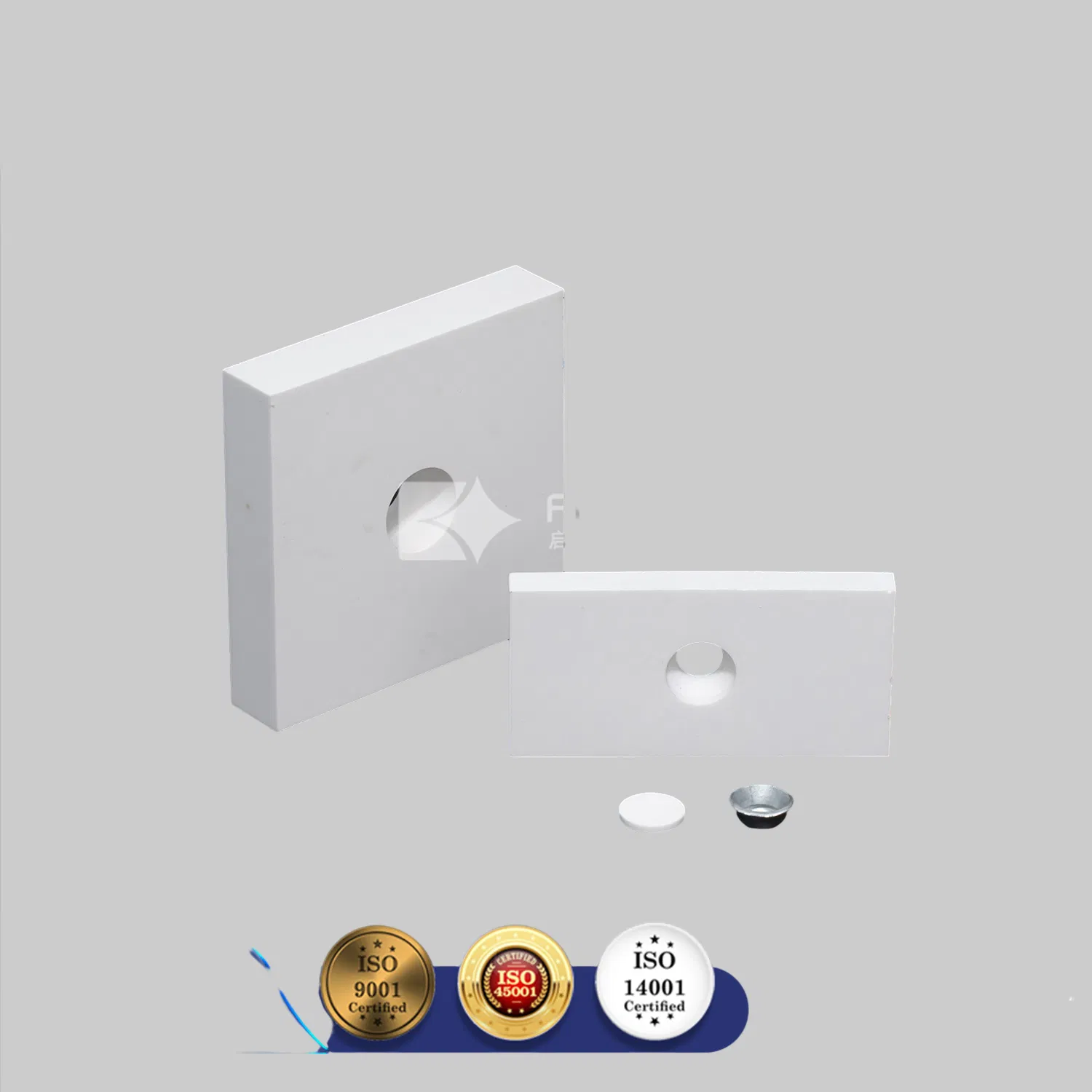

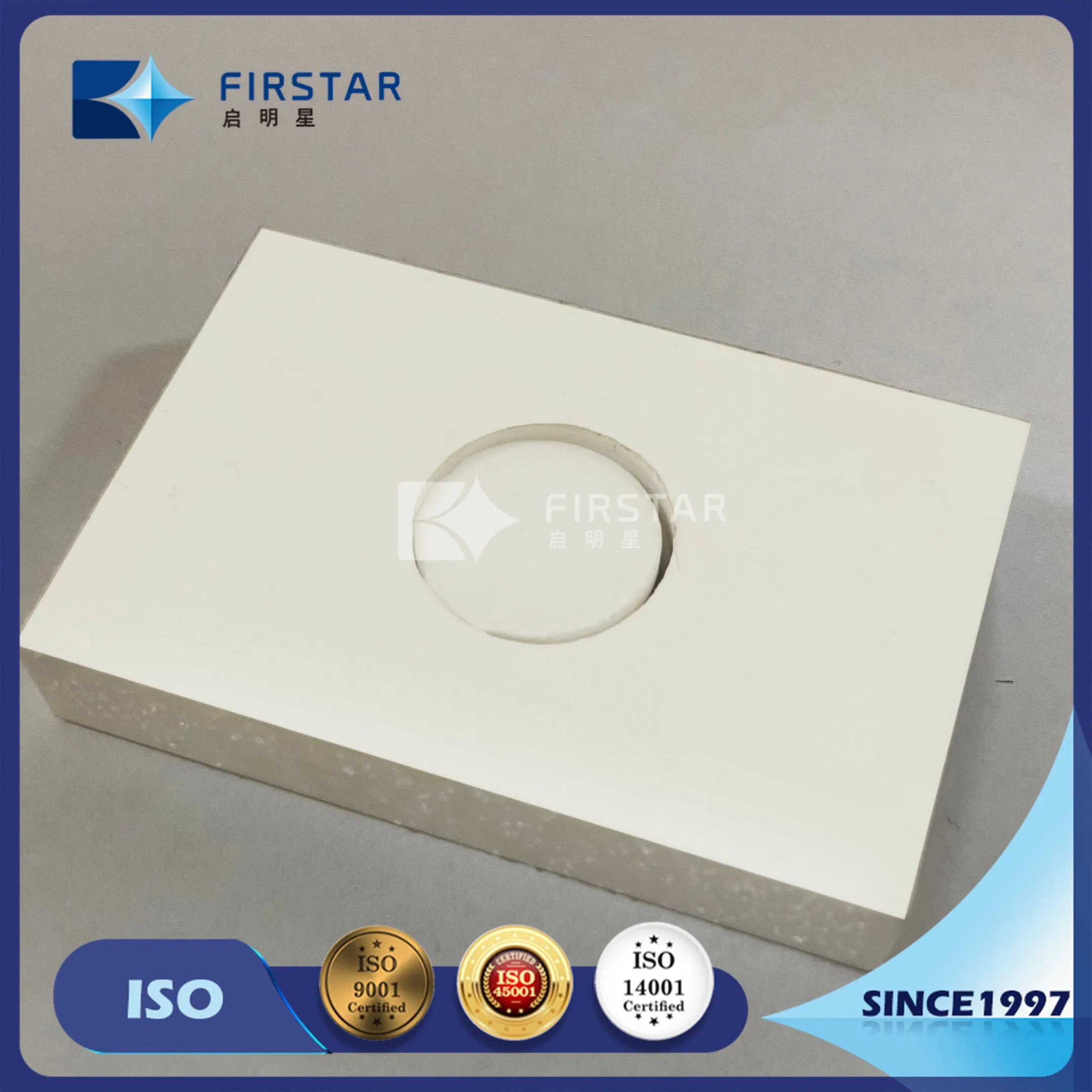

95% Al2O3 High Alumina Ceramic Wear Plates for Heavy-Duty Industrial Use

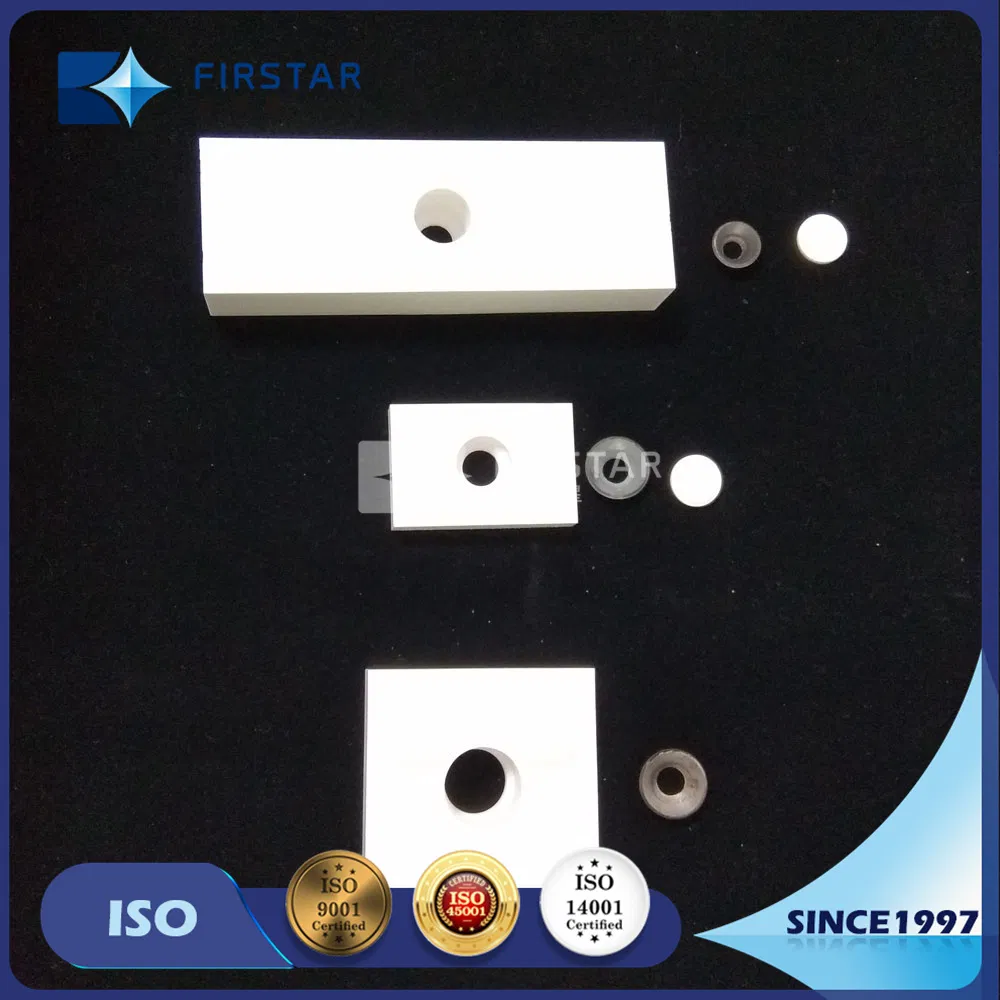

Welding Type:
Welding wear-resistant ceramics are fixed by welding or gluing. After installation, the application range is greatly expanded. It is specifically designed for pneumatic conveying systems under severe conditions such as high temperature and impact. Temperature resistance can reach up to 800 ºC.

Key Product Features:

Exceptional Hardness
Superior Abrasion and Impact Resistance
Corrosion and Chemical Resistance
Lightweight for easy handling
Flexible installation by epoxy resin or bolt
Enhanced working environment (reduced noise and vibration)

📊 Product Parameters

Character	92	95	T95	99	ZTA	ZrO2
Density(g/cm³)	≥3.6	≥3.65	≥3.7	≥3.83	≥4.15	≥5.9
Al2O3(%)	≥92%	≥95%	≥95%	≥99%	≥75%	/
Bending Strength(MPa)	≥220	≥250	≥300	≥330	≥400	≥800
Rockwell Hardness HRA	≥82	≥85	≥88	≥89	≥90	≥88
Wear Volume(cm³)	≤0.25	≤0.20	≤0.15	≤0.10	≤0.05	≤0.05

💎 Product Series

High Alumina Bricks (Dimple/Groove)
Alumina Mosaic Pieces
Alumina Plain Tile
Alumina Pipe Tile
Alumina Radius Tile
Alumina Curved Tile
Irregular Shaped Tile
ZTA Tiles
Zirconia Lining Brick

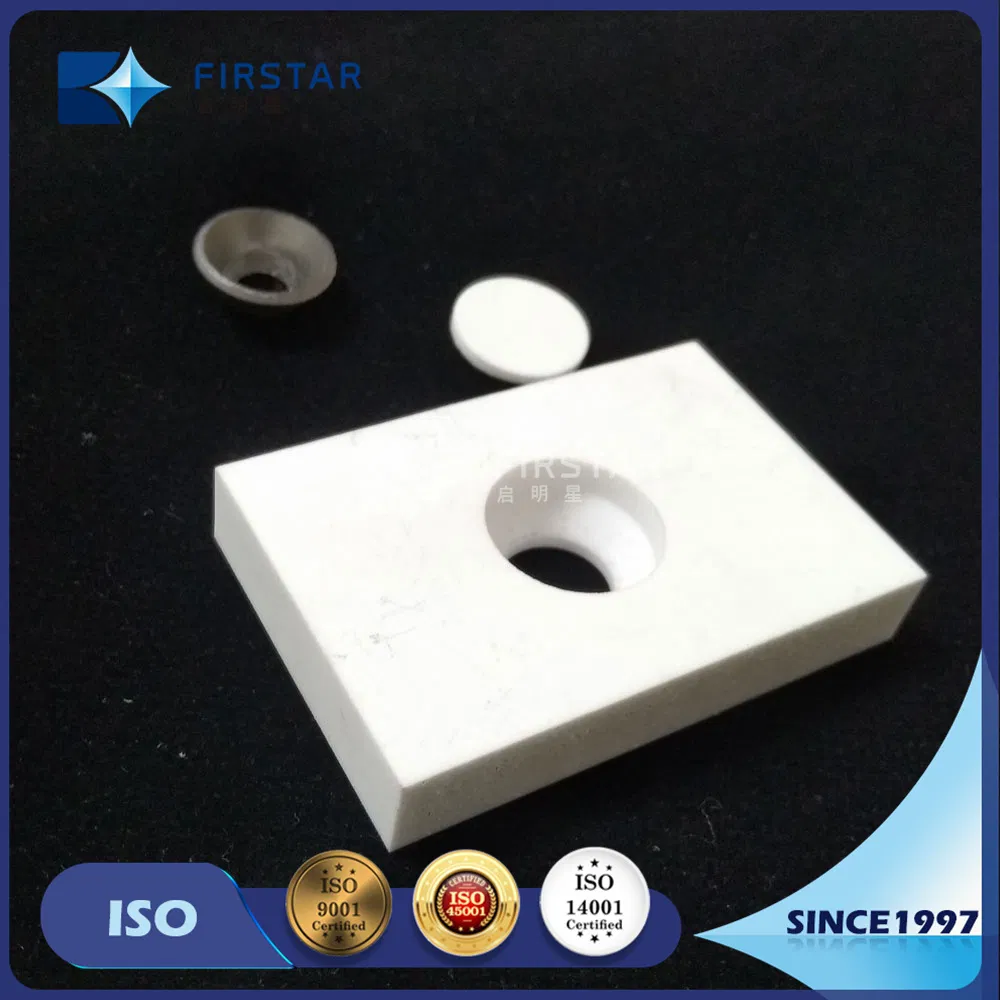

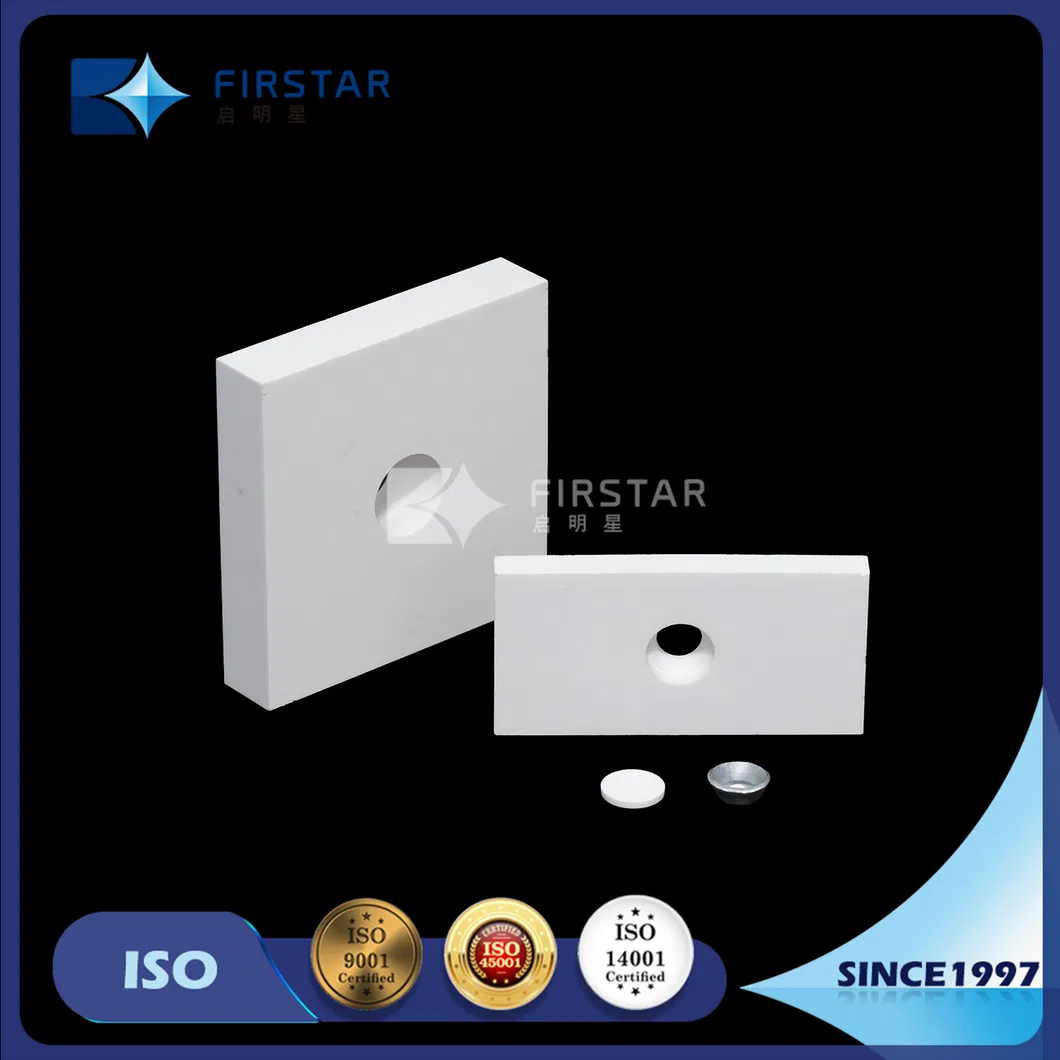

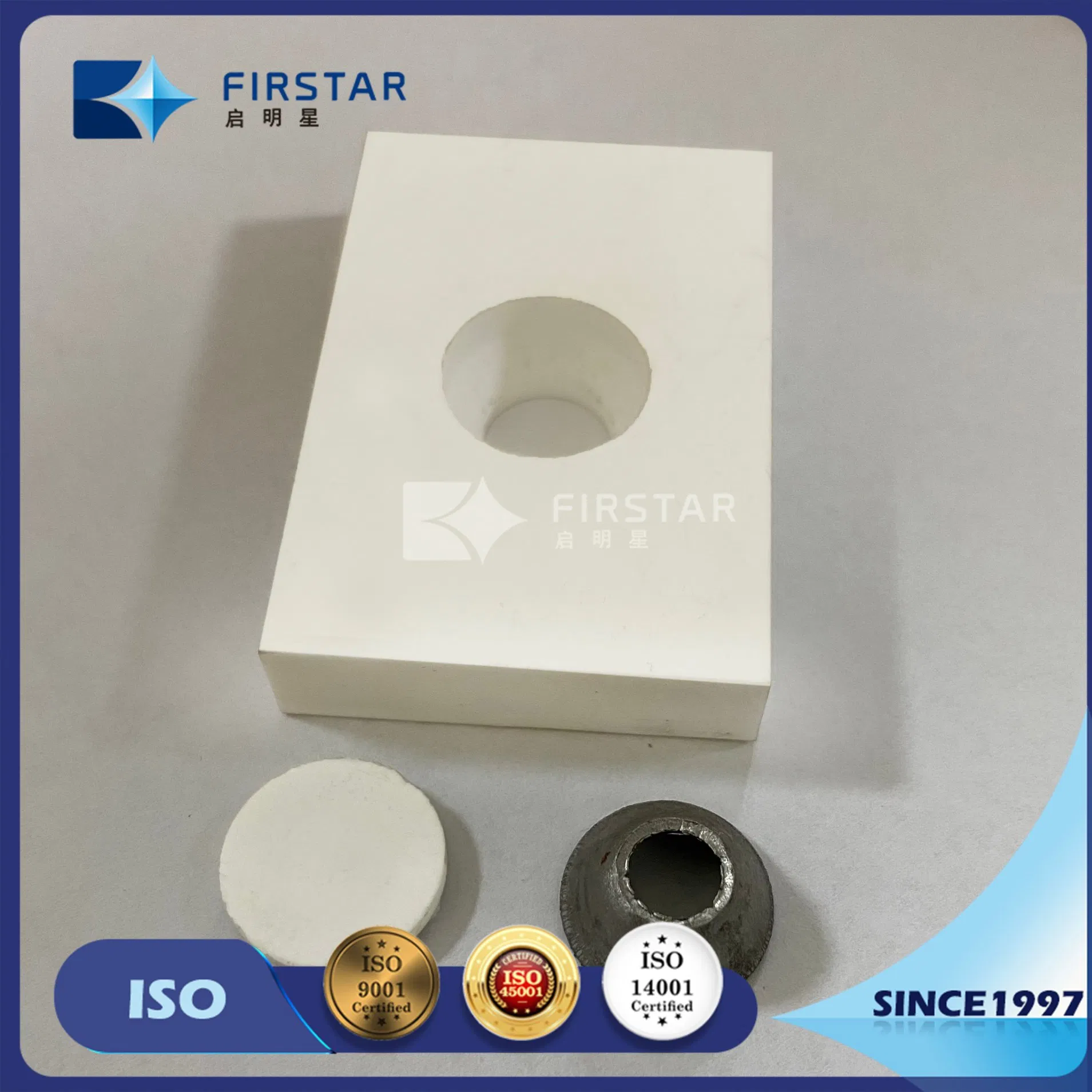

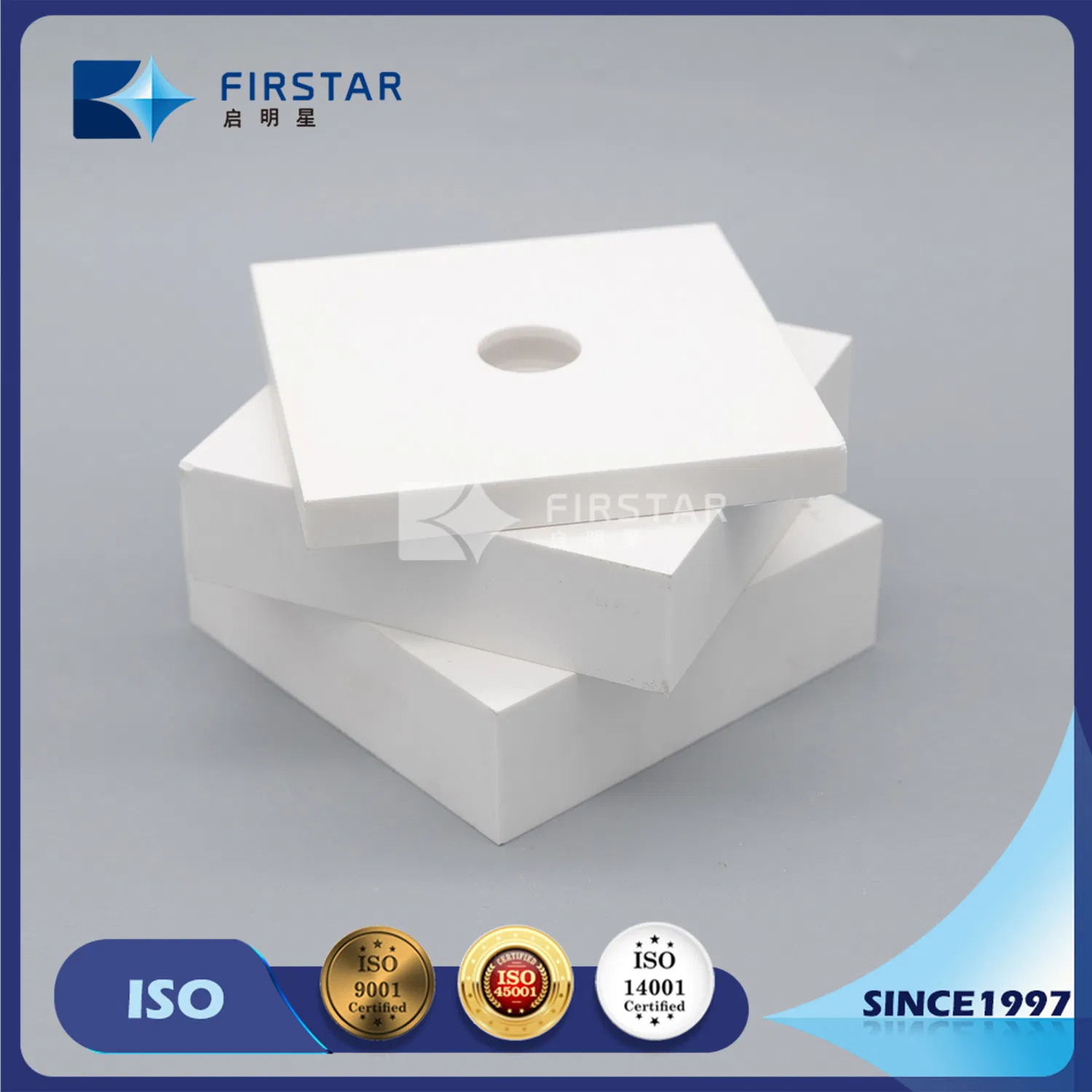

📸 Detailed Photos

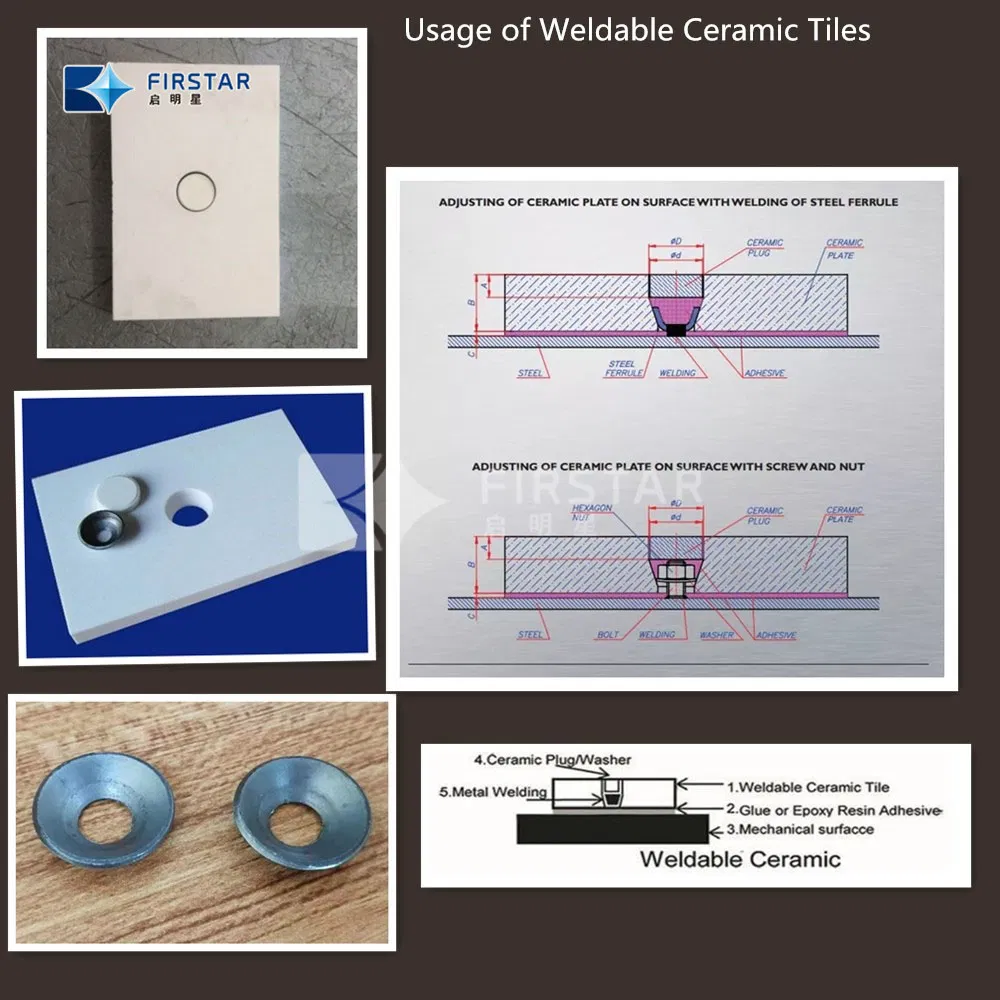

🔧 Installation Instructions

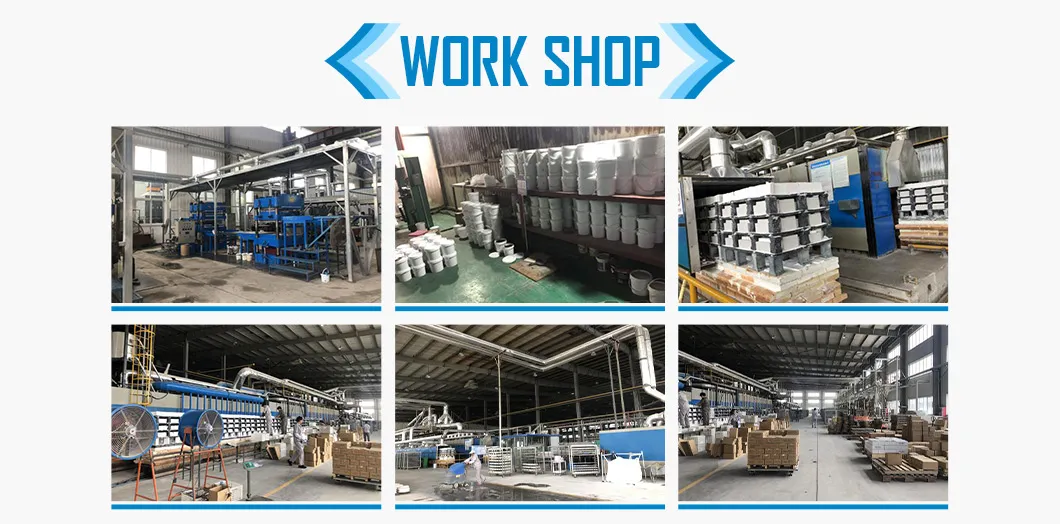

🏭 Production Capabilities

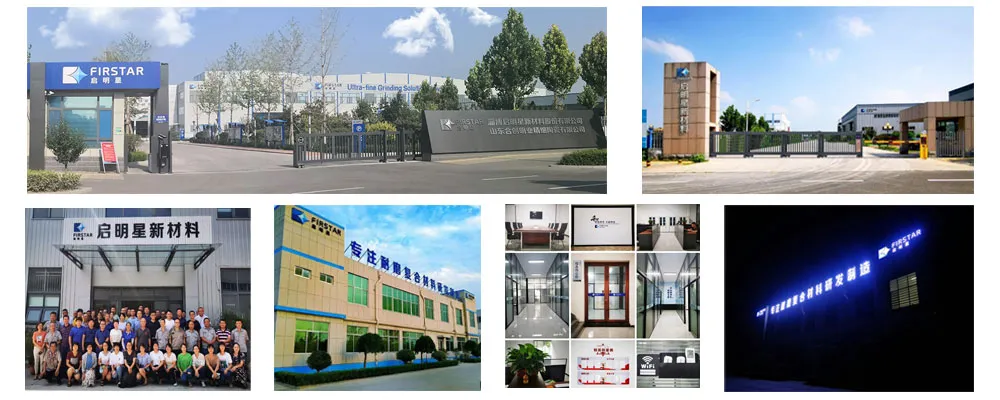

With over 25 years of experience in wear solution products, our facility spans a total construction area of 50,000 sqm. We utilize three own-designed production lines to supply a wide range of pre-engineered alumina ceramic tiles.

We provide wear-resistant solutions to global industries including Mining, Power Generation (coal-fired stations), Iron and Steel, Cement & Lime Manufacture, and Petro-Chemical Refining.
