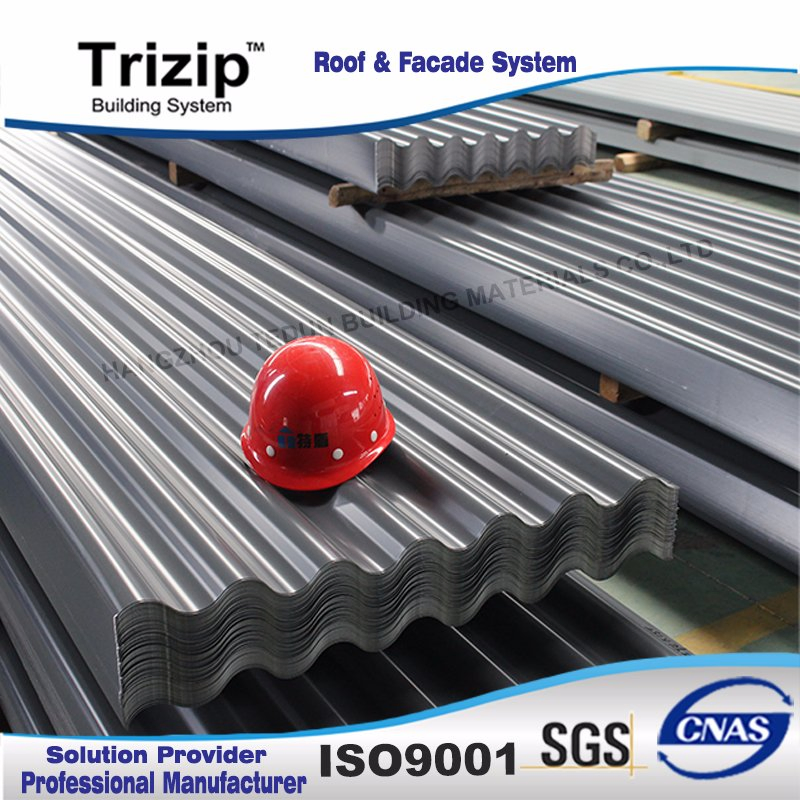

Coloured Steel Metal Sheet
| Item | Roof & Facade panels |
| Product name | trapezoidal penal |

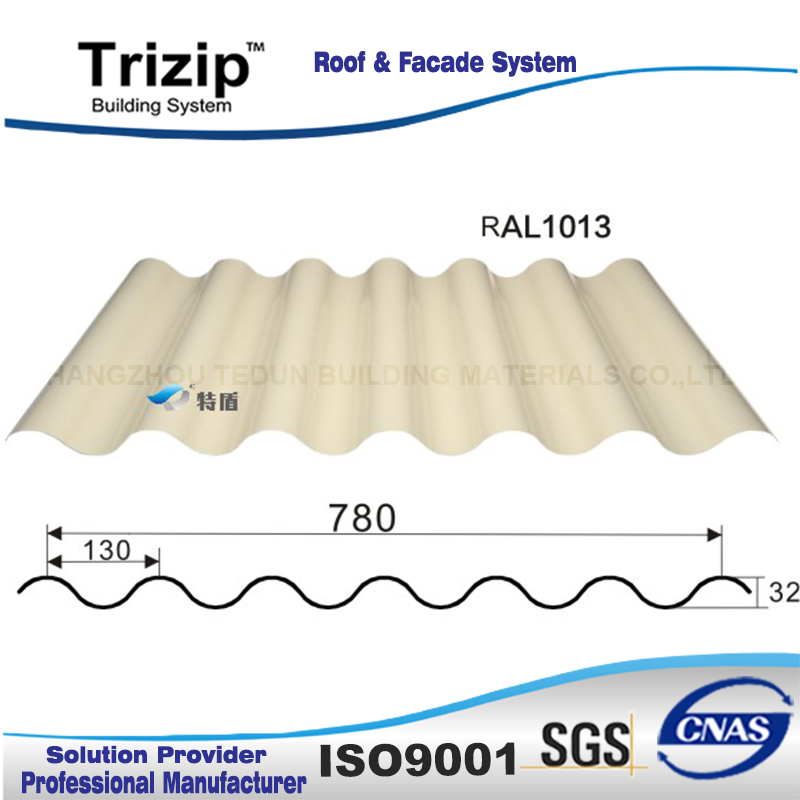

| Dimension | TD25-205-820, TD70-470, TD35-125-750, TD32-130-780, TD30-200-800, TD30-150-764, etc. |
| Material | AA3004, AA3003 (Aluminum Alloy) / PPGI (Prepainted Steel Sheet) / PPGL (Galvalume Steel) |
| Sheet Thickness | AA3004, AA3003: 0.7-1.2mm; PPGI/PPGL: 0.3-0.7mm |
| Effective width | 820mm, 470mm, 750mm, 780mm, 800mm, 764mm, etc. |
| Weight | Approx. 1.3kg-5.6kg/m |
| Maximum length | 11.8m (or on request) |
| Surface finished | Polyester (PE) and PVDF (Polyvinylidene Fluoride). |
| Colour | RAL standard colors, special colors available on request |
| Sub-structure | Vertical girders, stucco-embossed |
| Fastener | Steel (stainless) self-tapping fasteners, disc with seal. |
| Fixing method | In bottom/top flange |

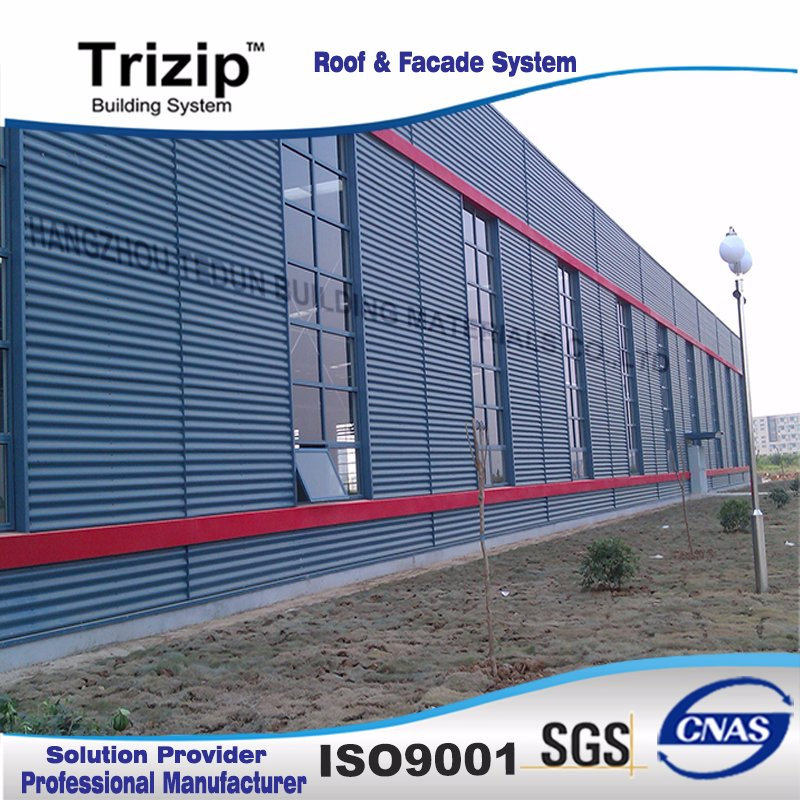

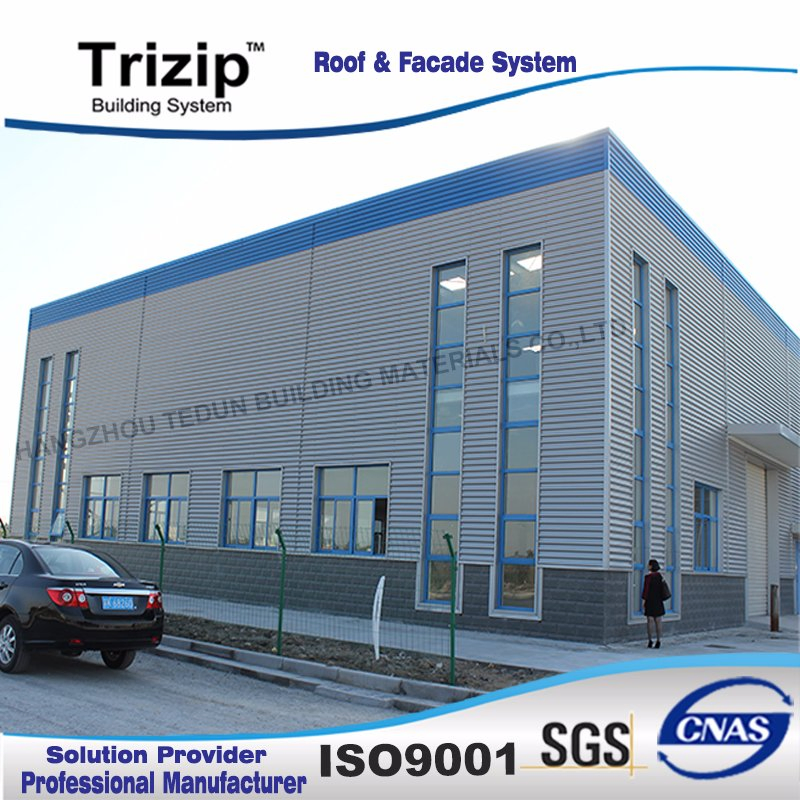

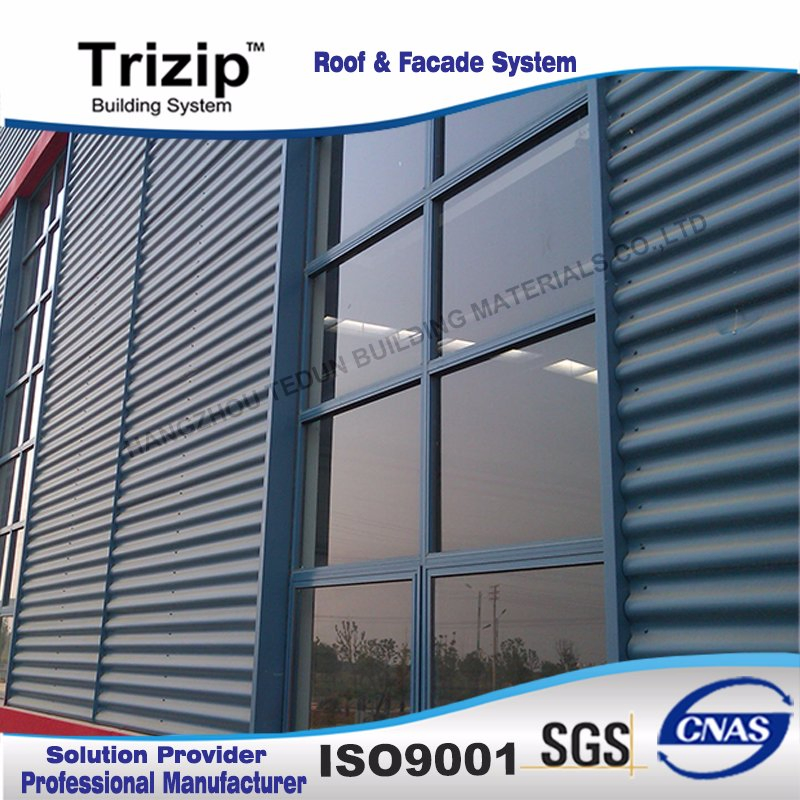

| Application | Exhibition hall, stadium, theater, station, airport, factory, museum, villa |
Whether for the whole roof or facade, or simply trims or other feature areas, we provide practical solutions with the guarantee of quality, durability, and long-lasting beauty.

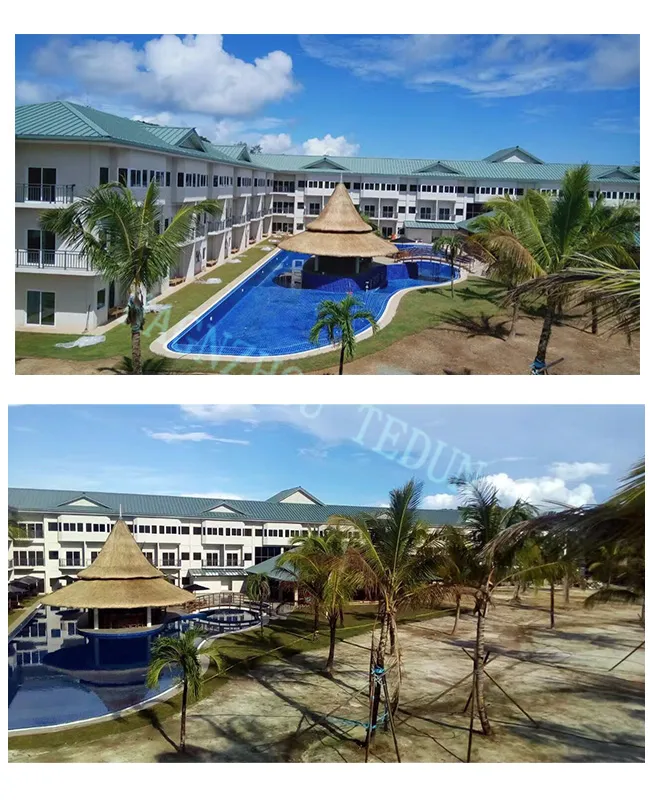

Project References
Package Details
