| Item | Roof & Facade Panels Details |
|---|---|

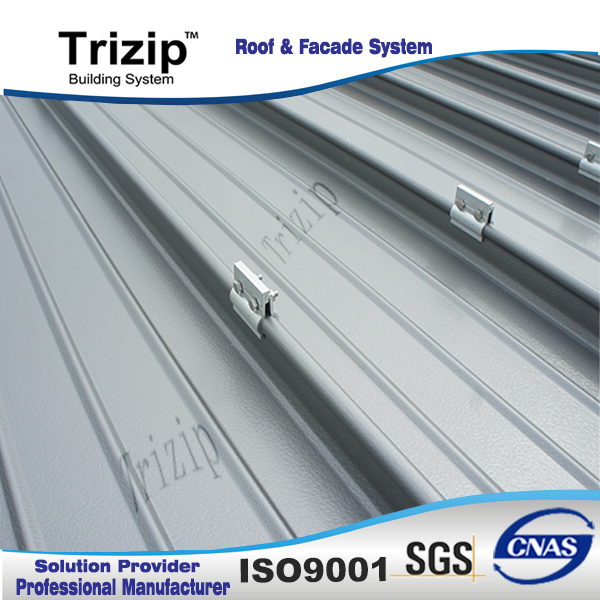

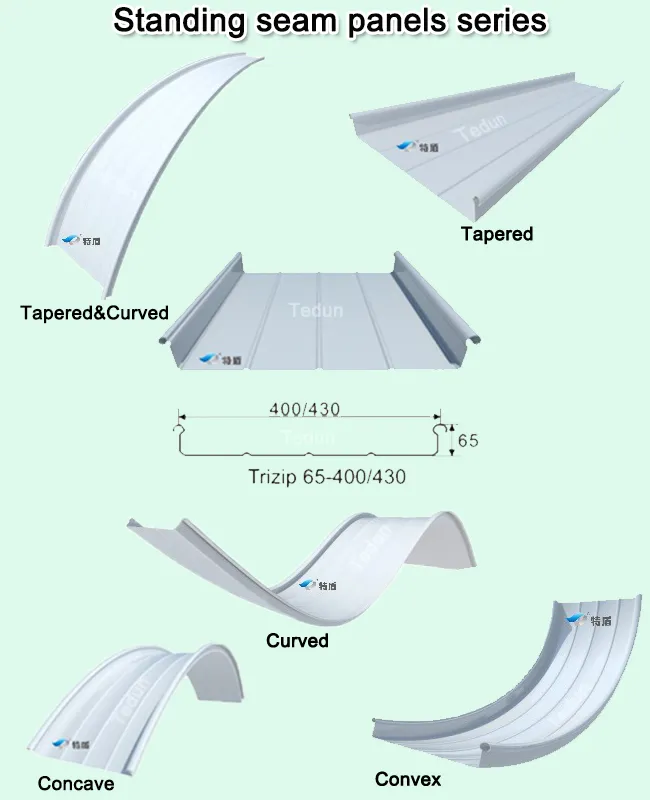

| Product Name | Standing seam roofing system |

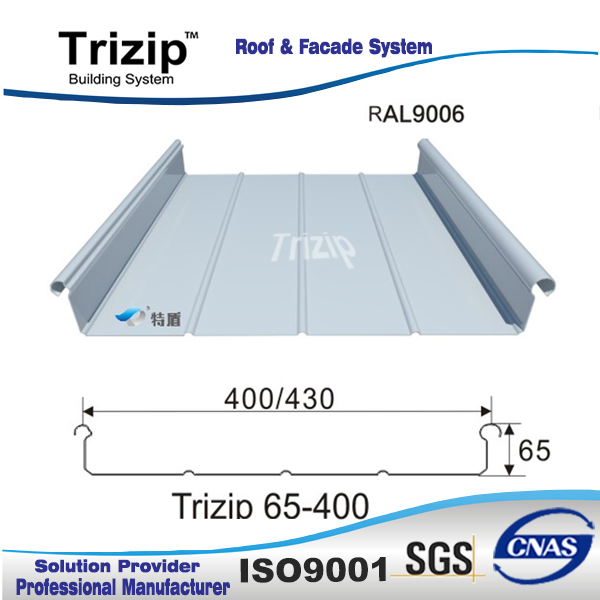

| Dimension | Trizip65/400, Trizip65/430, Trizip65/330, Trizip65/500 |
| Material | AA3004, AA3003 (Aluminum Alloy) / PPGI (Prepainted Steel) / PPGL (Galvalume) |
| Sheet Thickness | AA3004/AA3003: 0.7-1.2mm; PPGI/PPGL: 0.3-0.7mm |
| Effective Width | 330mm; 400mm; 430mm; 500mm |
| Weight | Approx. 1.3kg-1.7kg/m |
| Maximum Length | 11.8m (or on request) |
| Surface Finished | Polyester (PE) and PVDF (Polyvinylidene Fluoride) |
| Colour | RAL standard colors, special colors available |
| Sub-structure | Vertical girders, stucco-embossed |
| Fixing Method | In bottom/top flange |

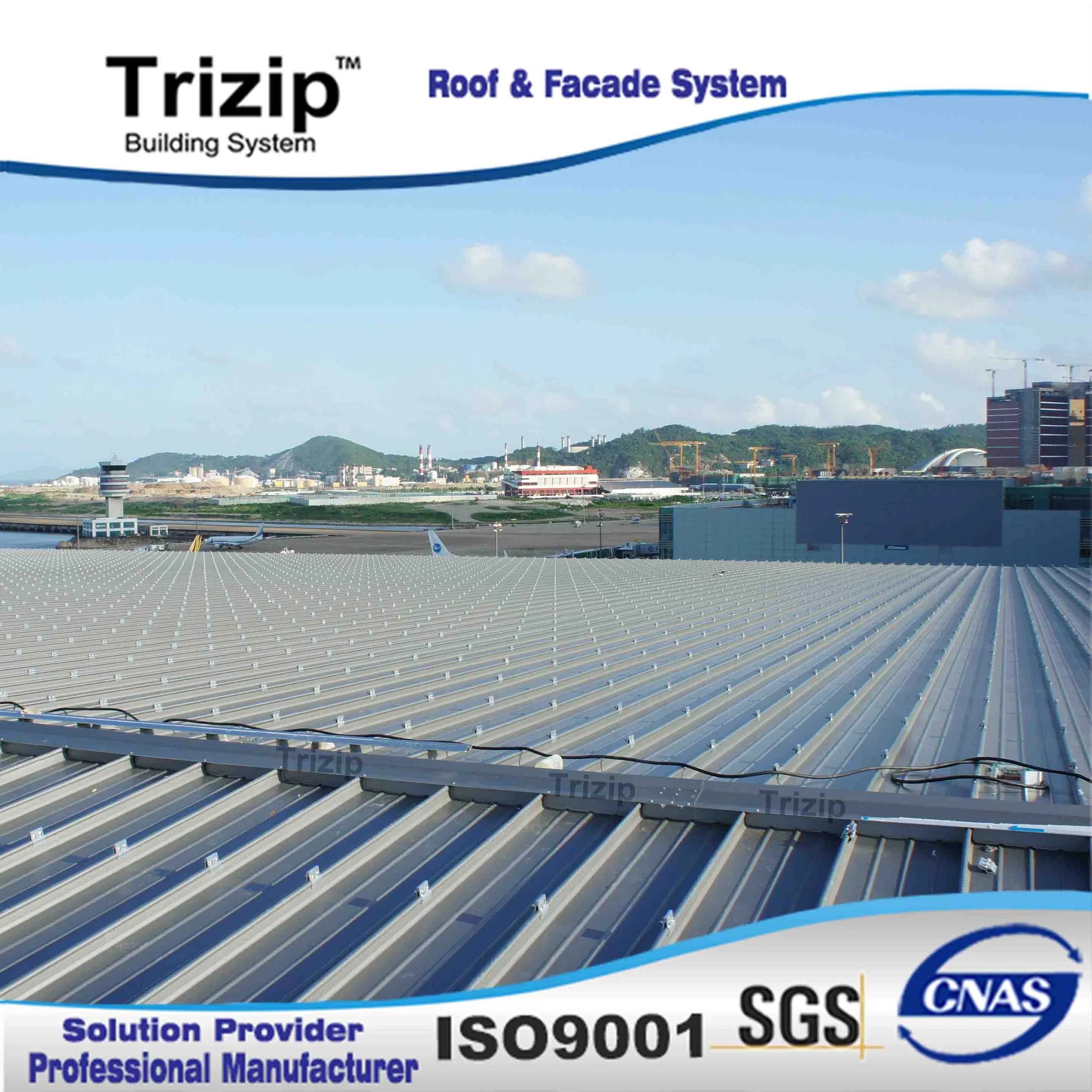

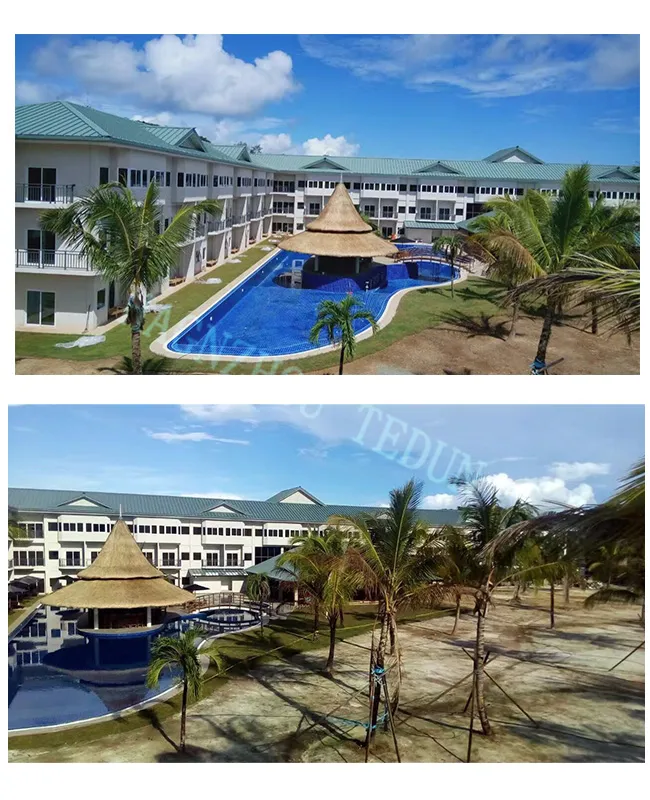

We are dedicated to developing green architecture. Through years of research and improvement in new construction materials, we provide Al-Mg-Mn, titanium-zinc, copper, and color steel roofing and wall panel series, alongside galvanized steel decking series. These solutions are extensively used in sports complexes, exhibition halls, warehouses, terminal buildings, automobile 4S shops, agricultural projects, landscape construction, and private villas.

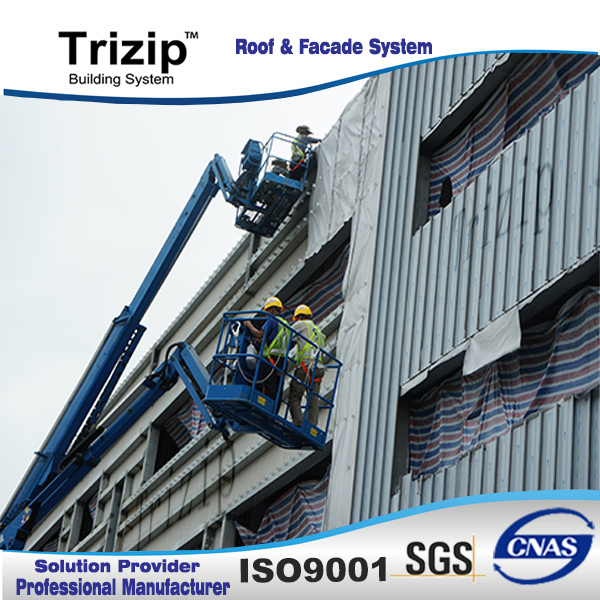

Whether for the whole roof or facade, or simply trims or other feature areas, we provide practical solutions with a guarantee of quality, durability, and long-lasting beauty.
